AN82.70-P-0008-03ES Remove Roof Antenna

AN82.70-P-0008-03ES Remove Roof Antenna
- MODEL 212.2## (except 212.277) 1#

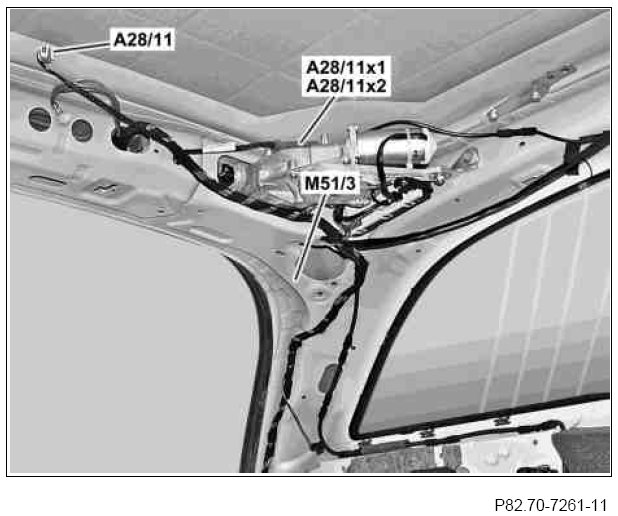

1 Pull out multifunction antenna electrical connection (A28/11x1) or multifunction antenna electrical connection (A28/11x2) behind the liftgate control drive unit (M51/3) and push back foam sheath.
Only on vehicles with code (537) Digital radio or with code (511) Audio 50 APS with DVD changer or with code (512) COMAND APS with DVD changer or with code (525) MB Audio 50 APS radio or with code (527) COMAND APS with single DVD drive (with navigation system).
The white multifunction antenna electrical connection (A28/11x2) is installed with code (537) Digital radio.
The violet multifunction antenna electrical connection (A28/11x1) is installed with code (511) Audio 50 APS with DVD changer or with code (512) COMAND APS with DVD changer or with code (525) MB Audio 50 APS radio or with code (527) COMAND APS with single DVD drive (with navigation system).

2 Disconnect multifunction antenna electrical connection (A28/11x1) or multifunction antenna electrical connection (A28/11x2).
The white multifunction antenna electrical connection (A28/11x2) is installed with code (537) Digital radio.
The violet multifunction antenna electrical connection (A28/11x1) is installed with code (511) Audio 50 APS with DVD changer or with code (512) COMAND APS with DVD changer or with code (525) MB Audio 50 APS radio or with code (527) COMAND APS with single DVD drive (with navigation system).

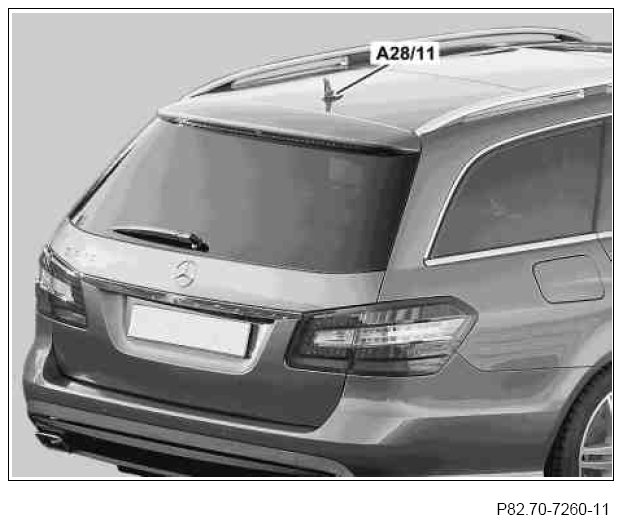

3 Unscrew screw/bolt (21) at multifunction antenna (A28/11) or multifunction antenna mock-up.






4 Remove multifunction antenna (A28/11) or multifunction antenna mock-up.
