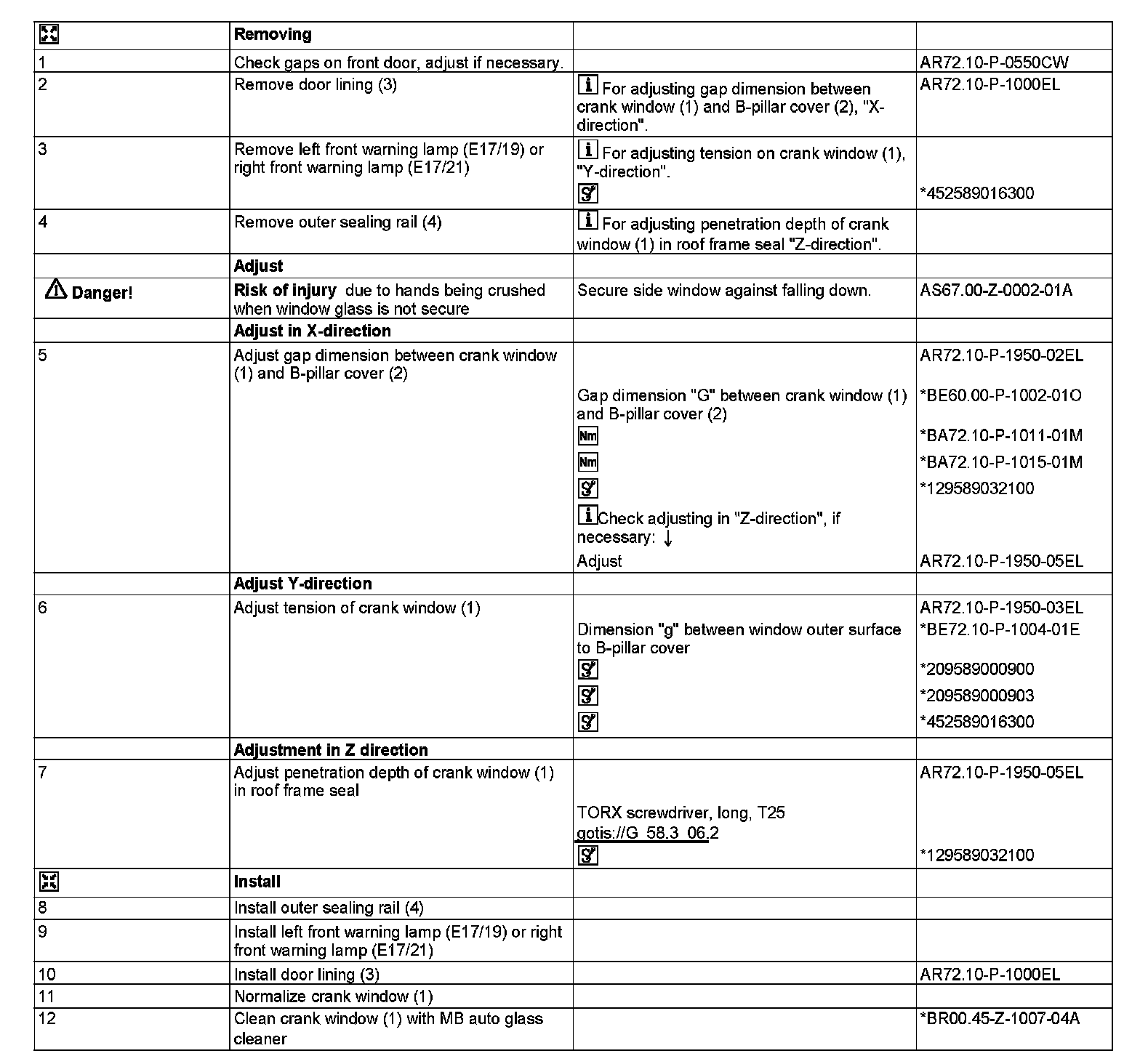

AR72.10-P-1950EL Adjust Front Door Crank Window

AR72.10-P-1950EL Adjust Front Door Crank Window
MODEL 218.3





1 Crank window
2 B-pillar cover
3 Door lining
4 Outer sealing rail

a Upper edge of crank window to roof frame seal (front penetration depth)
b Upper edge of crank window to roof frame seal (rear penetration depth)

G Gap dimension between crank window and B-pillar cover
X Adjusting crank window in Z-direction
Y Adjusting crank window in Y-direction
Z Adjusting crank window in Z-direction

E17/19 Left front door warning lamp
E17/21 Right front door warning lamp

















129 589 03 21 00
Feeler gauge





209 589 00 09 00
Socket wrench





209 589 00 09 03
Wrench socket





452 589 01 63 00
Snap-release tool
