Function Diagrams

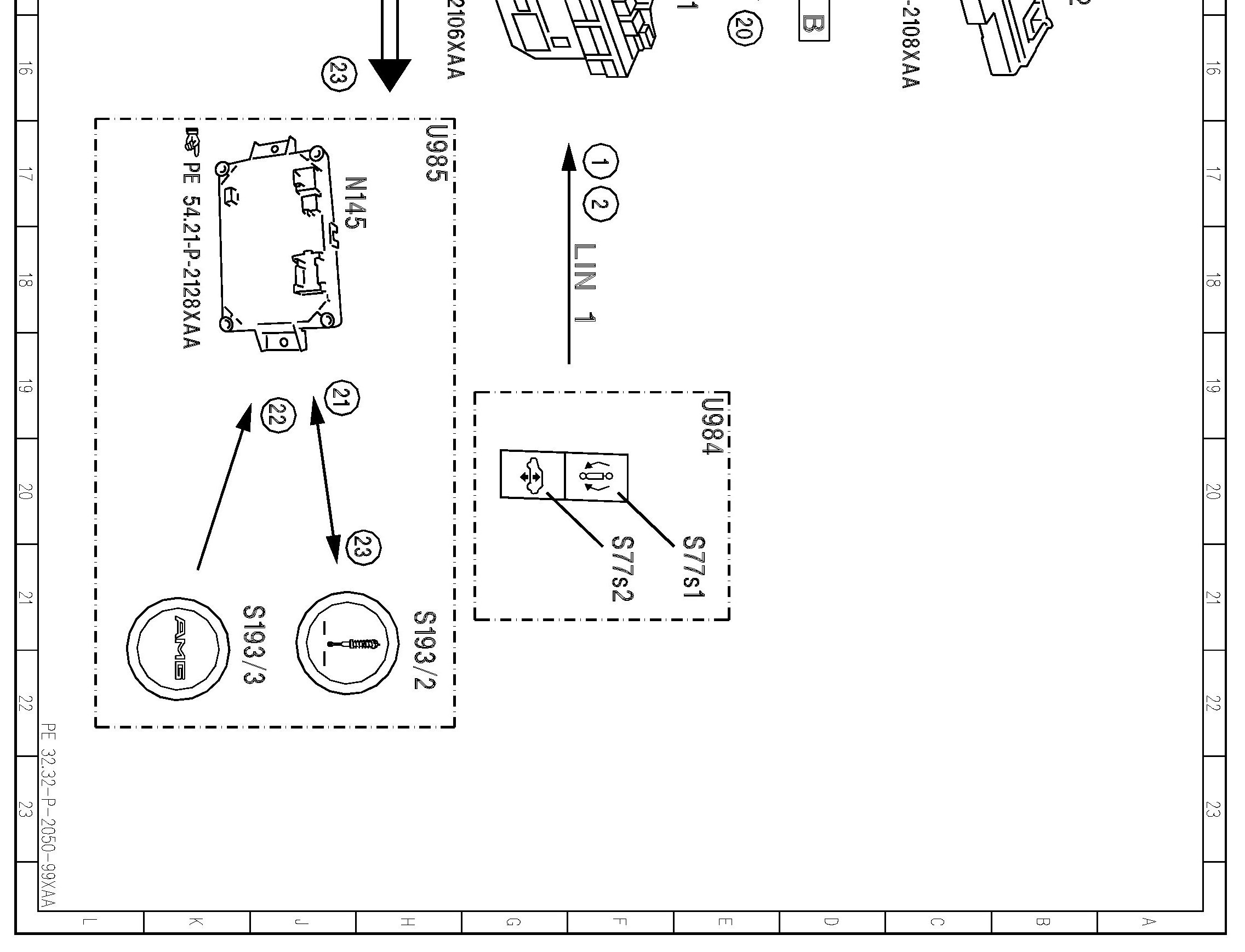

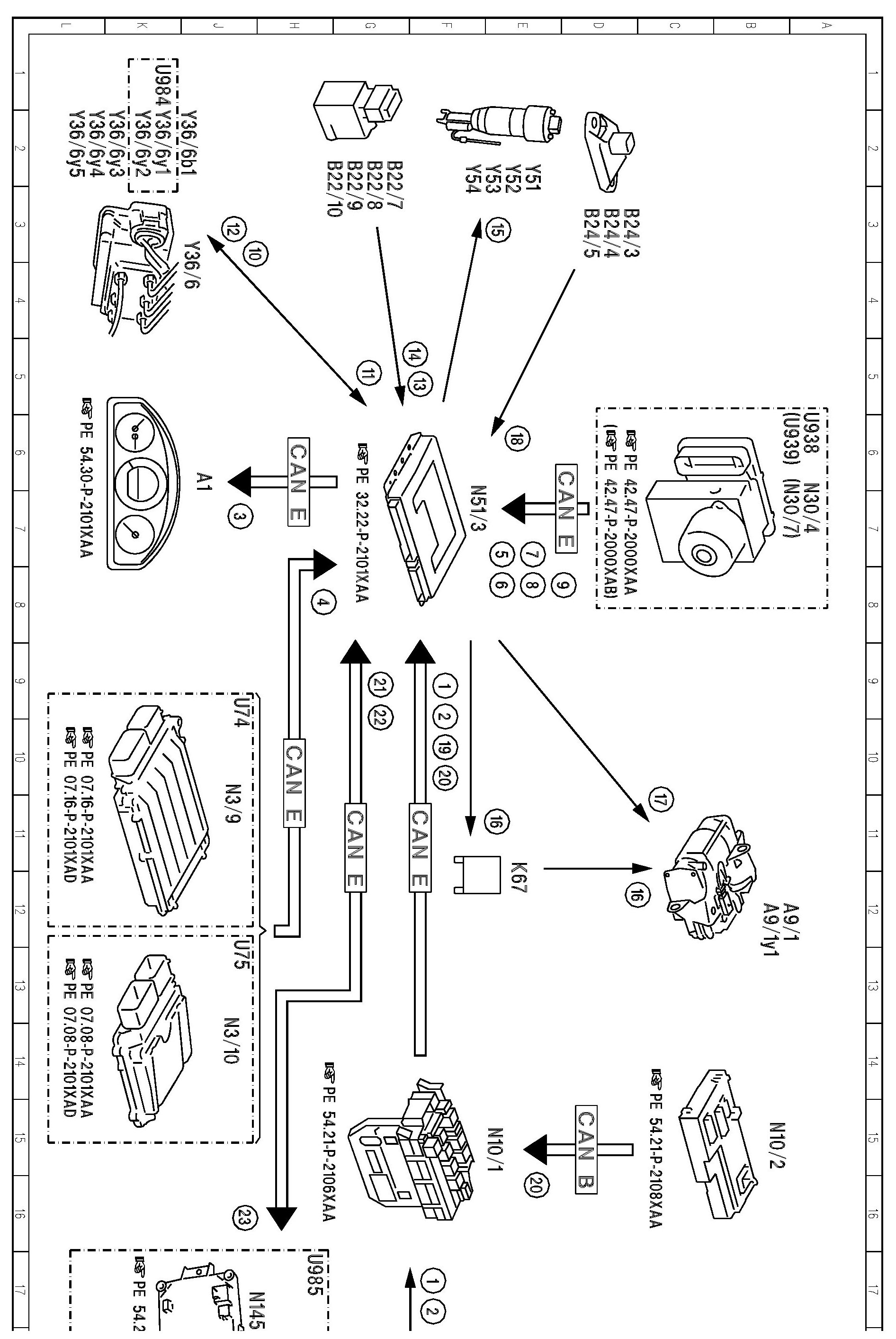

PE32.32-P-2050XAA Electrical function schematic for AIRmatic
MODEL 218
with CODE (489) AIRmatic (Air Suspension With Continuous Damper Adjust)














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
