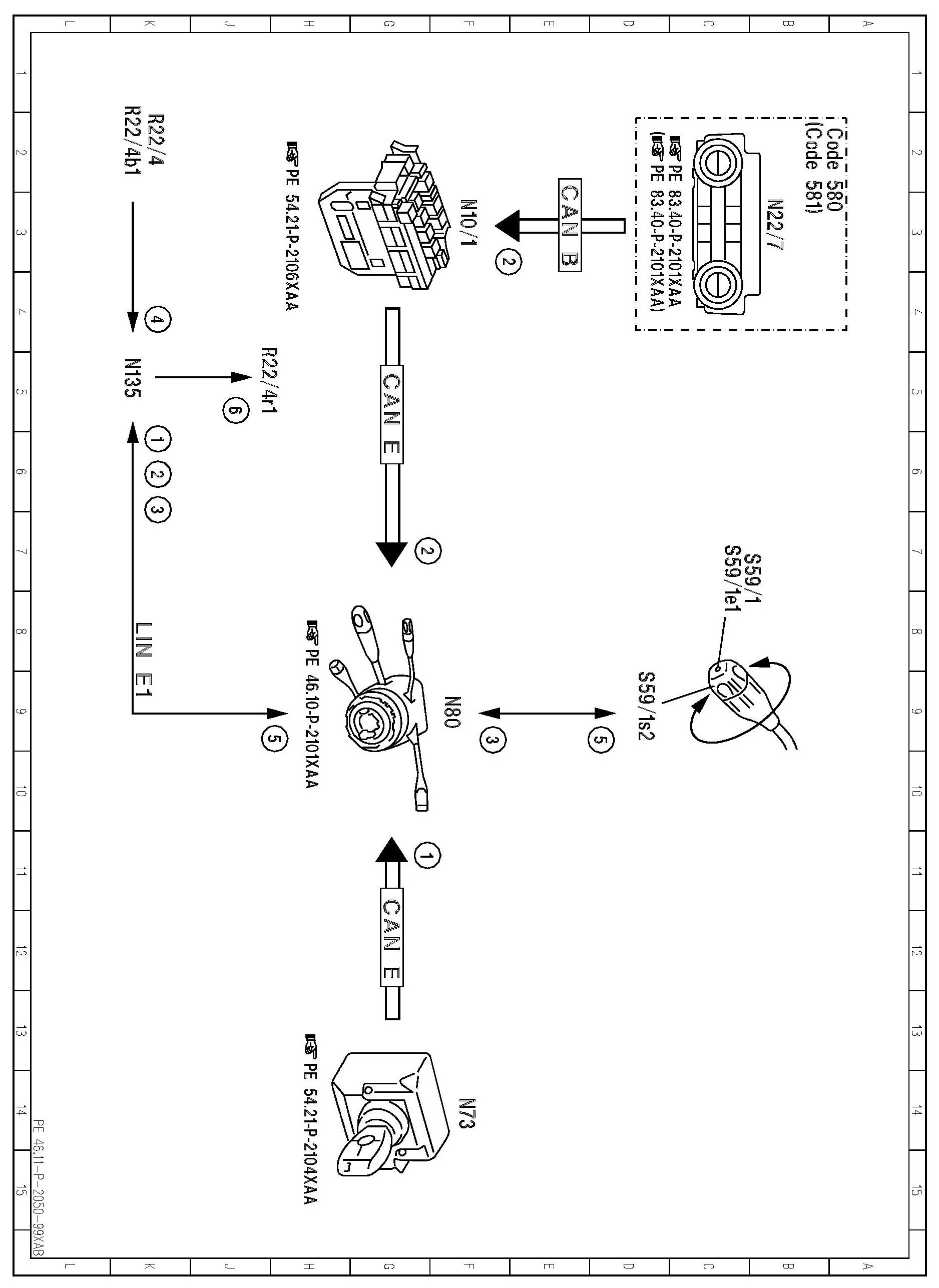

PE46.11-P-2050XAB Function Schematic of Electrical System For Steering Wheel Heater

PE46.11-P-2050XAB Function Schematic of Electrical System For Steering Wheel Heater
MODEL 218
with CODE (443) Steering Wheel Heater
as of model year 2013 /YoM 12


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
