With Code 489

AR40.20-P-0322-03EH Check caster and assign to tabular value

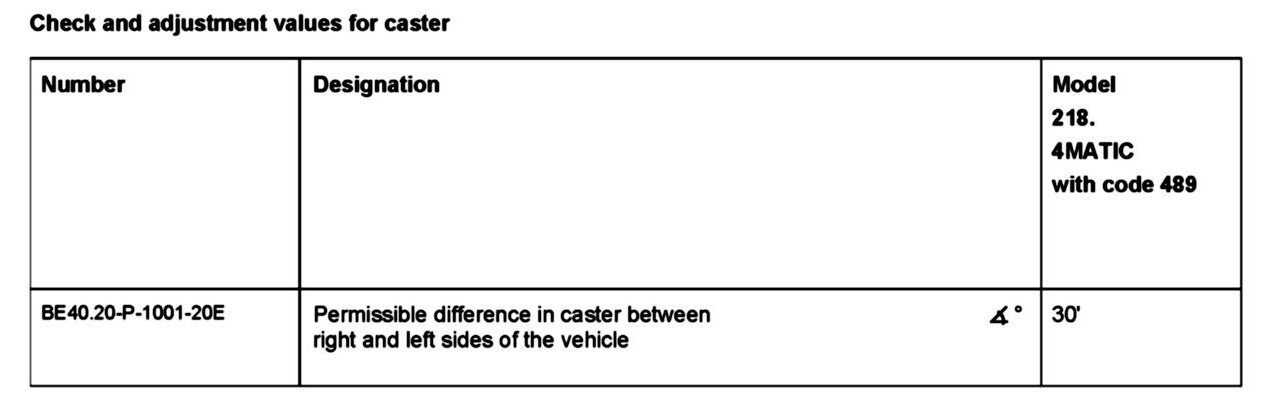

Tolerance for caster ±30'






The level values are displayed by the electronic inclinometer in decimal degrees [°].

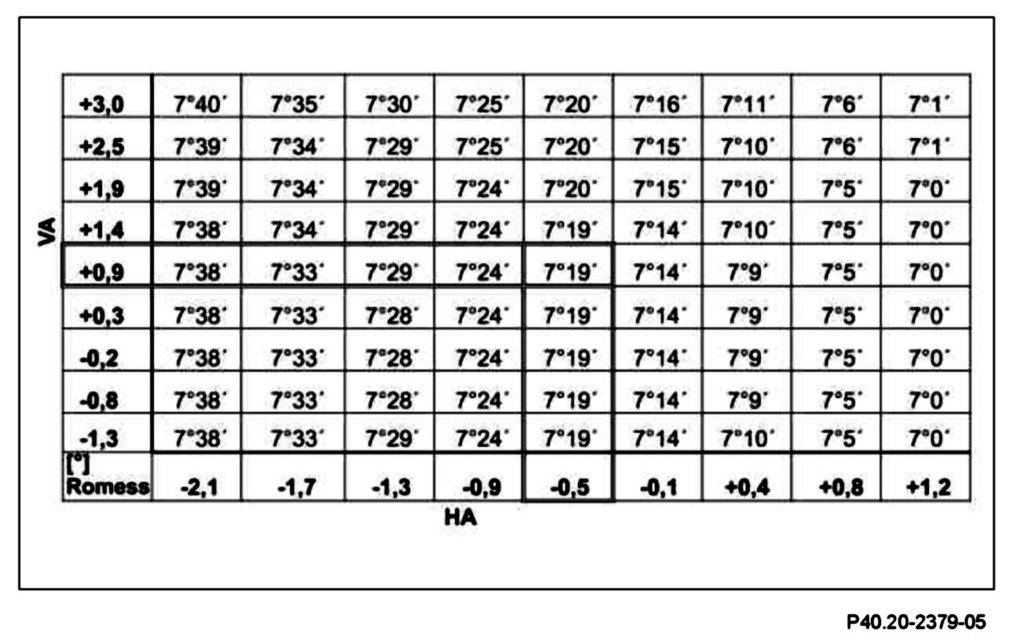

1 Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously.

Example, see Table:
Front axle level value (FA): +0.9°
Rear axle level value (RA): -0.5°
= Caster value 7°19' (±30')
