Steering Column Control Module: Diagrams

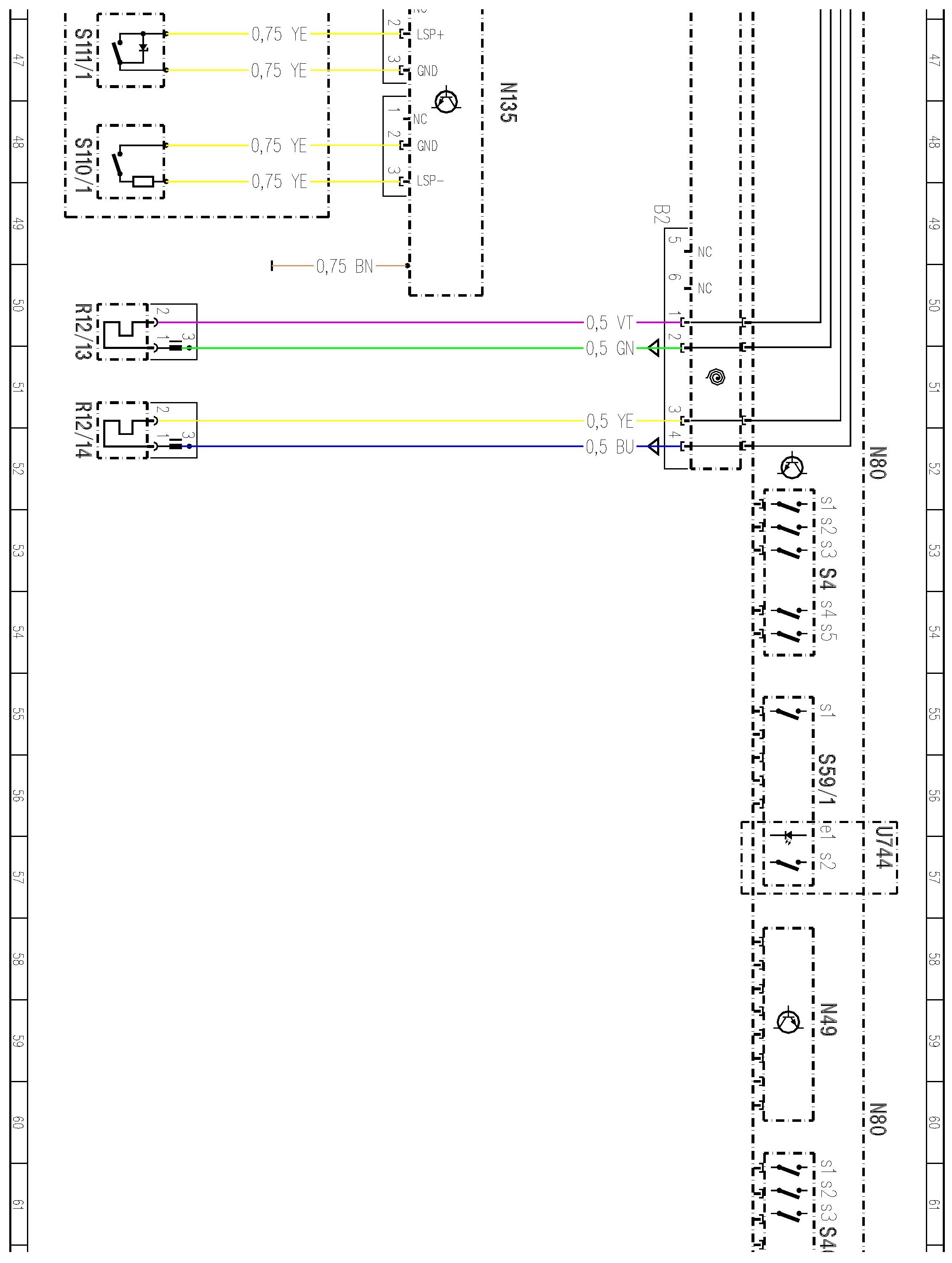

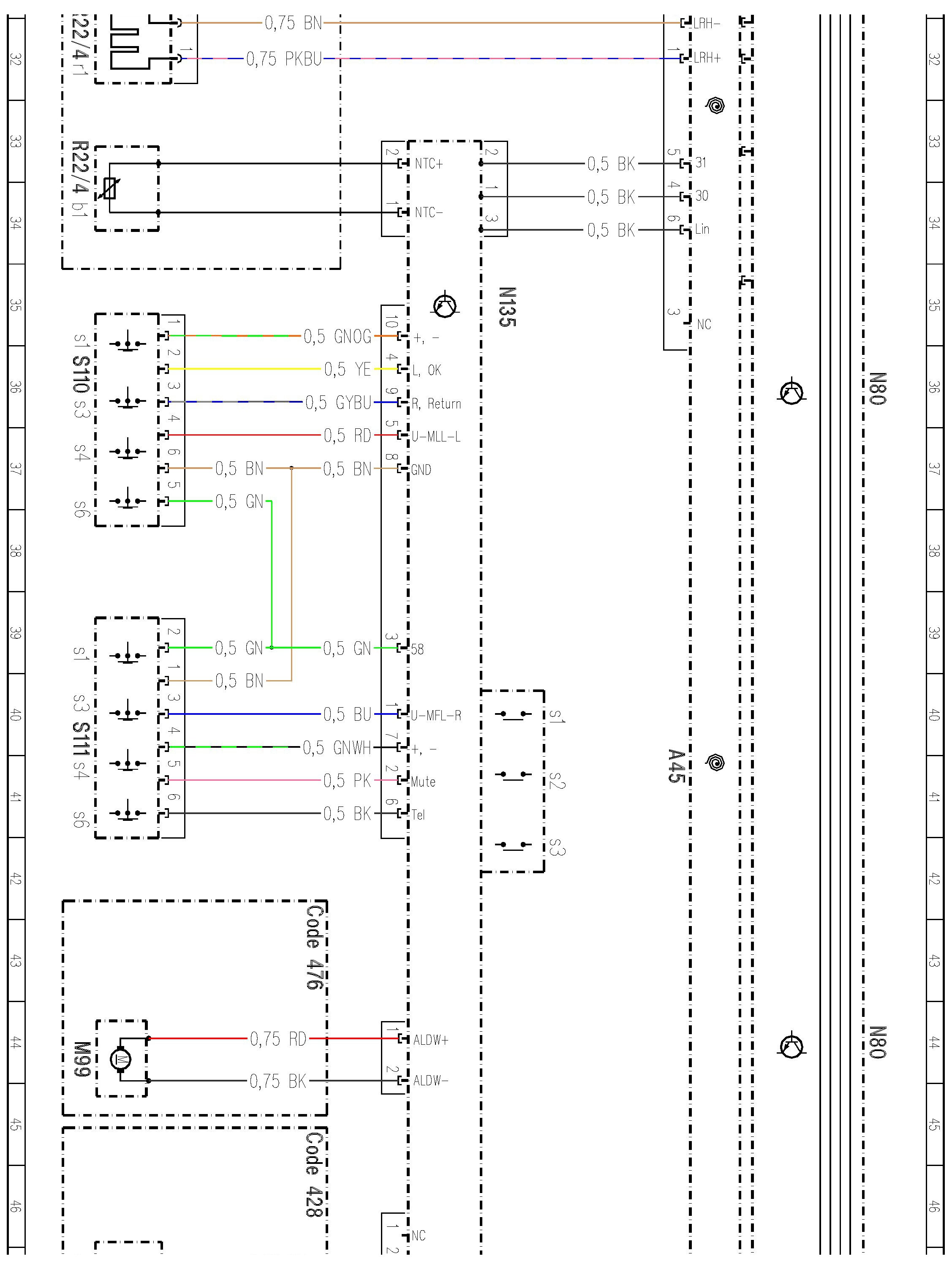

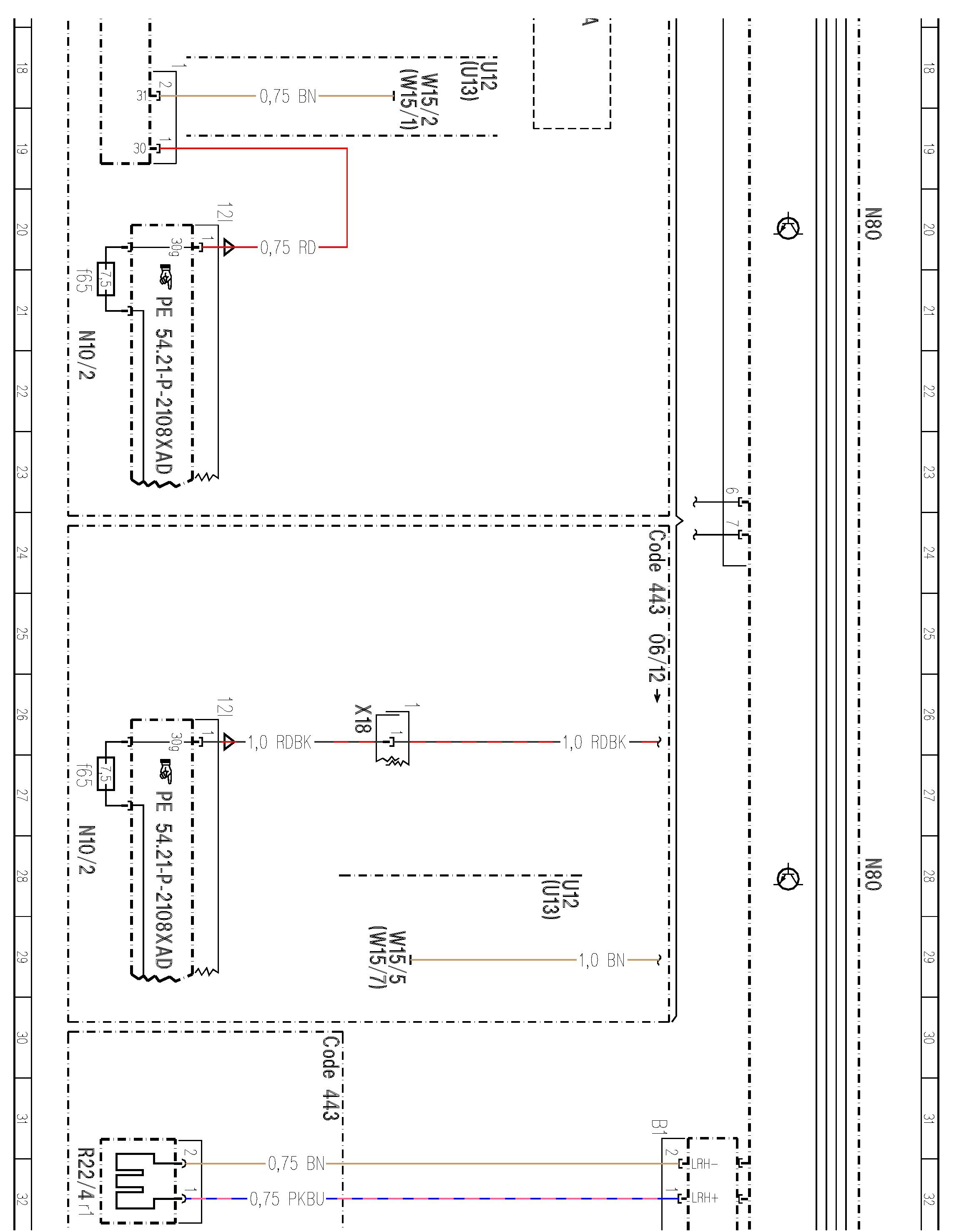

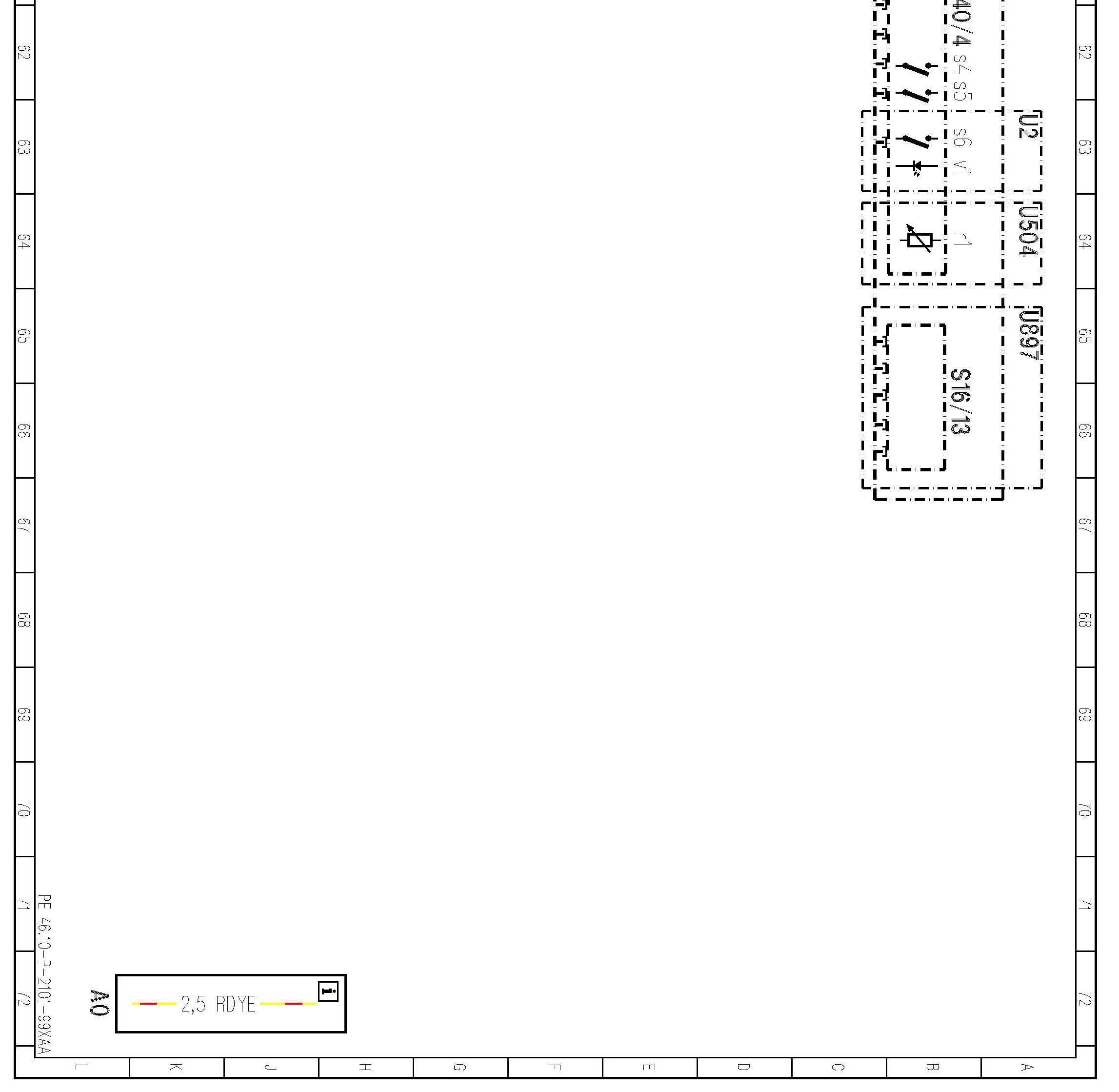

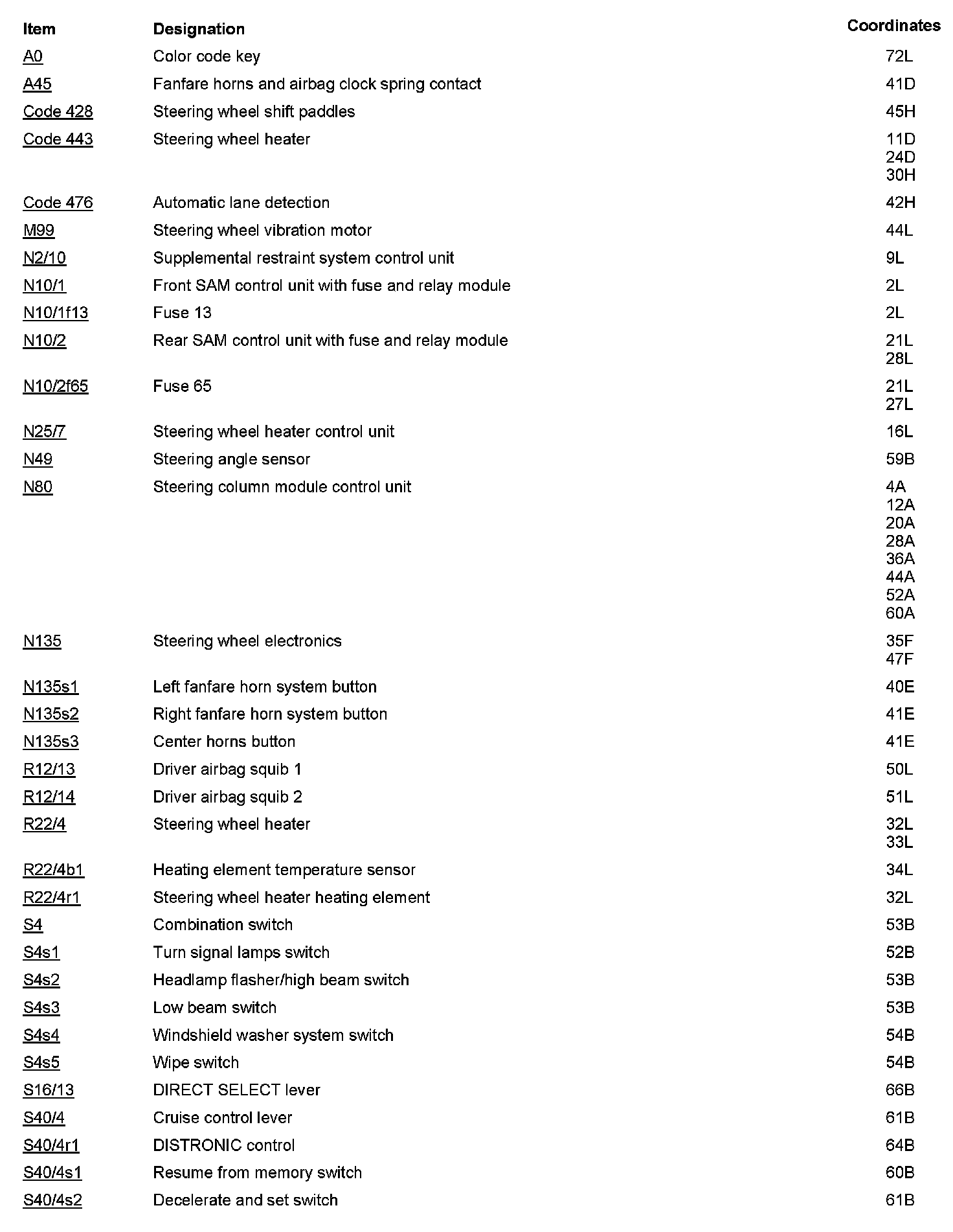

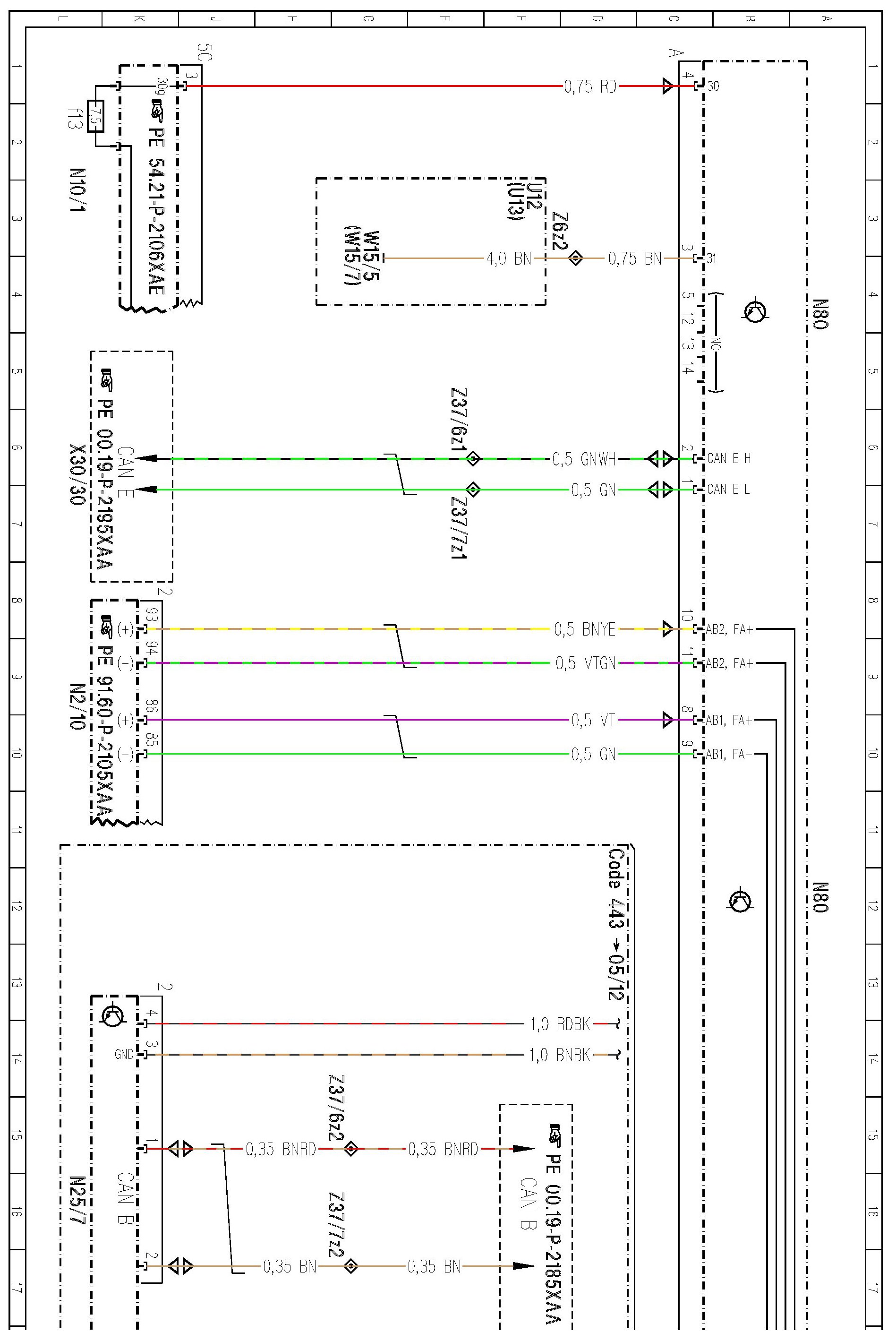

PE46.10-P-2101XAA Steering Column Module Control Unit
MODEL 218

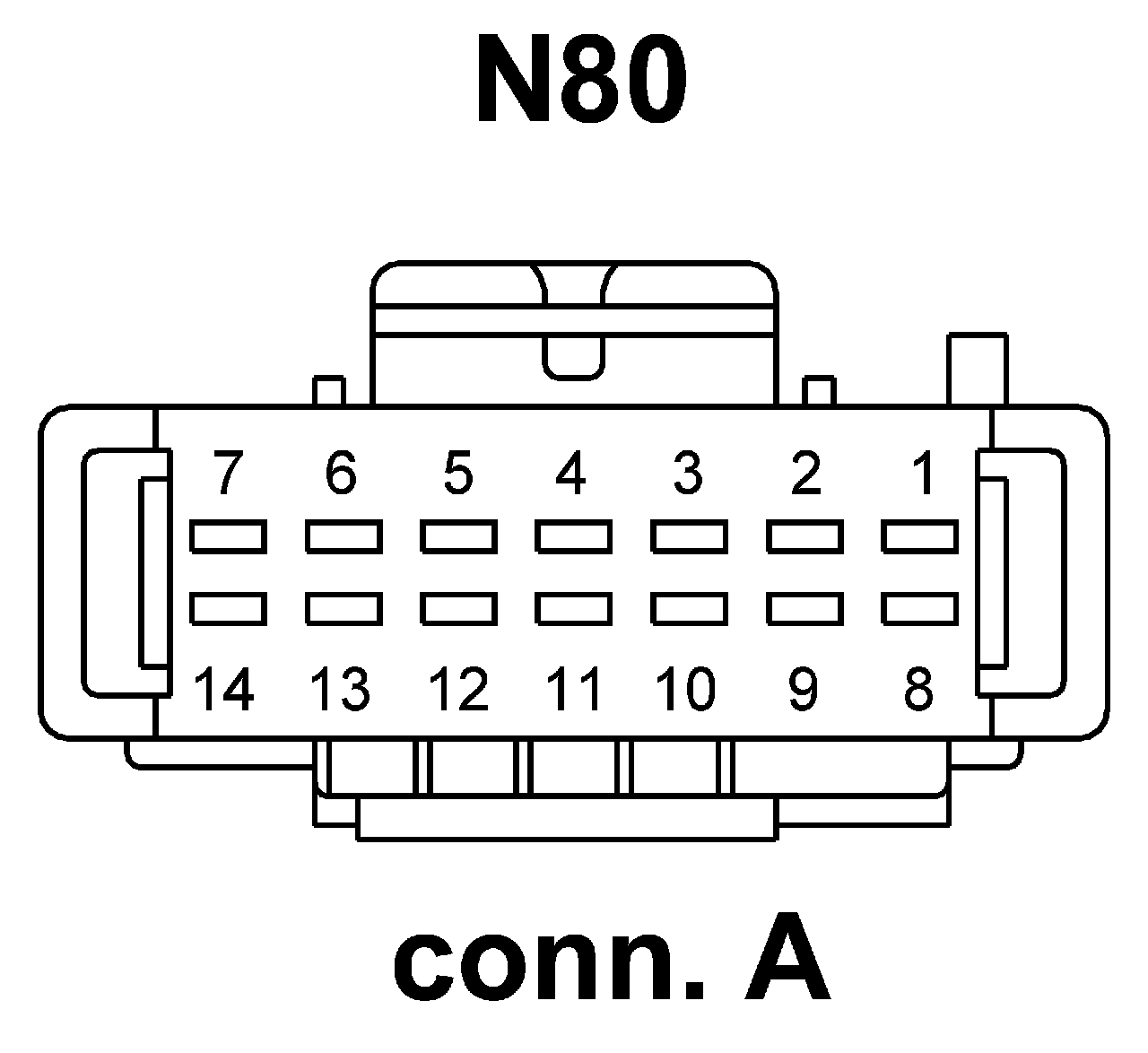

- Control Unit N80














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
