AR72.12-P-0103EL Remove/Install Rear Door Module

AR72.12-P-0103EL Remove/Install Rear Door Module
MODEL 218.3

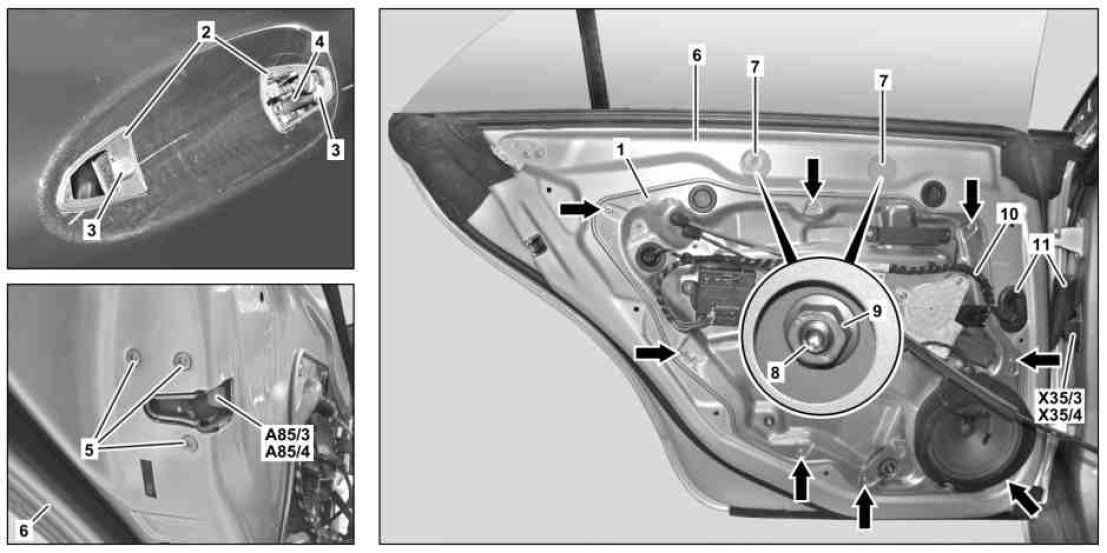

1 Door module
2 Seals
3 Screw
4 Bearing bracket
5 Bolts
6 Rear door
7 Adhesive pad
8 Adjustment screw
9 Nut
10 Door wiring harness
11 Protective tubing

A85/3 Left rear door lock
A85/4 Right rear door lock
X35/3 Left rear door electrical connector
X35/4 Right rear door electrical connector














110 589 03 59 00
Mounting wedge

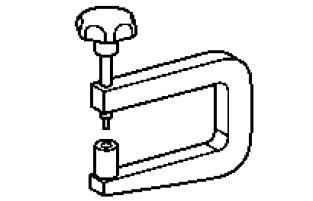

171 589 00 39 00
Rivet milling cutter





171 589 00 39 01
Milling bit crown





221 589 00 39 00
Press-out tool

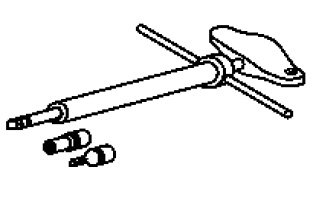

209 589 00 09 00
Socket wrench





209 589 00 09 03
Wrench socket
