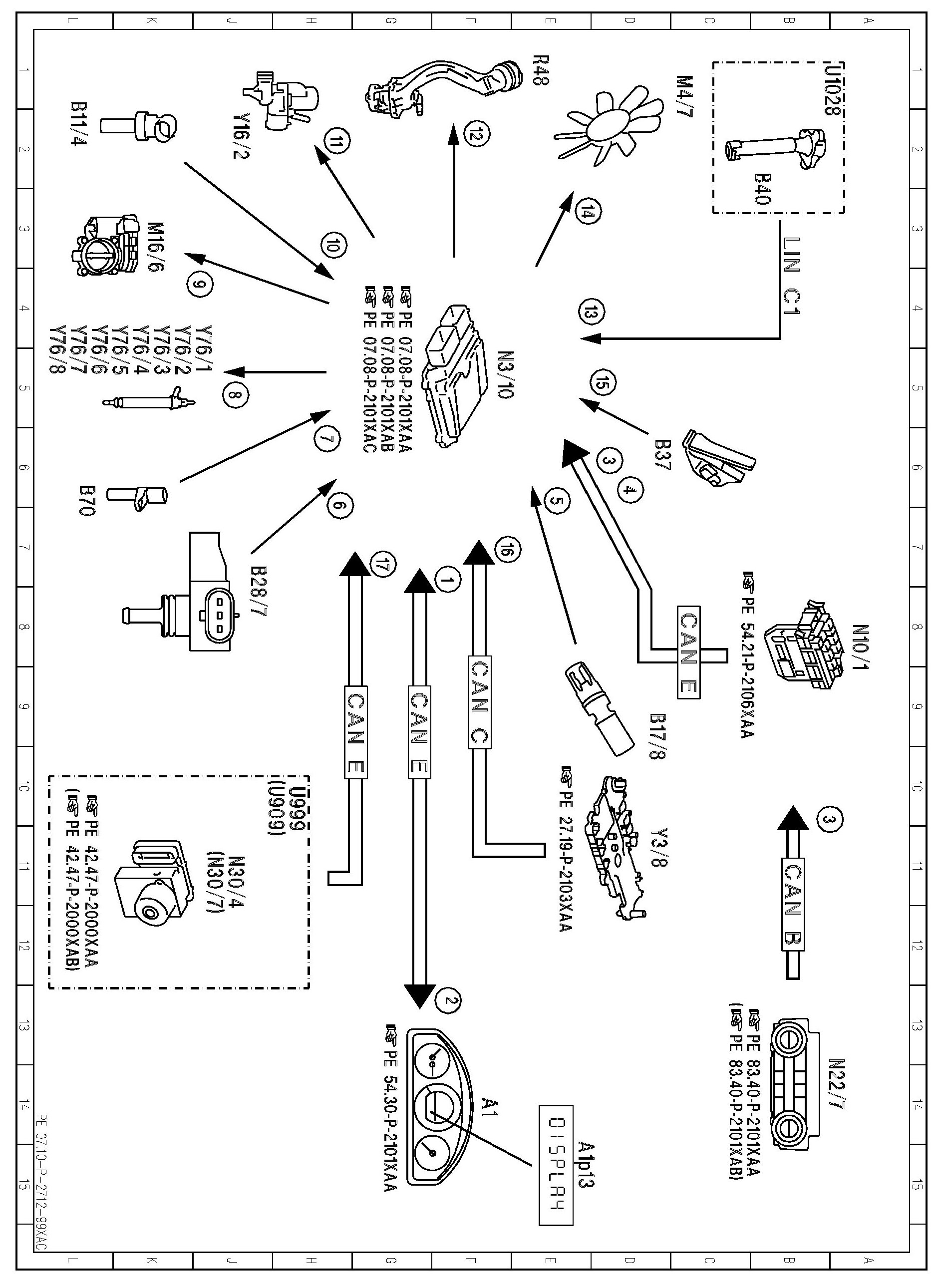

PE07.10-P-2712XAC Electrical Function Schematic For Thermal Management

PE07.10-P-2712XAC Electrical Function Schematic For Thermal Management
ENGINES 157, 278 in MODEL 218










































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
