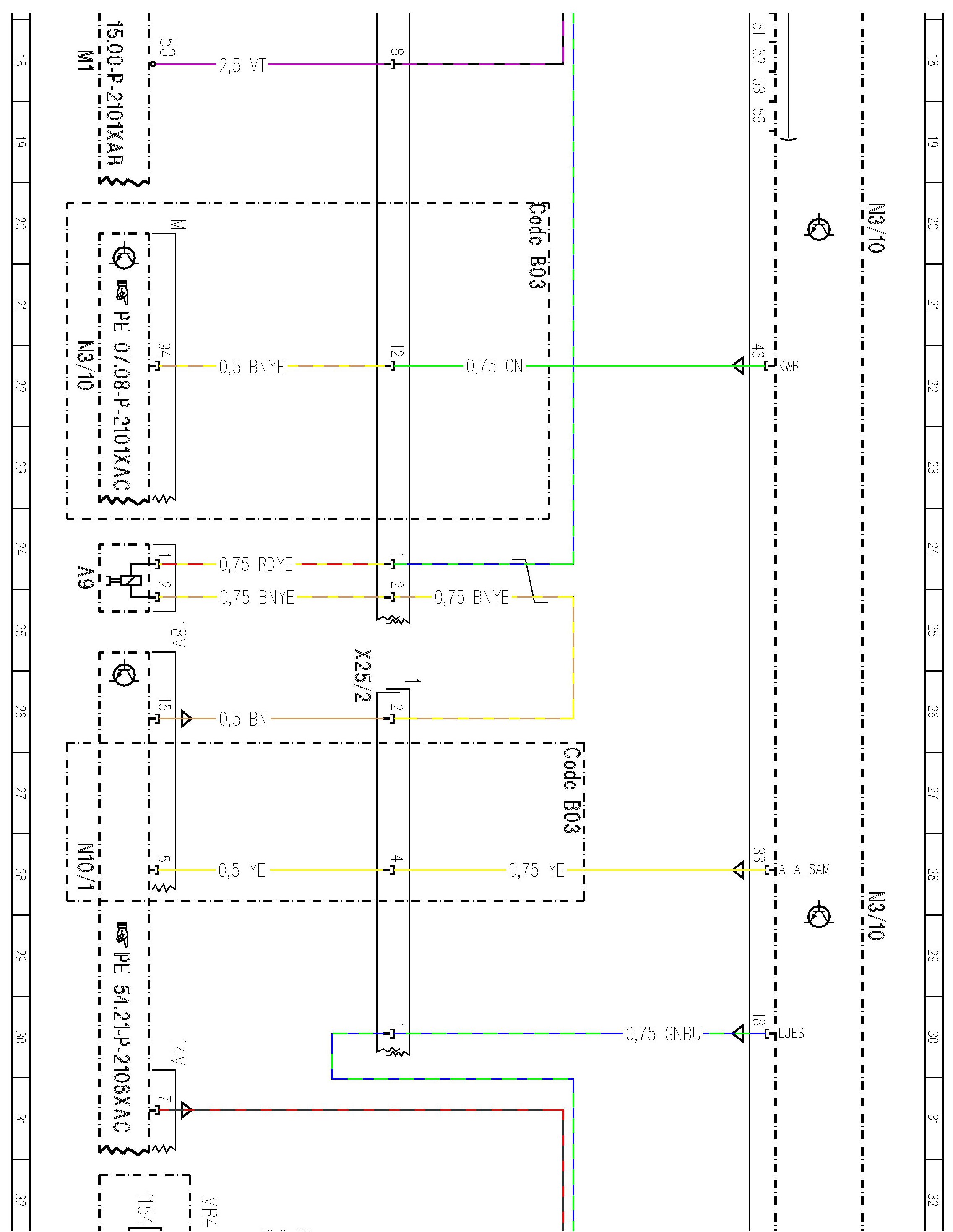

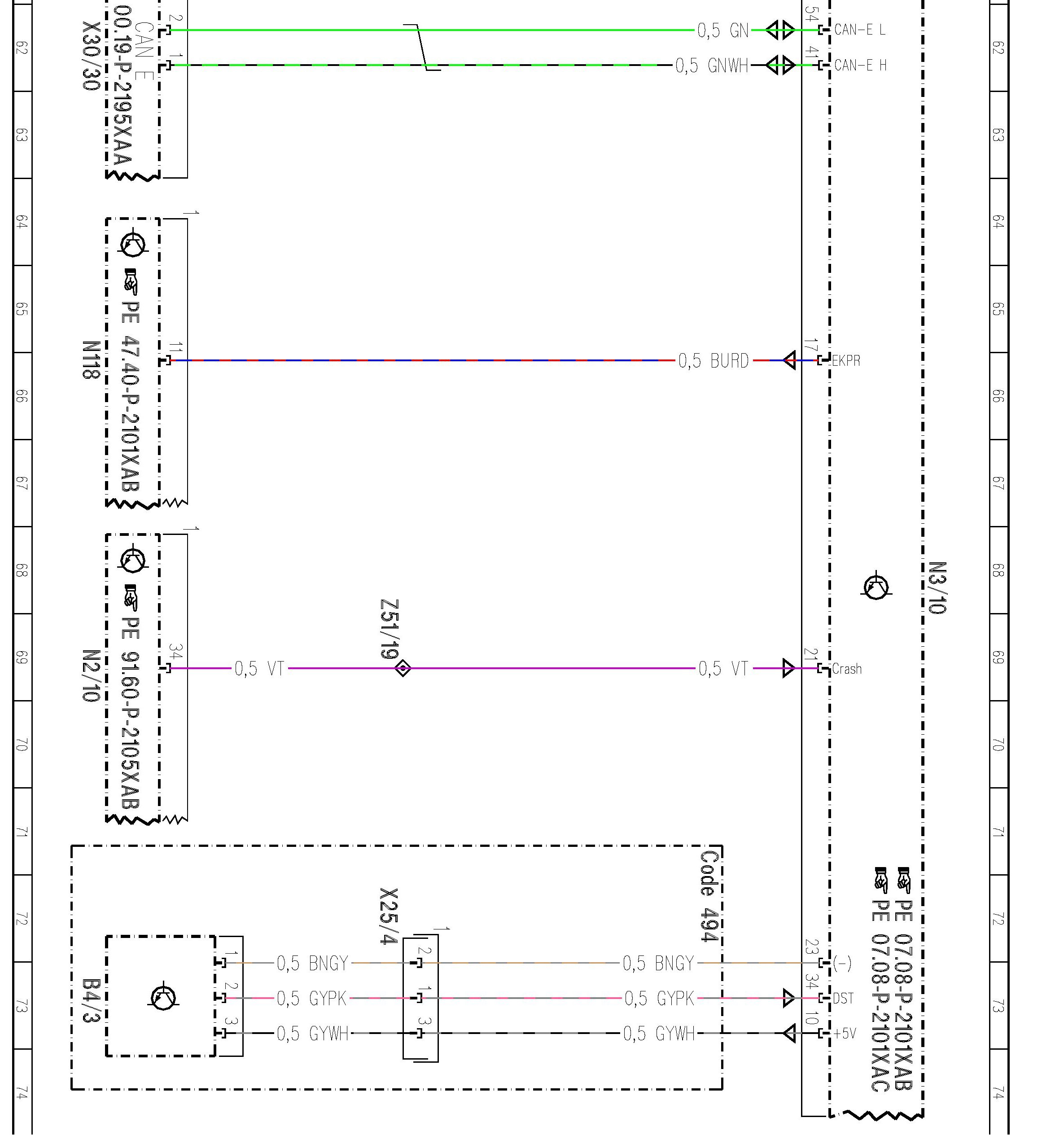

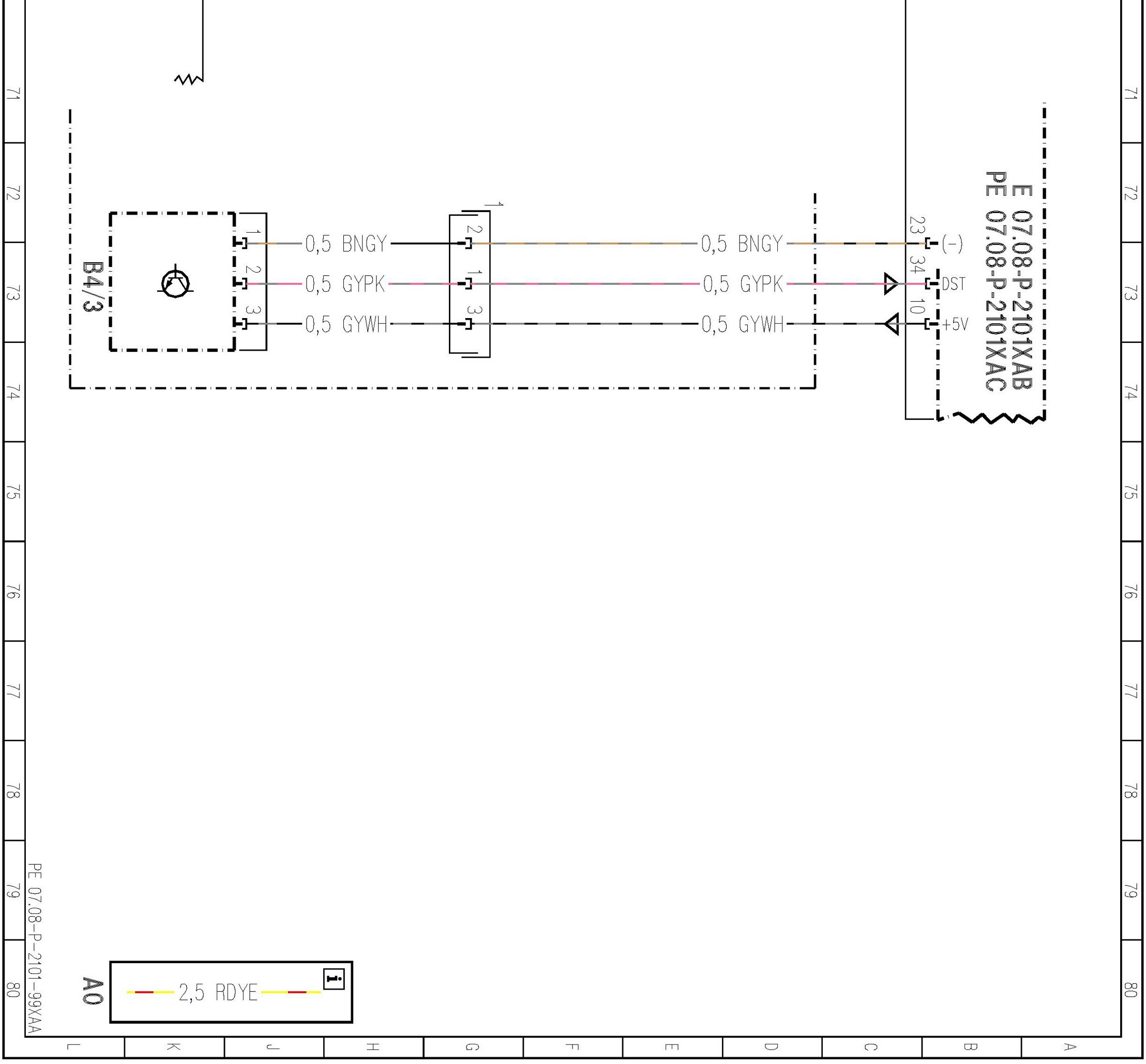

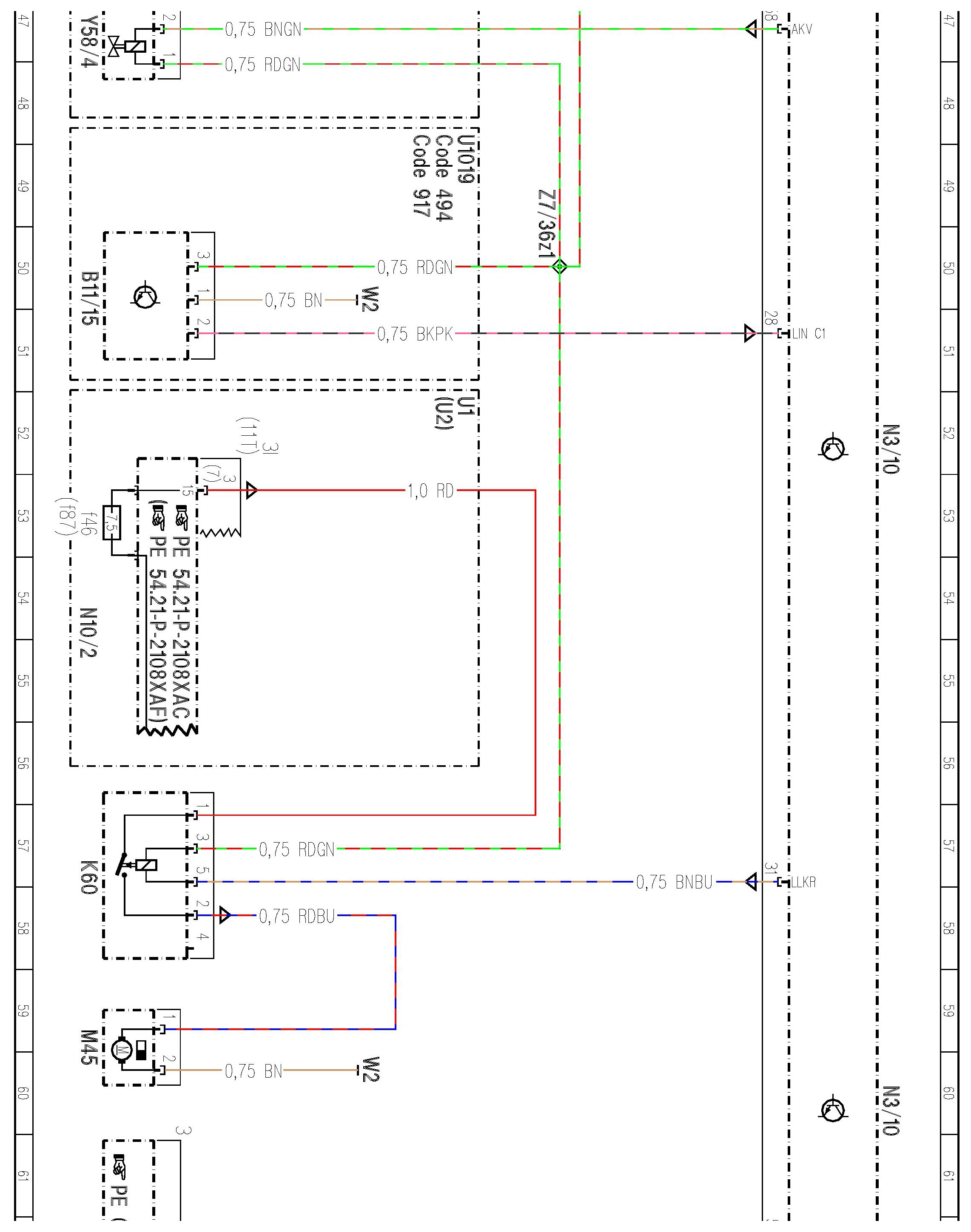

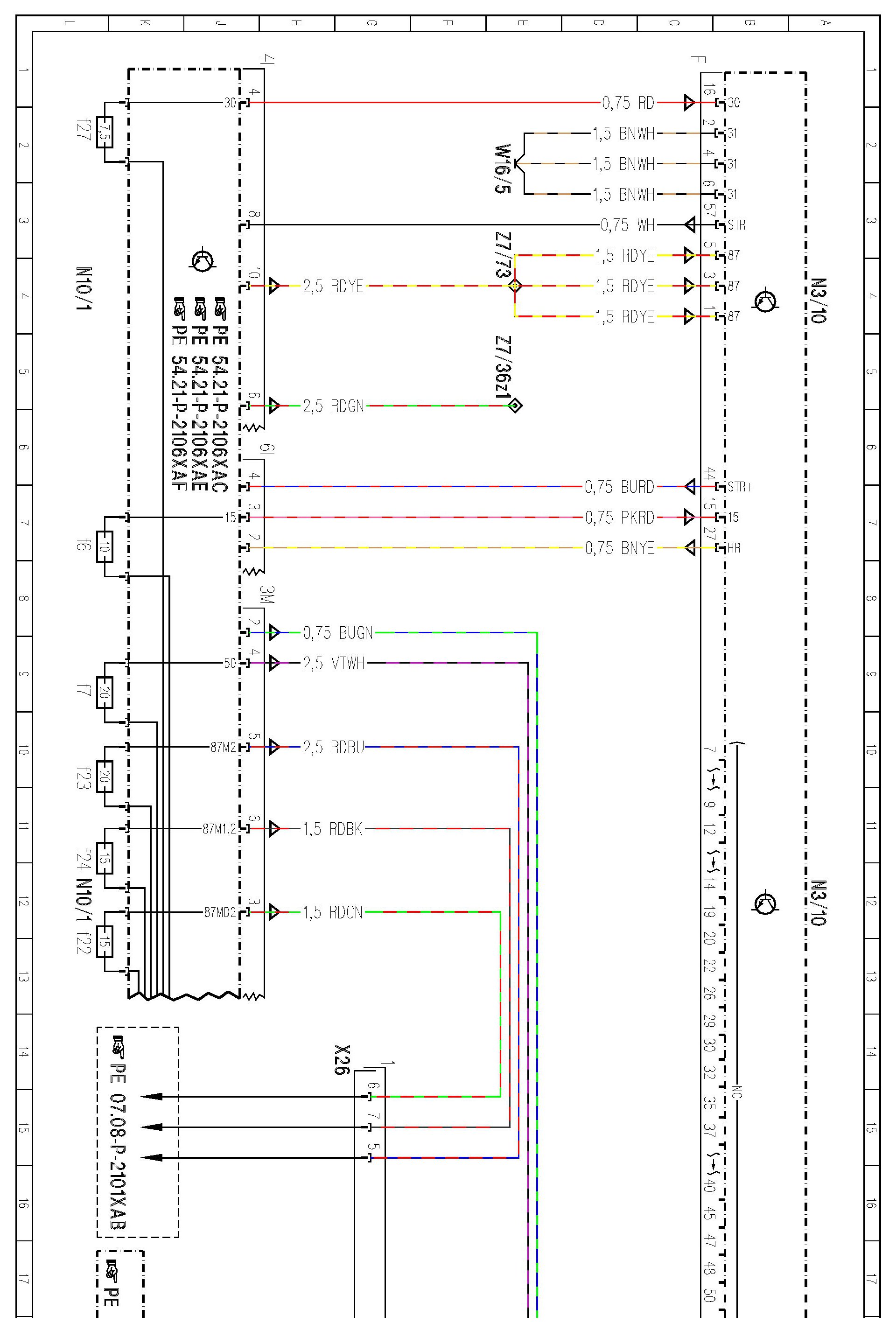

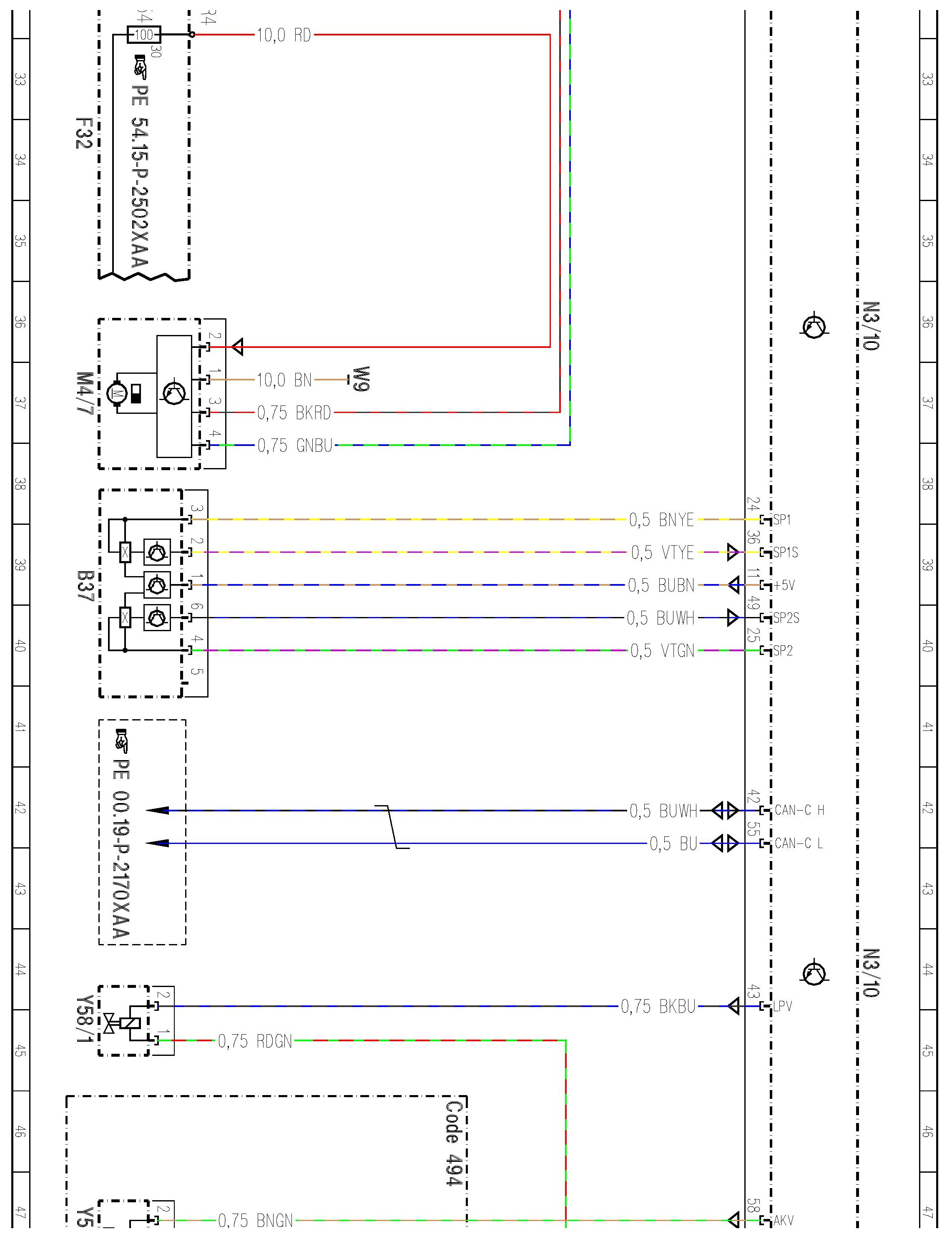

PE07.08-P-2101XAA Gasoline Direct Injection System Control Unit

PE07.08-P-2101XAA Gasoline Direct Injection System Control Unit
ENGINE 157, 278 in MODEL 218

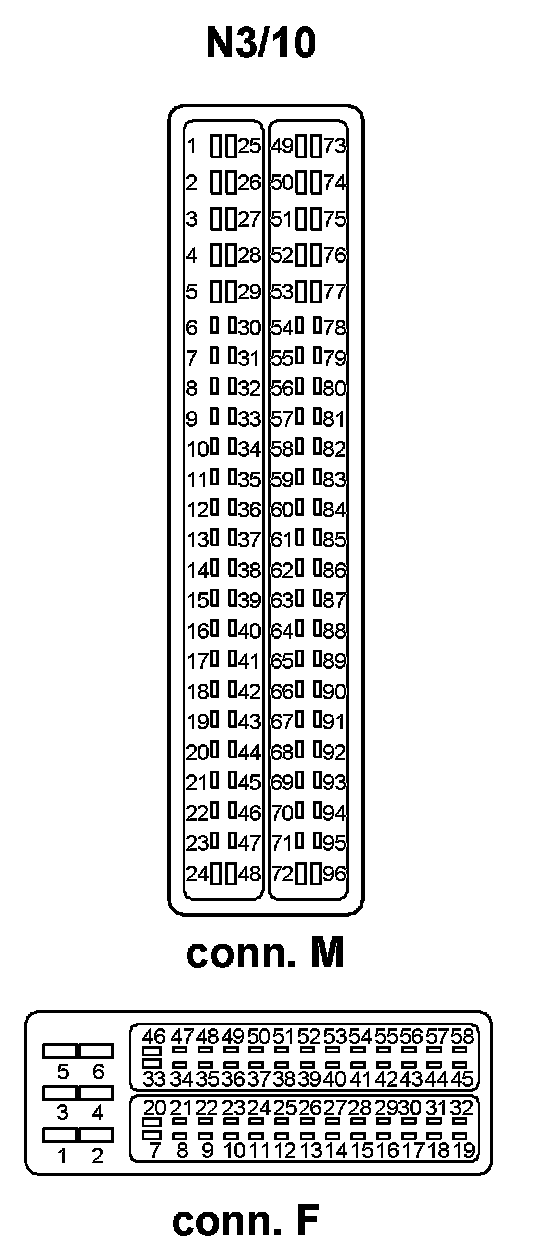

- Control Unit N3/10, Vehicle Plug


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
