Electronic Throttle Actuator: Service and Repair

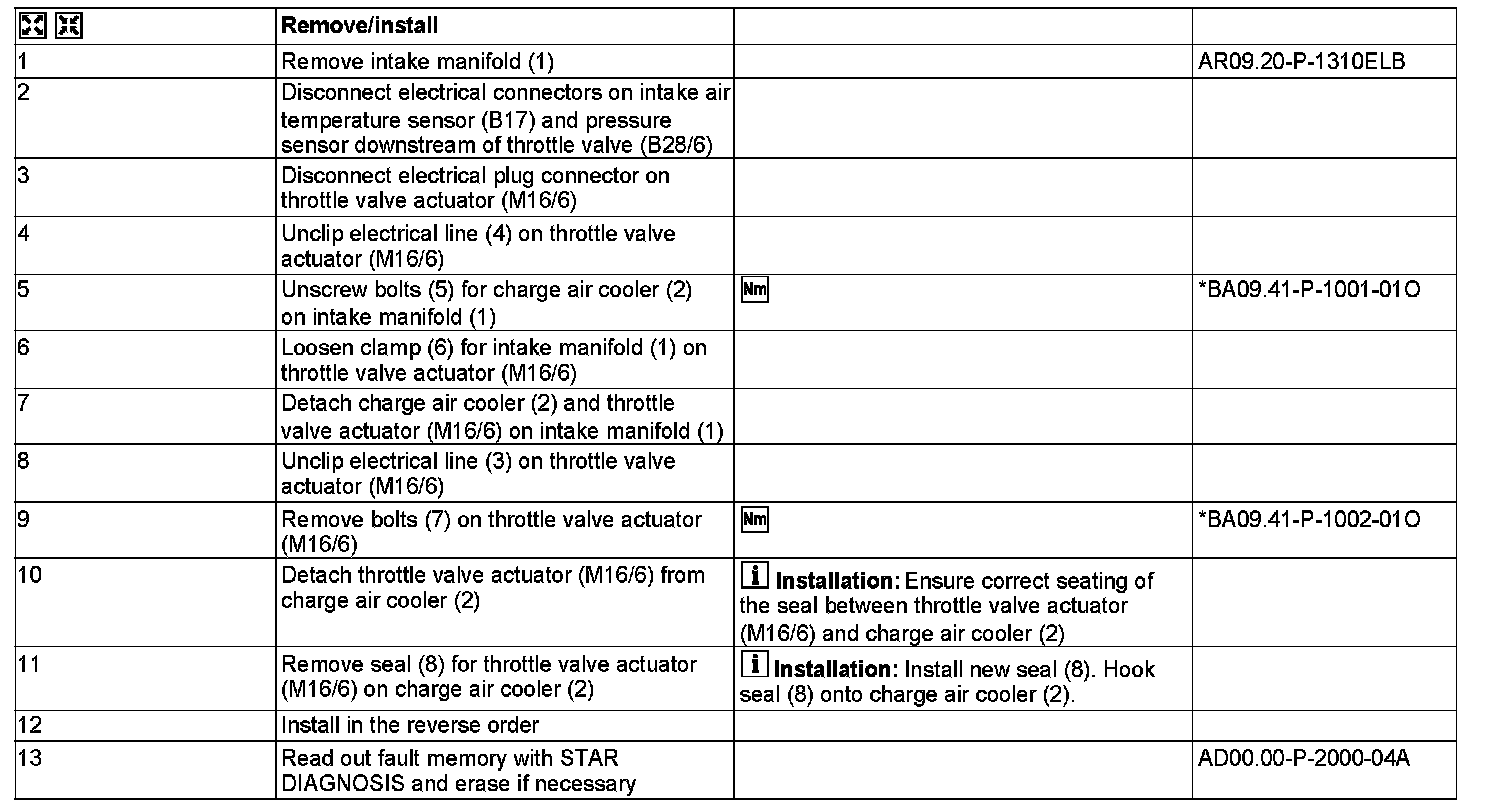

AR07.51-P-1401ELB Remove/Install Throttle Valve Actuator
ENGINES 157, 278 in MODEL 212, 218
ENGINES 278 in MODEL 207





Illustrated on model 218.373

1 Intake manifold
2 Charge air cooler
3 Electrical line
4 Electrical line
6 Clip
7 Bolts

B17 Intake air temperature sensor
B28/6 Pressure sensor upstream of throttle valve
M16/6 Throttle valve actuator

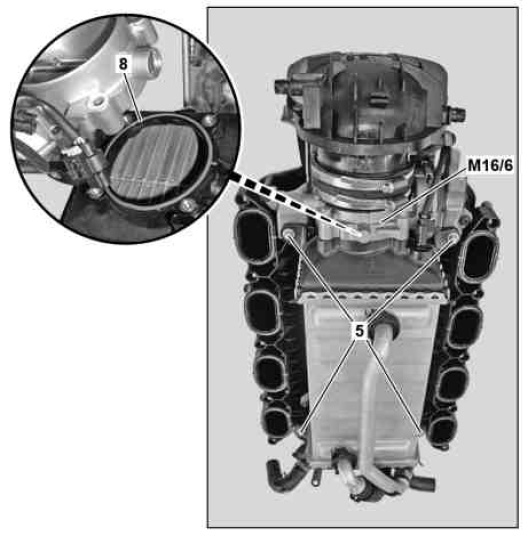

Illustrated on model 218.373

5 Bolts
8 Gasket

M16/6 Throttle valve actuator
