Exterior Lighting Module: Service and Repair

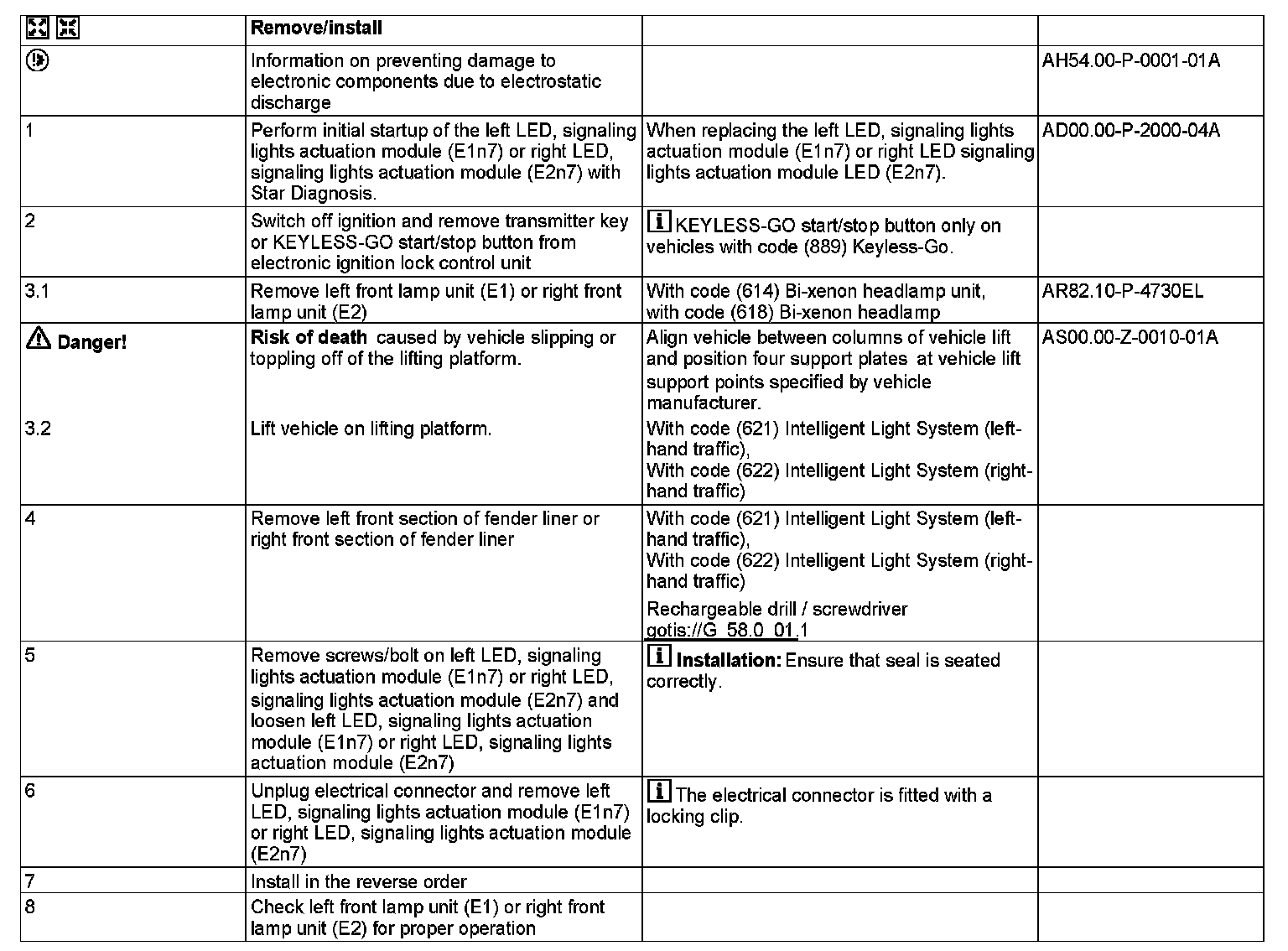

AR82.10-P-4655EL Remove/Install Signaling Lights Actuation Module
MODEL 218

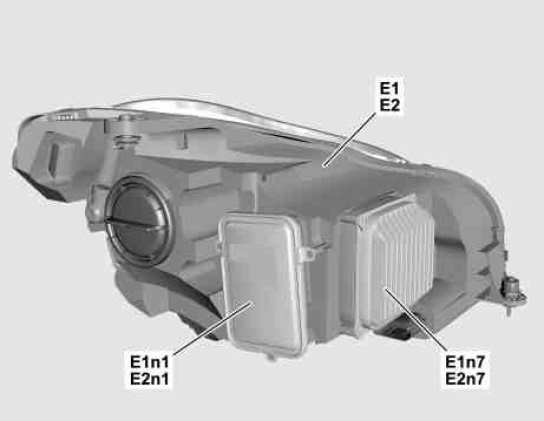

With code (614) Bi-xenon headlamp unit, with code (618) Bi-xenon headlamp
E1 Left front lamp unit
E1n1 Left xenon light control unit
E1n7 Left LED, signaling lights actuation module
E2 Right front lamp unit
E2n1 Right xenon light control unit
E2n7 Right LED, signaling lights actuation module





With code (621) Intelligent Light System (left-hand traffic), With code (622) Intelligent Light System (right-hand traffic)
E1 Left front lamp unit
E1n7 Left LED, signaling lights actuation module
E1n8 Left LED, driving lights actuation module
E1n9 Left headlamp control unit
E2 Right front lamp unit
E2n7 Right LED, signaling lights actuation module
E2n8 Right LED, driving lights actuation module
E2n9 Right headlamp control unit
