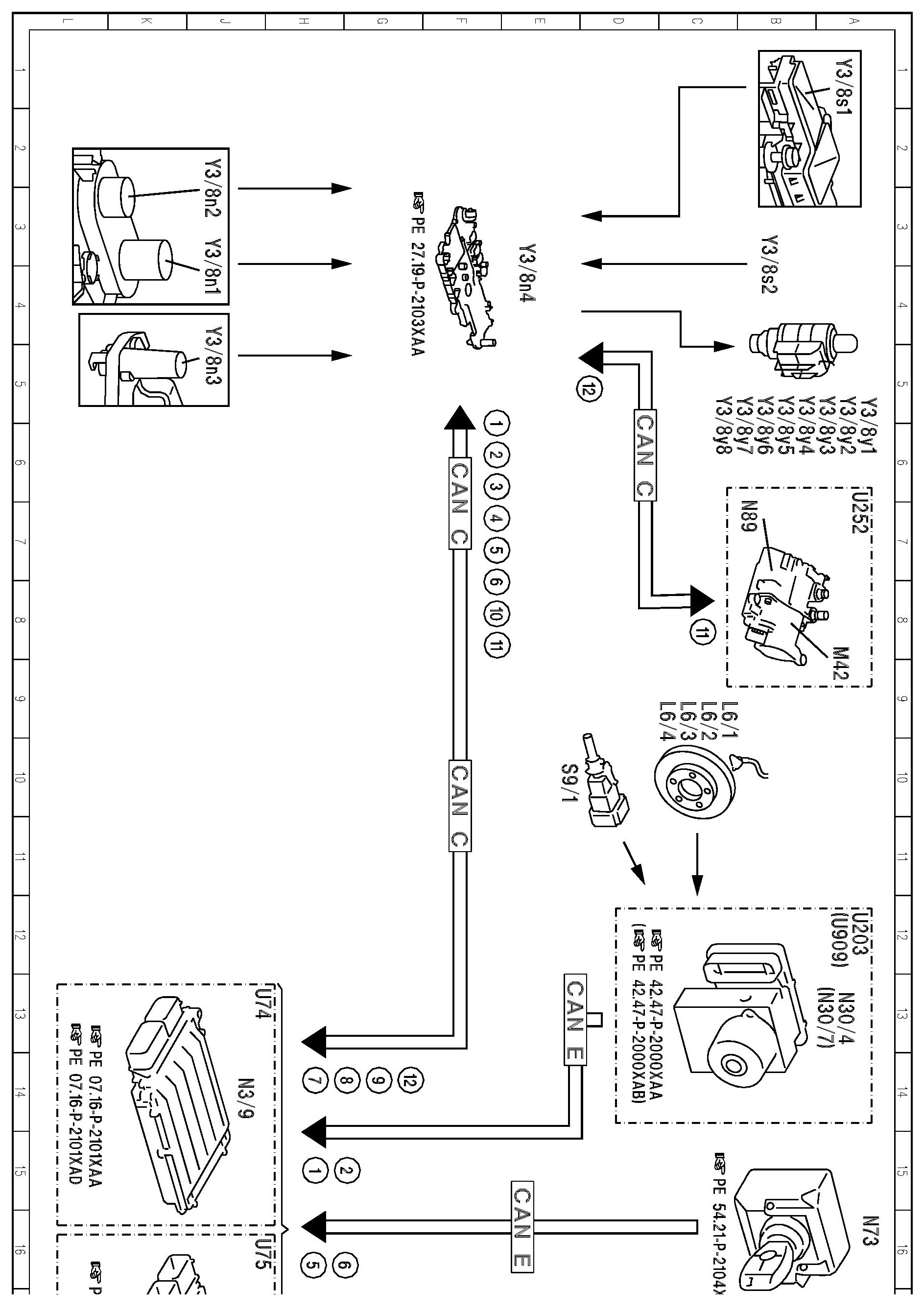

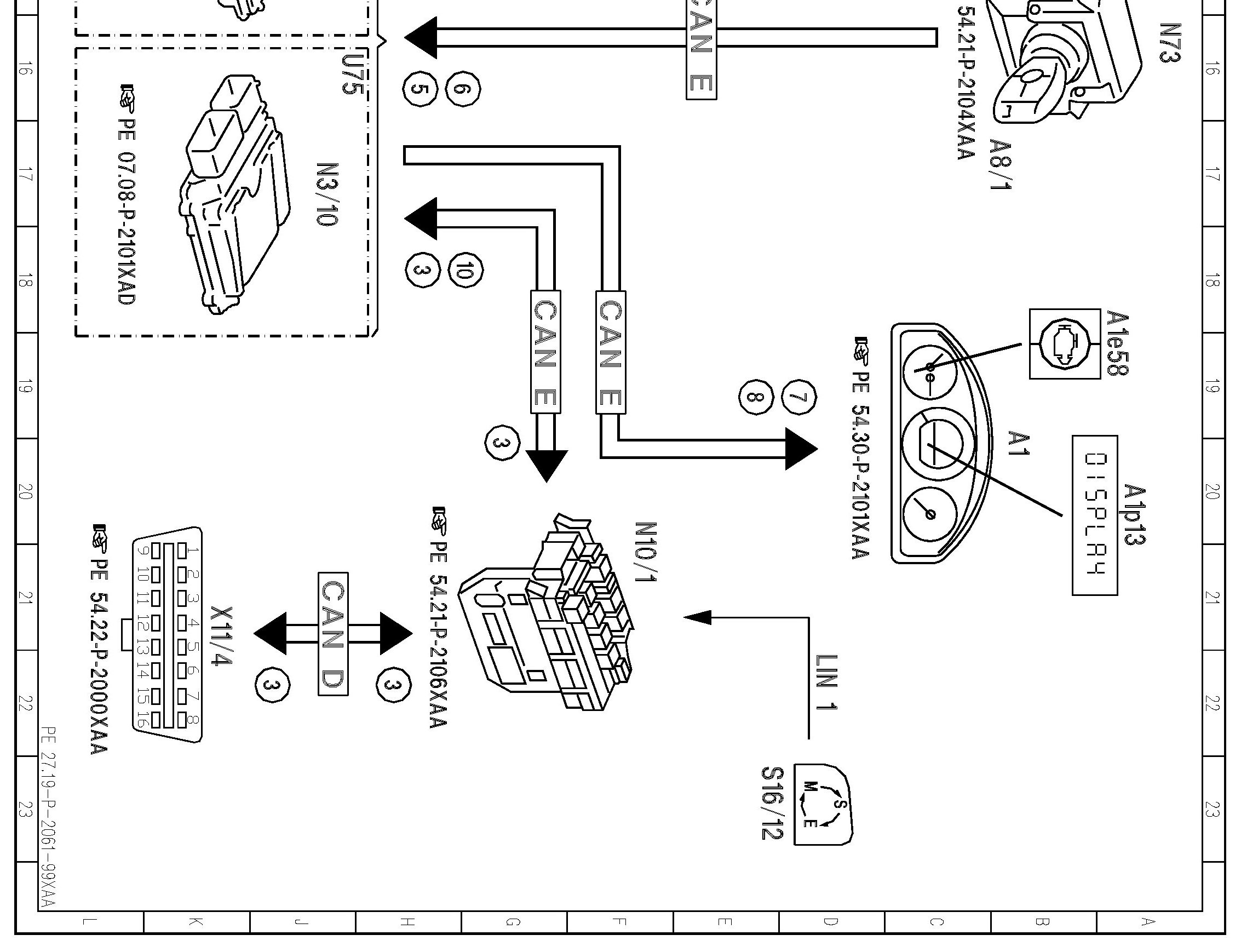

PE27.19-P-2061XAA Electrical Function Schematic, Fully Integrated Transmission Control

PE27.19-P-2061XAA Electrical Function Schematic, Fully Integrated Transmission Control
TRANSMISSION 722.9 in MODEL 218

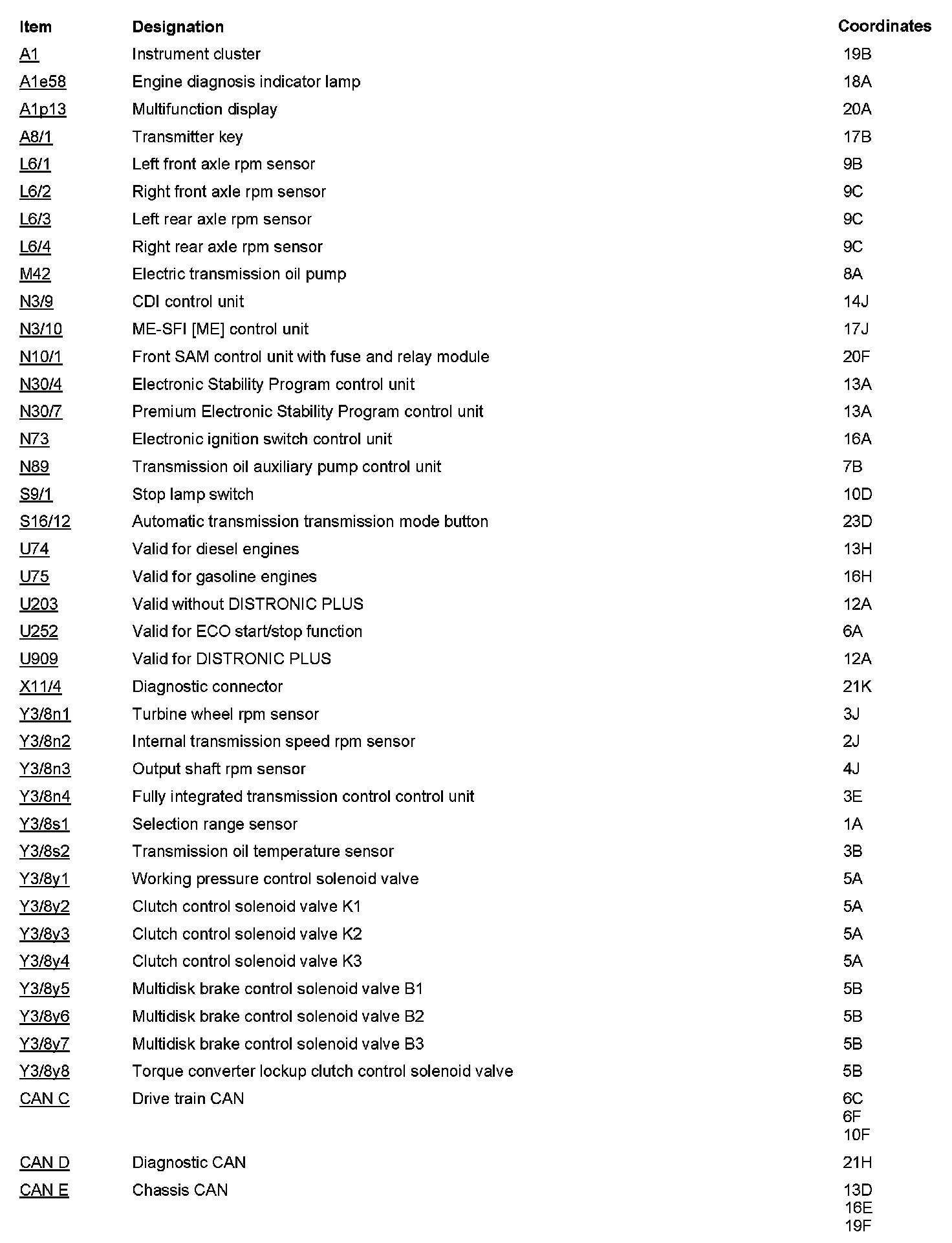

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
