PE40.15-P-2050XAA Electrical Function Diagram For Tire Pressure Monitor (TPM [RDK])



PE40.15-P-2050XAA Electrical Function Diagram For Tire Pressure Monitor (TPM [RDK])
MODEL 218
with CODE (475) Tire Pressure Monitor (Premium) Schrader Company






























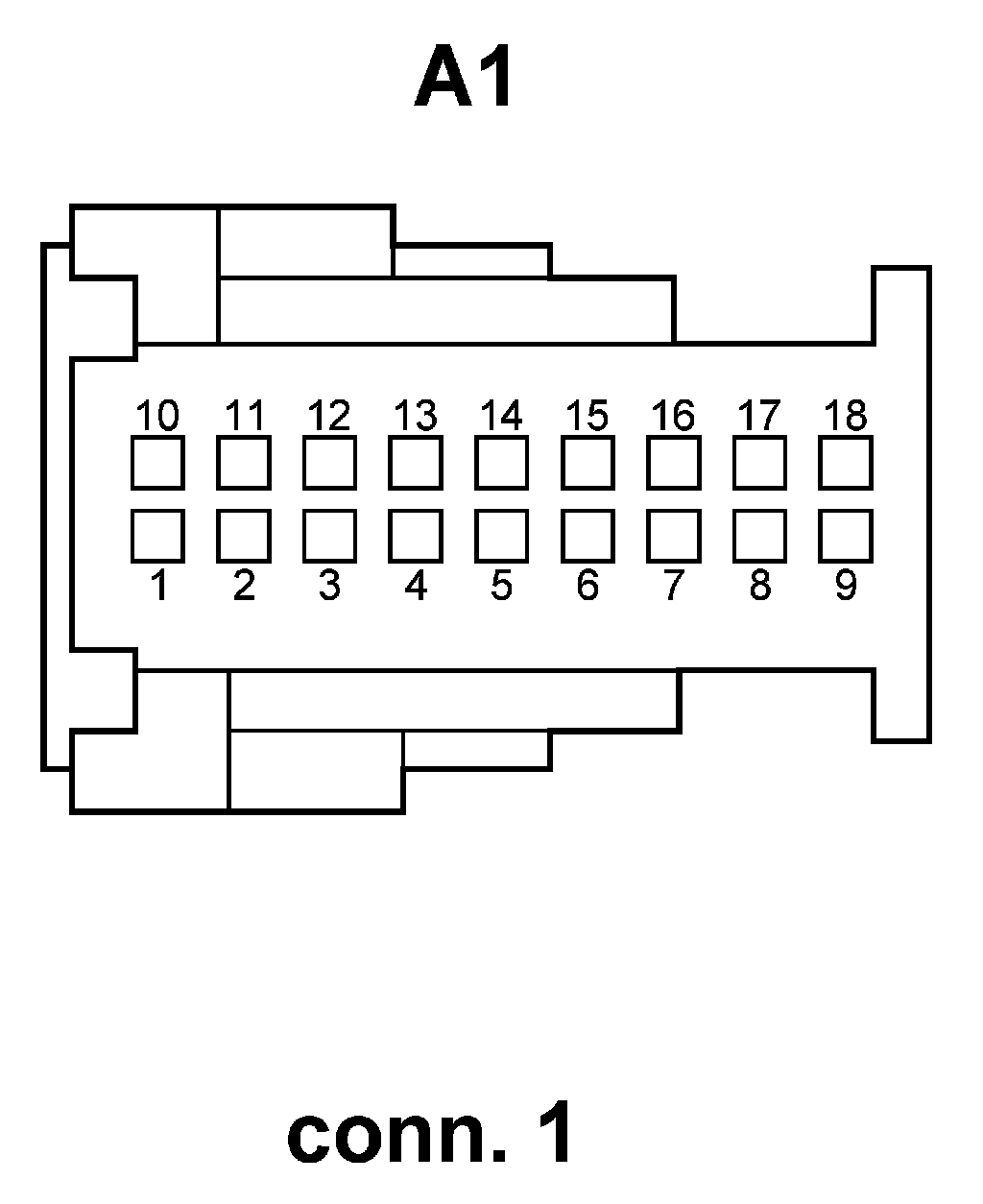

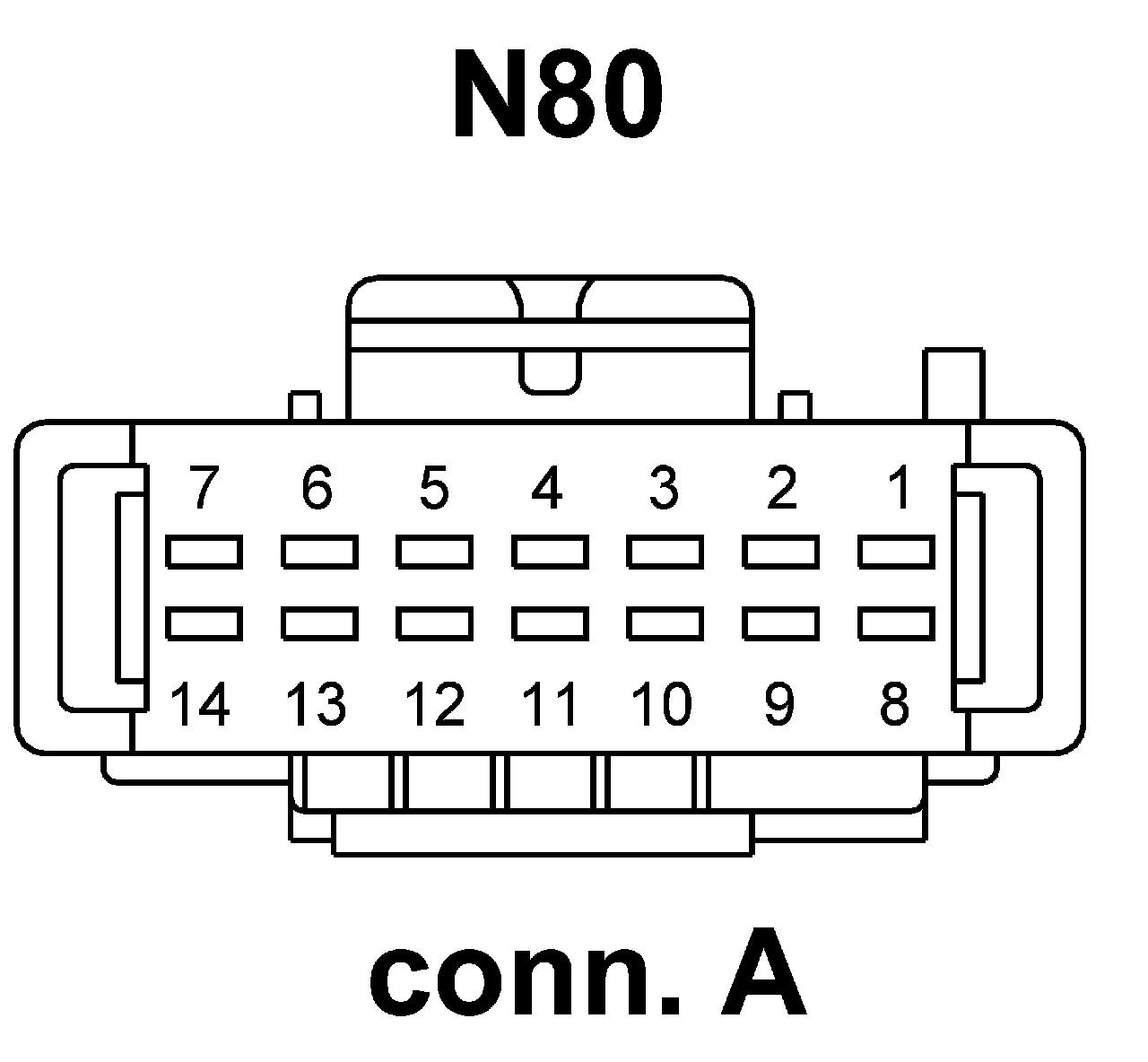

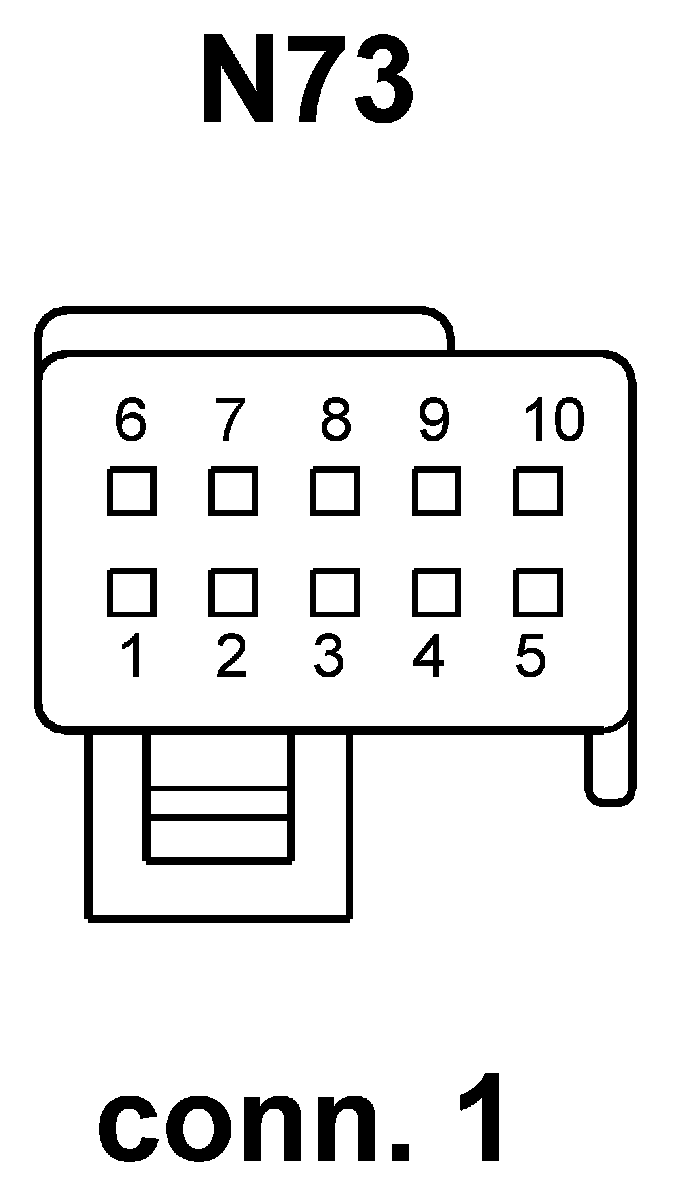

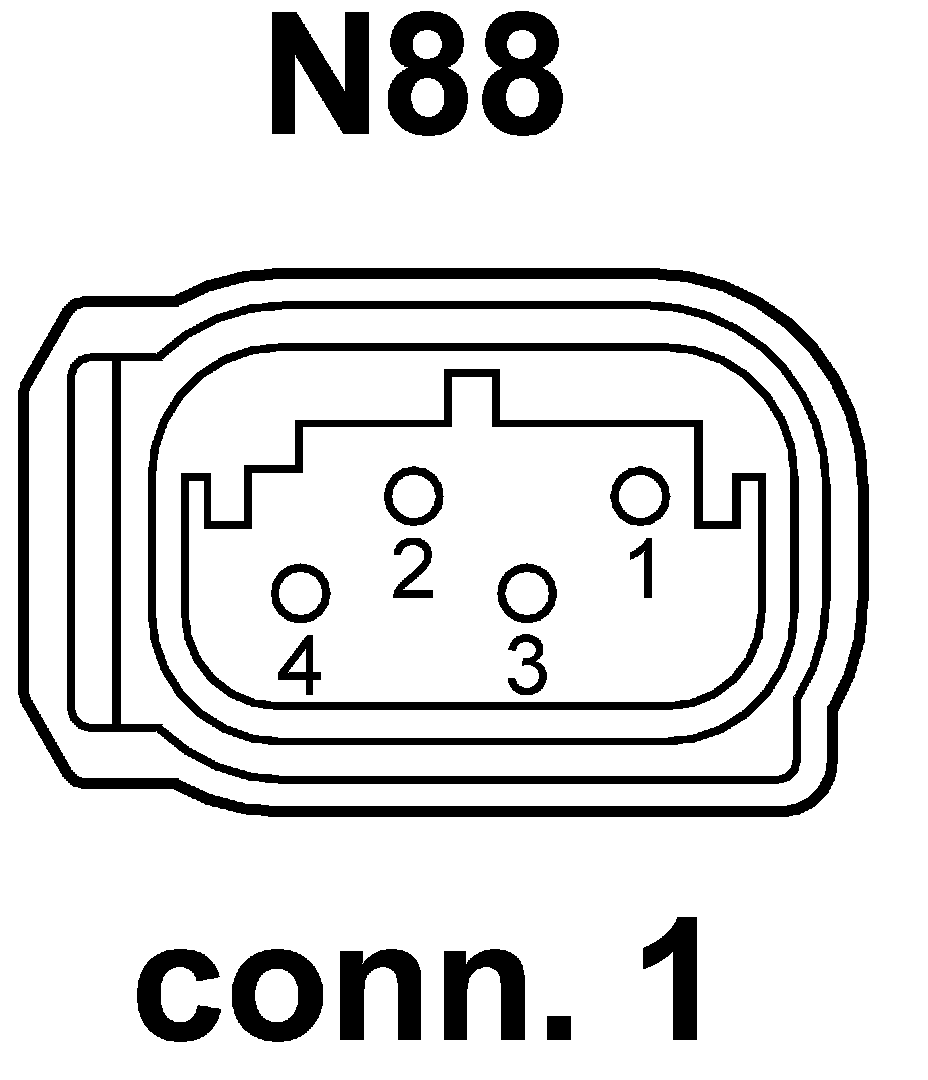

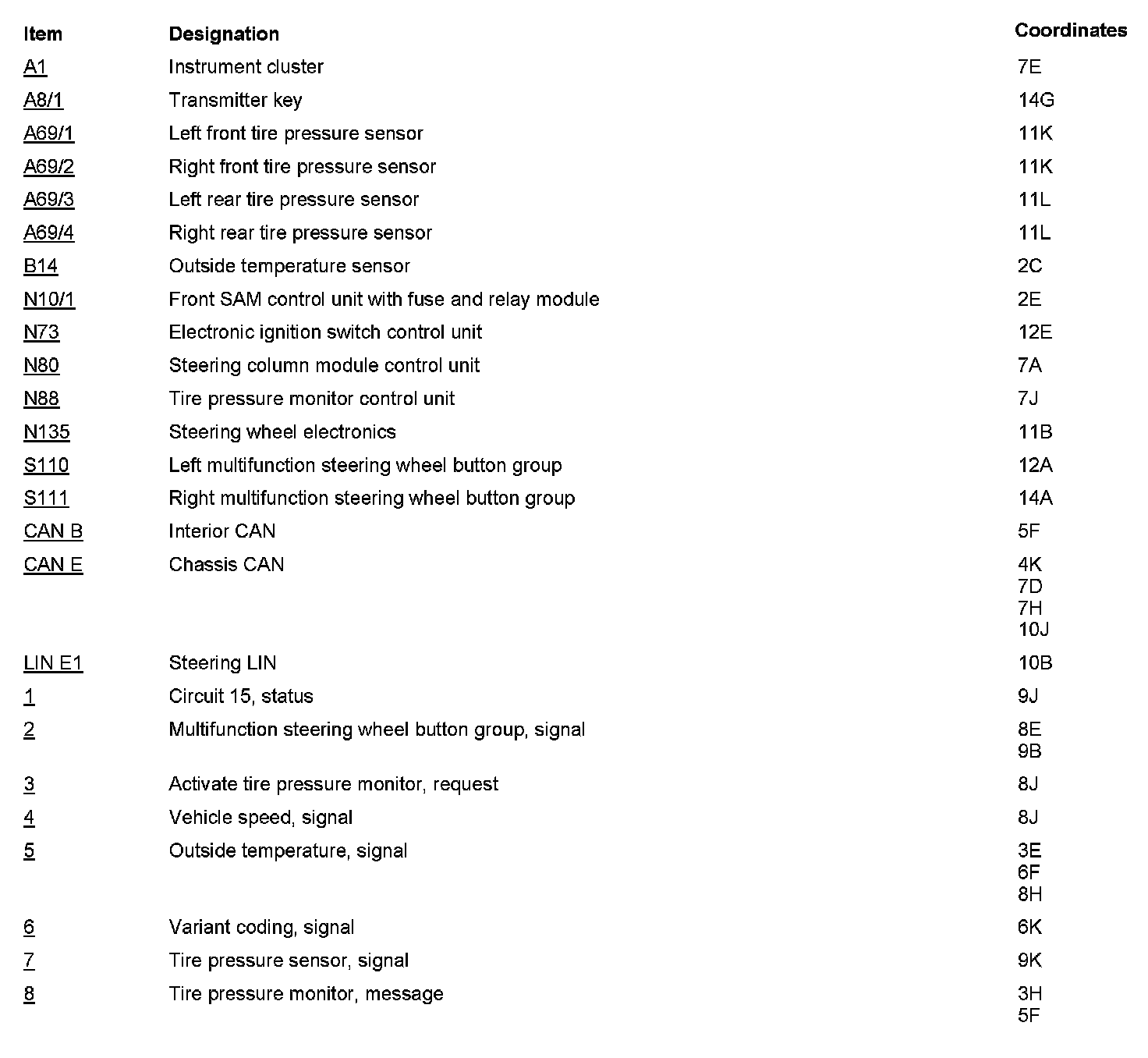

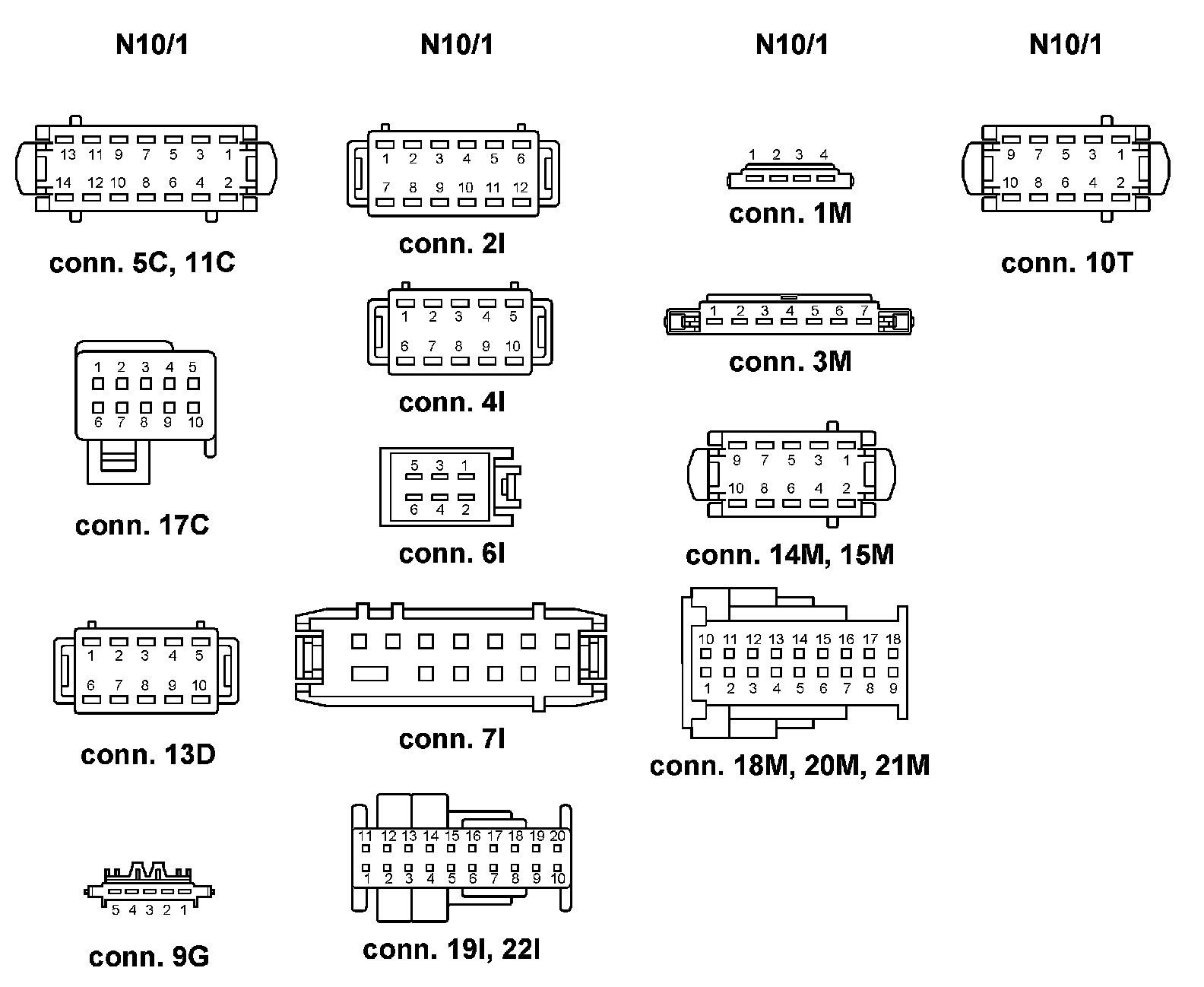

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
