Electrical Diagrams

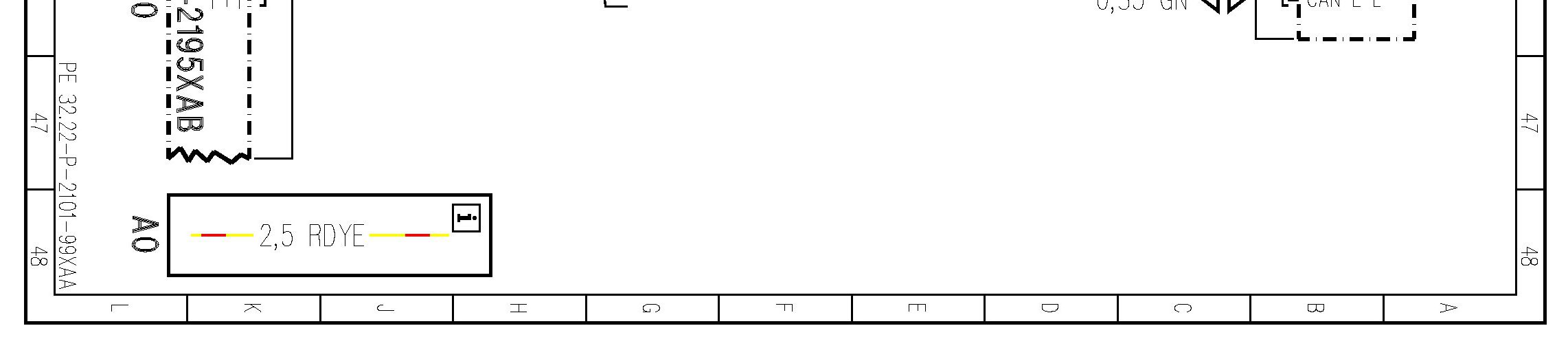

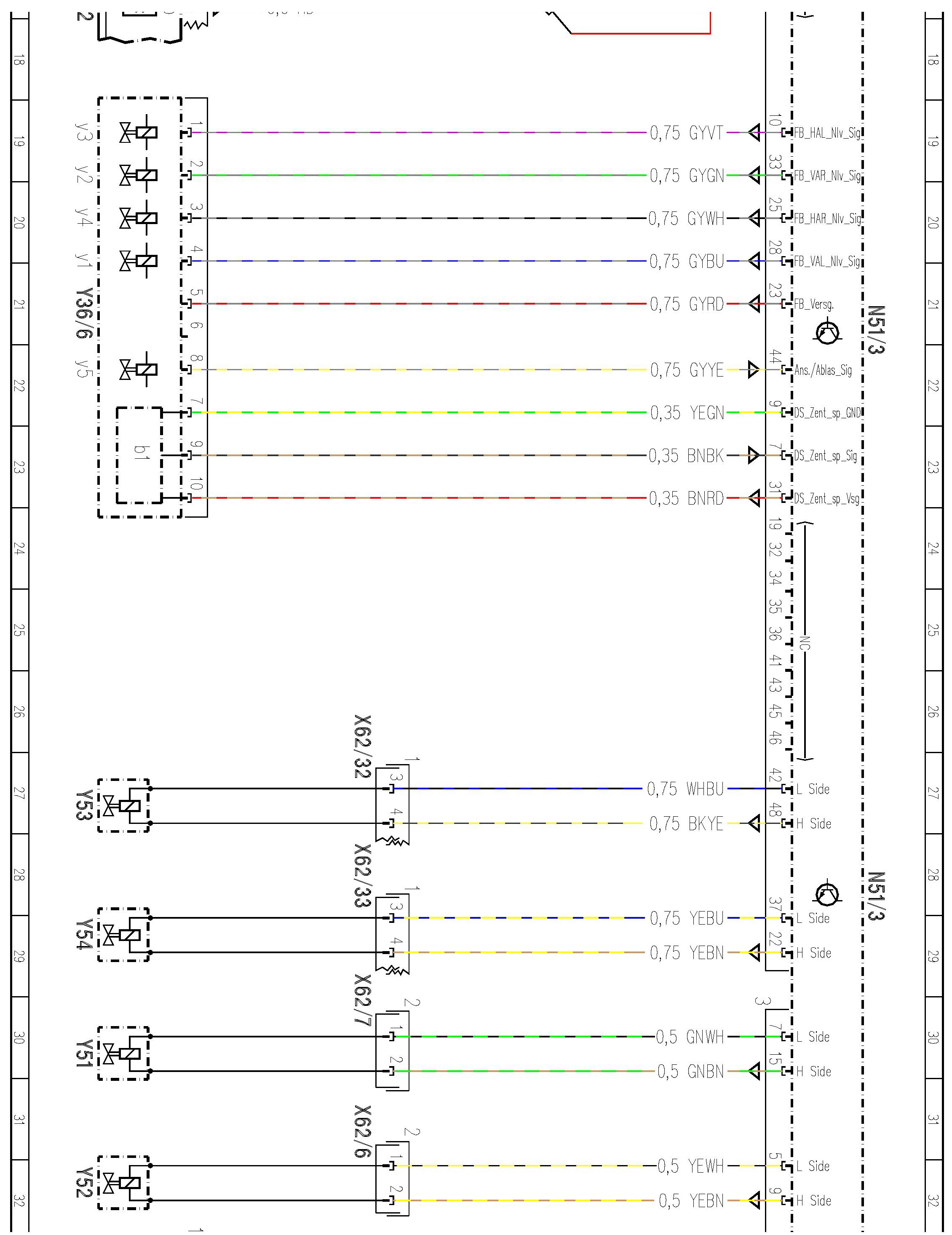

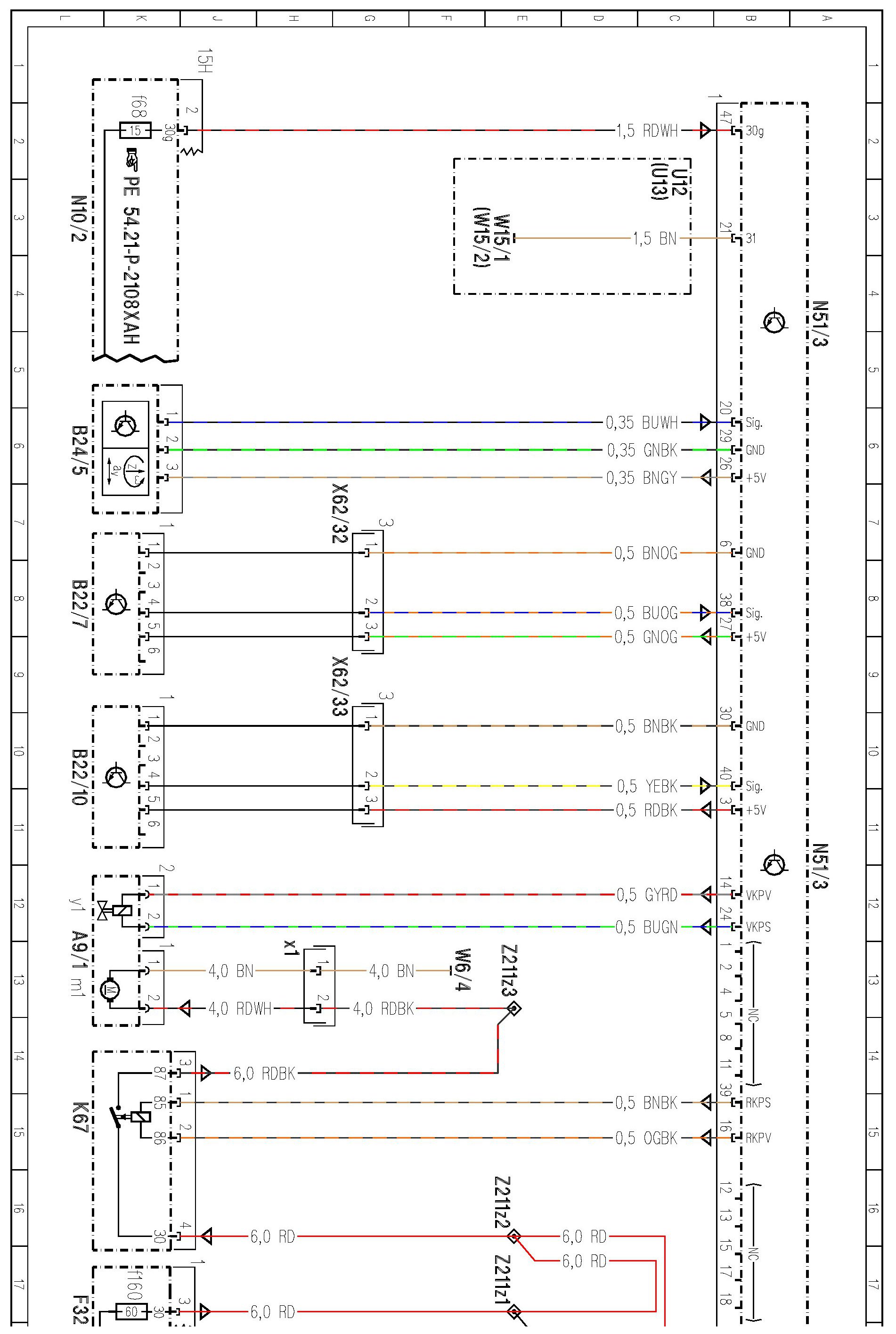

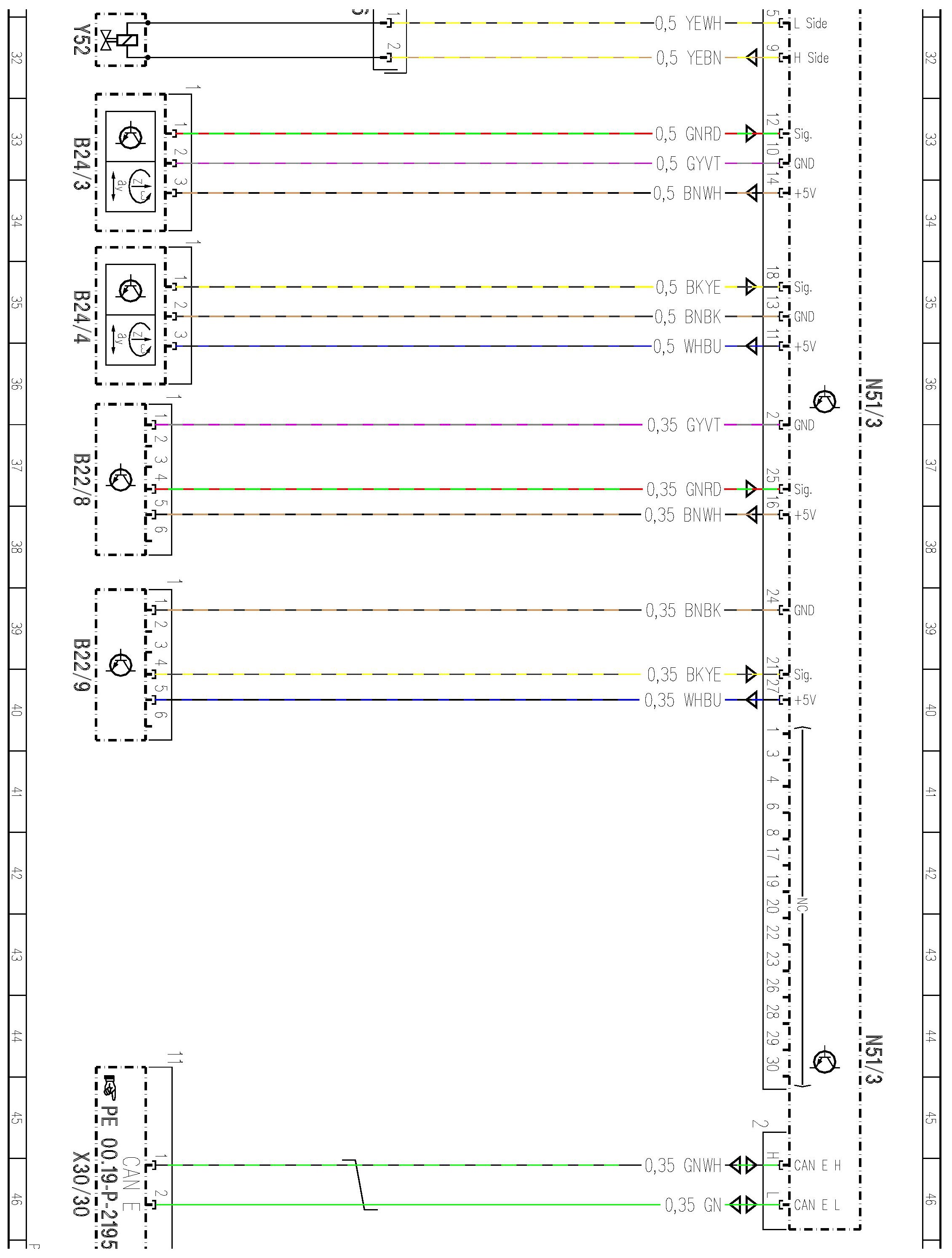

PE32.22-P-2101XAA AIRmatic Control Unit
MODEL 218 (except 218.374)
- with CODE (489) Allround Level Control

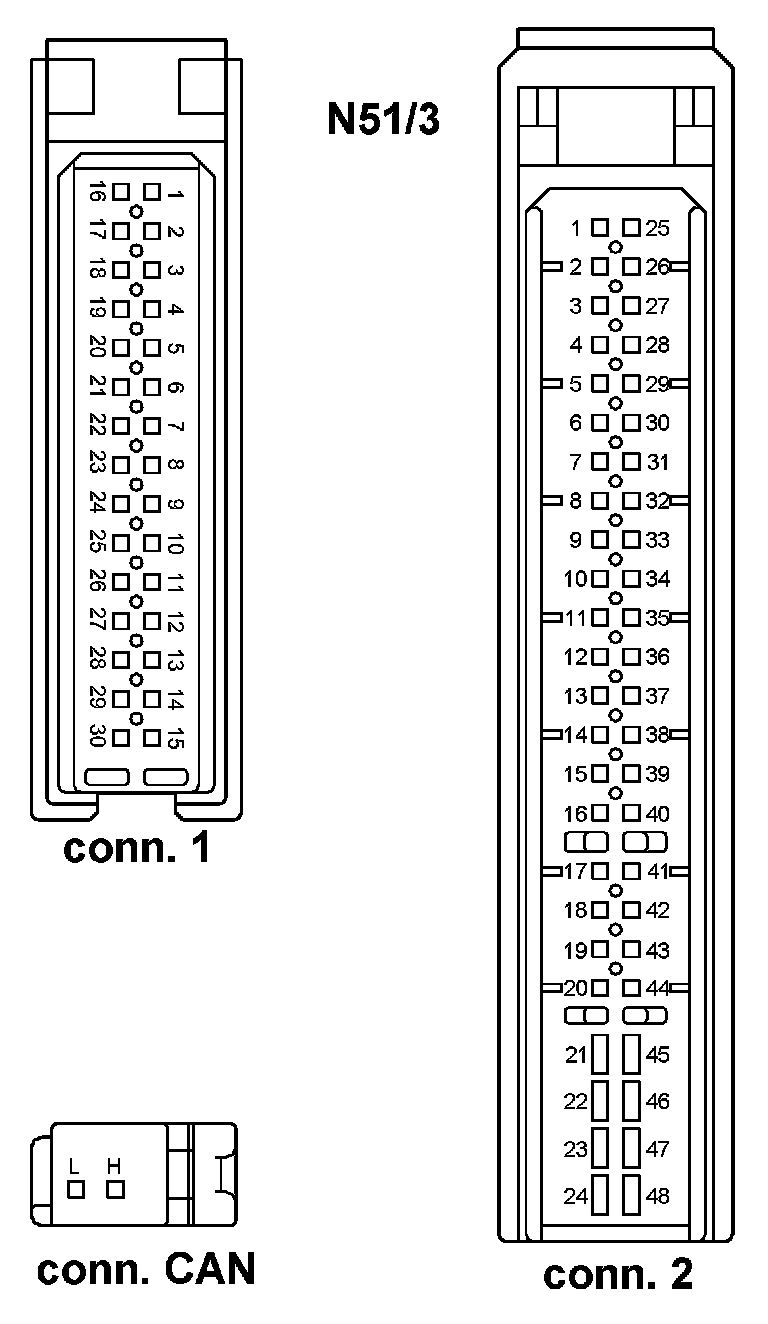

- control Unit N51/3
MODEL 218.374
- with CODE (488) Steel/Air suspension
- Control Unit N51/3


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
