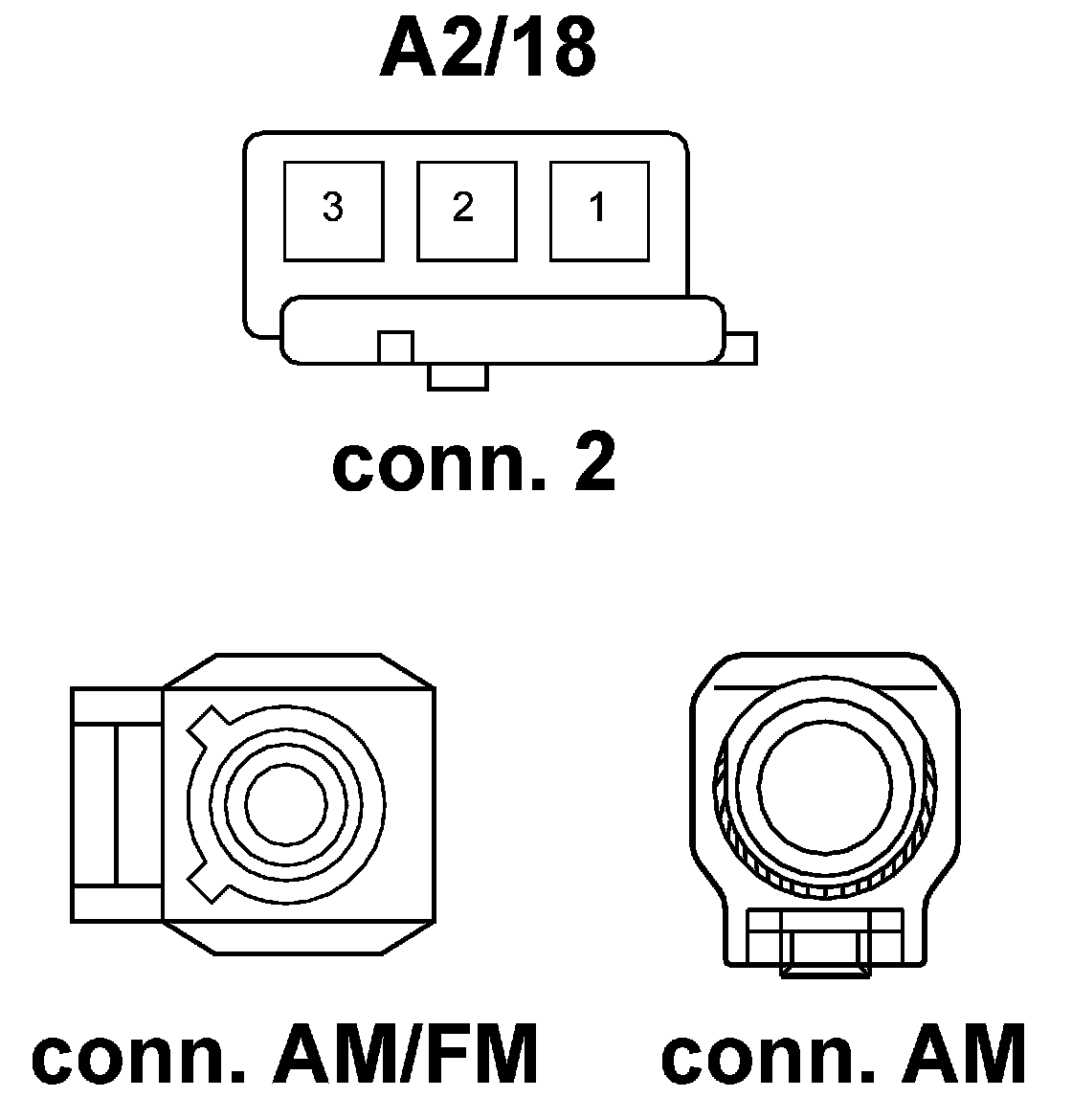

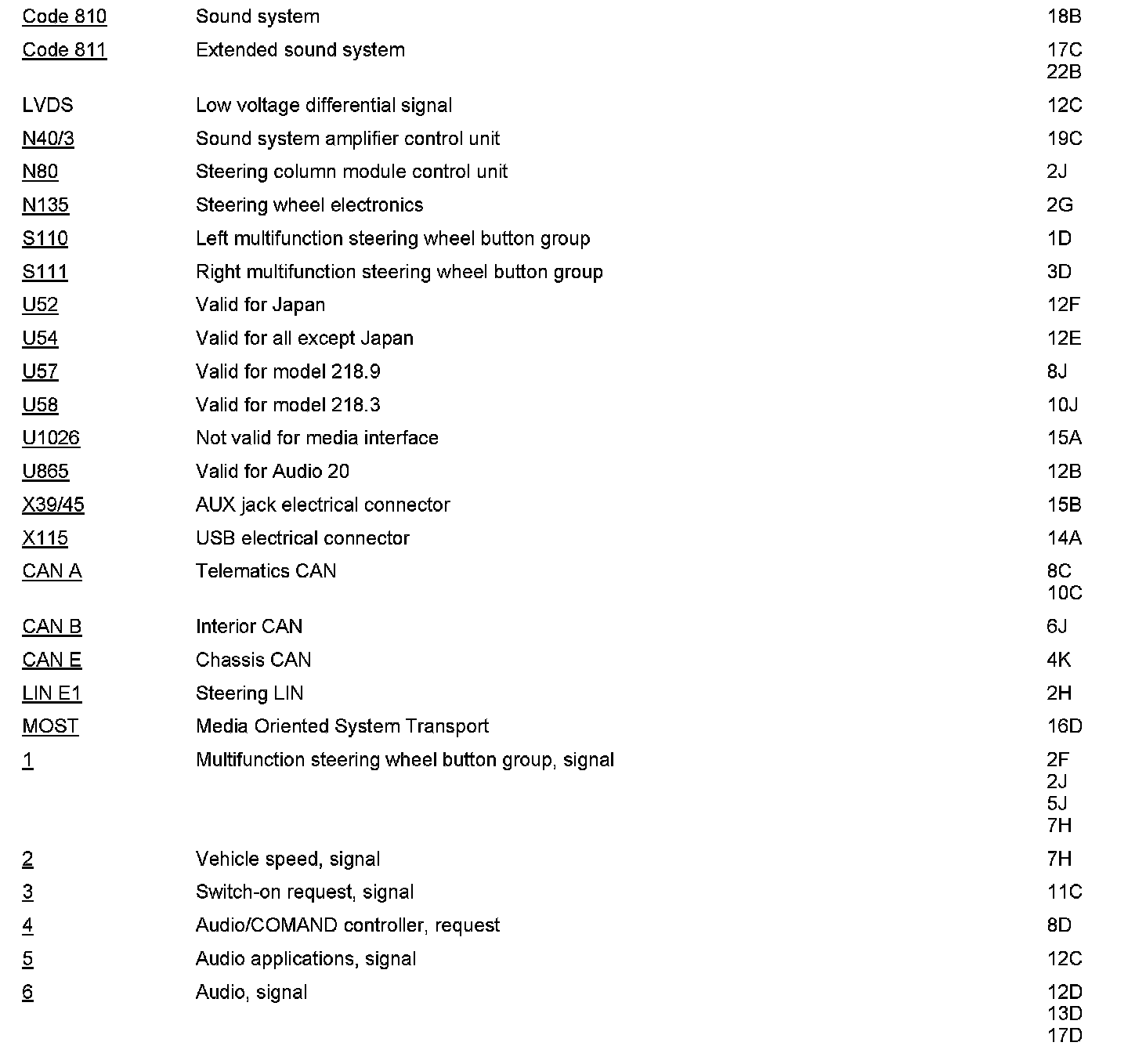

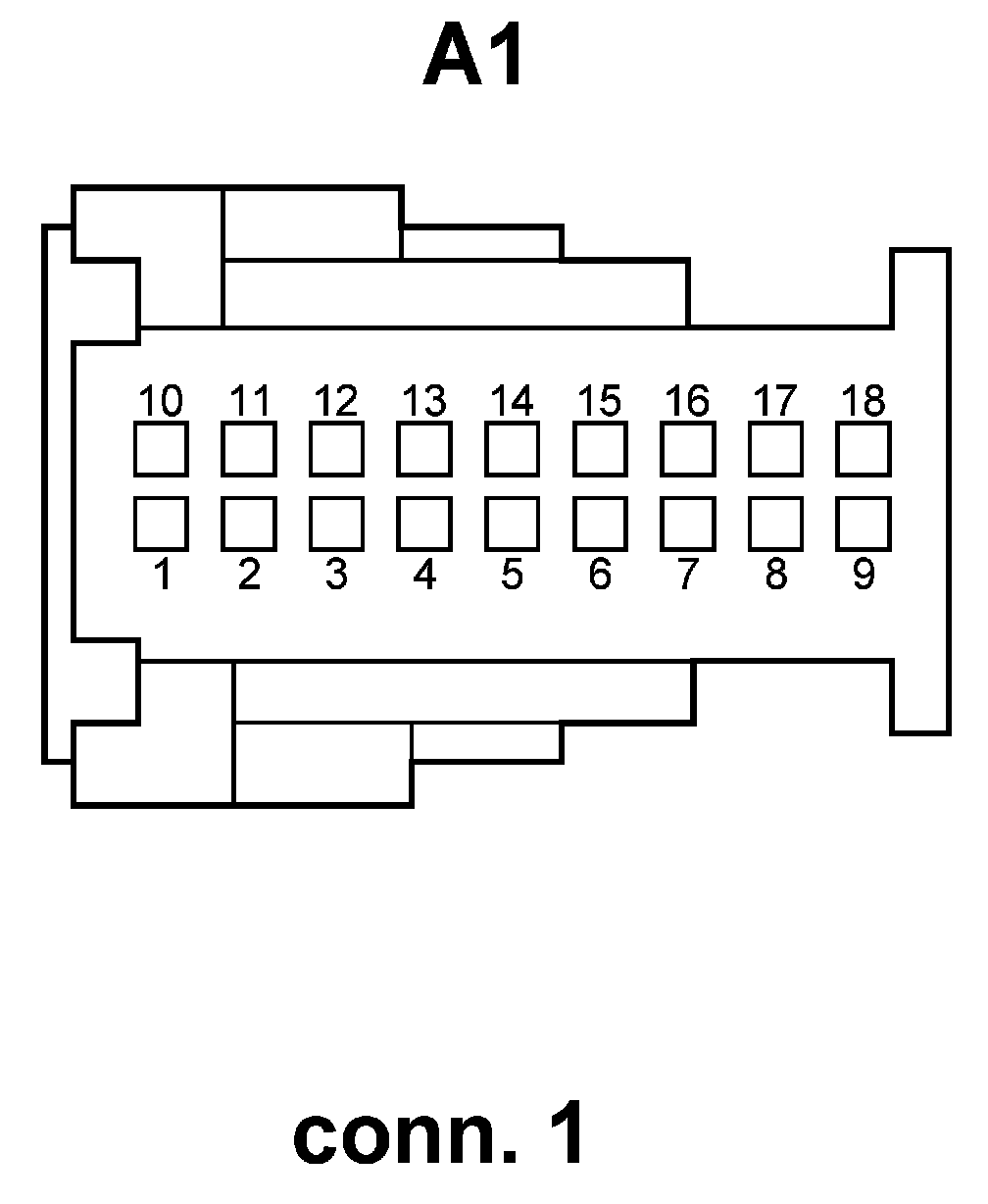

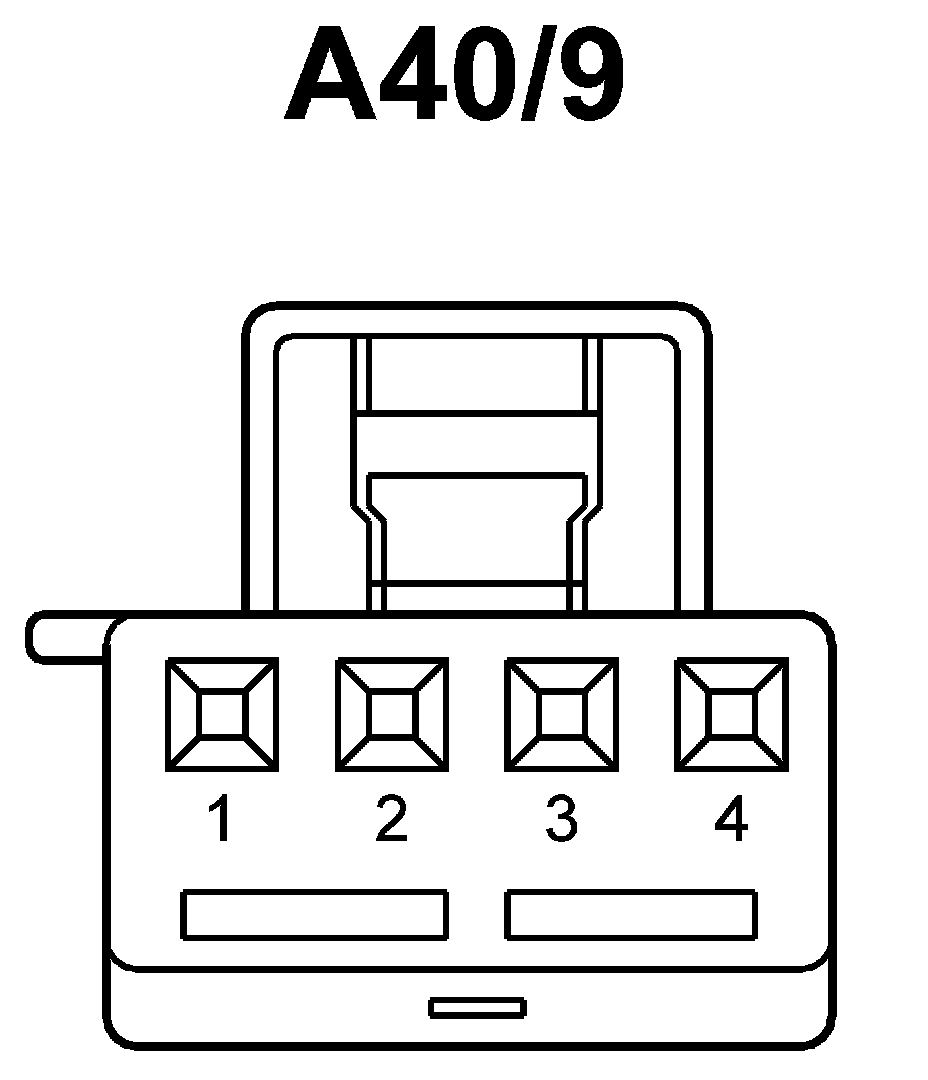

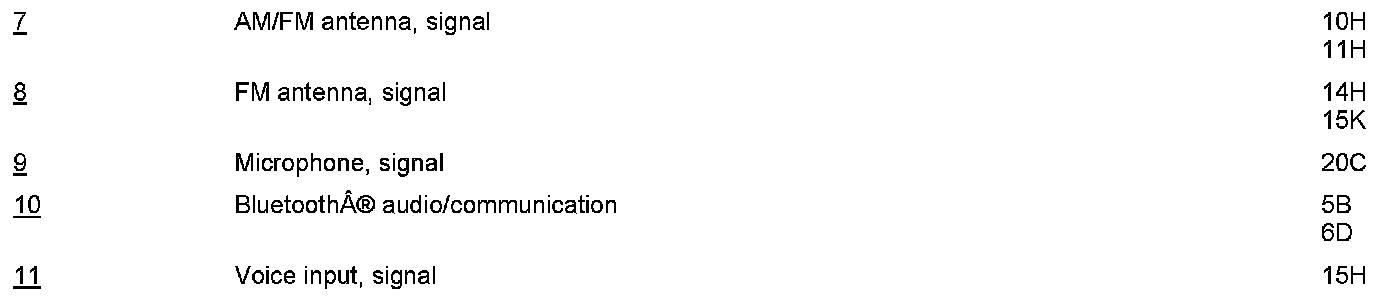

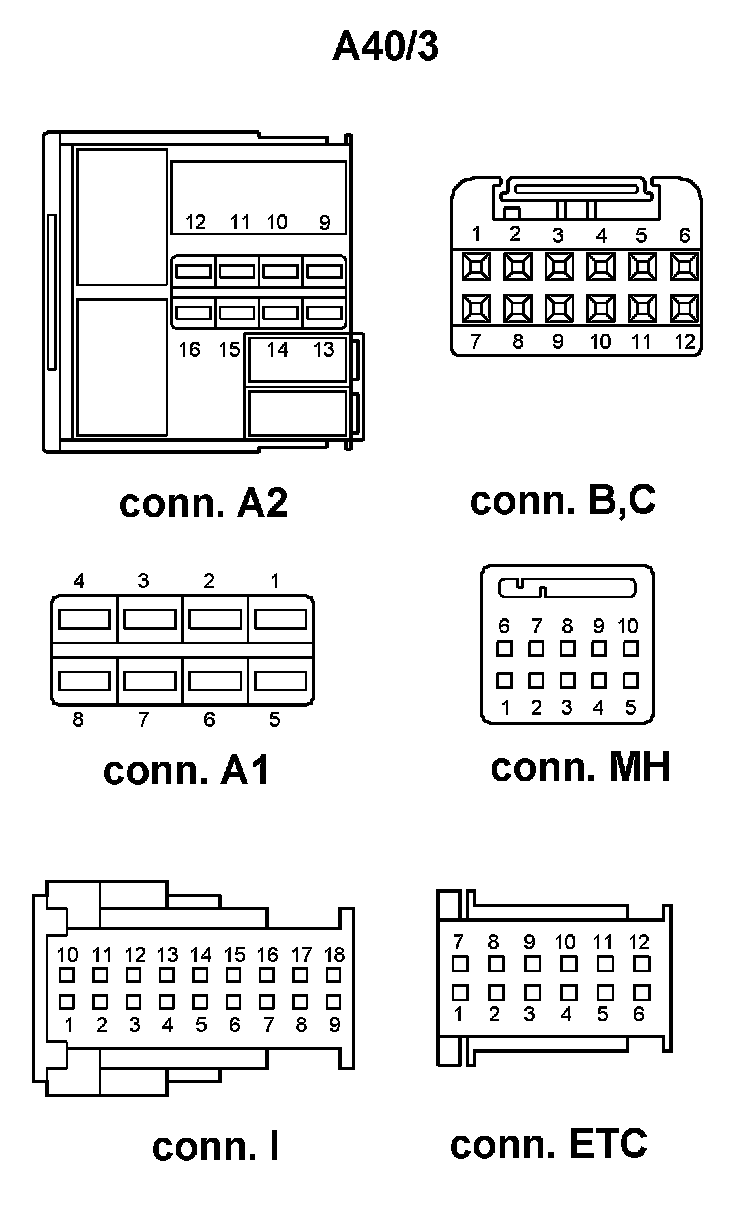

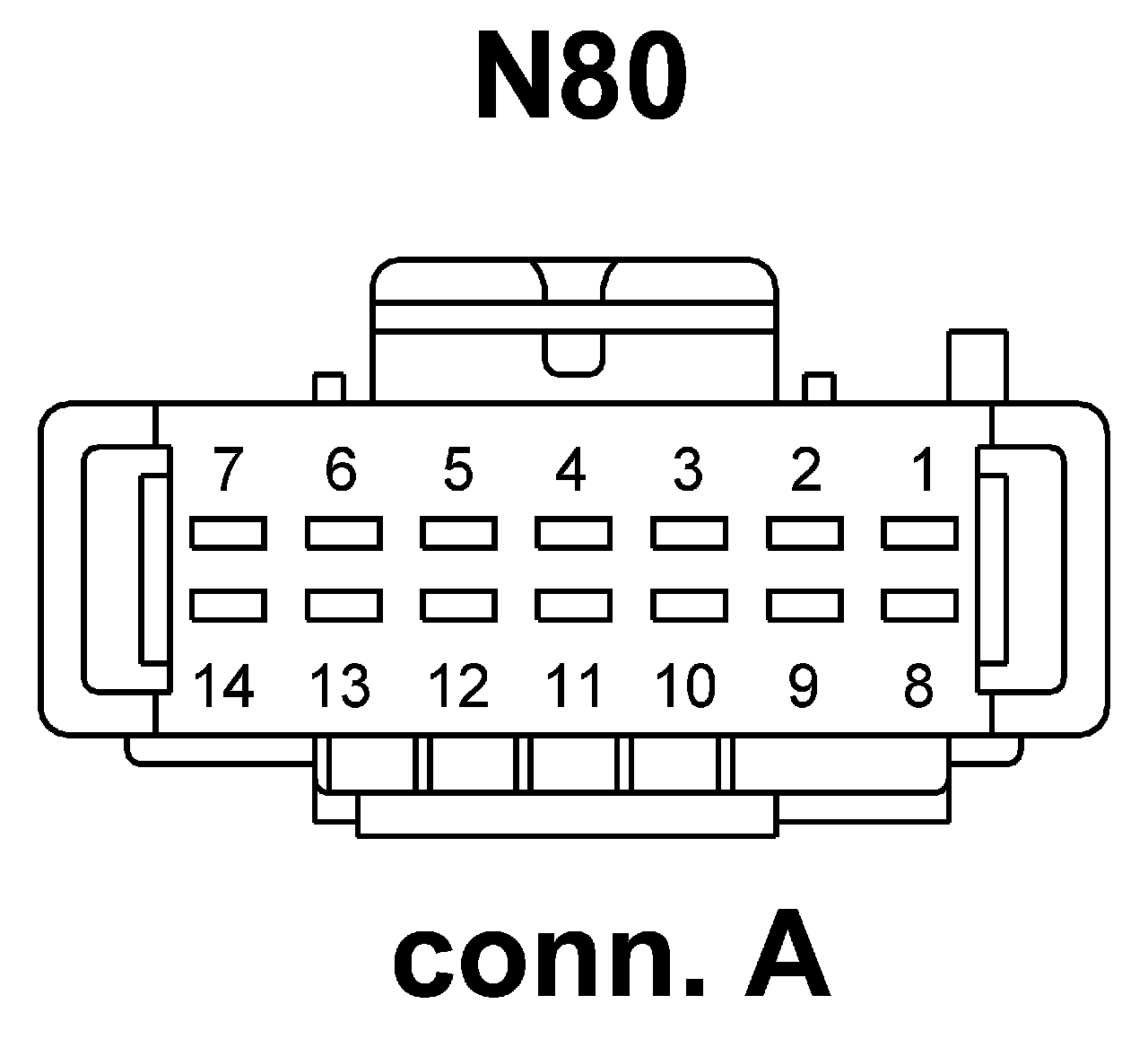

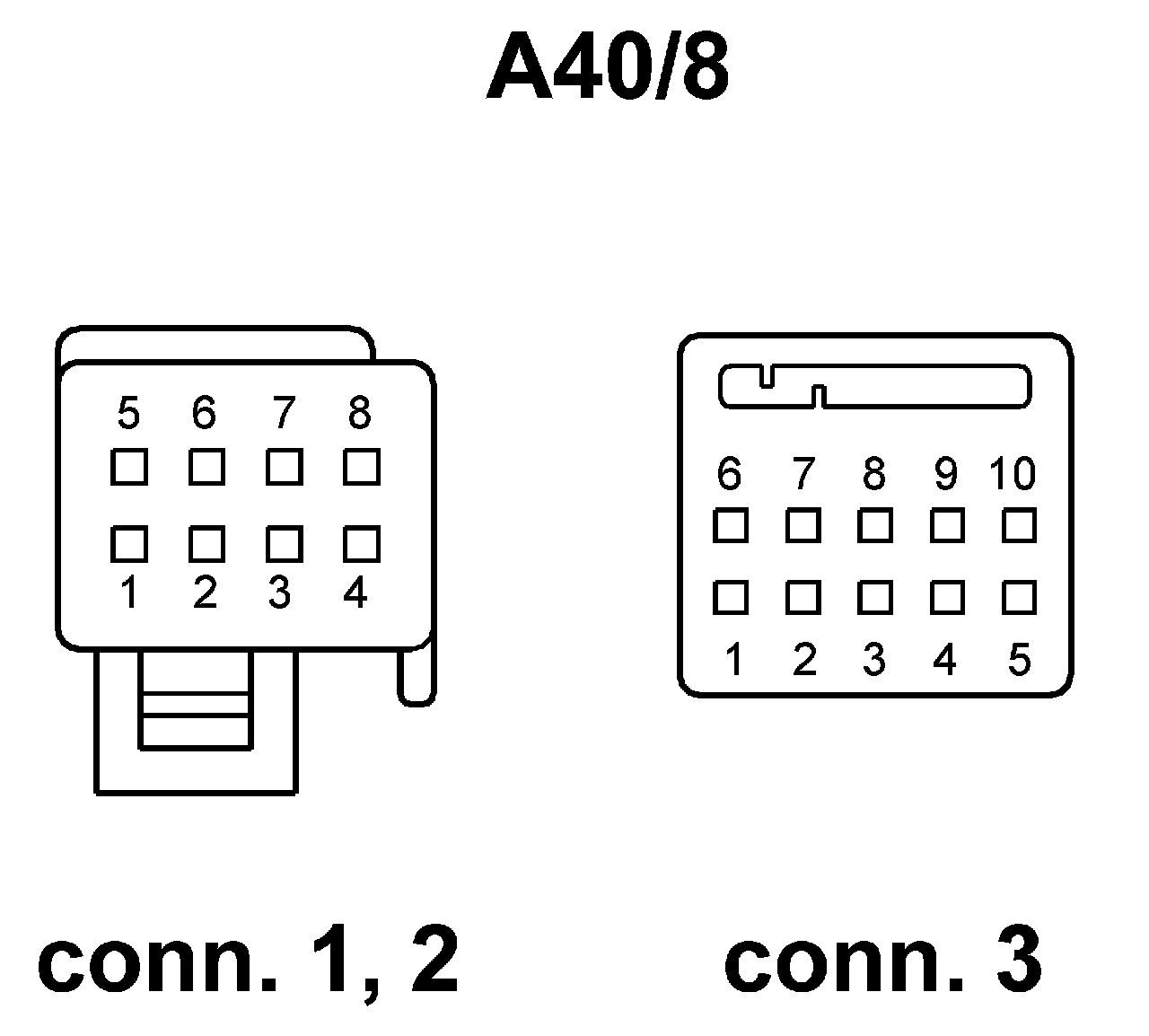

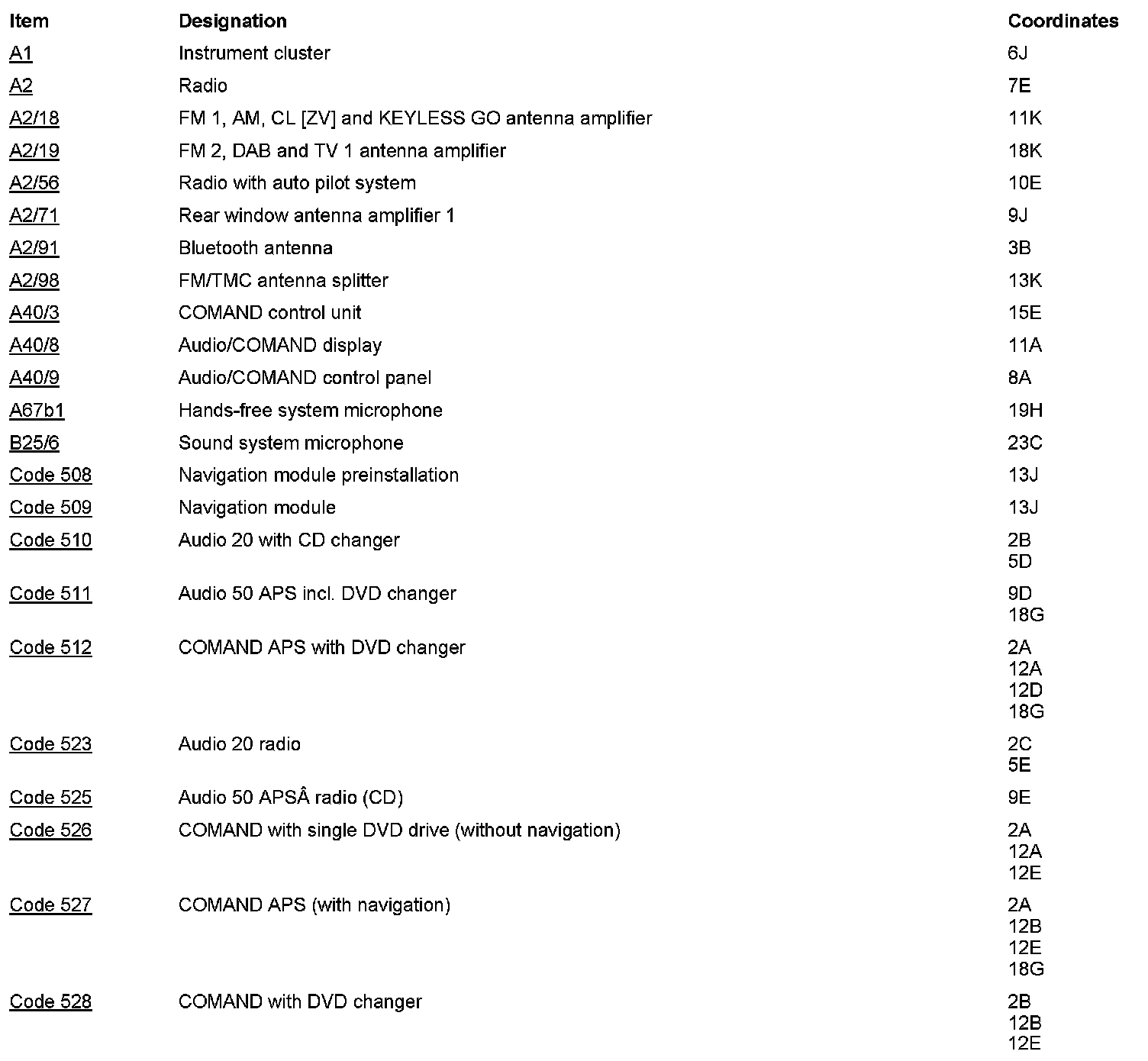

PE82.60-P-2058XAA Electrical Function Diagram For Audio Mode, Function



PE82.60-P-2058XAA Electrical Function Diagram For Audio Mode, Function
MODEL 218
