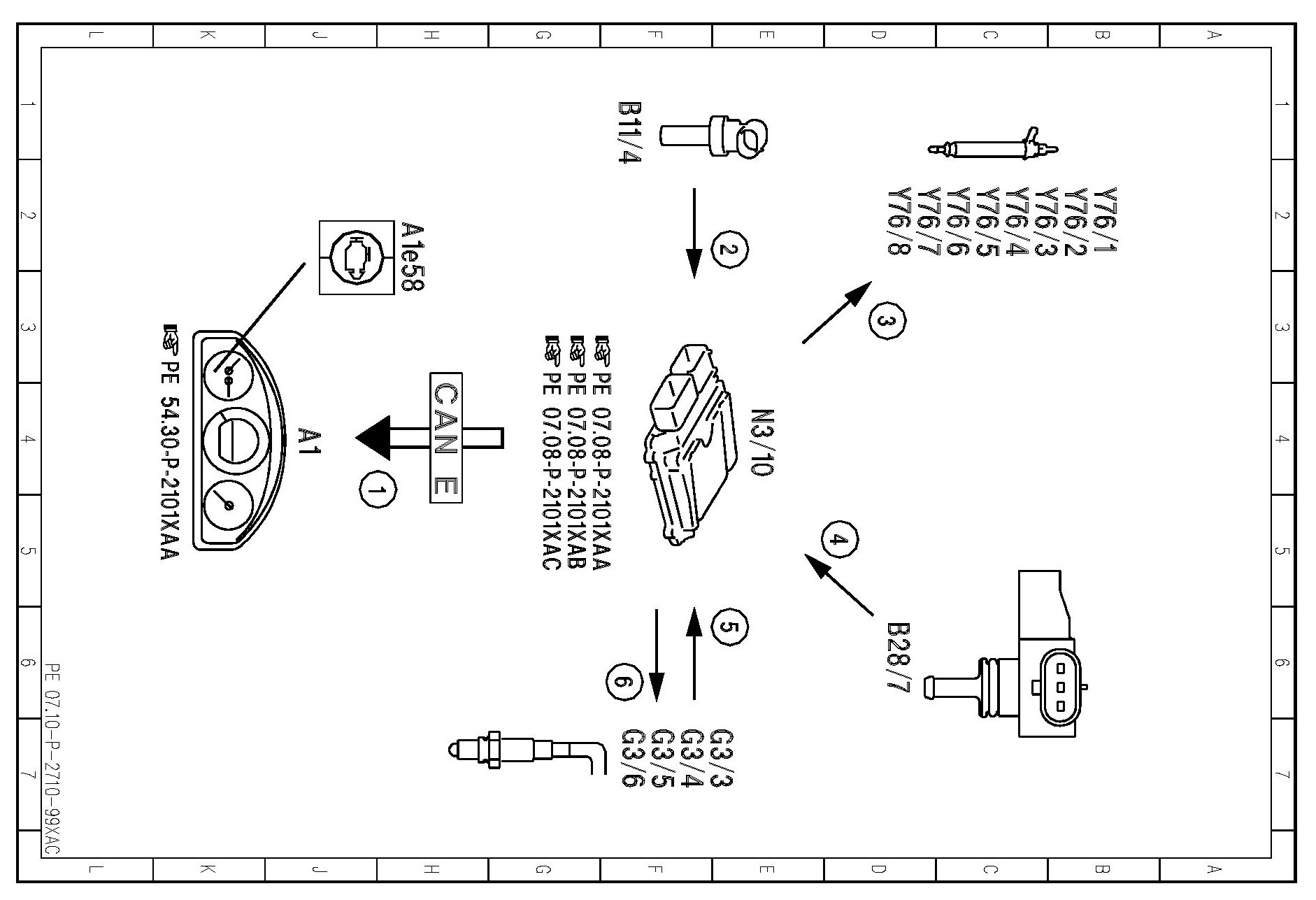

PE07.10-P-2710XAC Electrical Function Schematic For Lambda Control

PE07.10-P-2710XAC Electrical Function Schematic For Lambda Control
ENGINES 157, 278 in MODEL 218


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
