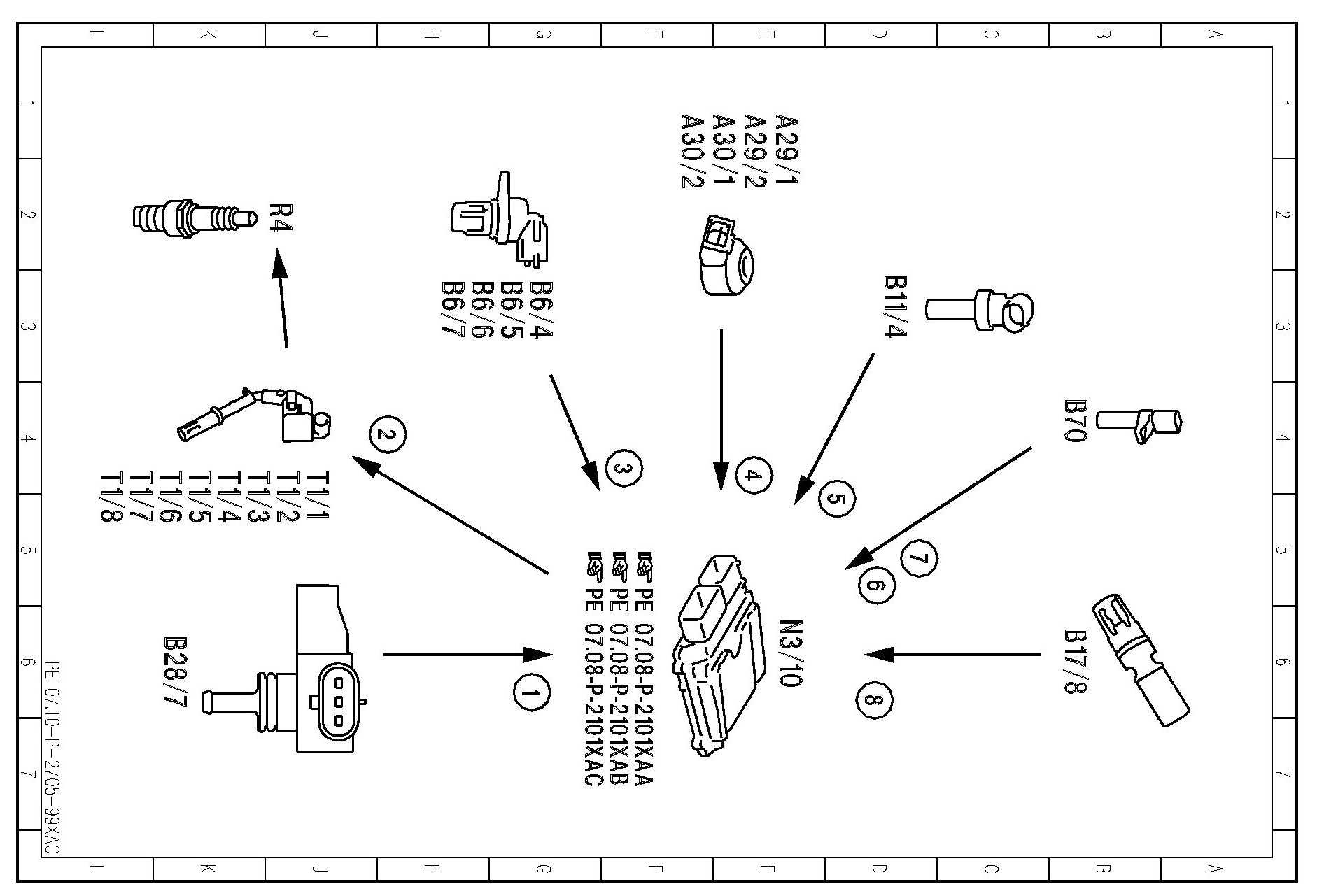

PE07.10-P-2705XAC Electrical Function Schematic For Ignition System

PE07.10-P-2705XAC Electrical Function Schematic For Ignition System
ENGINES 157, 278 in MODEL 218














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
