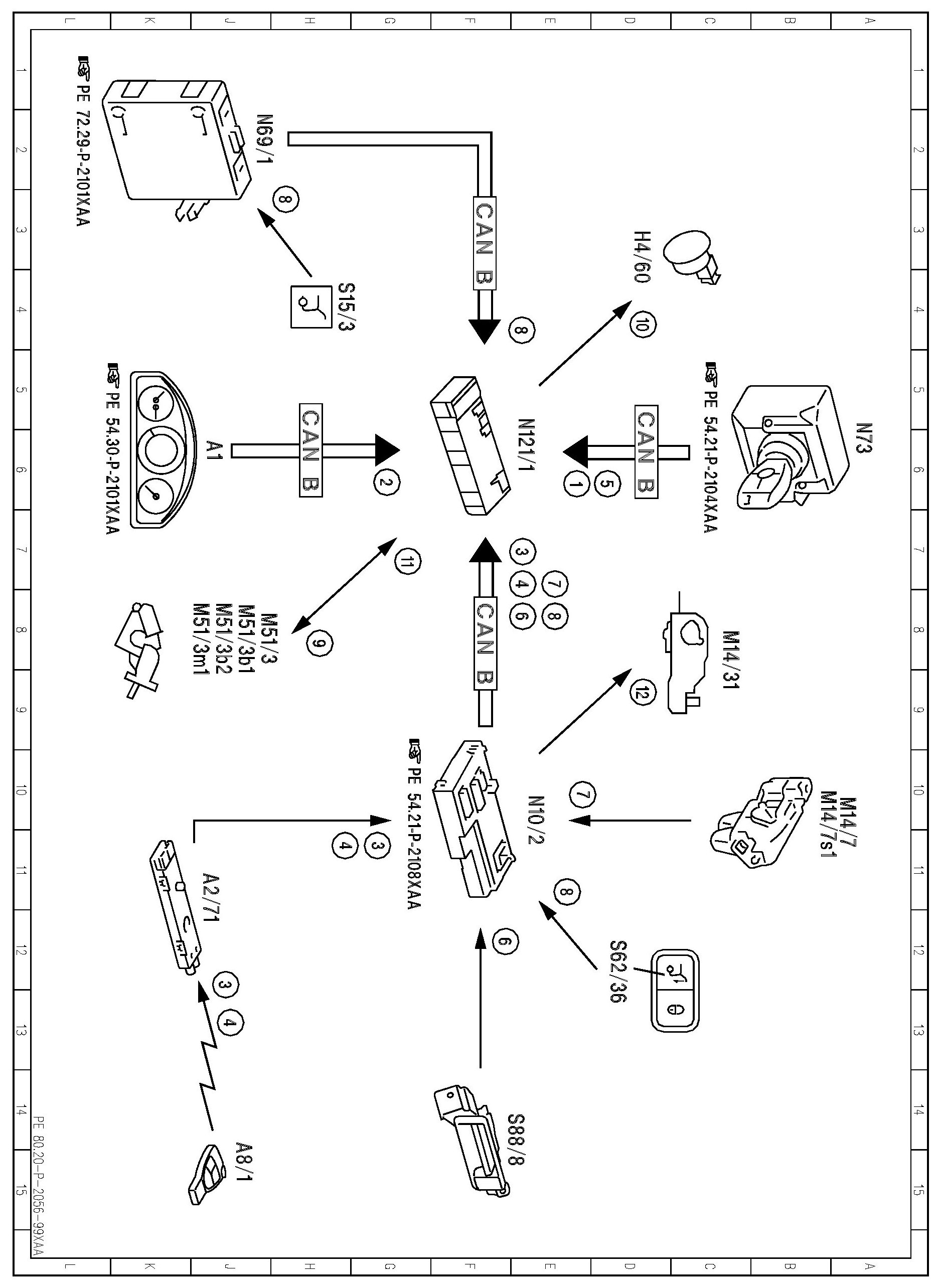

PE80.20-P-2056XAA Function Schematic For Electric Liftgate Control

PE80.20-P-2056XAA Function Schematic For Electric Liftgate Control
MODEL 218.9


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
