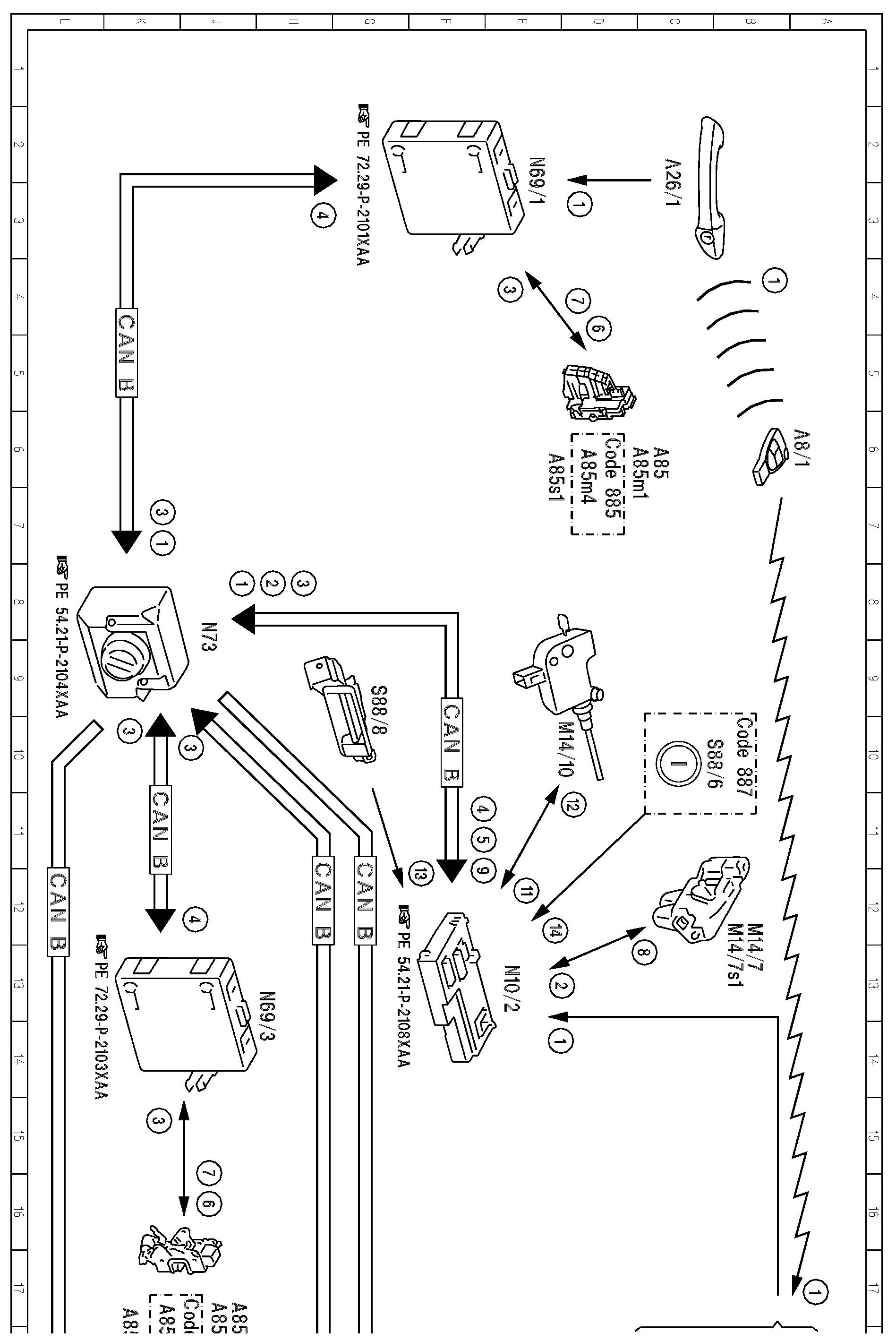

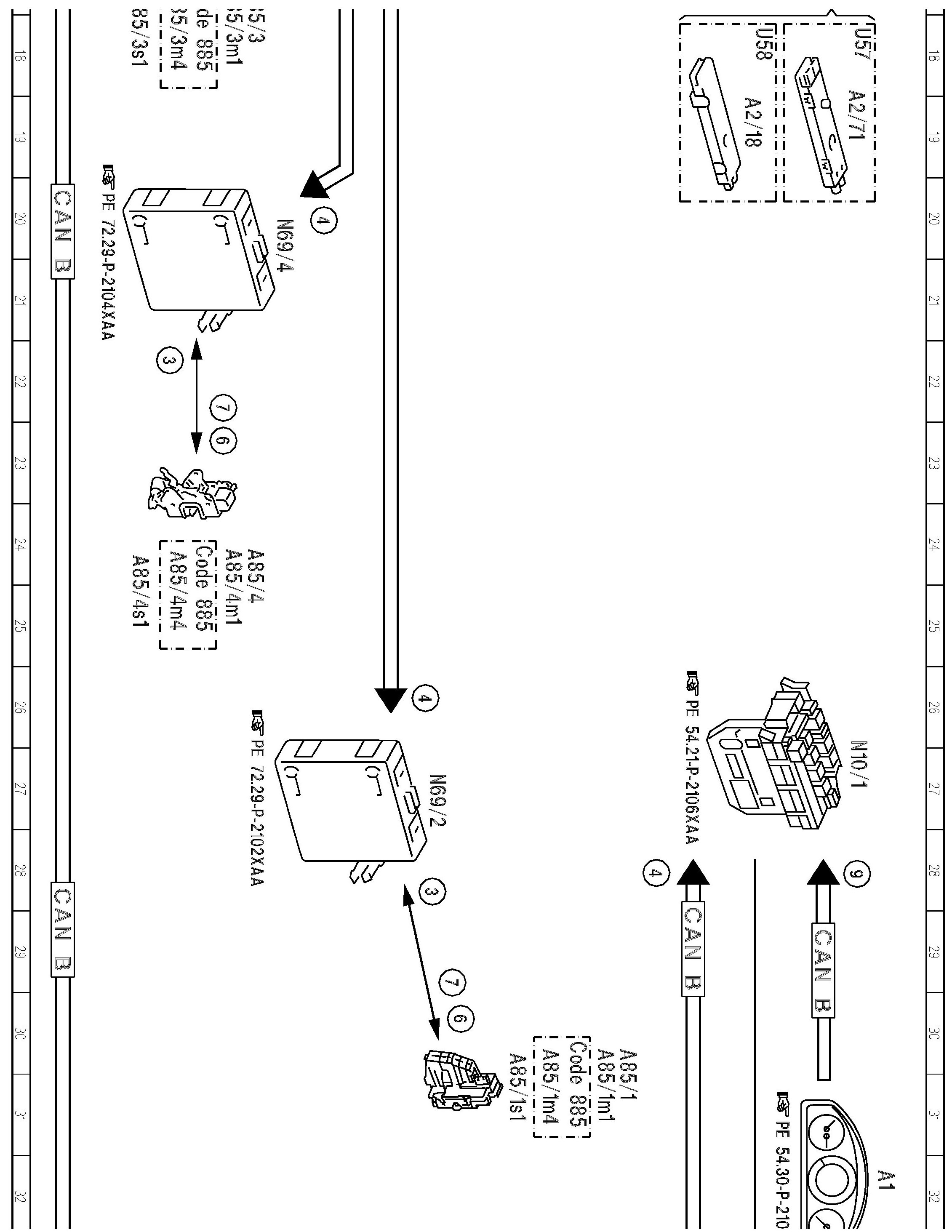

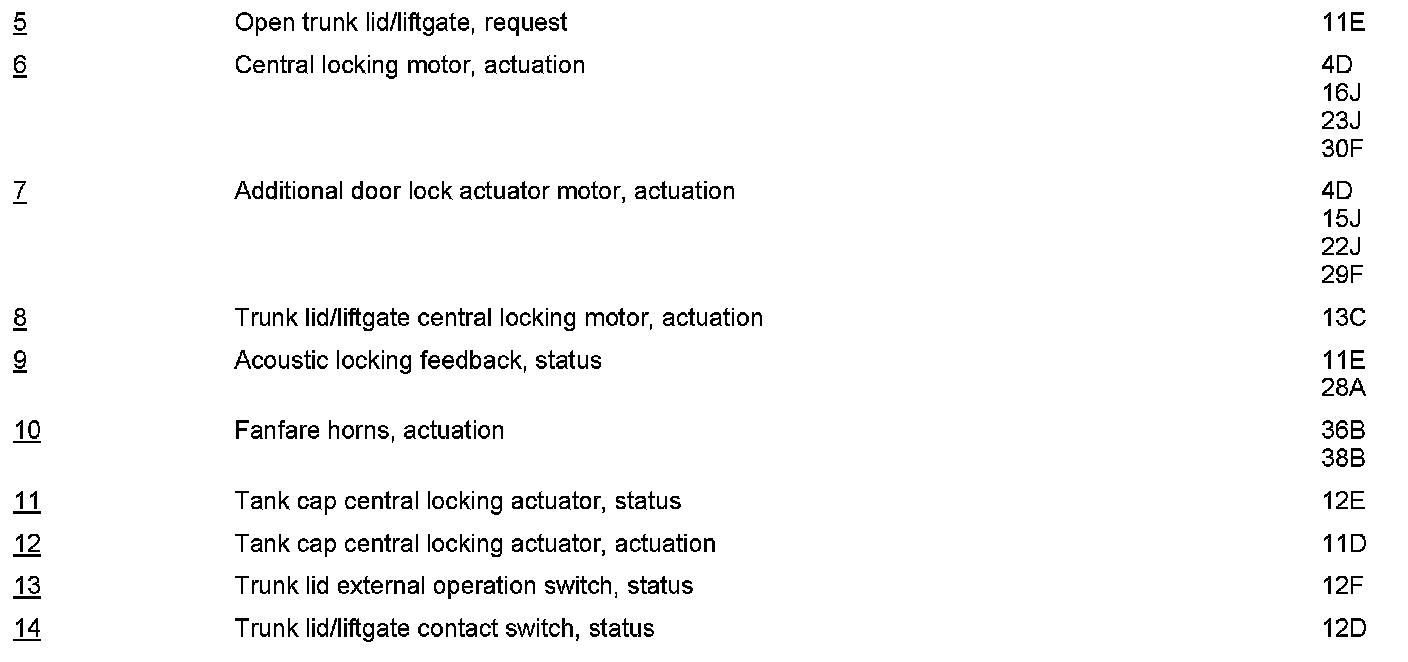

PE80.20-P-2052XAA Electrical Function Schematic For Central Locking, Operation With Transmitter Ke

PE80.20-P-2052XAA Electrical Function Schematic For Central Locking, Operation With Transmitter Ke
MODEL 218

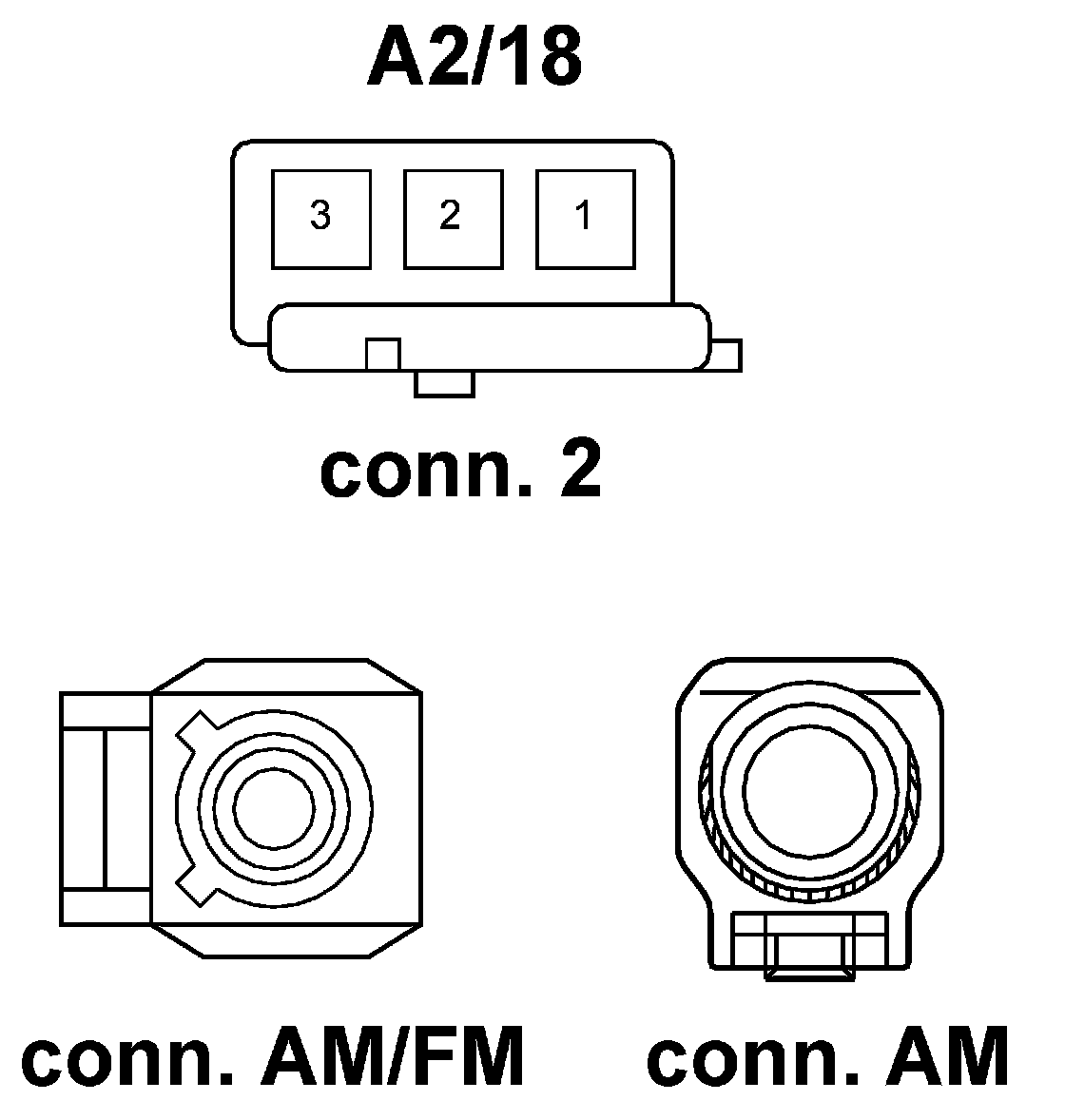

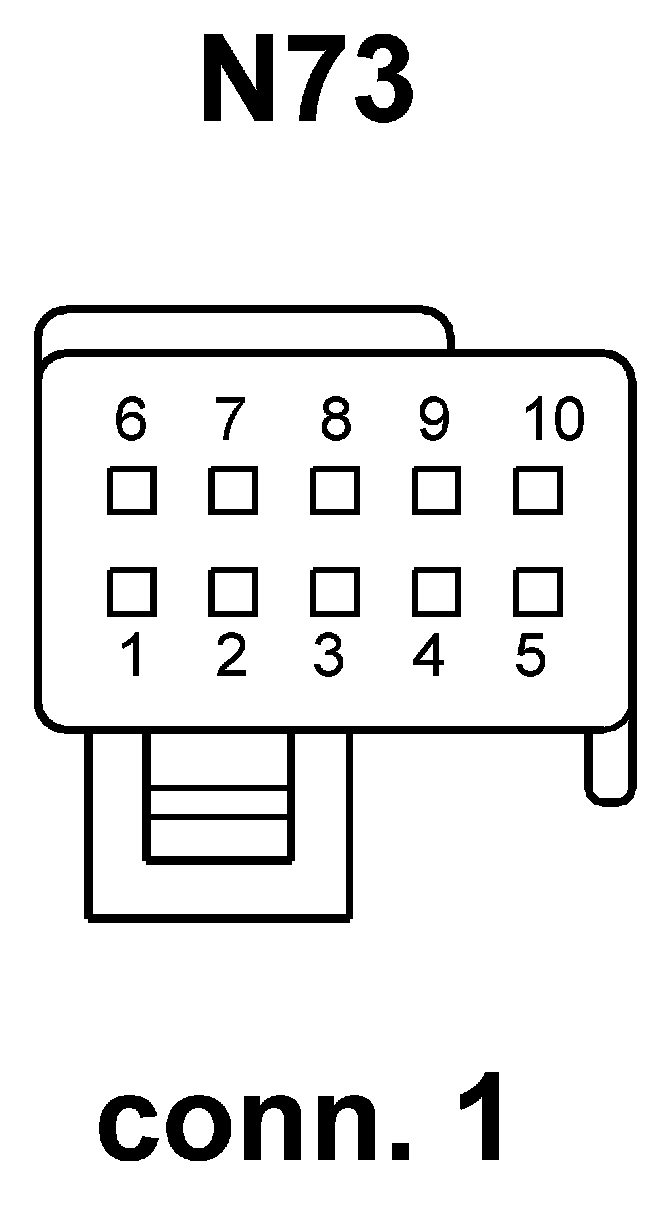

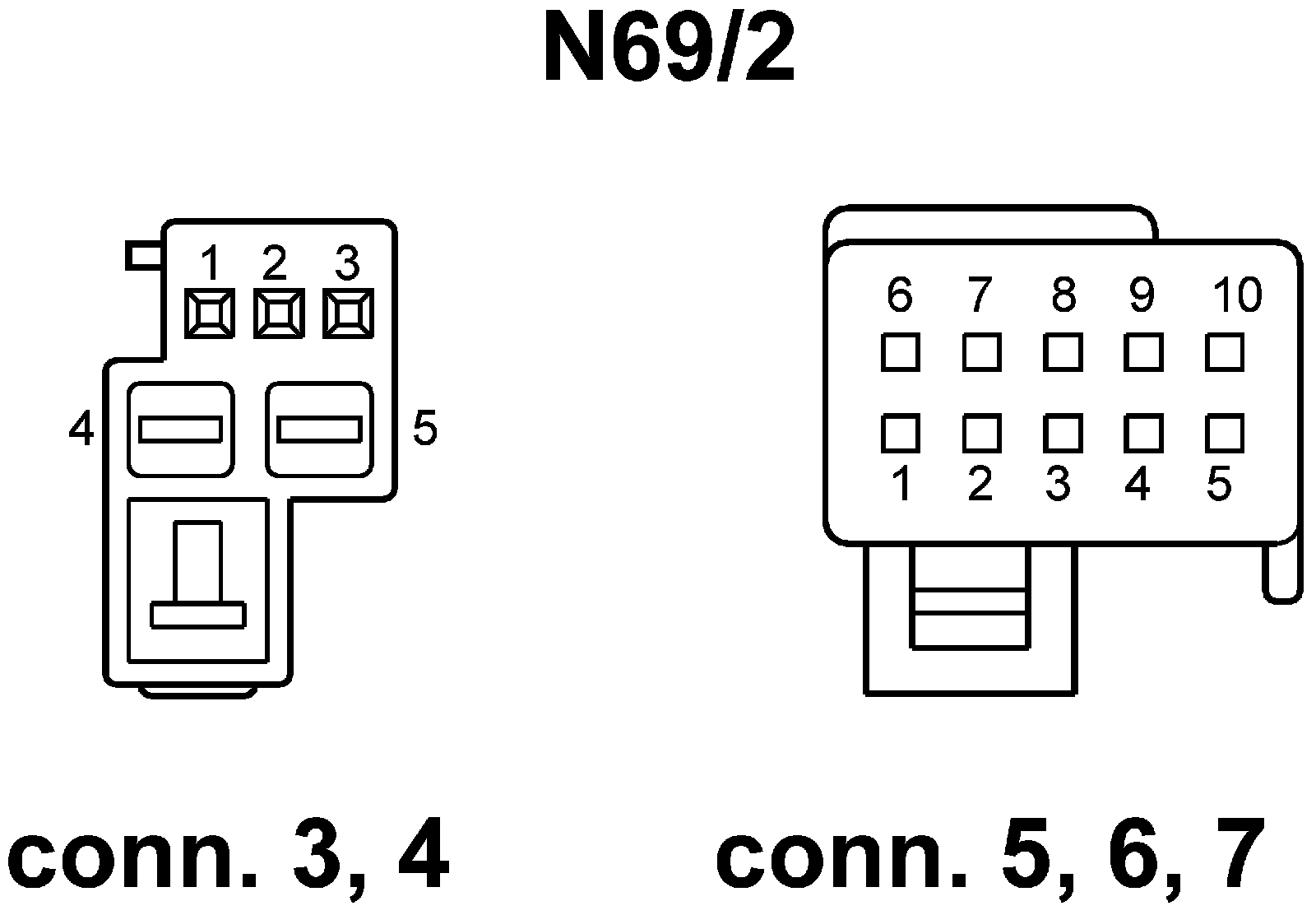

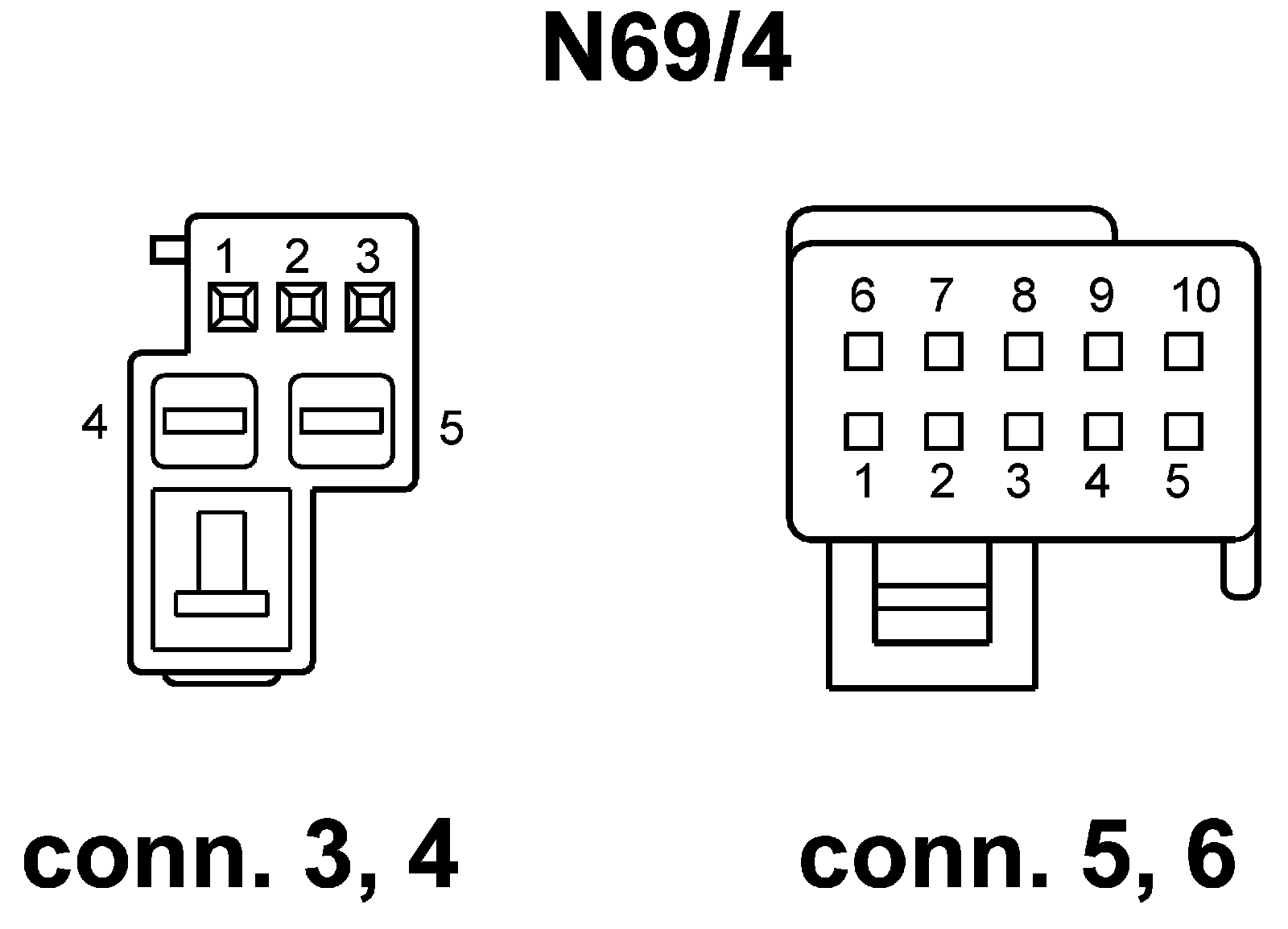

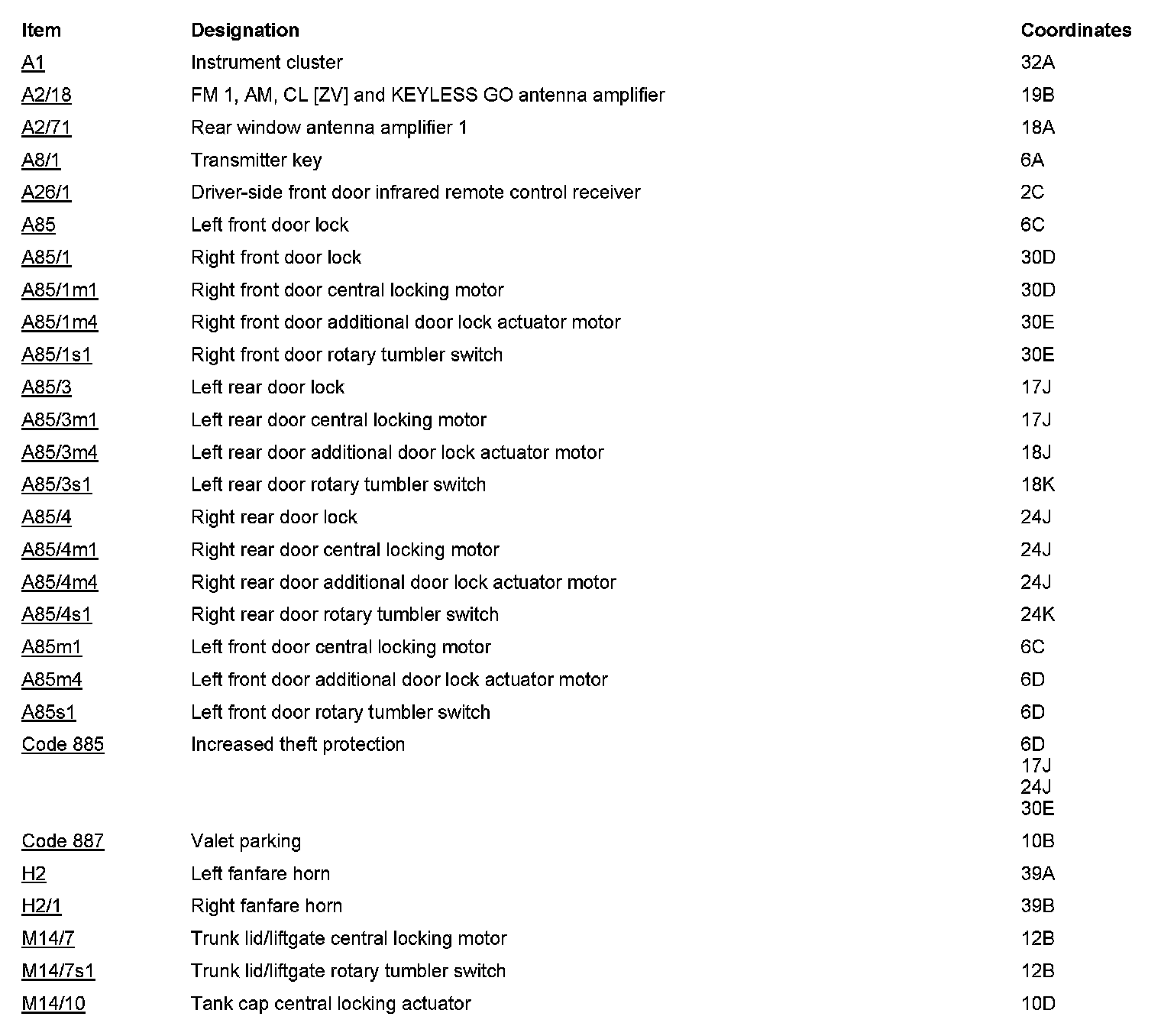

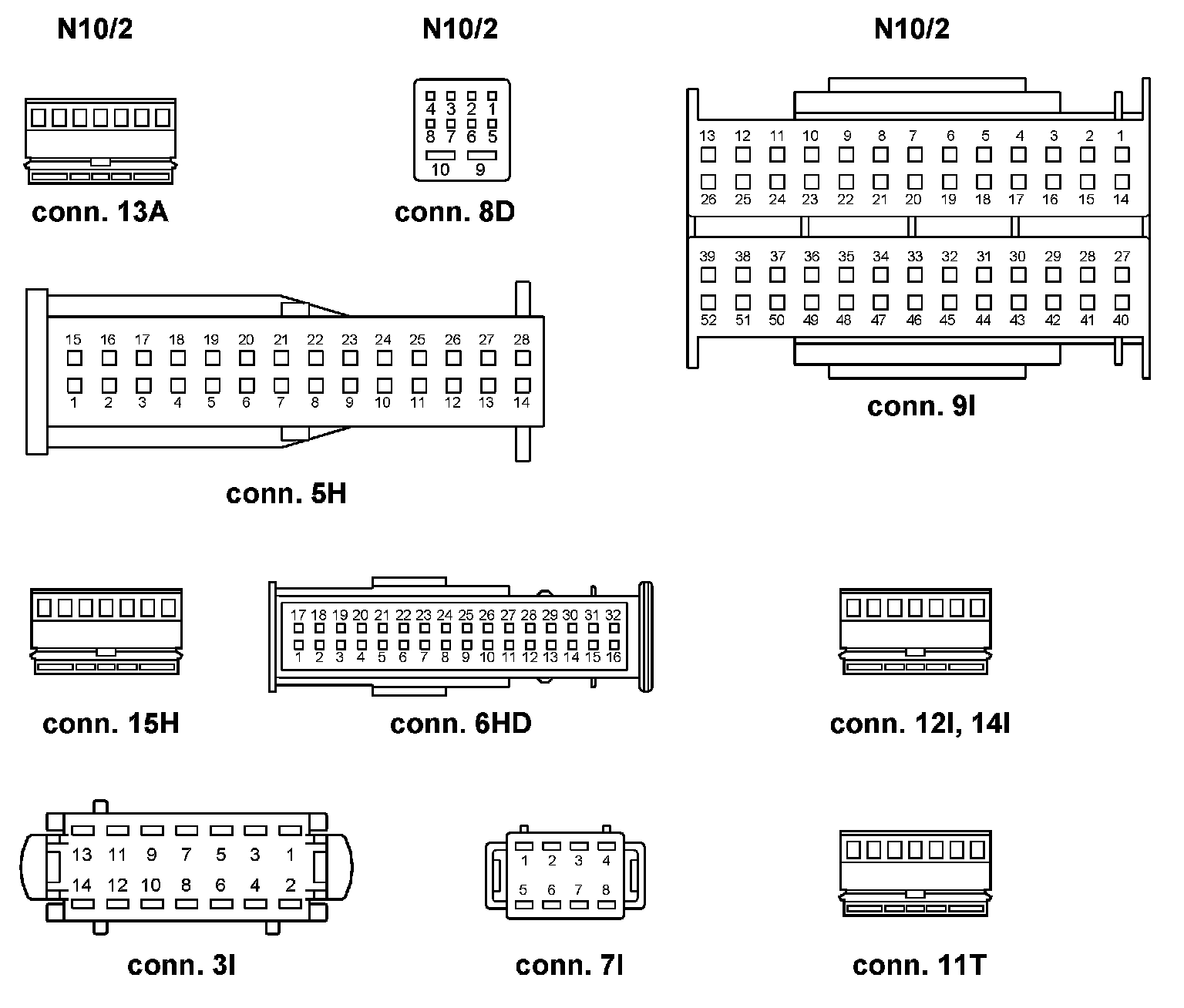

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
