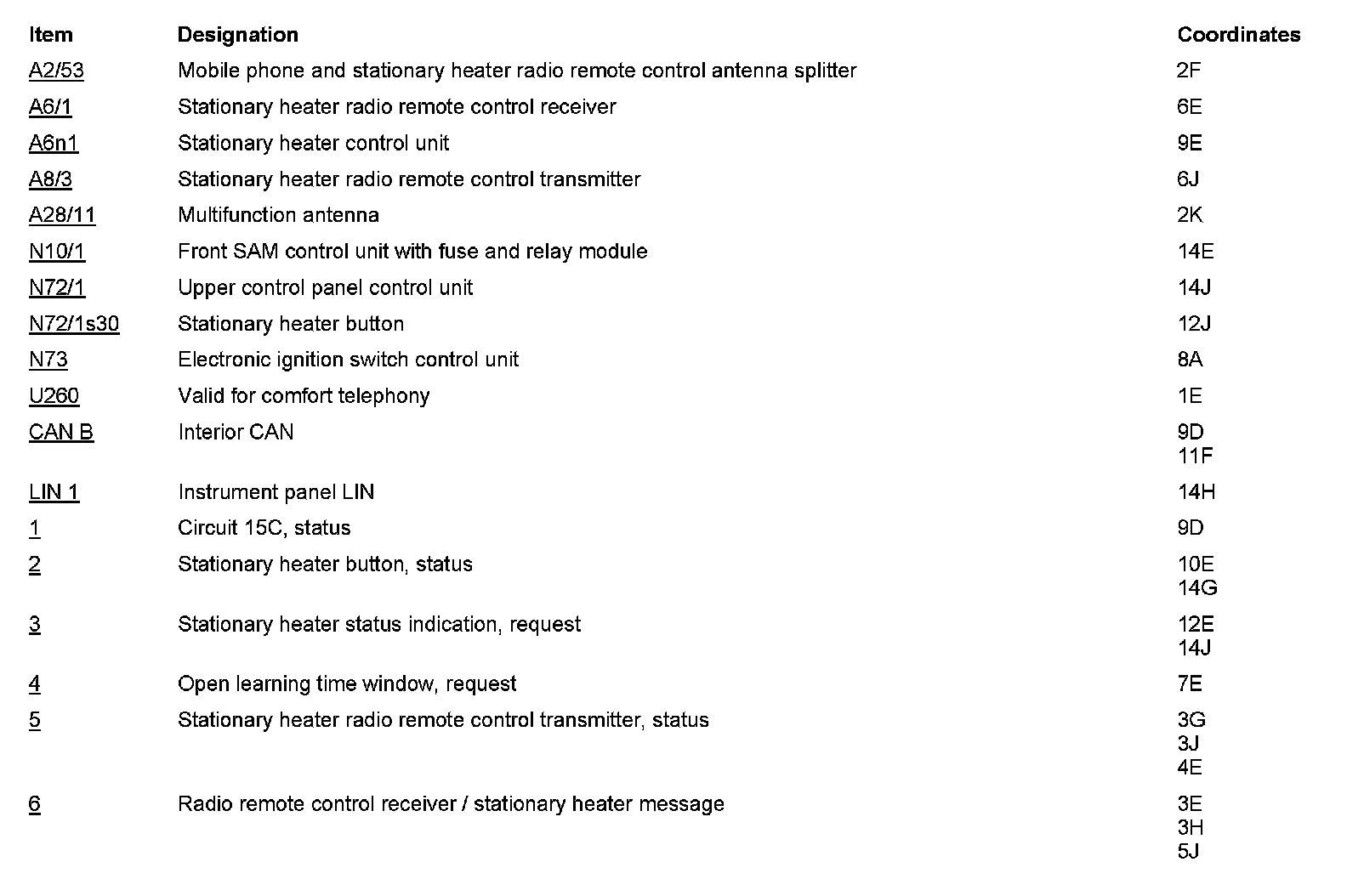

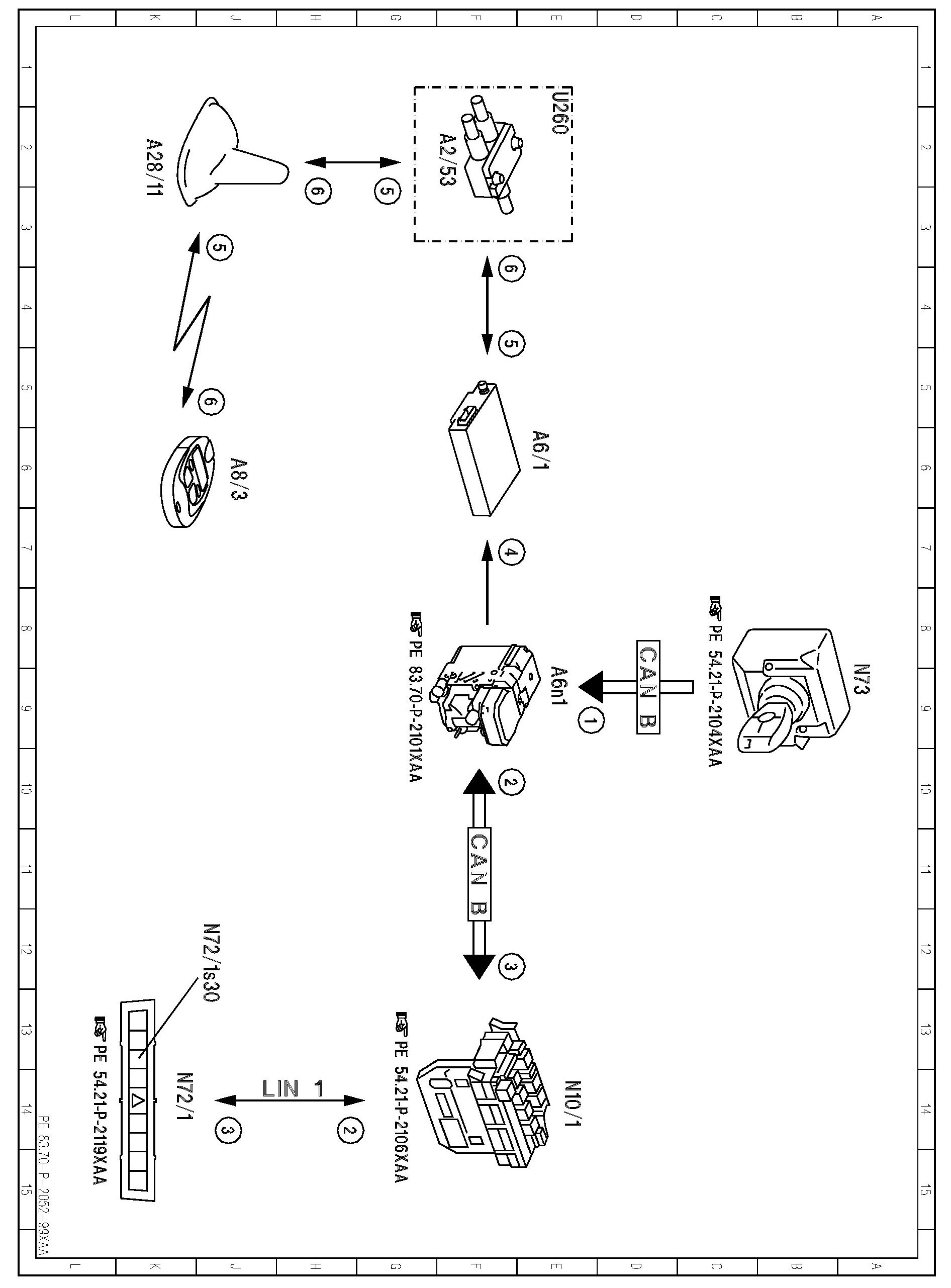

PE83.70-P-2052XAA Electrical Function Schematic, Teach-In of Stationary Heater Radio Remote Control

PE83.70-P-2052XAA Electrical Function Schematic, Teach-In of Stationary Heater Radio Remote Control
MODEL 218
with CODE (228) Stationary Heater

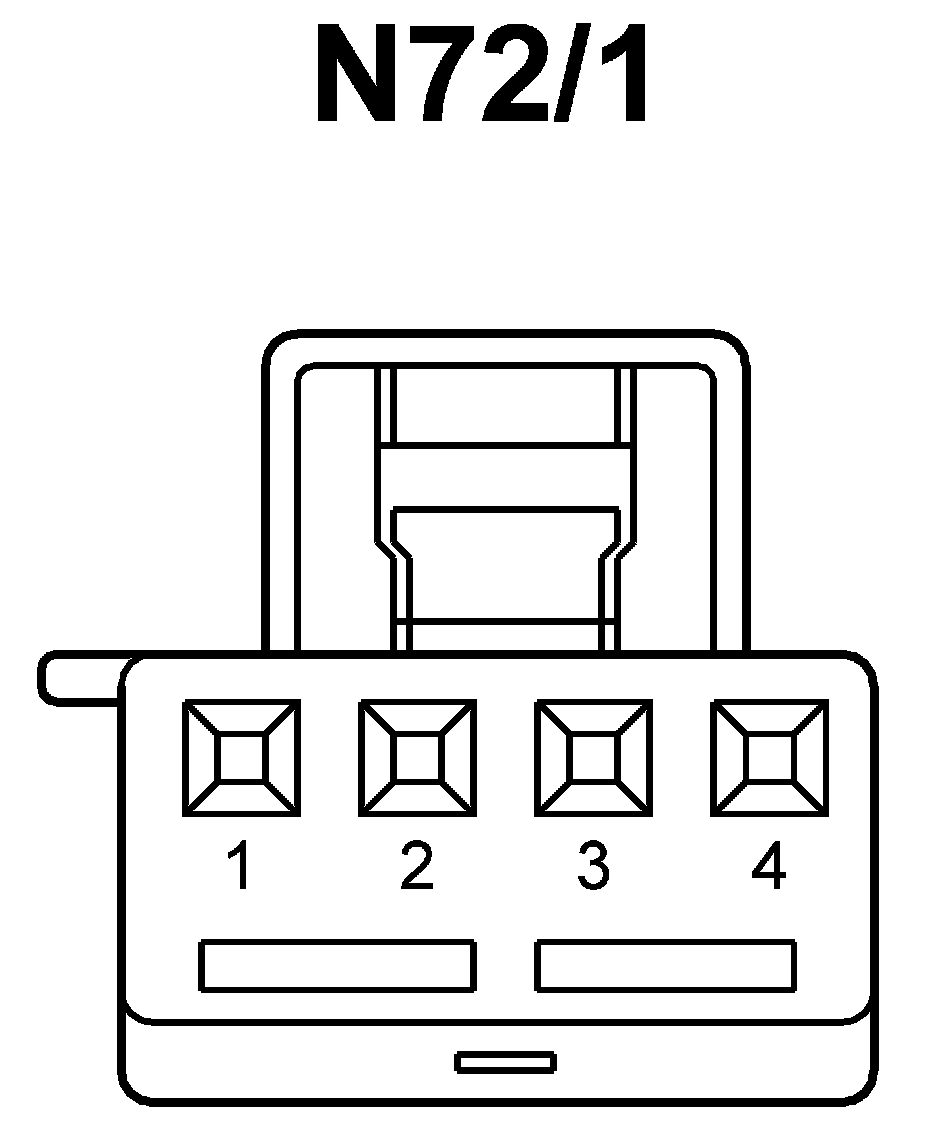

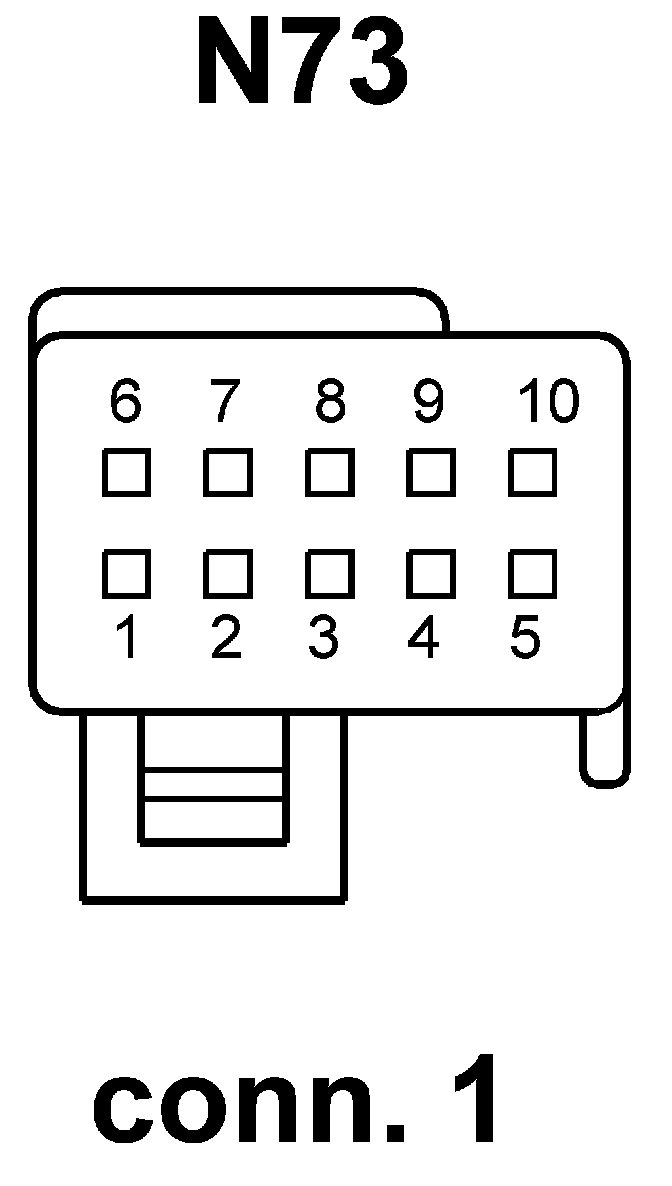

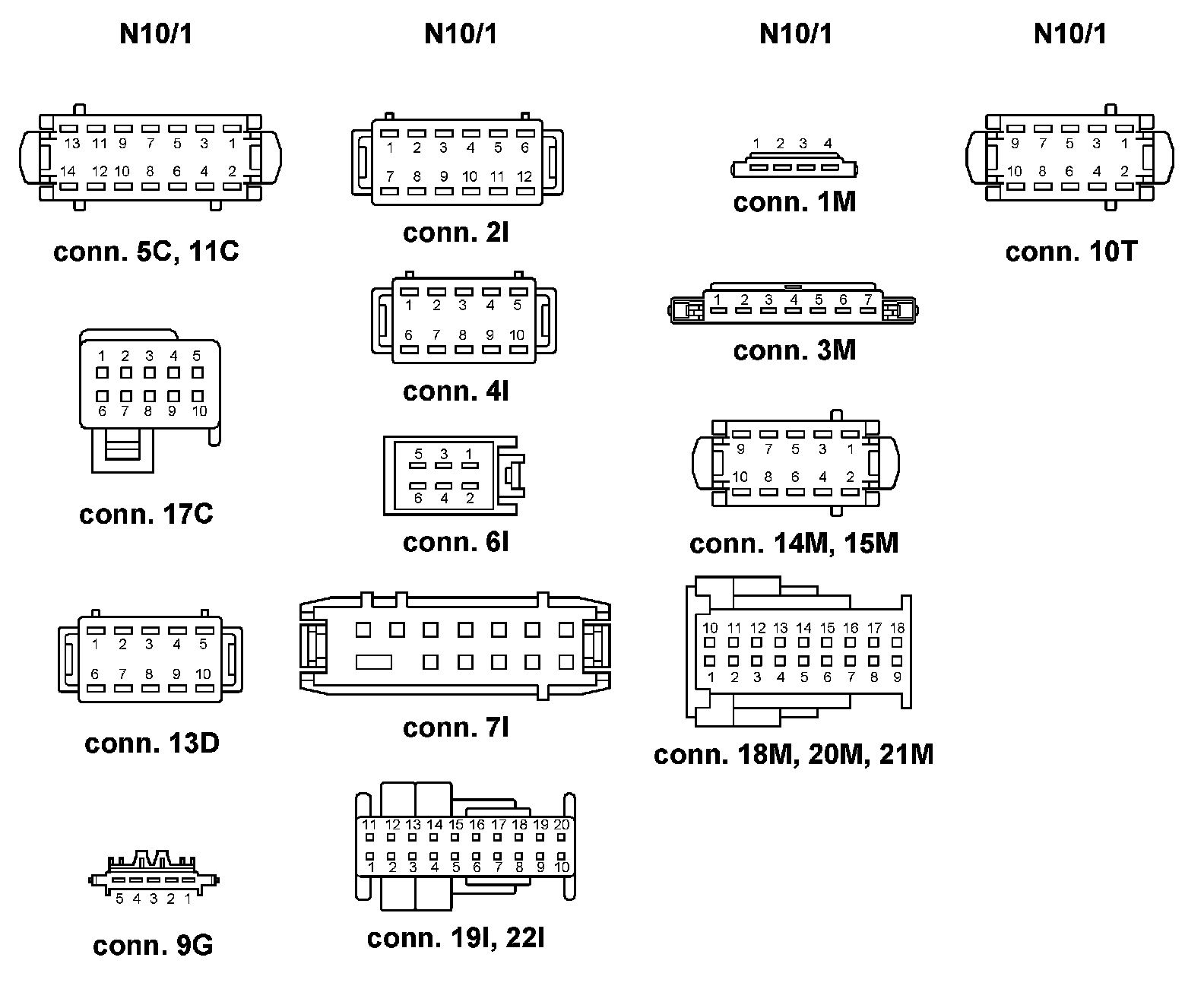

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
