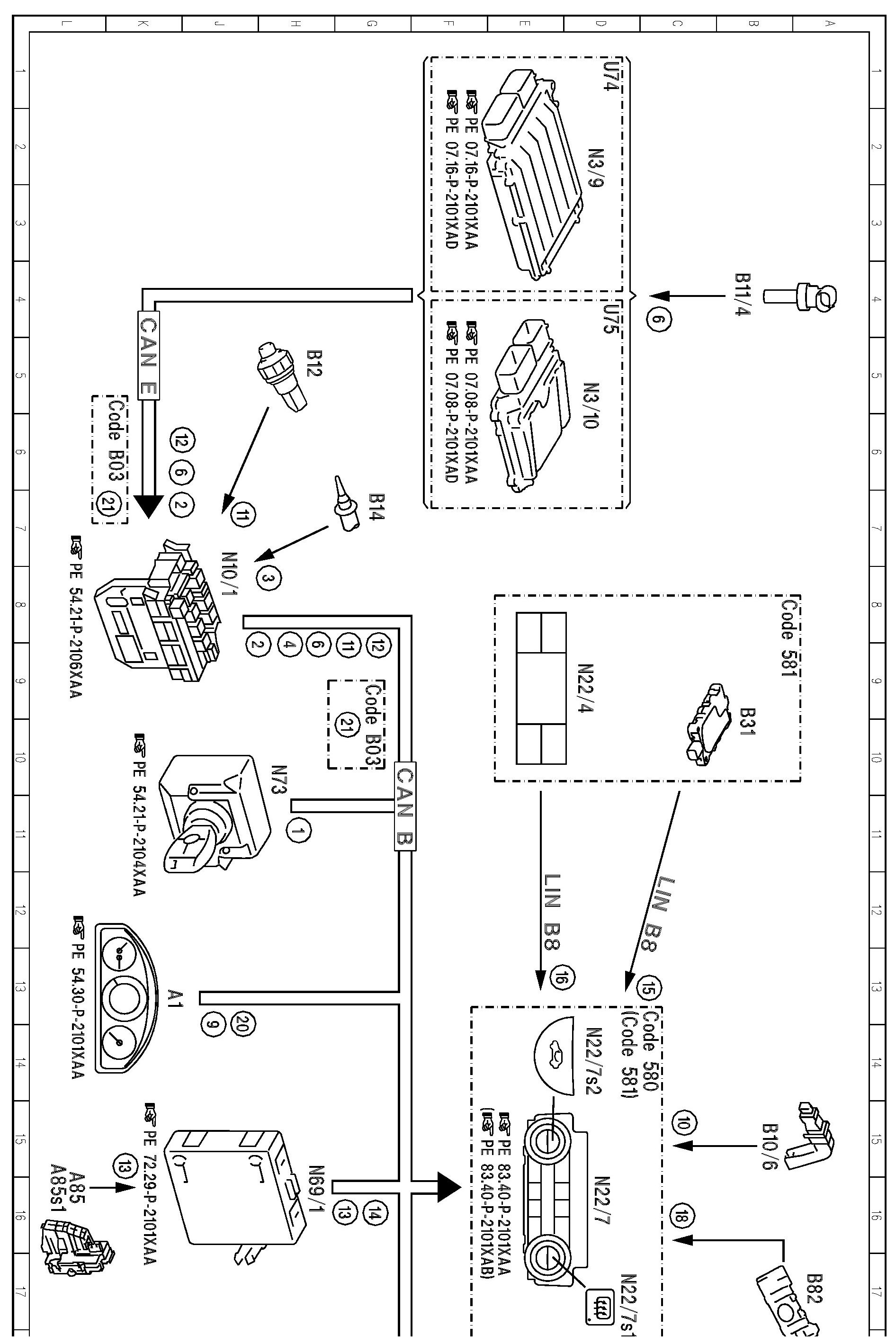

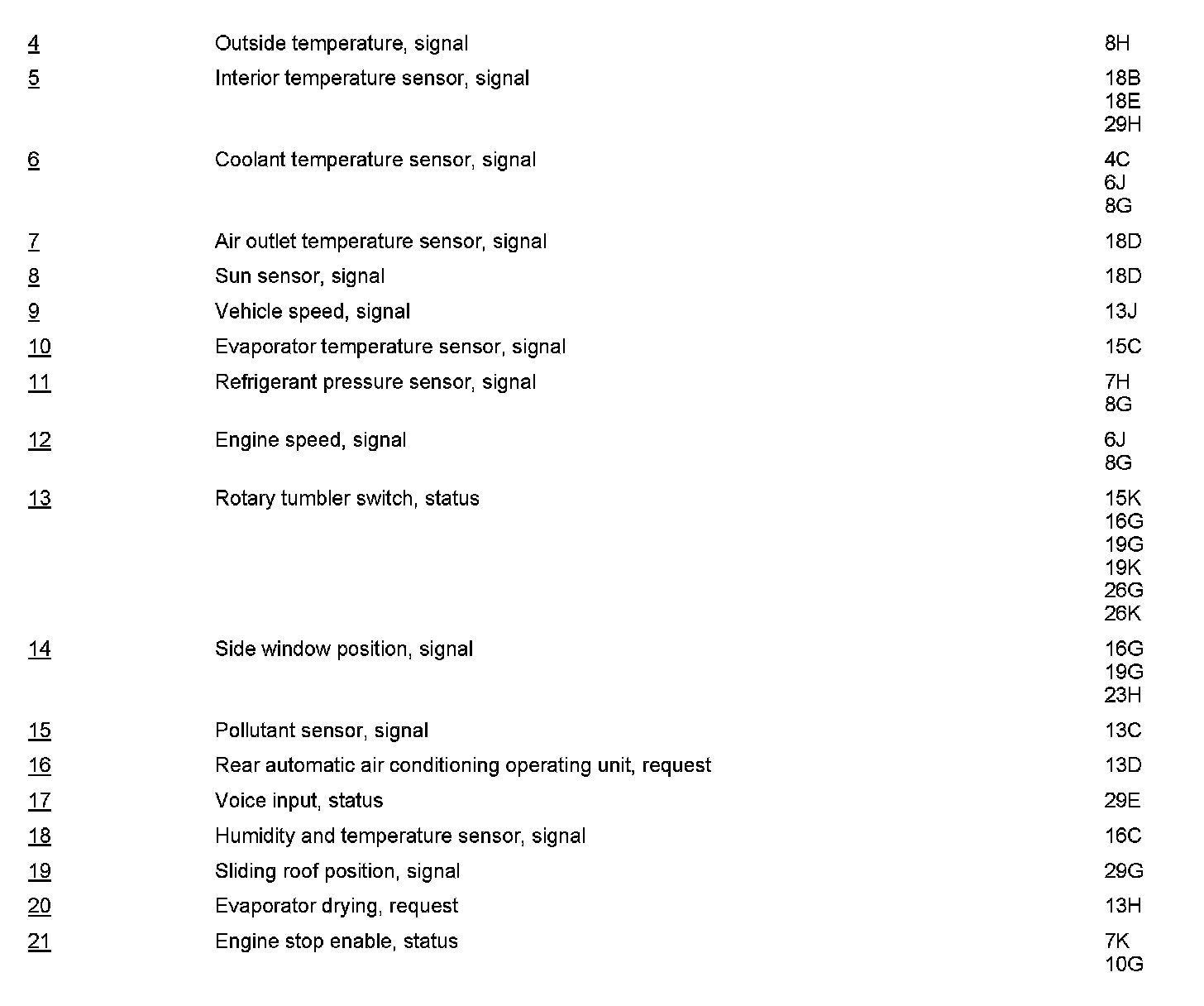

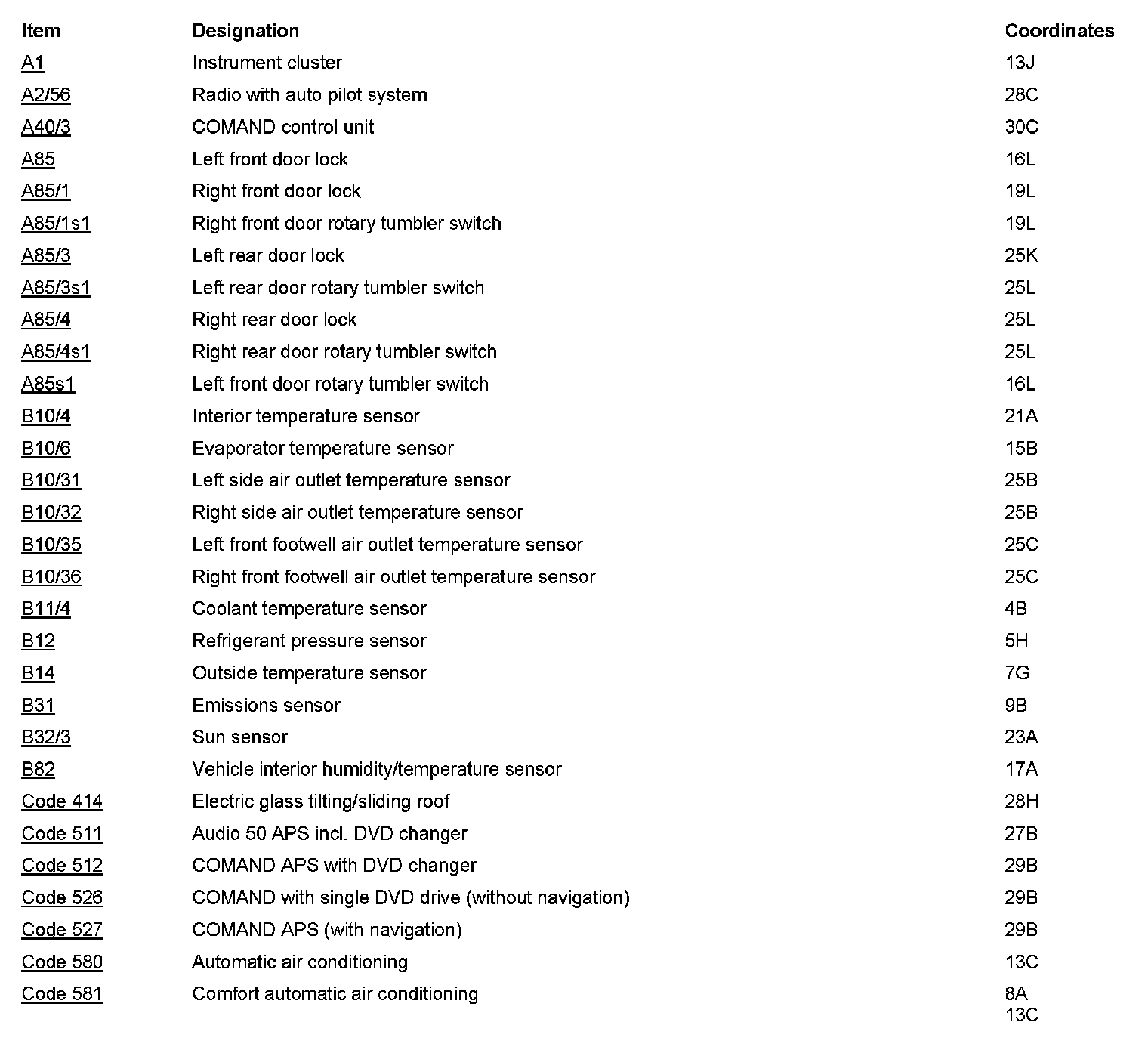

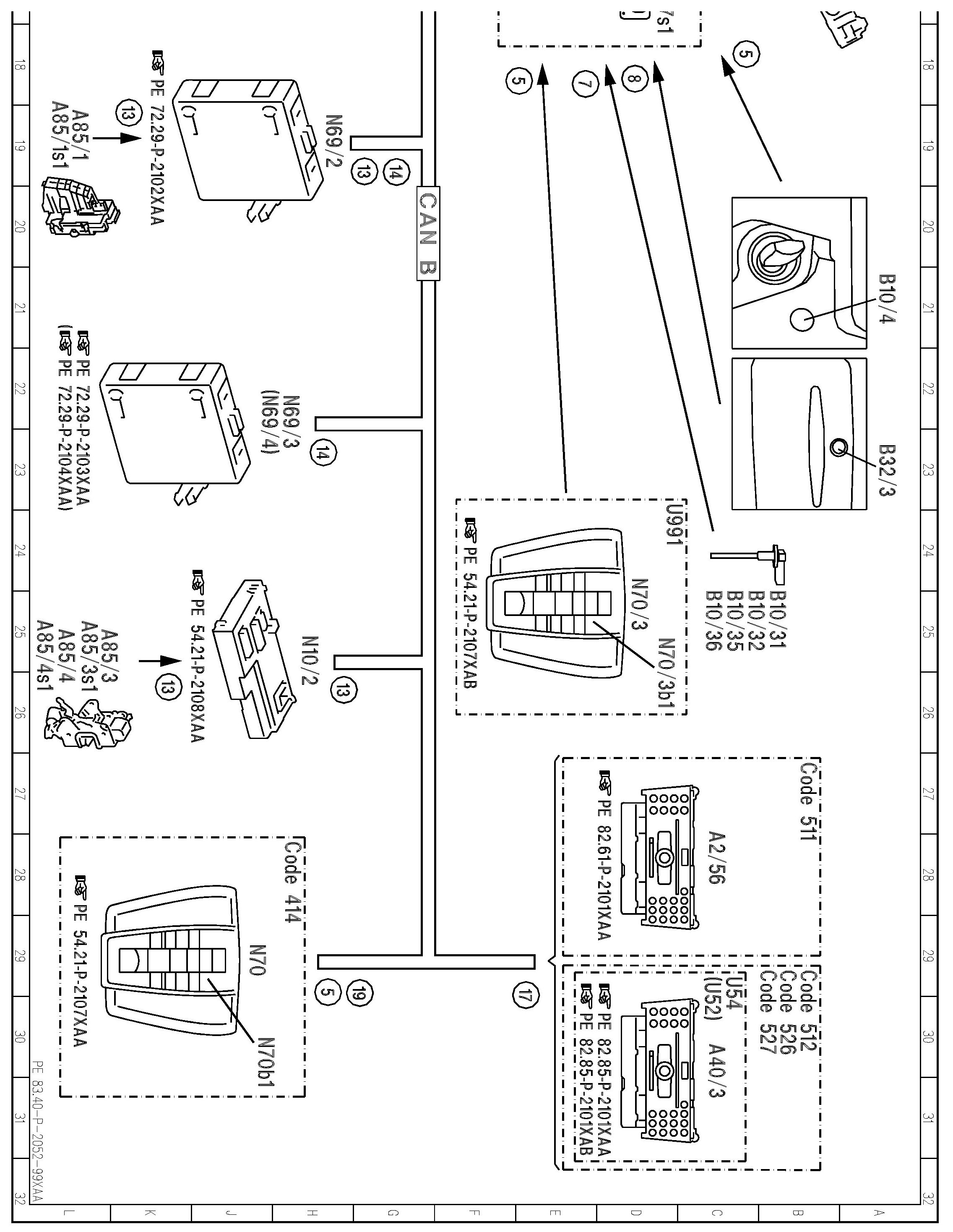

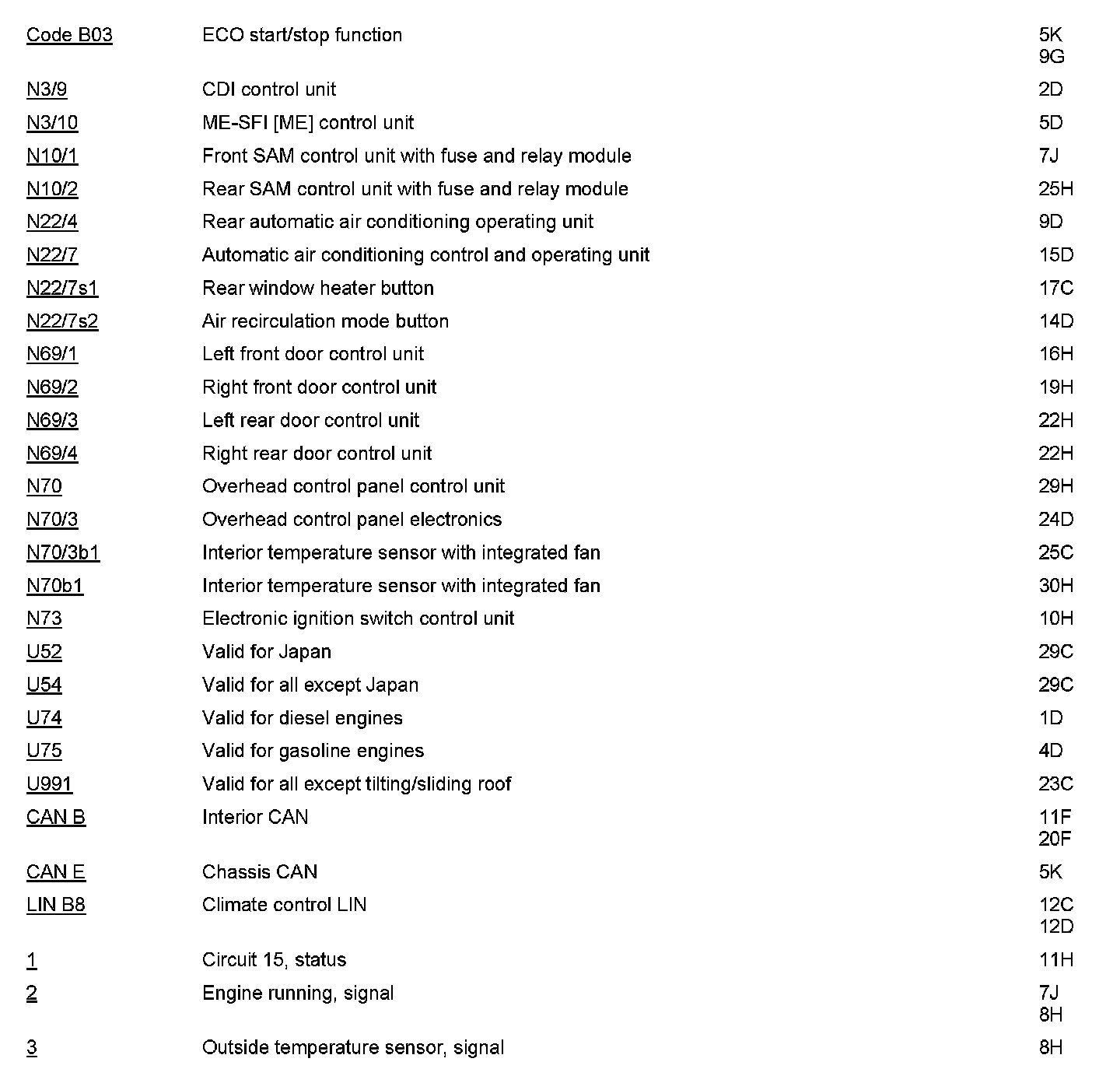

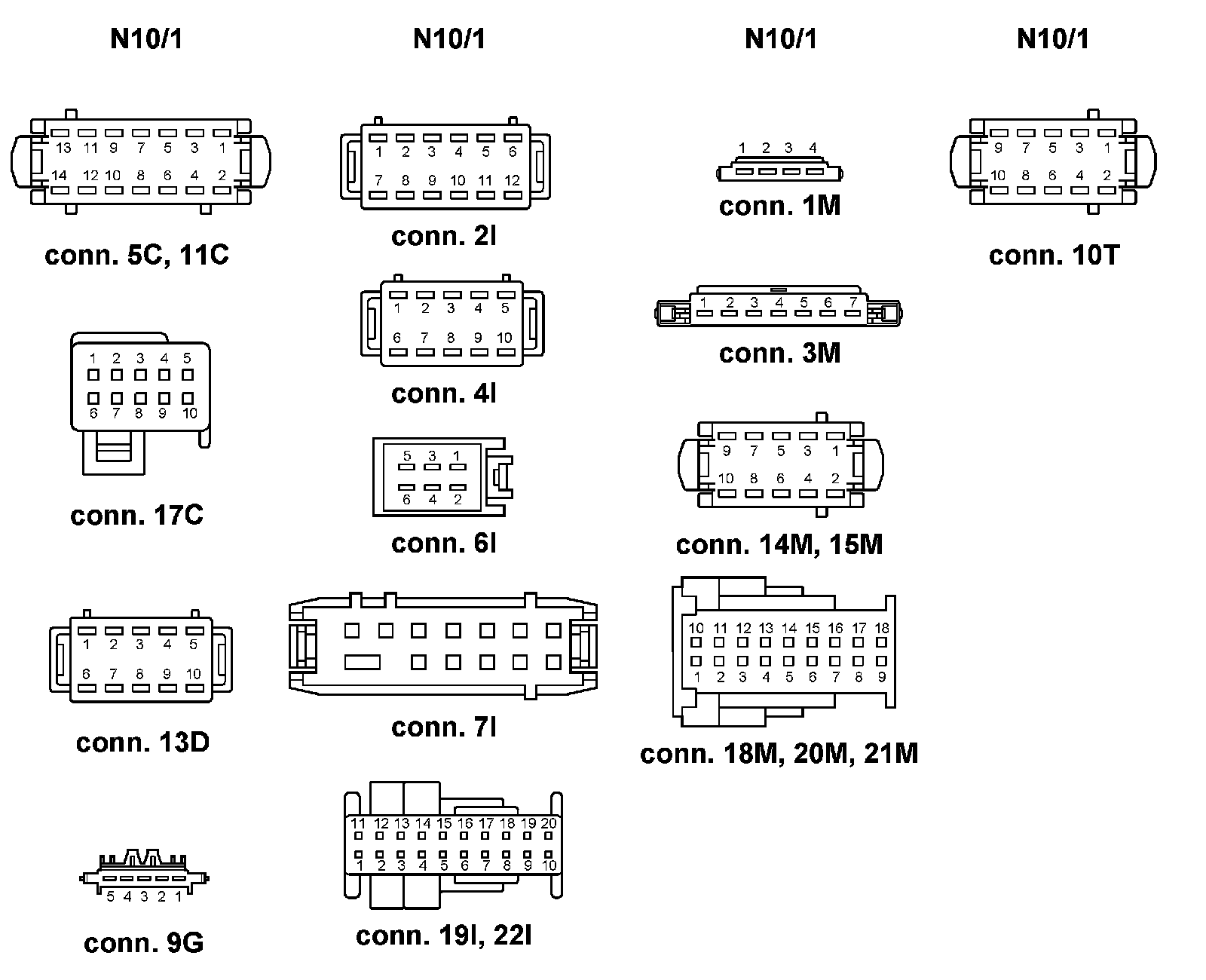

PE83.40-P-2052XAA Electrical Function Schematic For Automatic Air Conditioning, Input Signals

PE83.40-P-2052XAA Electrical Function Schematic For Automatic Air Conditioning, Input Signals
MODEL 218














































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
