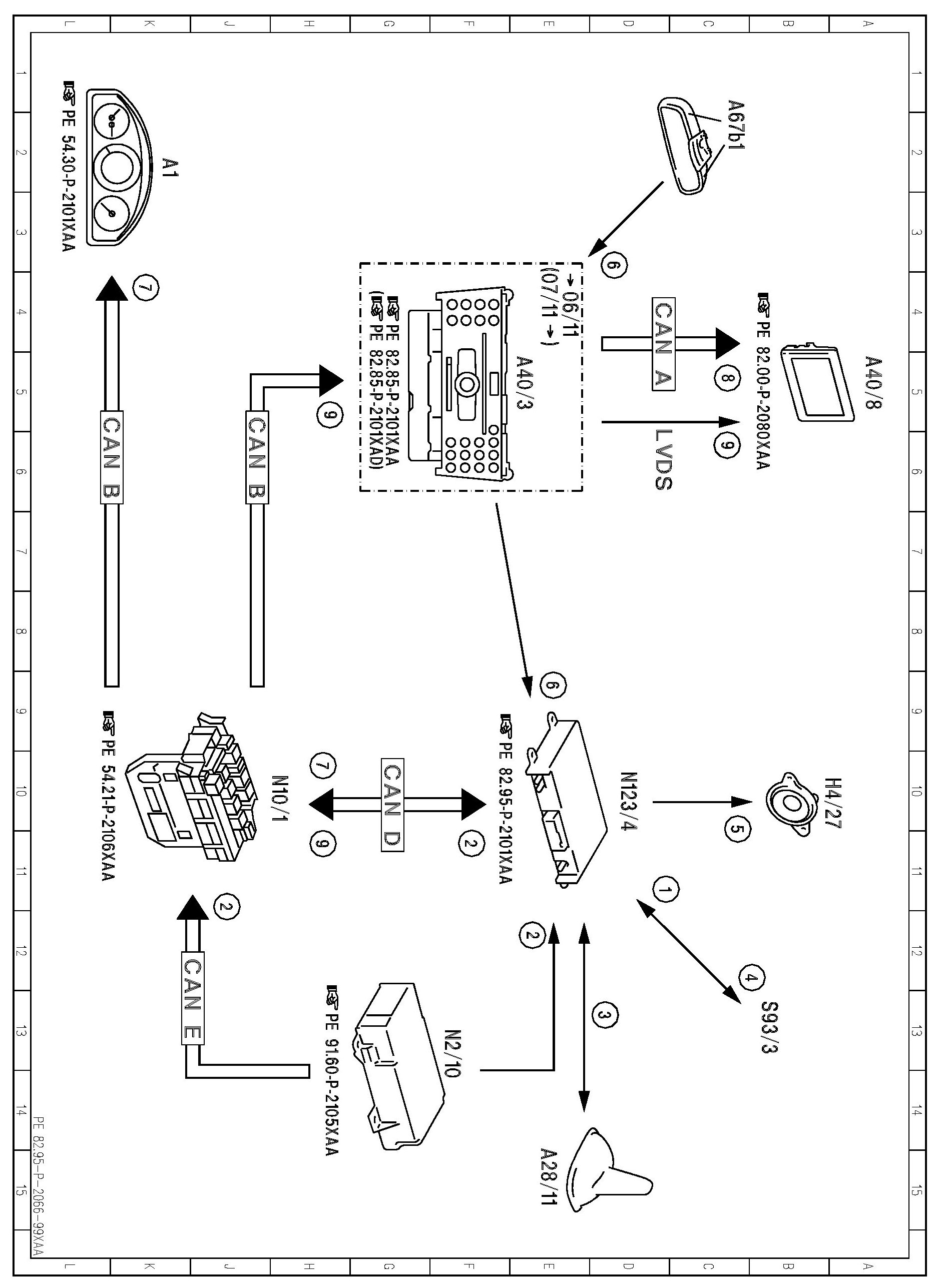

PE82.95-P-2066XAA Electrical Function Diagram For Manual or Automatic Emergency Call, Function

PE82.95-P-2066XAA Electrical Function Diagram For Manual or Automatic Emergency Call, Function
MODEL 218
with CODE (348) Emergency Call/Assist System
with CODE (359) TELE AID






























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
