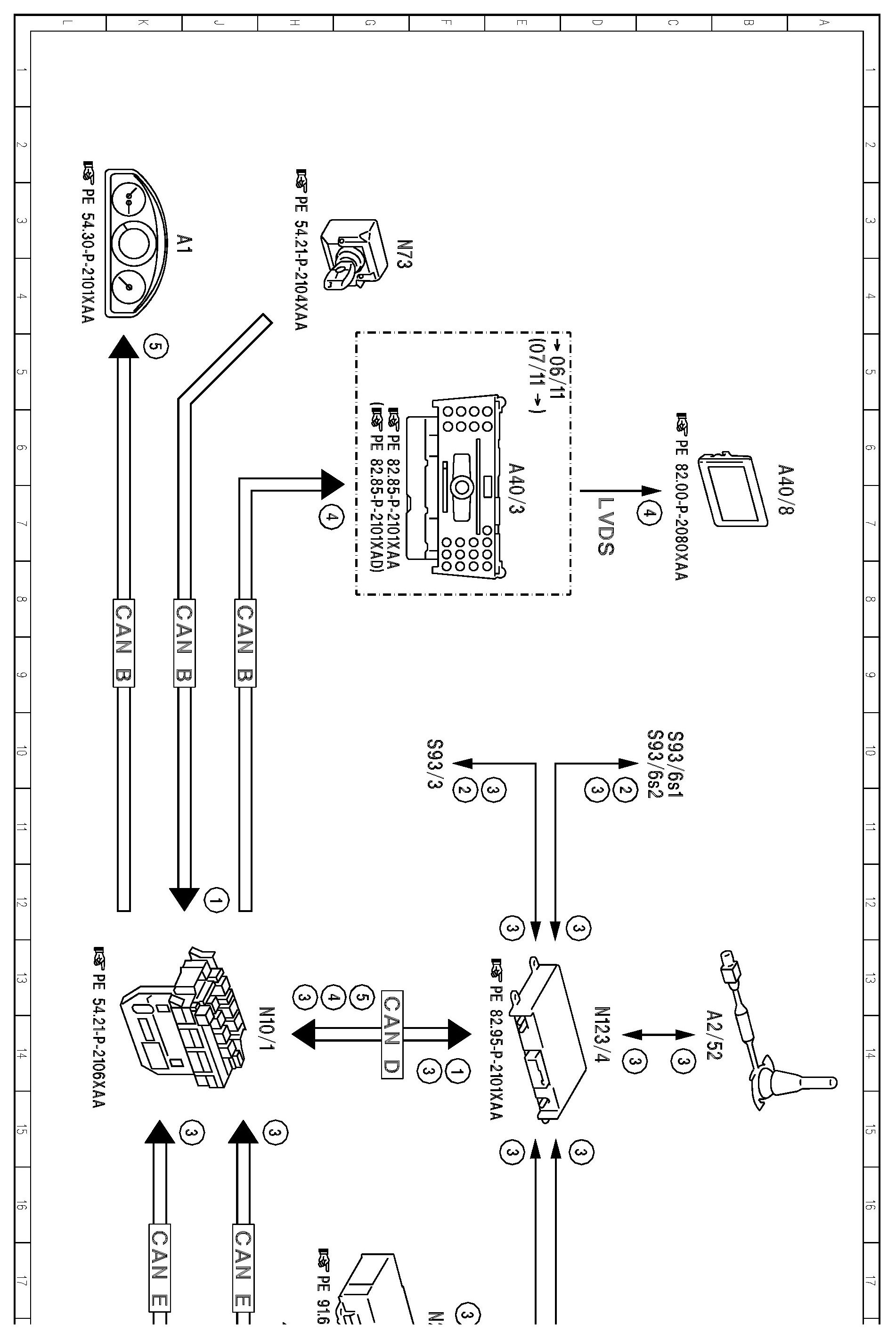

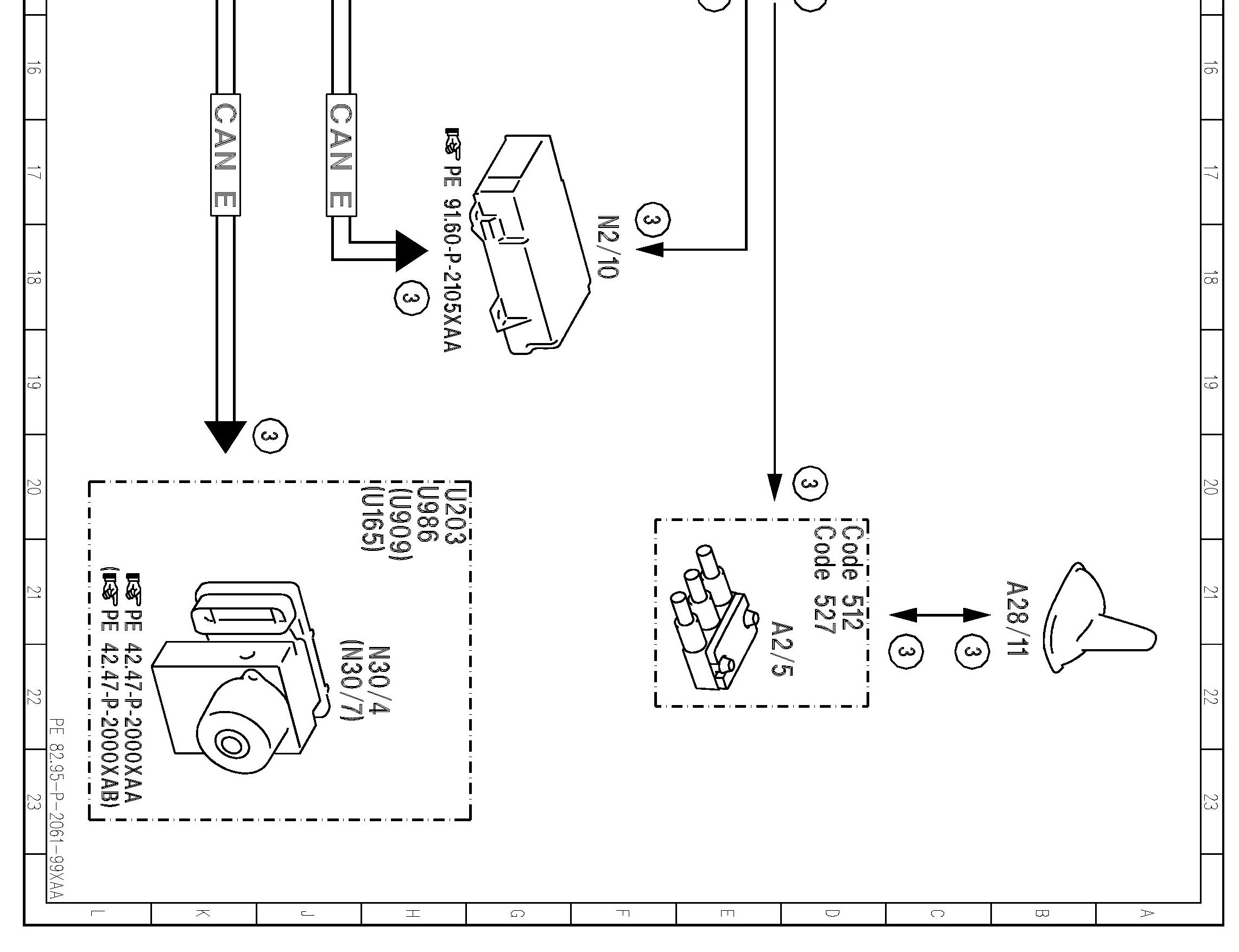

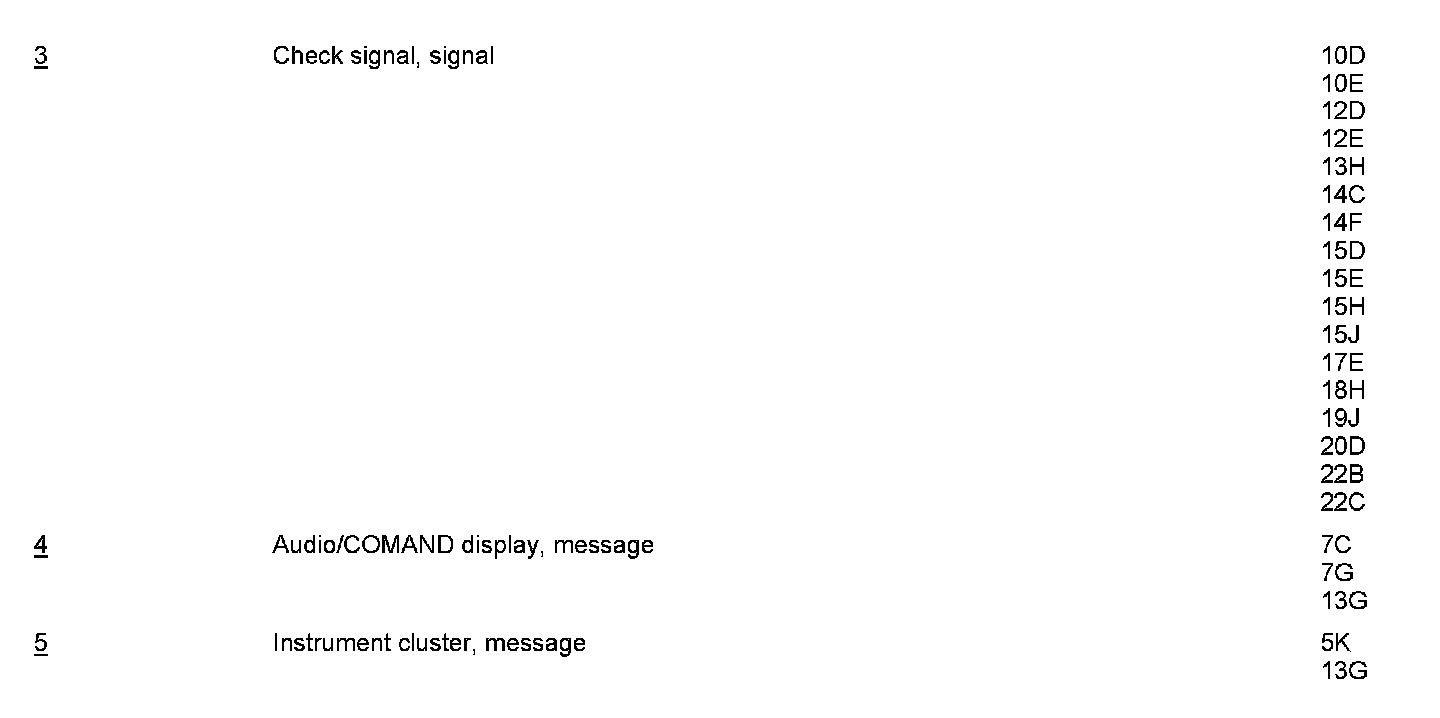

PE82.95-P-2061XAA Electrical Function Diagram For Status Display of Emergency Call System, Function

PE82.95-P-2061XAA Electrical Function Diagram For Status Display of Emergency Call System, Function
MODEL 218
with CODE (348) Emergency Call/Assist System
with CODE (359) TELE AID










































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
