PE54.71-P-2057XAA Electrical Function Schematic For Lane Keeping Assist

PE54.71-P-2057XAA Electrical Function Schematic For Lane Keeping Assist
MODEL 218
with CODE (476) Lane Keeping Assist

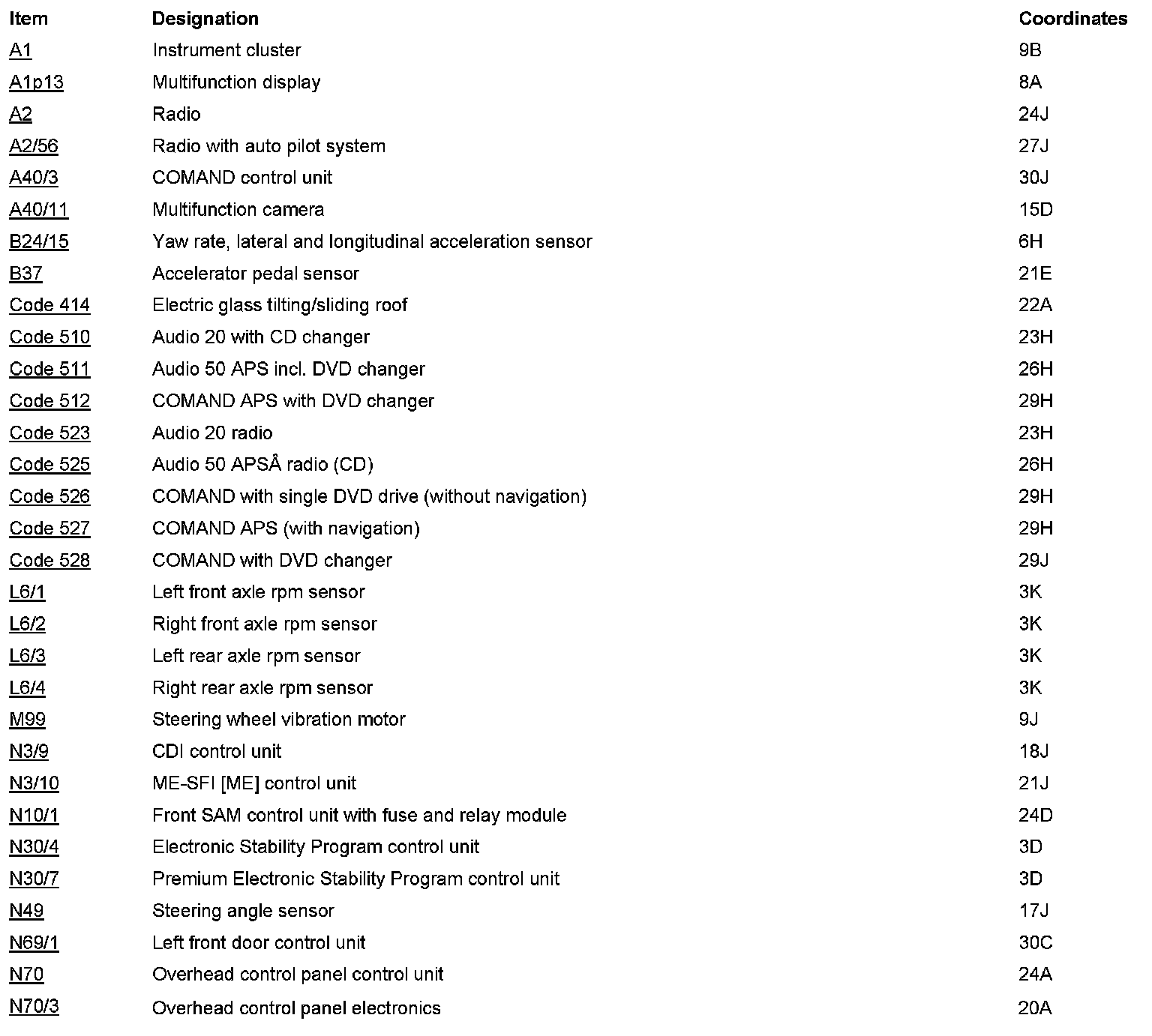

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
