PE54.71-P-2051XAA Electrical Function Schematic, Blind Spot Assistant

PE54.71-P-2051XAA Electrical Function Schematic, Blind Spot Assistant
MODEL 218
with CODE (234) Blind Spot Assist

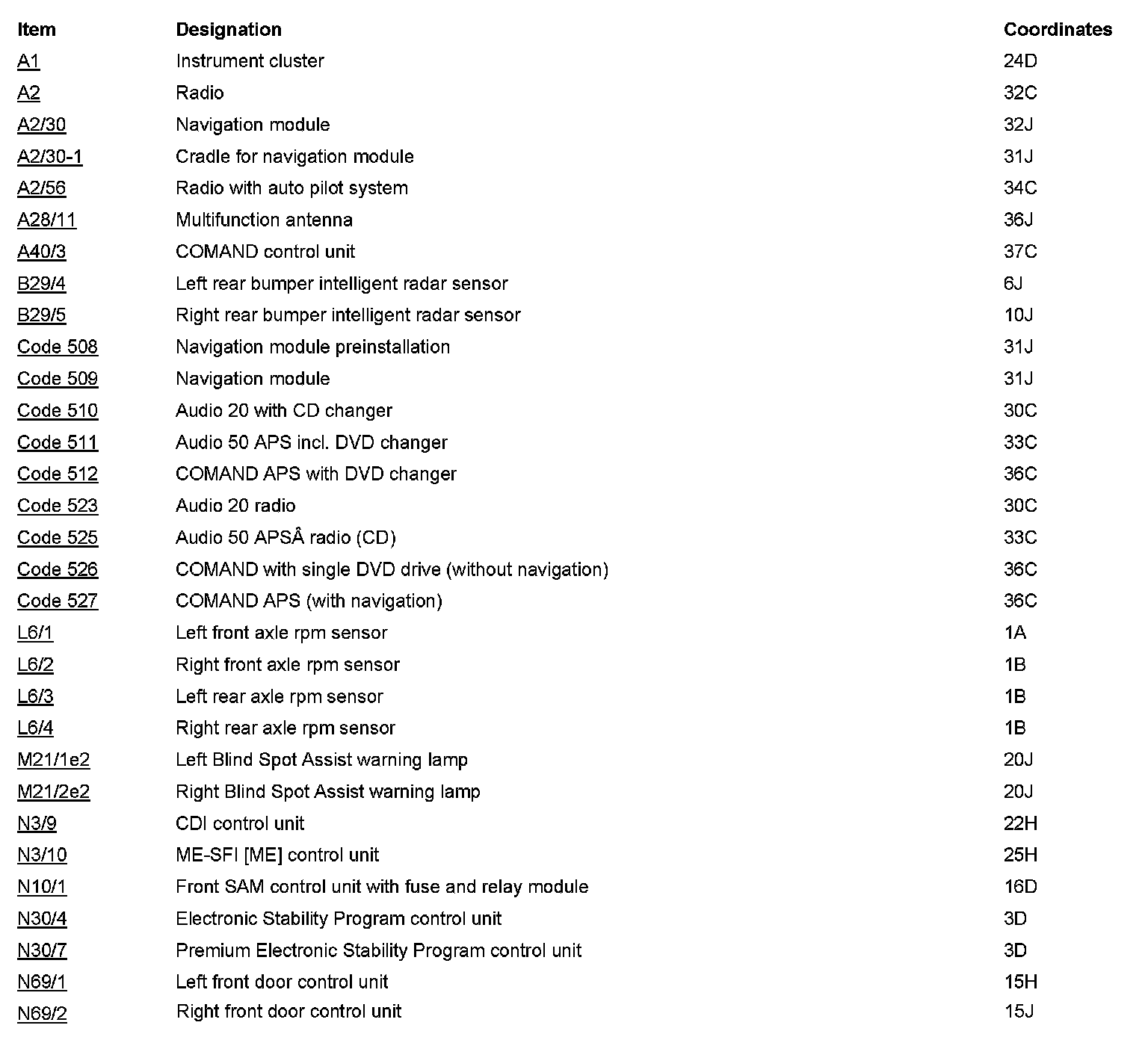

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
