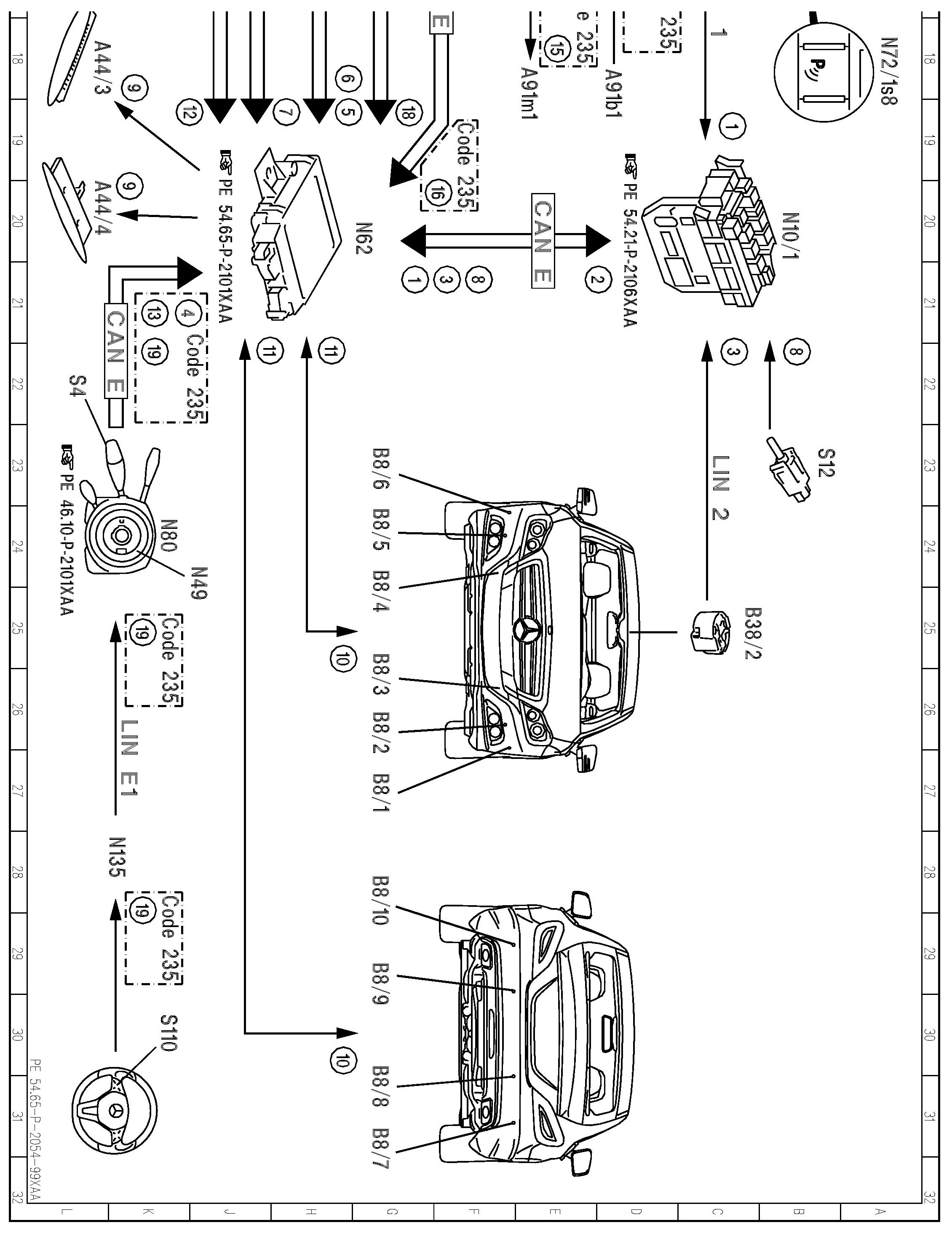

PE54.65-P-2054XAA Electrical Function Schematic of Parking System

PE54.65-P-2054XAA Electrical Function Schematic of Parking System
MODEL 218
- with CODE (235) Active Park Assist
MODEL 218
- with CODE (220) PARKTRONIC


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
