PE82.85-P-2101XAC Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101XAC Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram
MODEL 218
- up to 06/30/11
- with CODE (498) Japan version
- with CODE (527) COMAND APS (With Navigation)

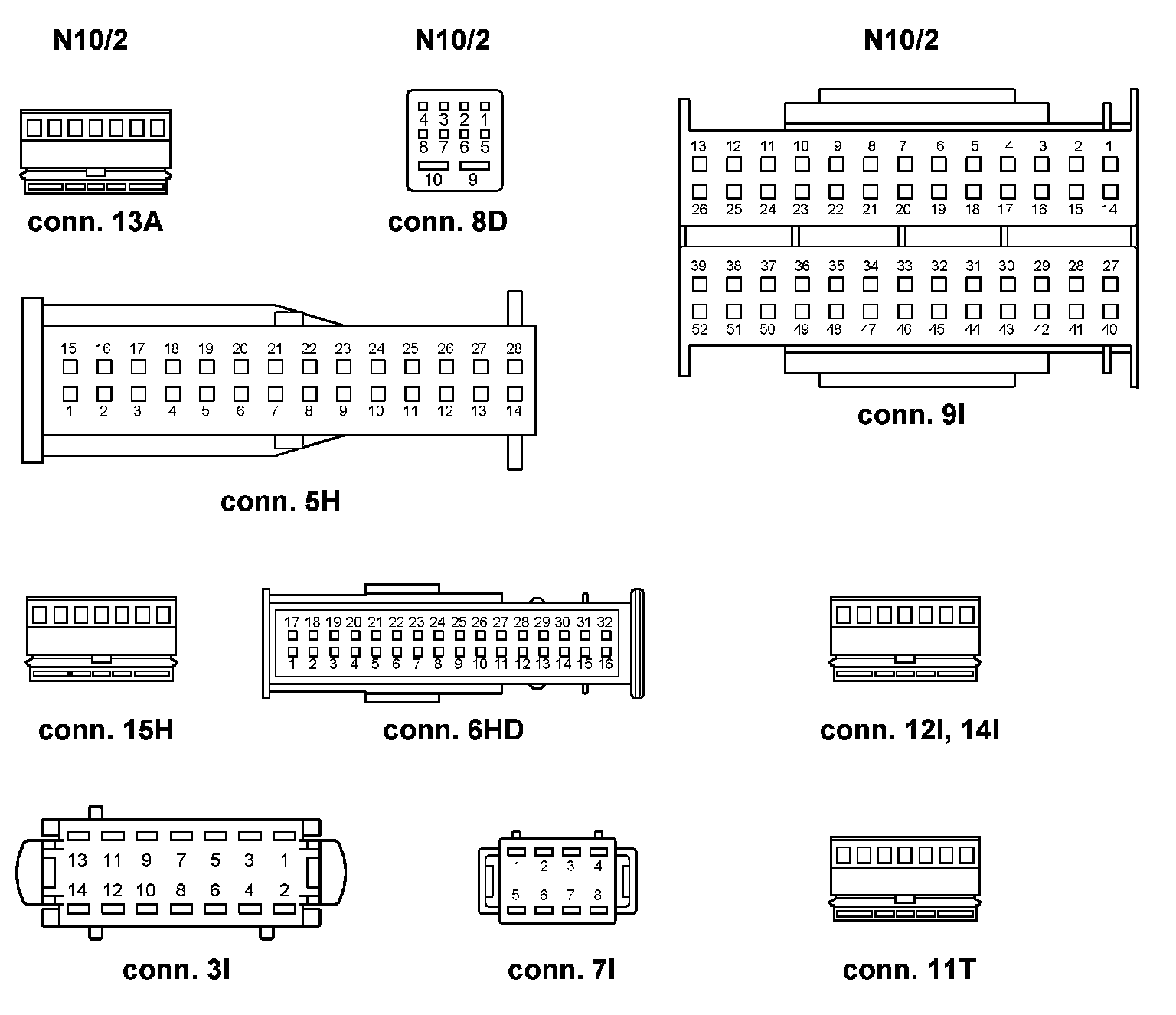

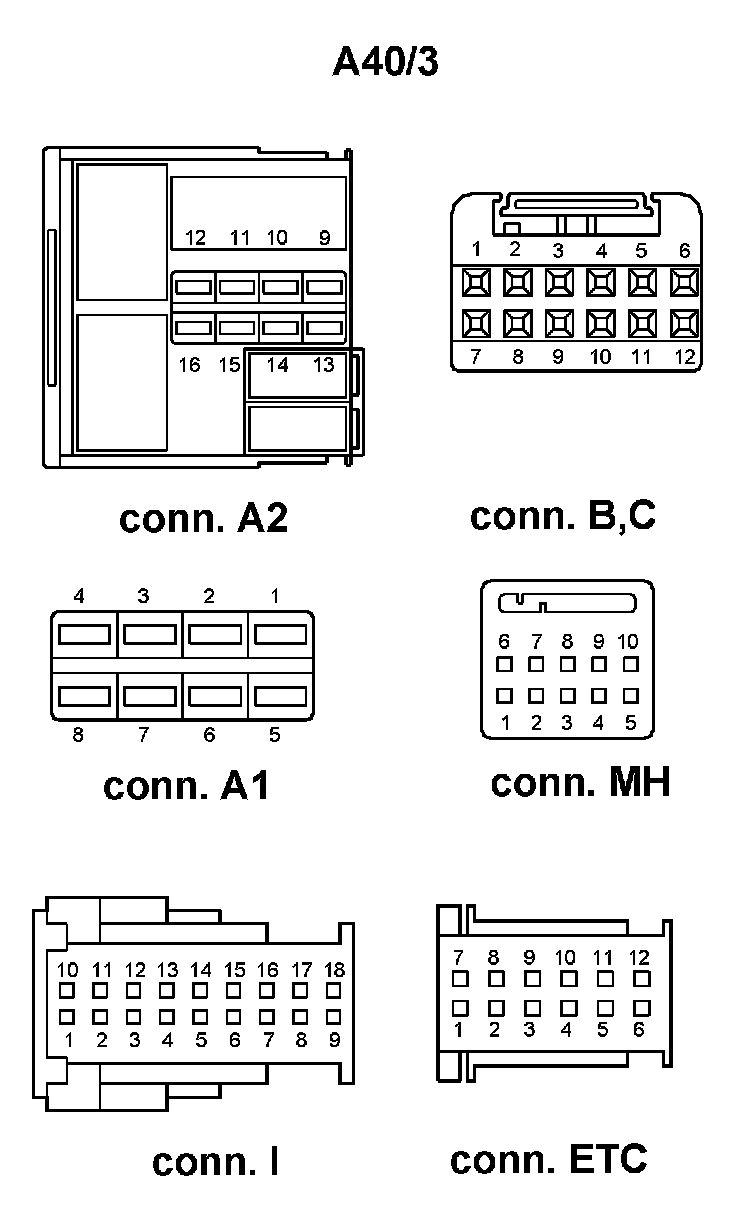

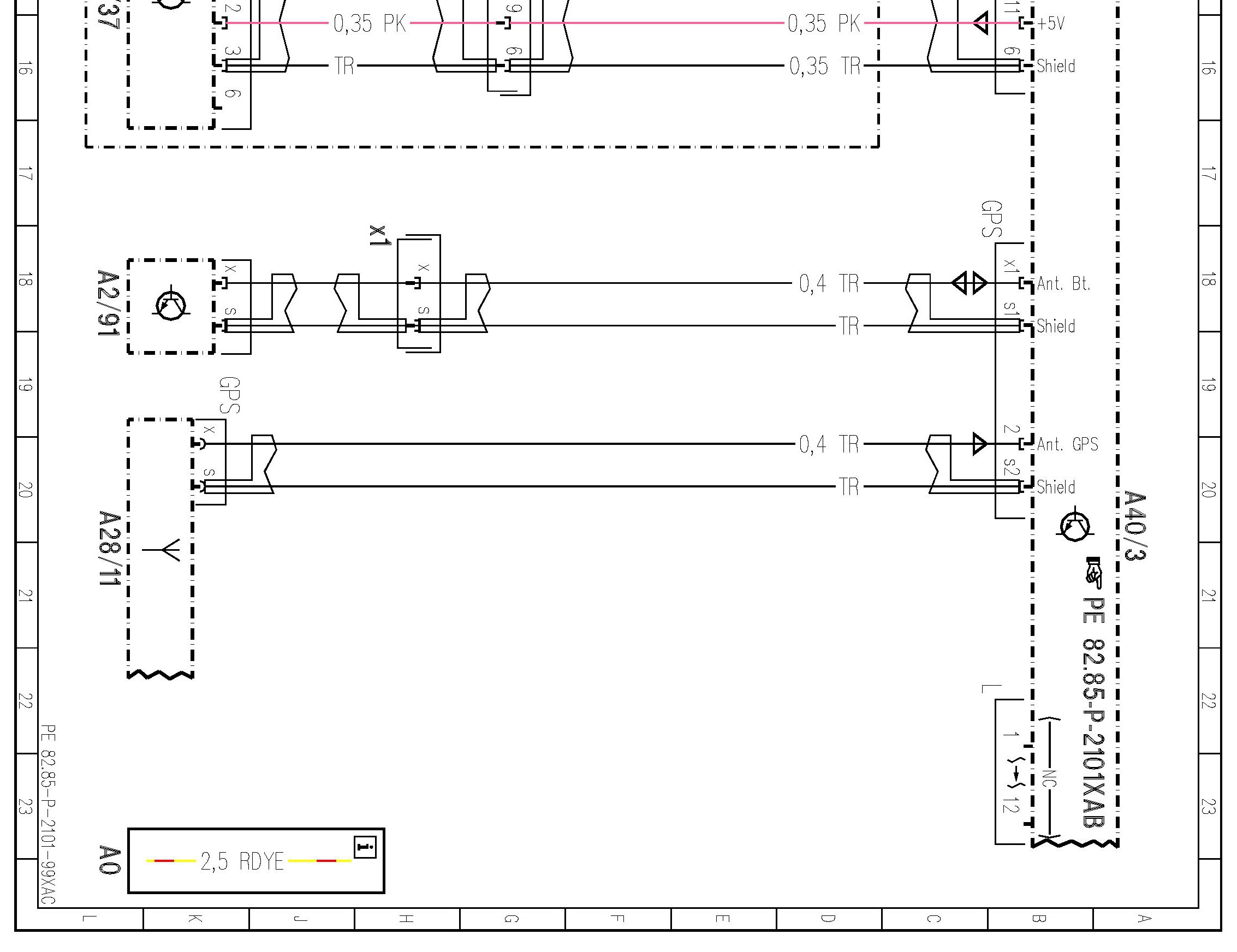

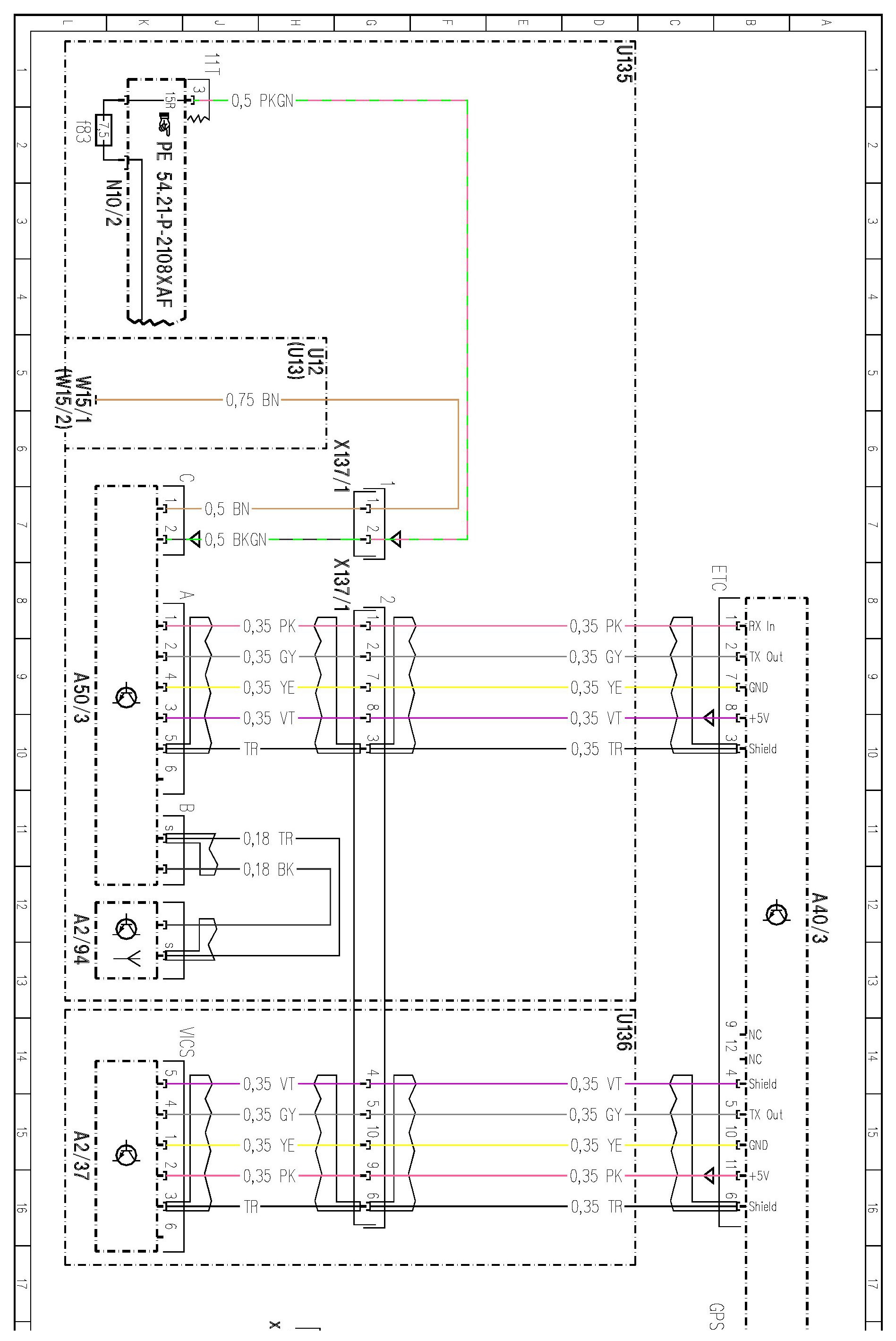

- Control Unit A40/3, Sheet 2






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
