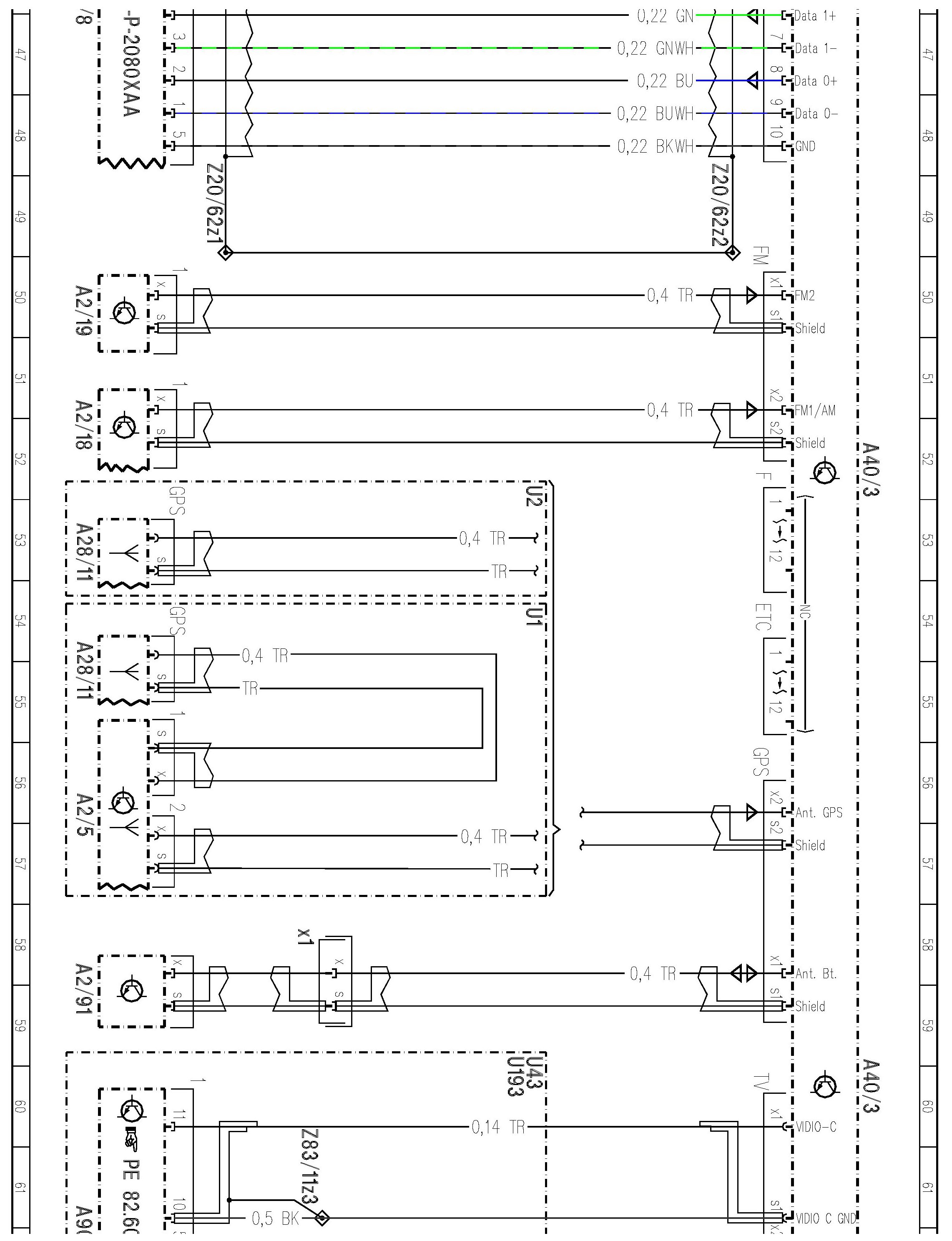

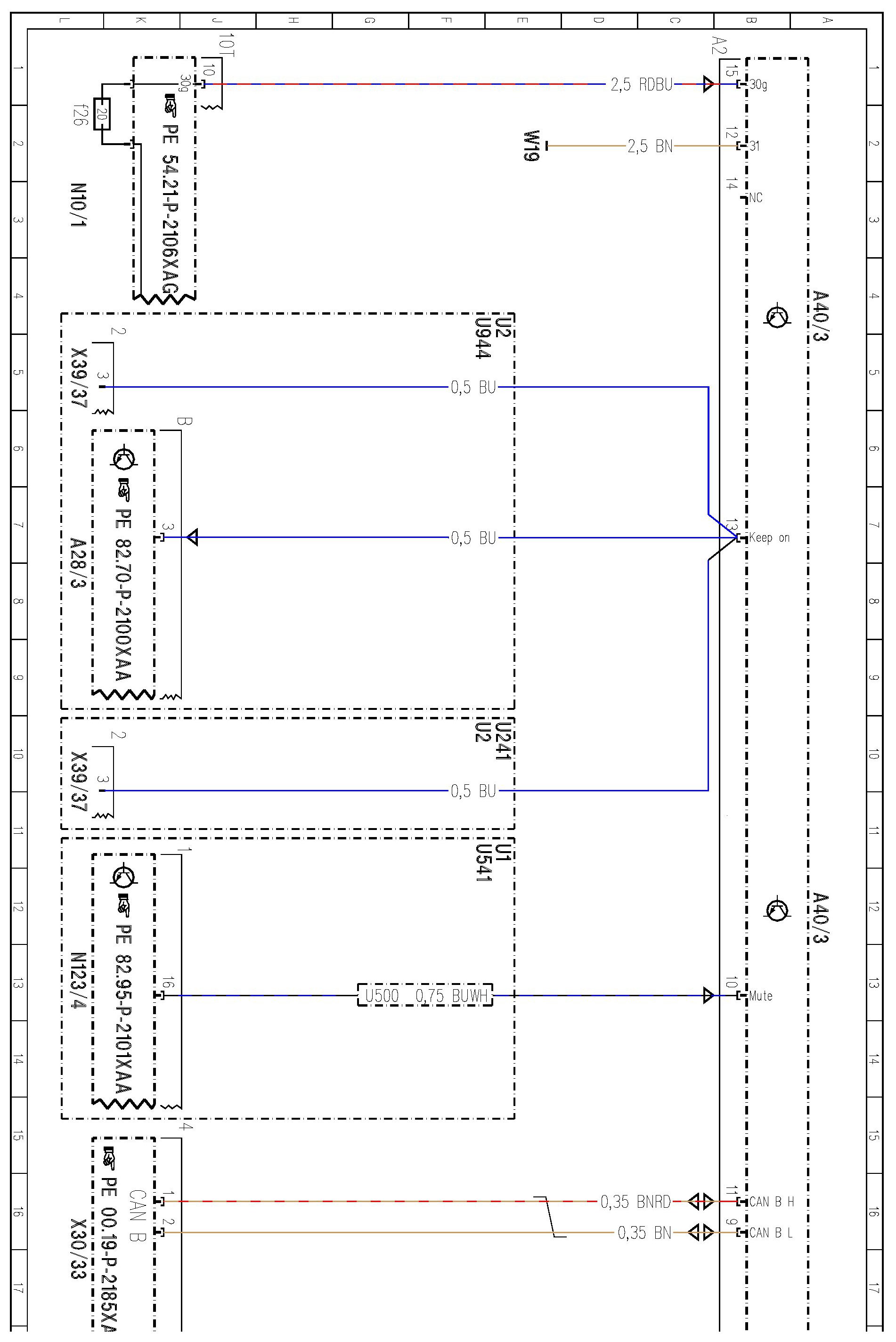

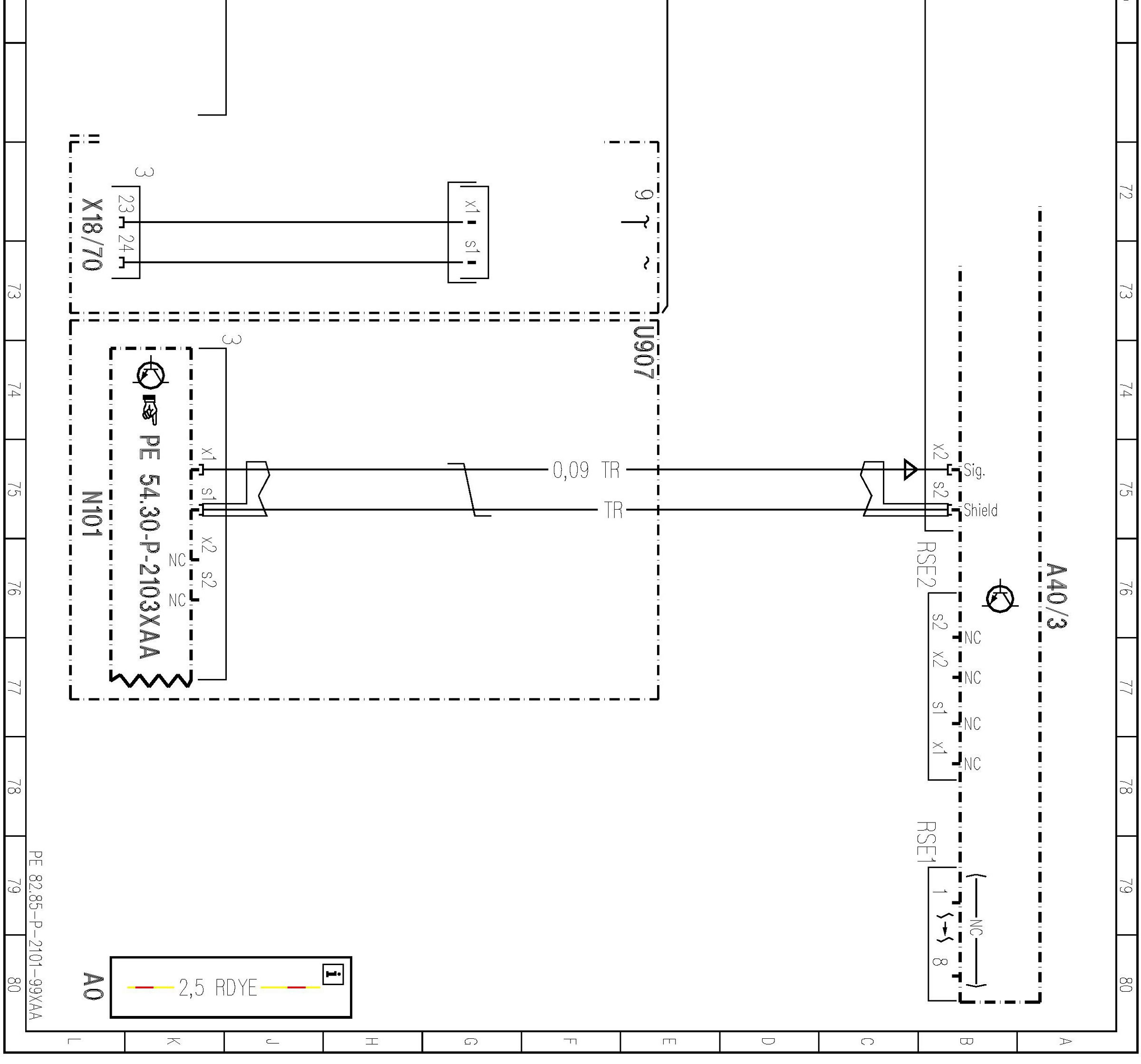

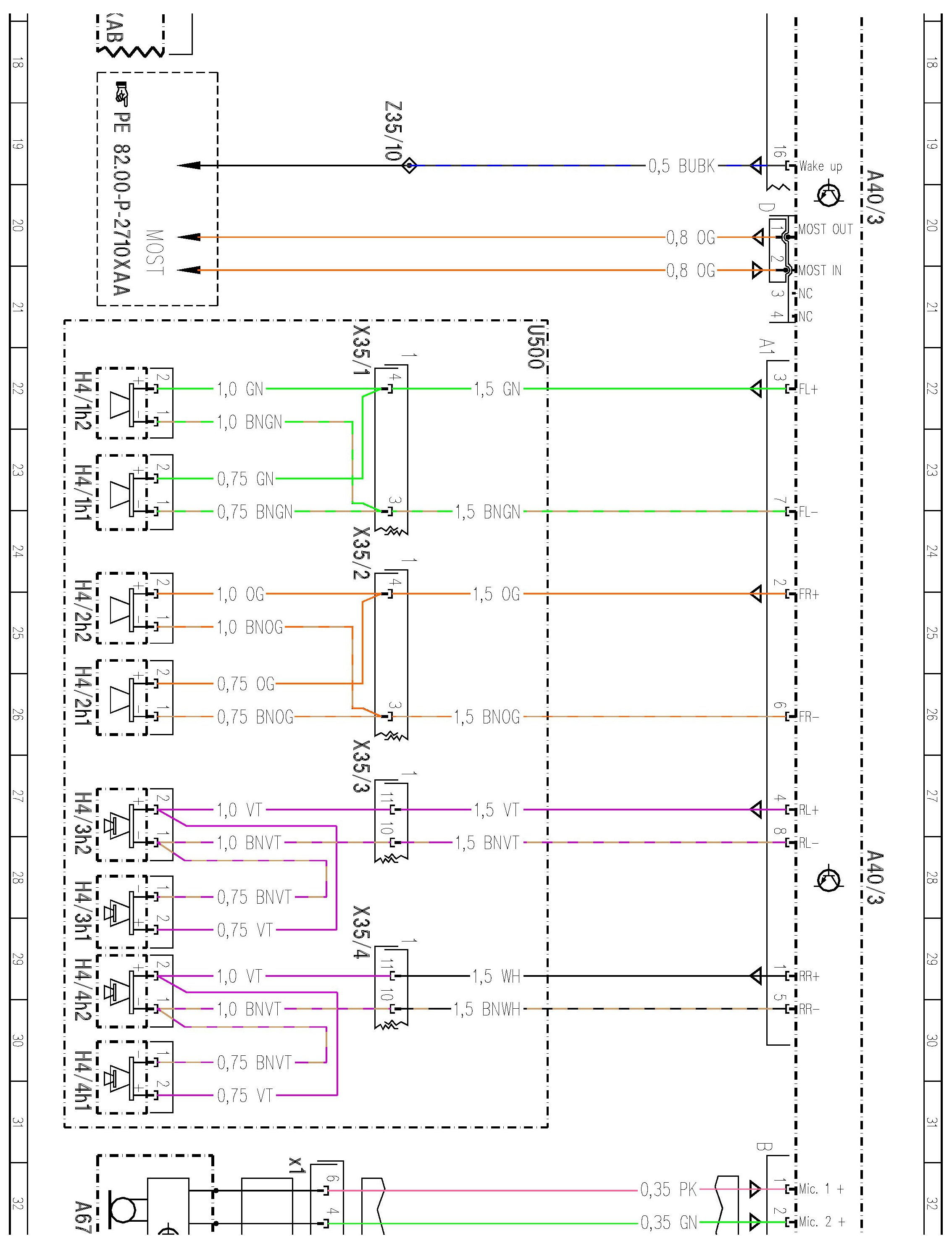

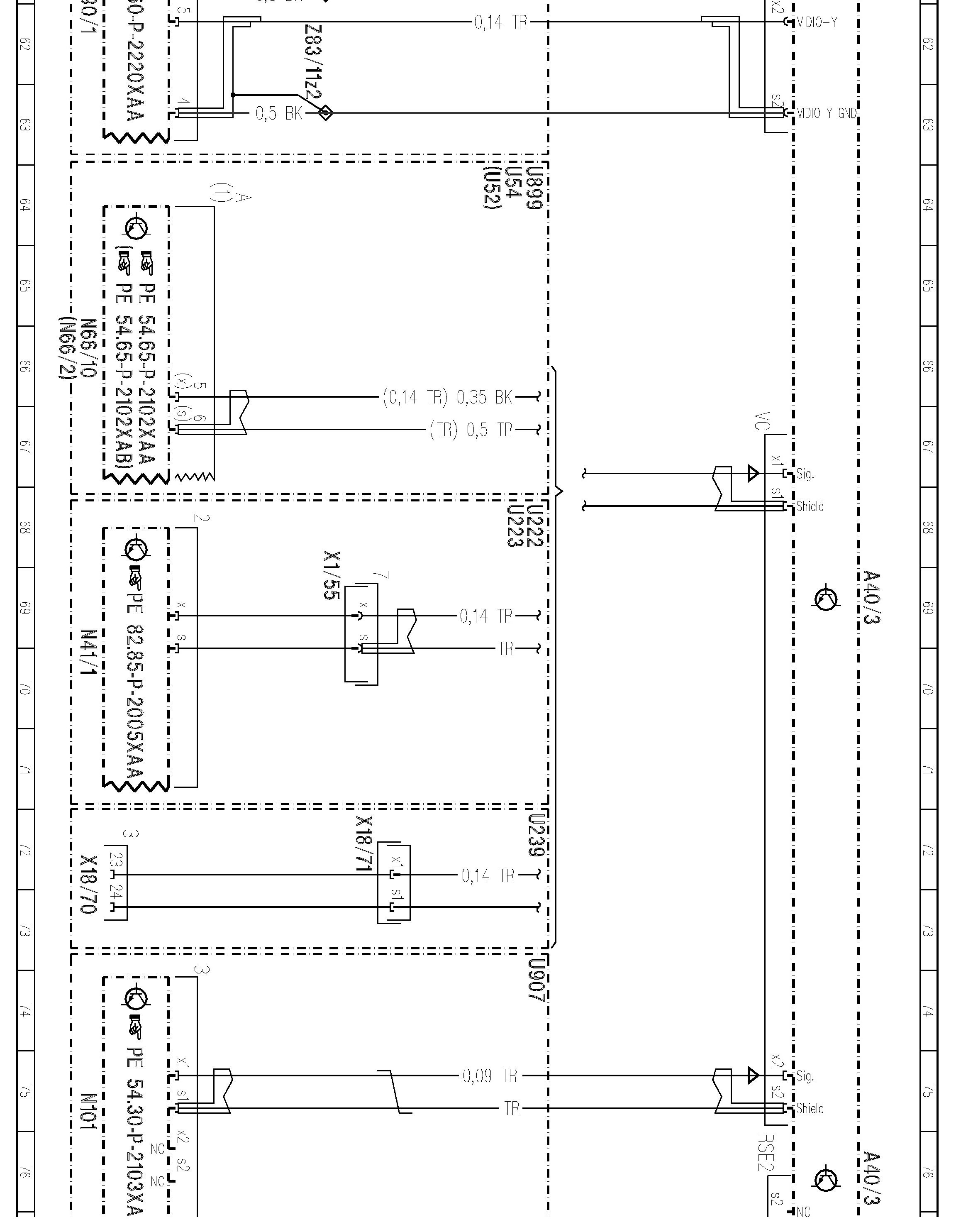

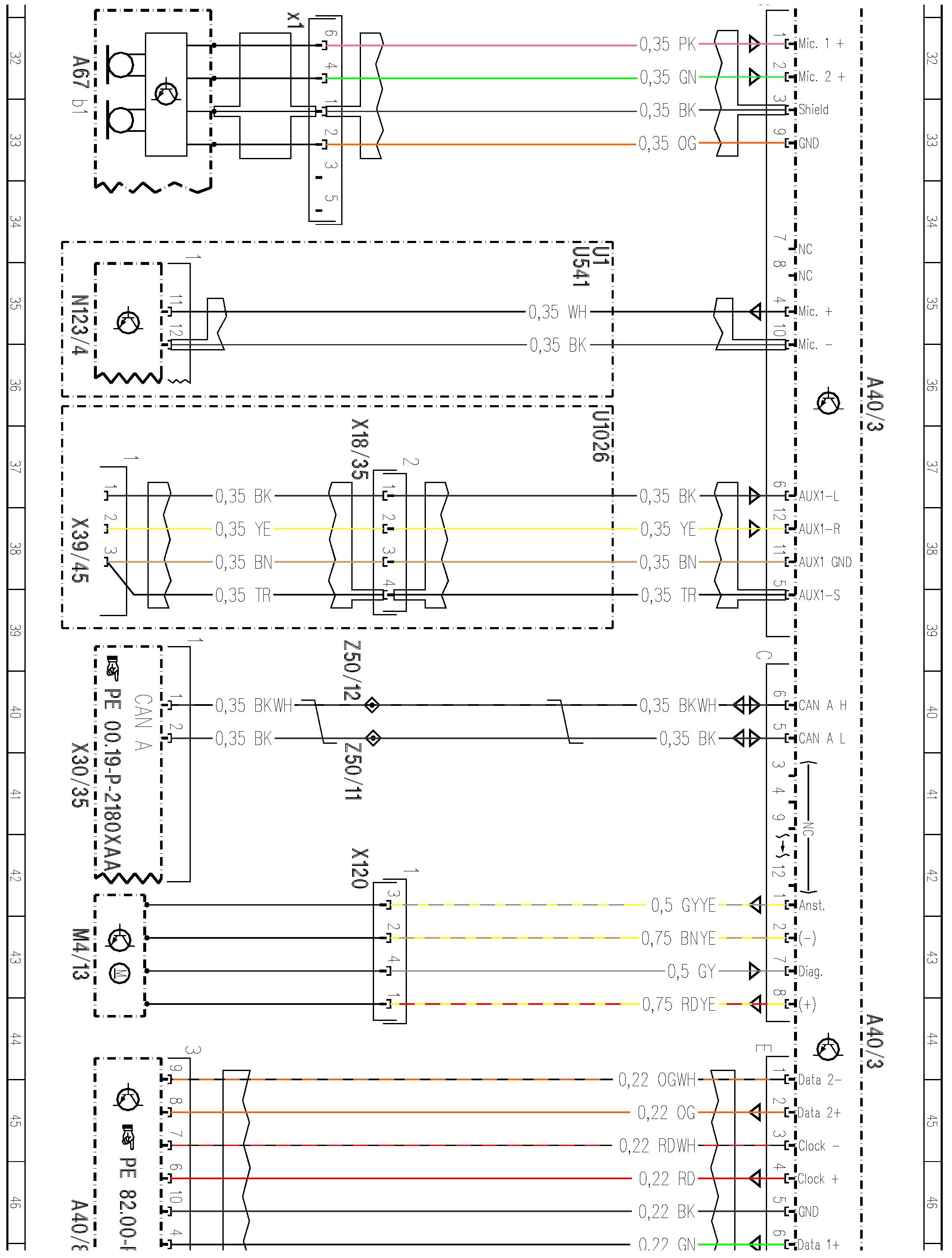

PE82.85-P-2101XAA Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101XAA Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram
MODEL 218
- up to 06/30/11 except CODE (498) Japan version
- with CODE (512) COMAND APS With DVD changer
- with CODE (527) COMAND APS With Single DVD Drive (With Navigation)
- with CODE (528) COMAND Incl. DVD Changer

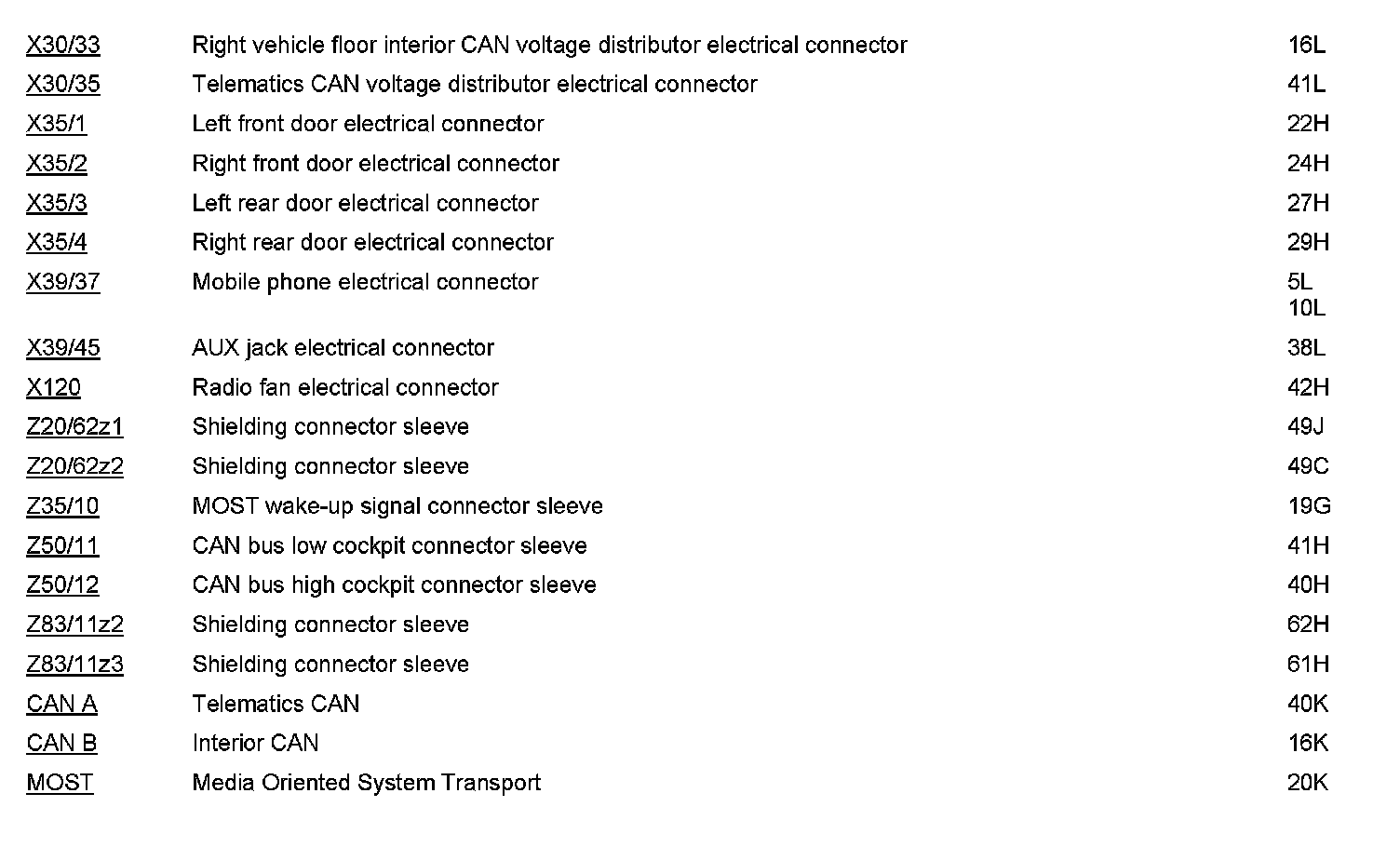

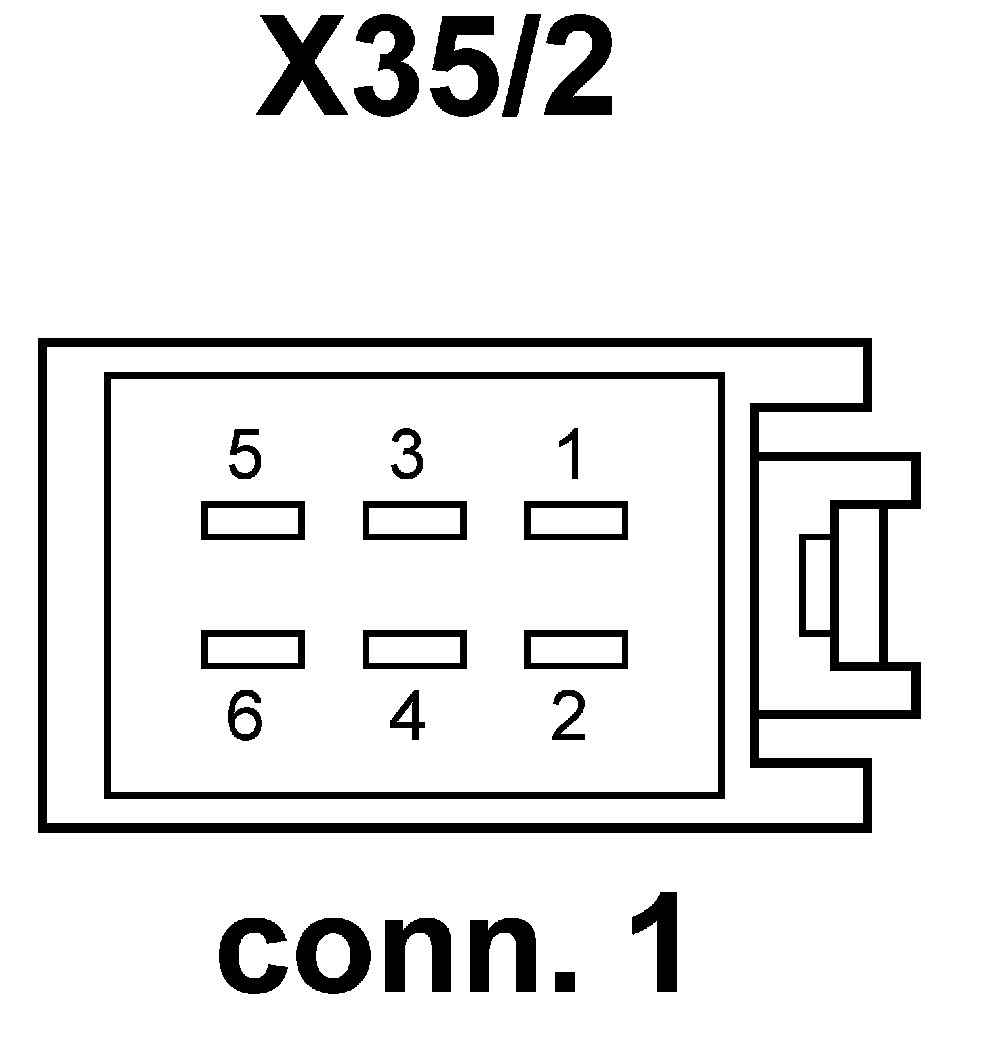

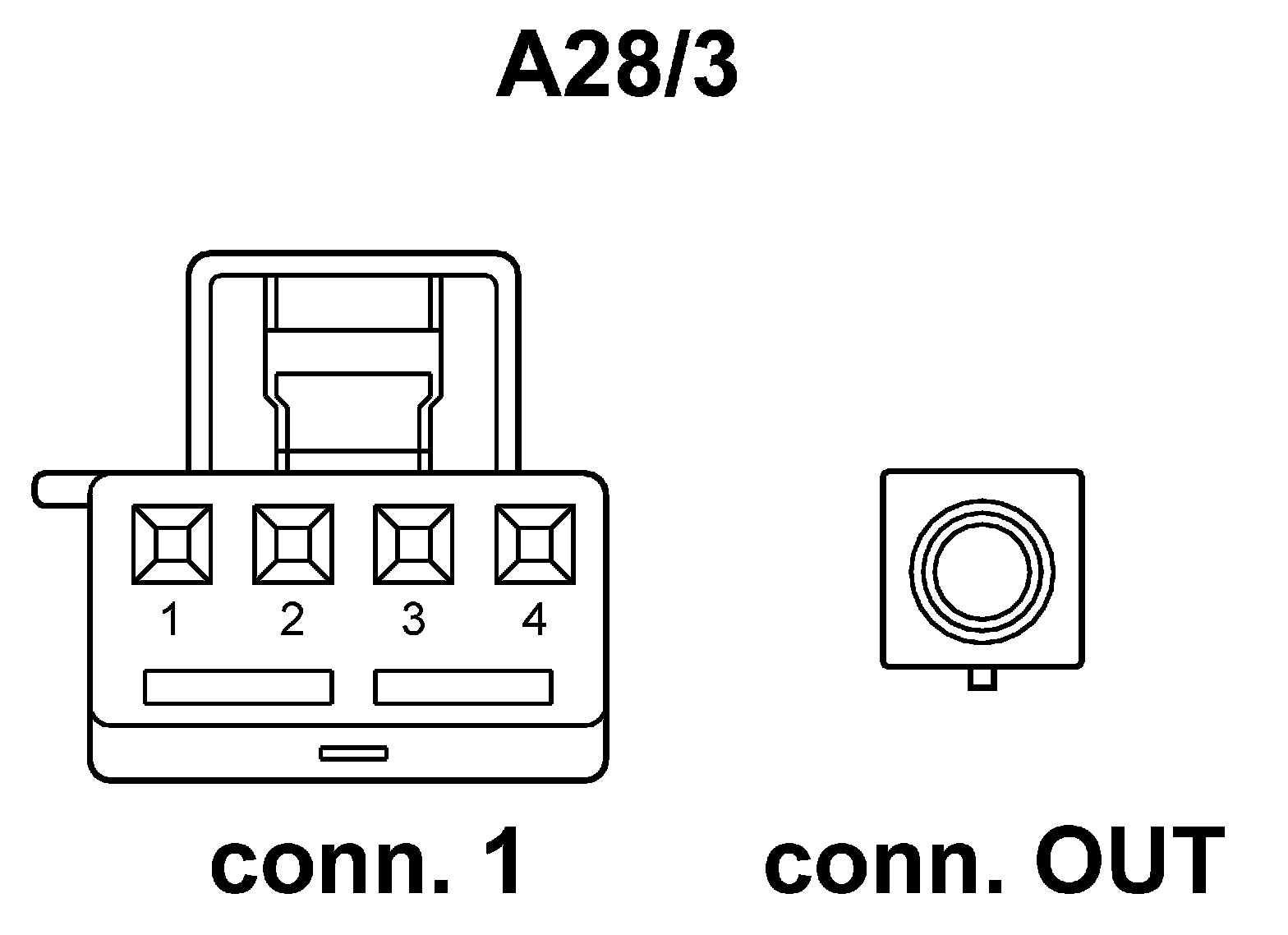

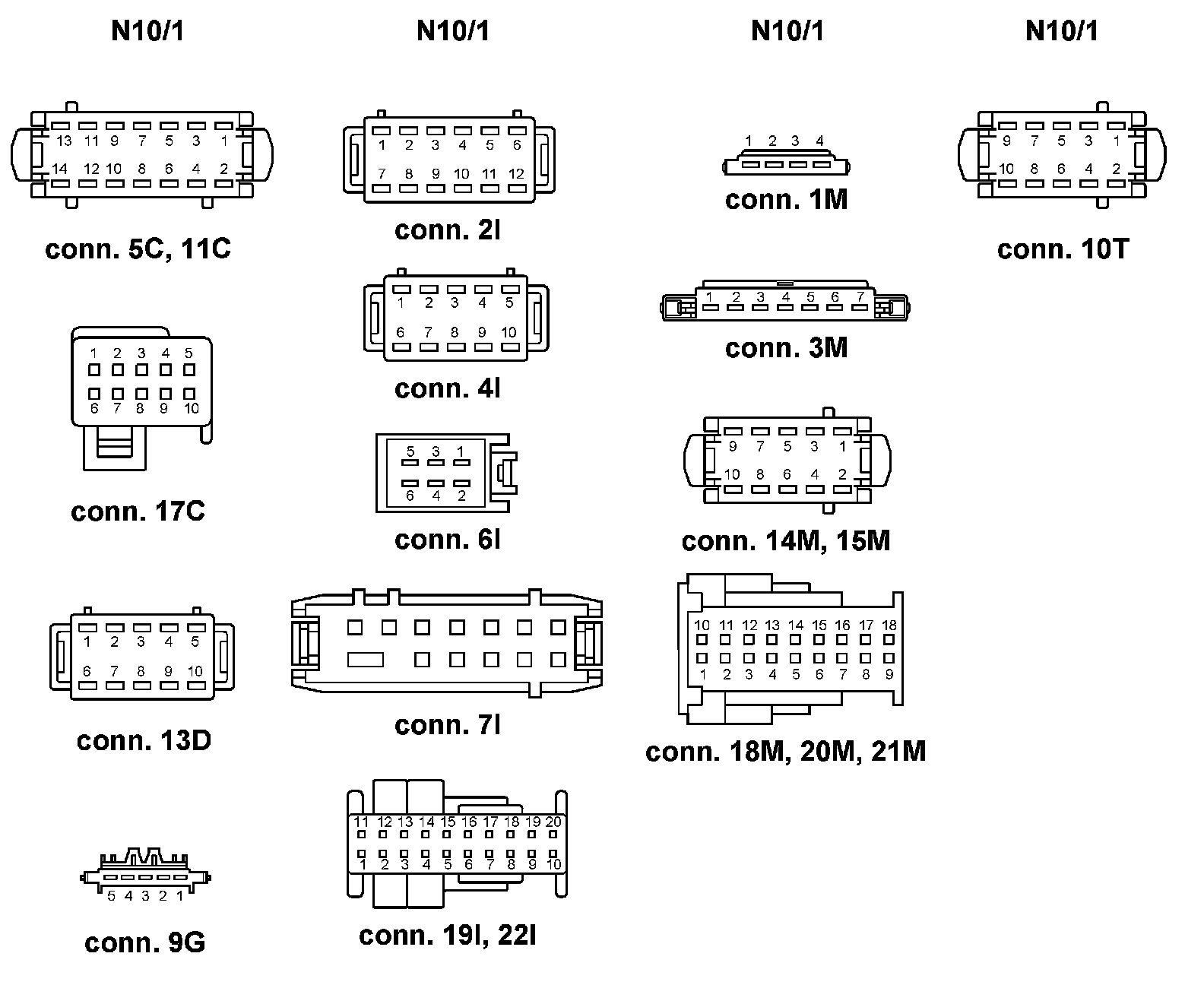

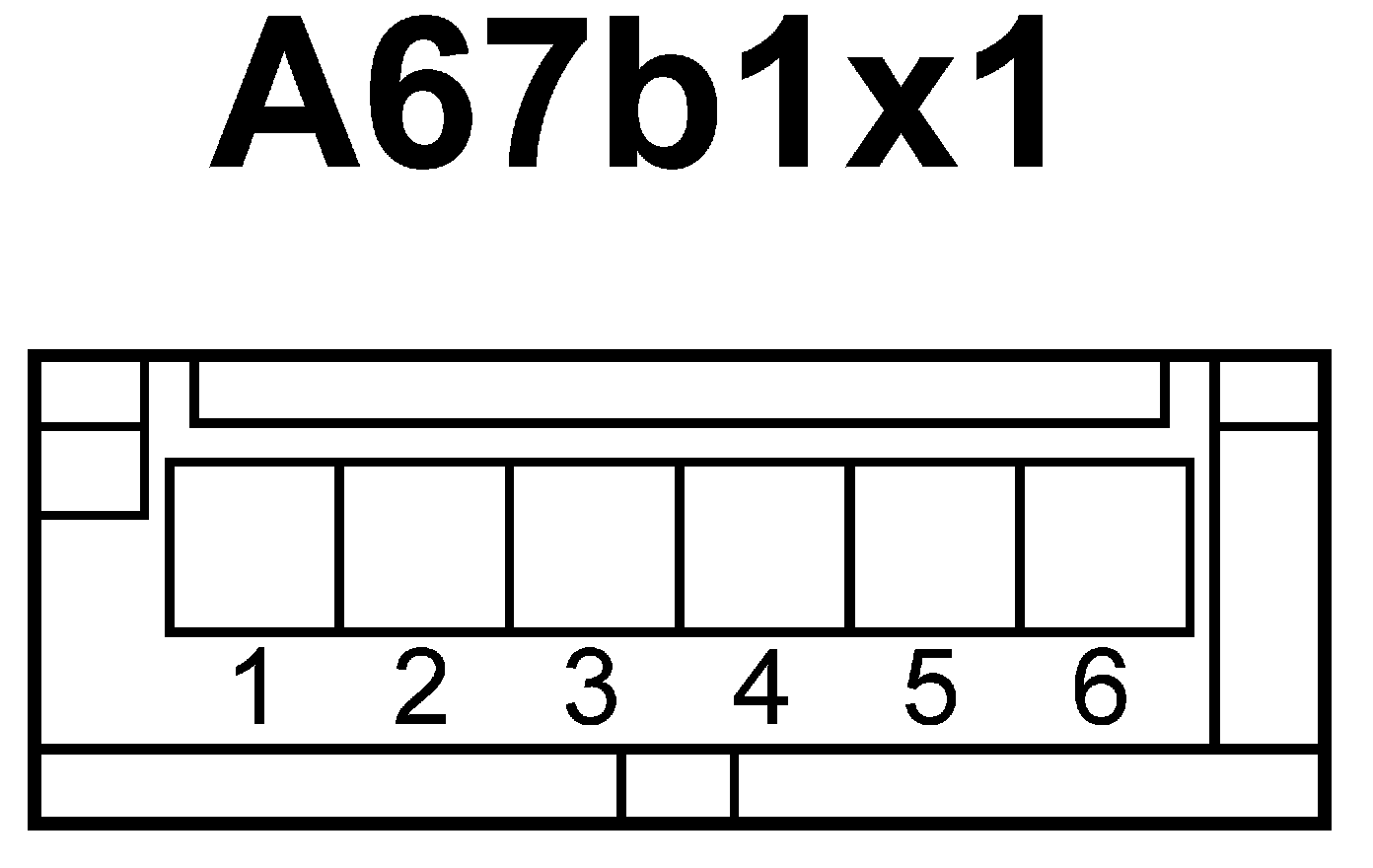

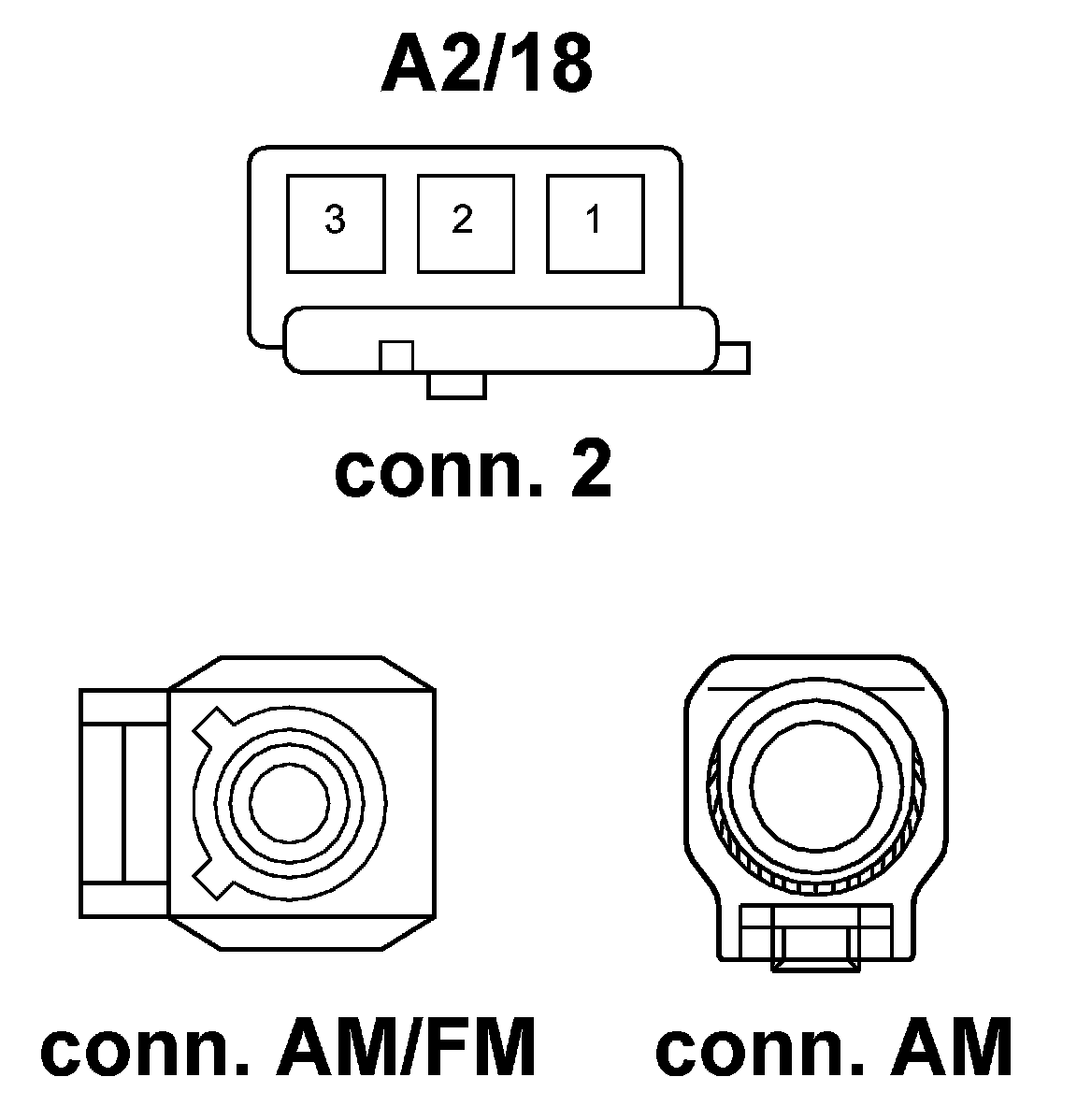

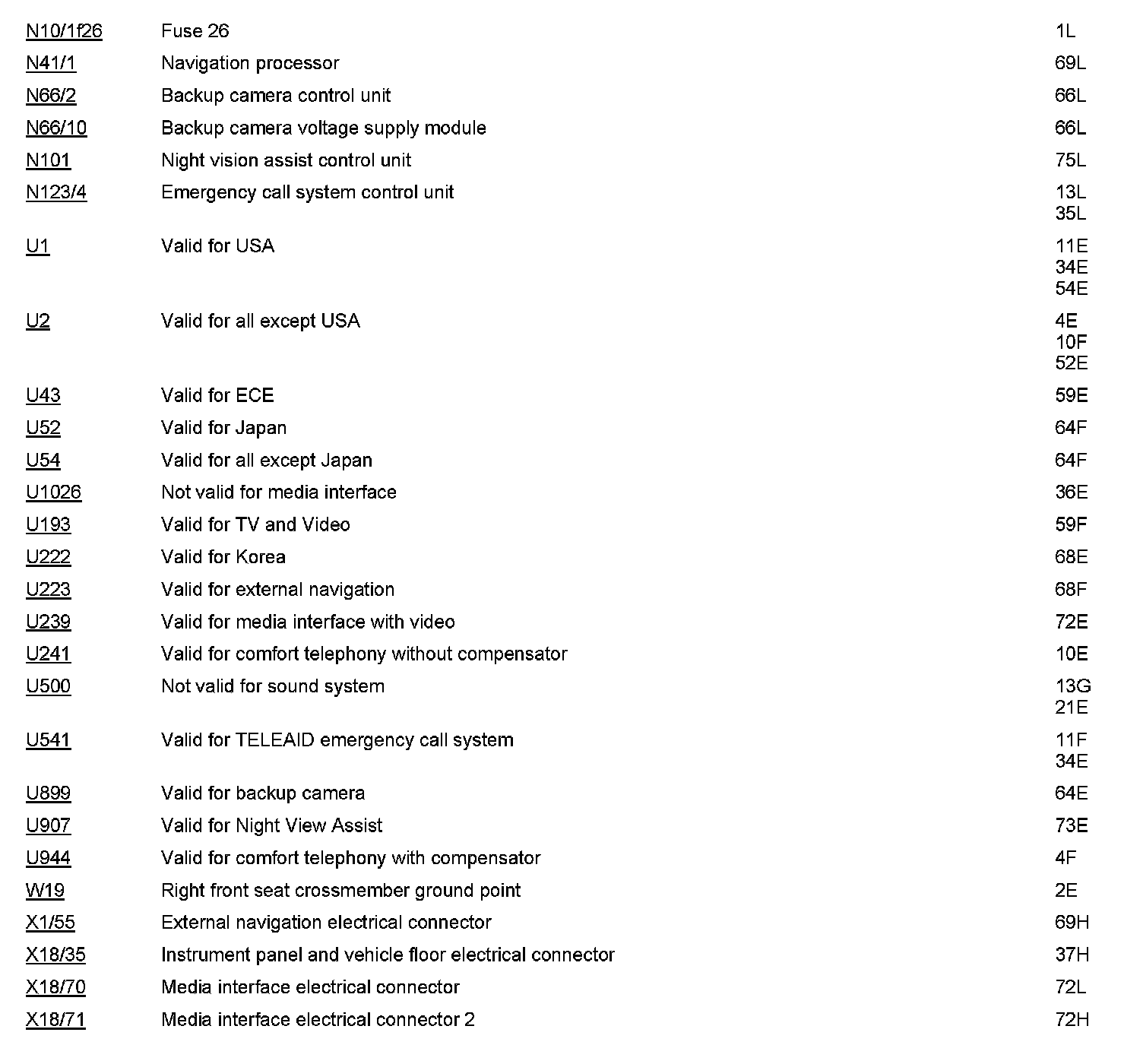

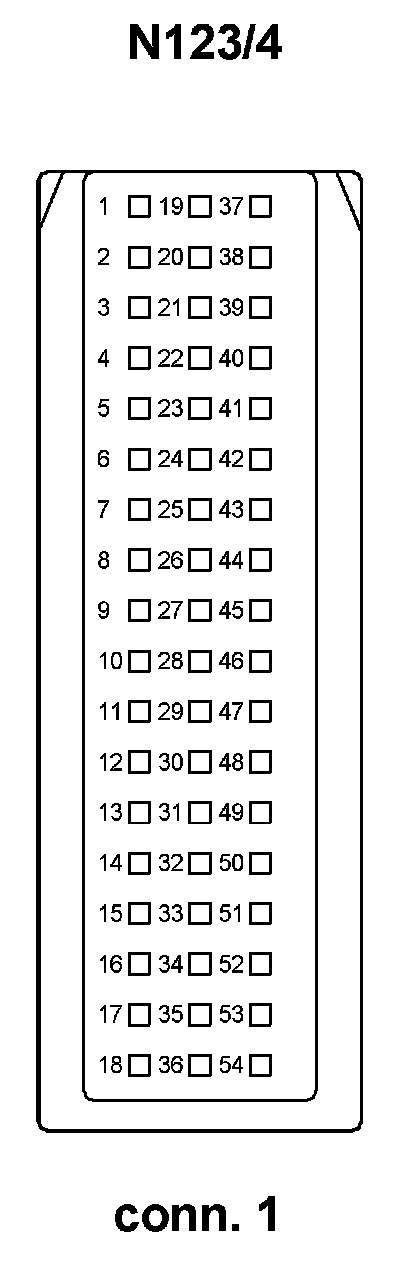

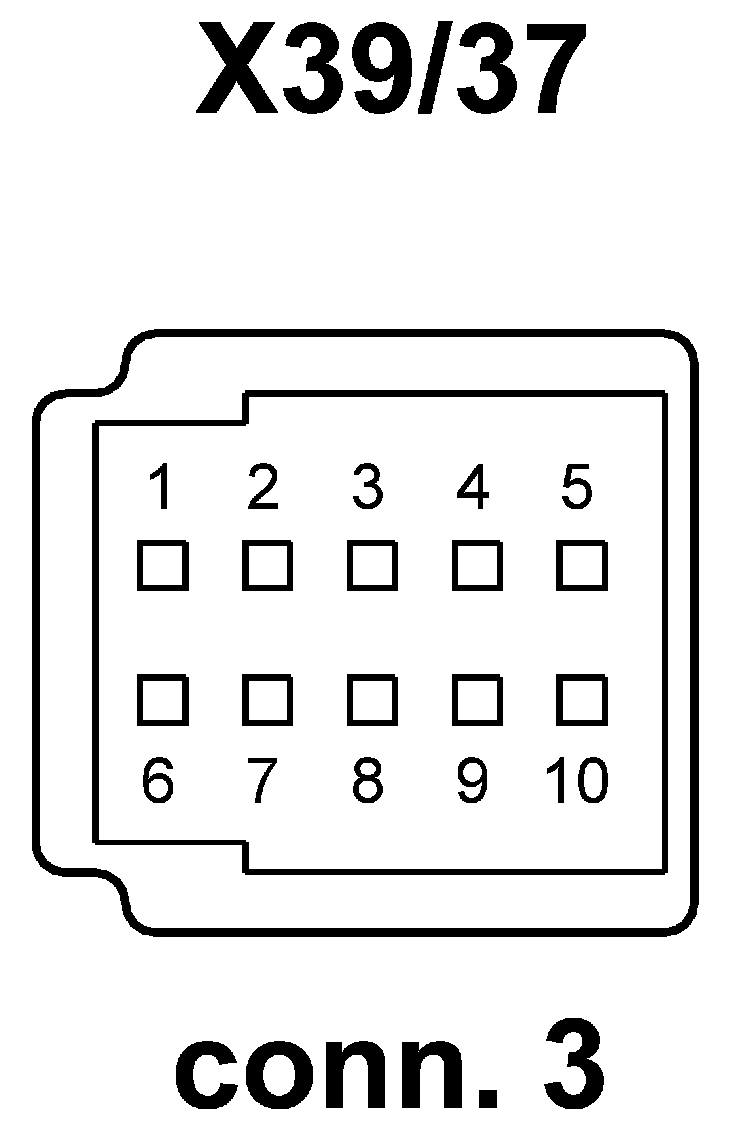

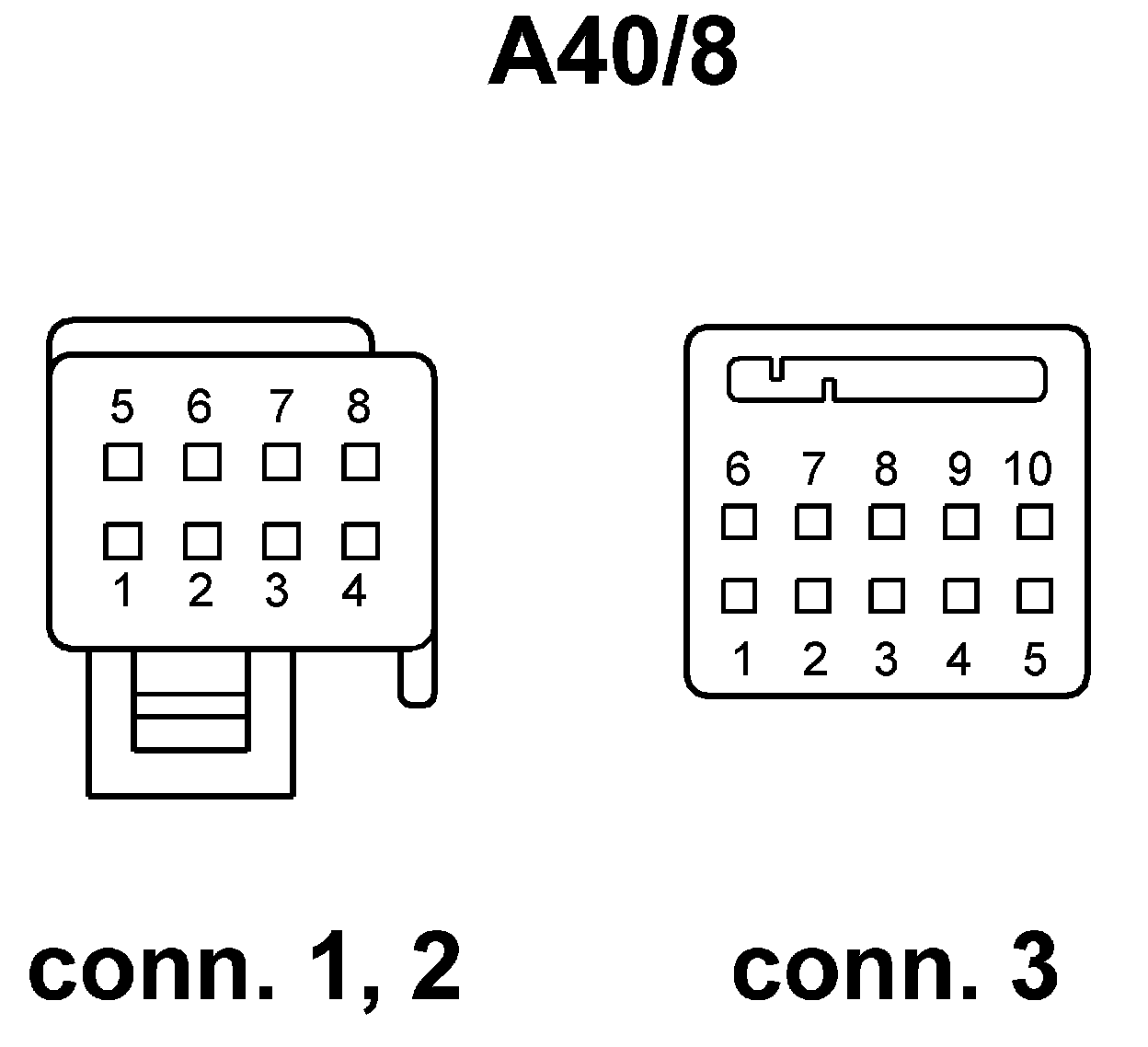

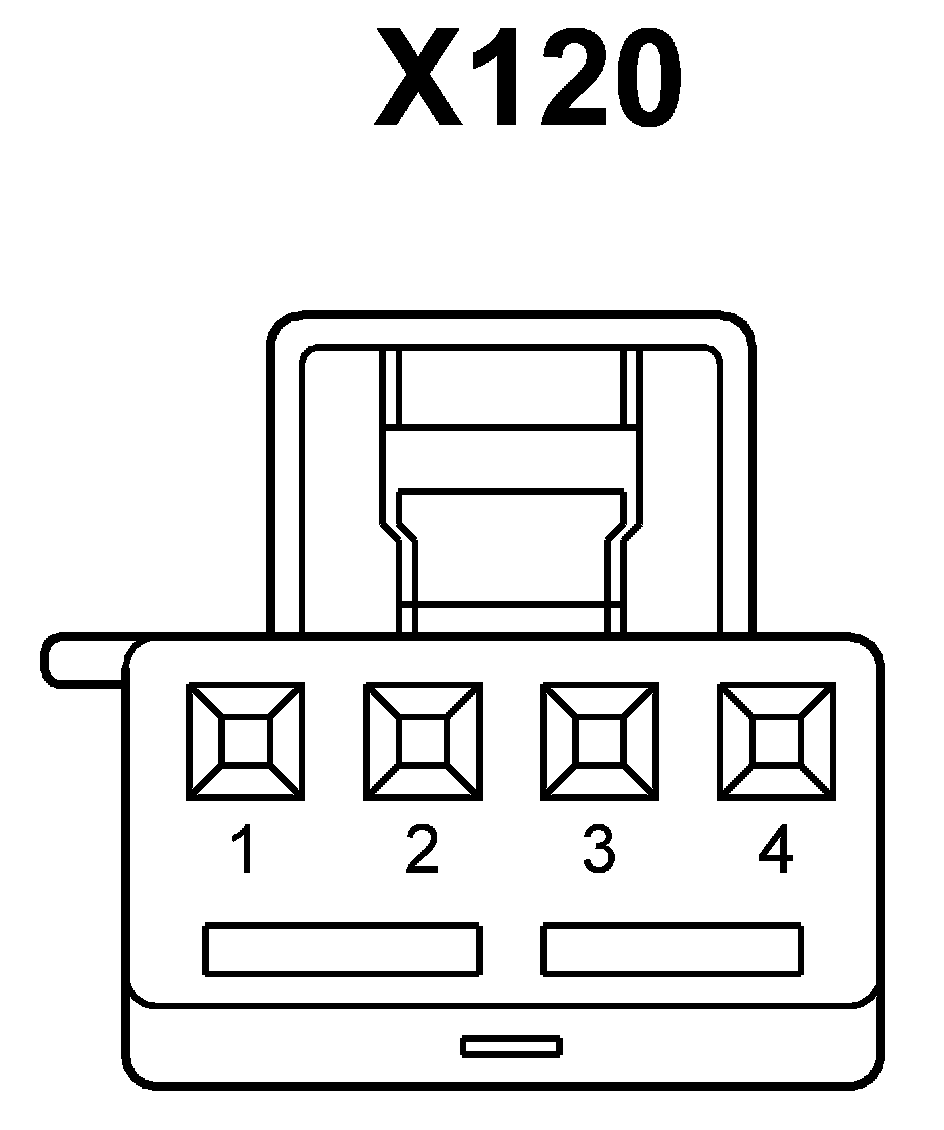

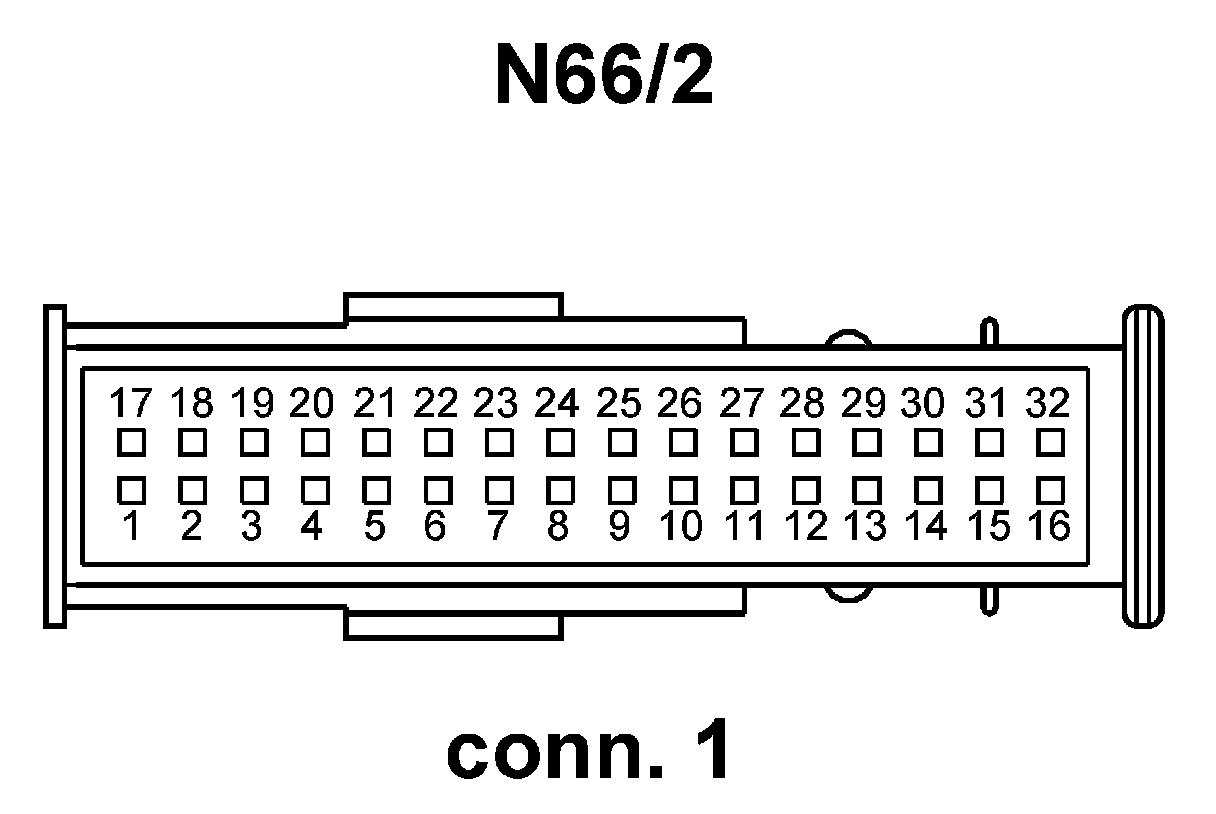

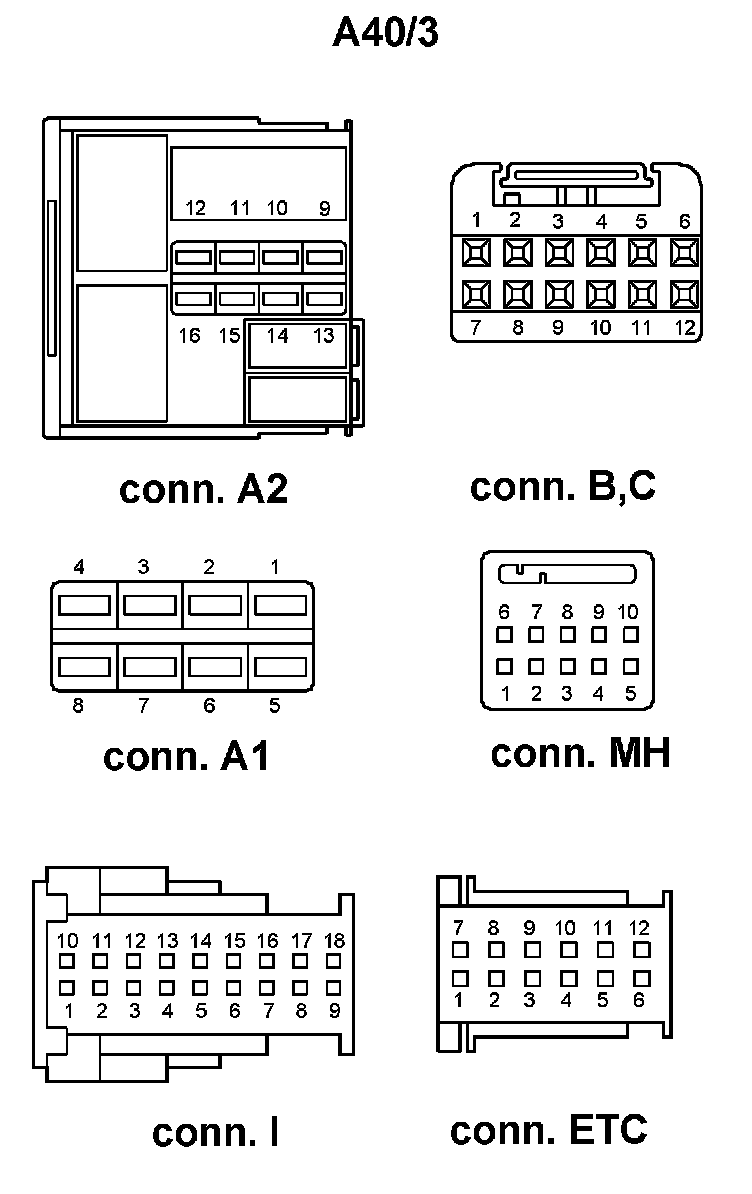

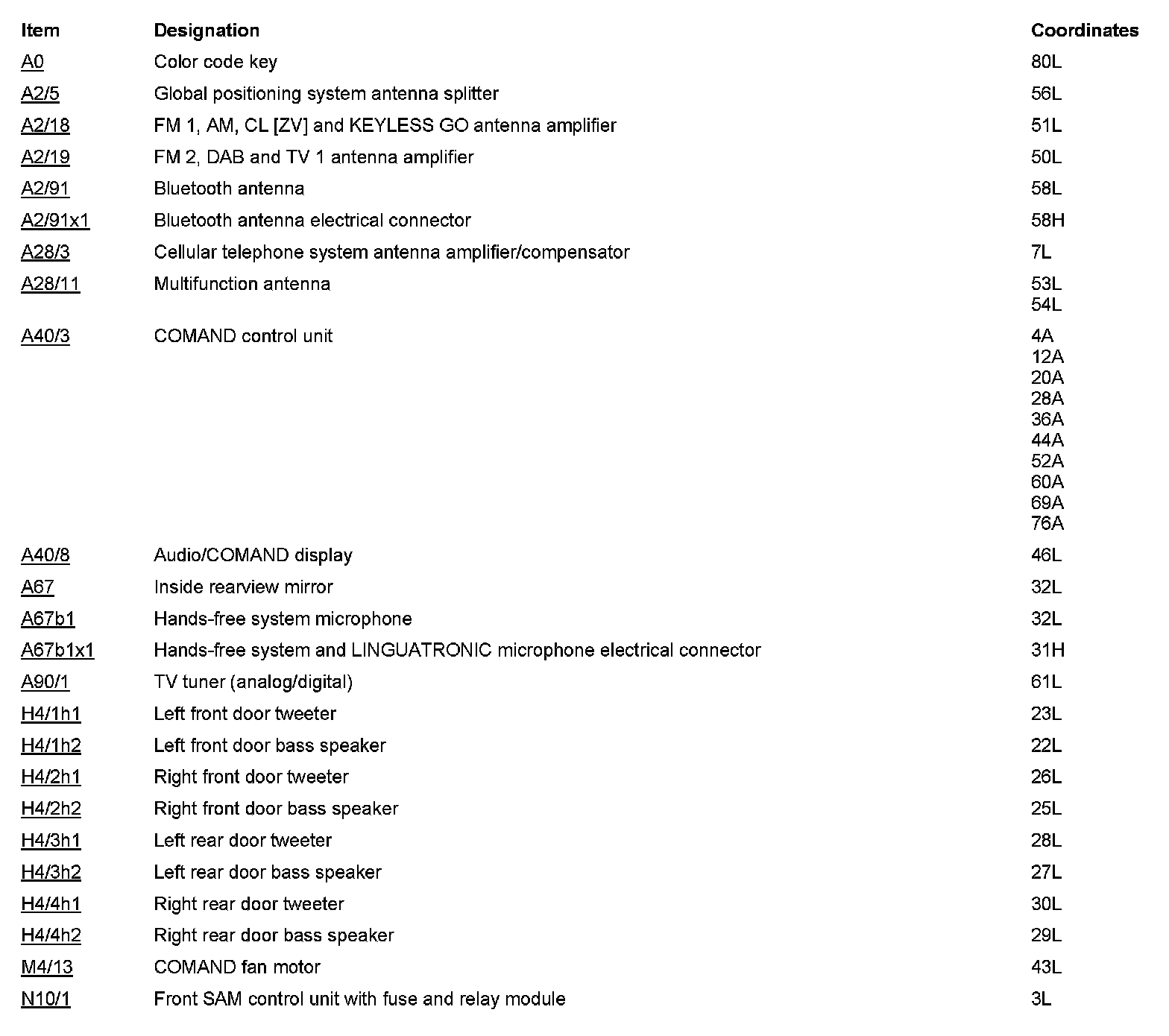

- Control Unit A40/3






















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
