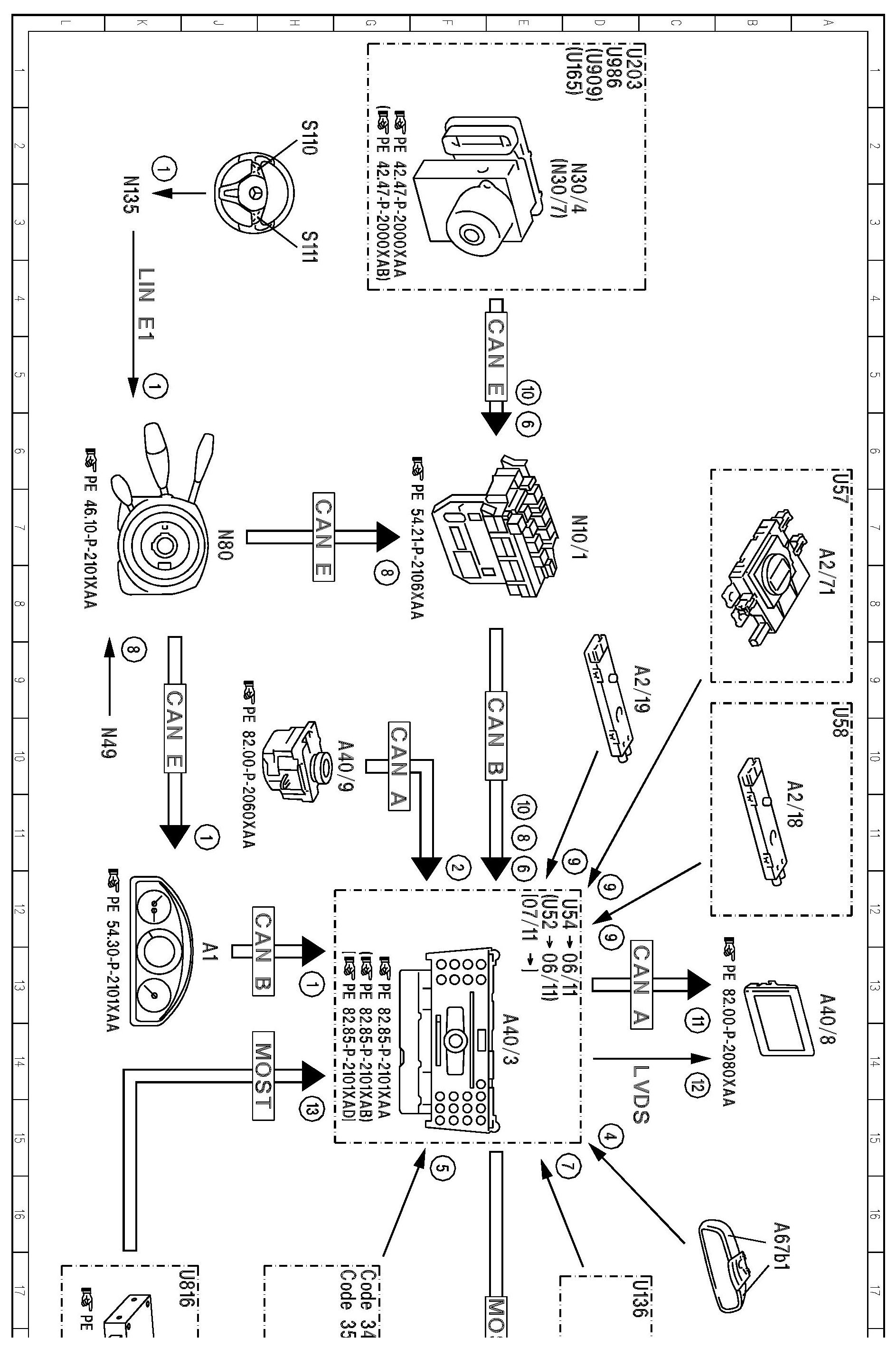

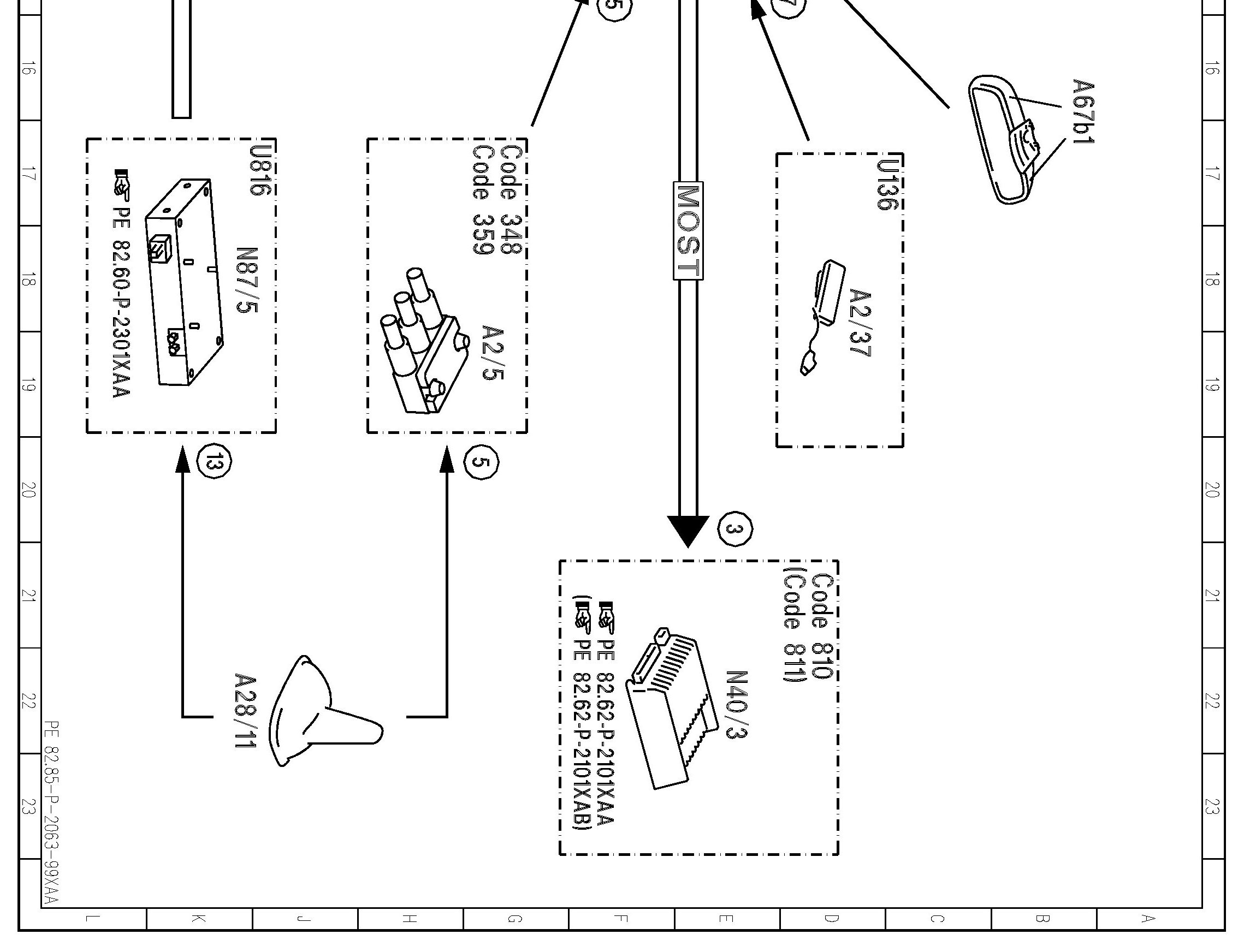

PE82.85-P-2063XAA Electrical Function Diagram For Navigation Mode (COMAND), Function

PE82.85-P-2063XAA Electrical Function Diagram For Navigation Mode (COMAND), Function
MODEL 218
with CODE (512) COMAND APS With DVD Changer
with CODE (527) COMAND AP














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
