Trunk / Liftgate Closer Module: Service and Repair

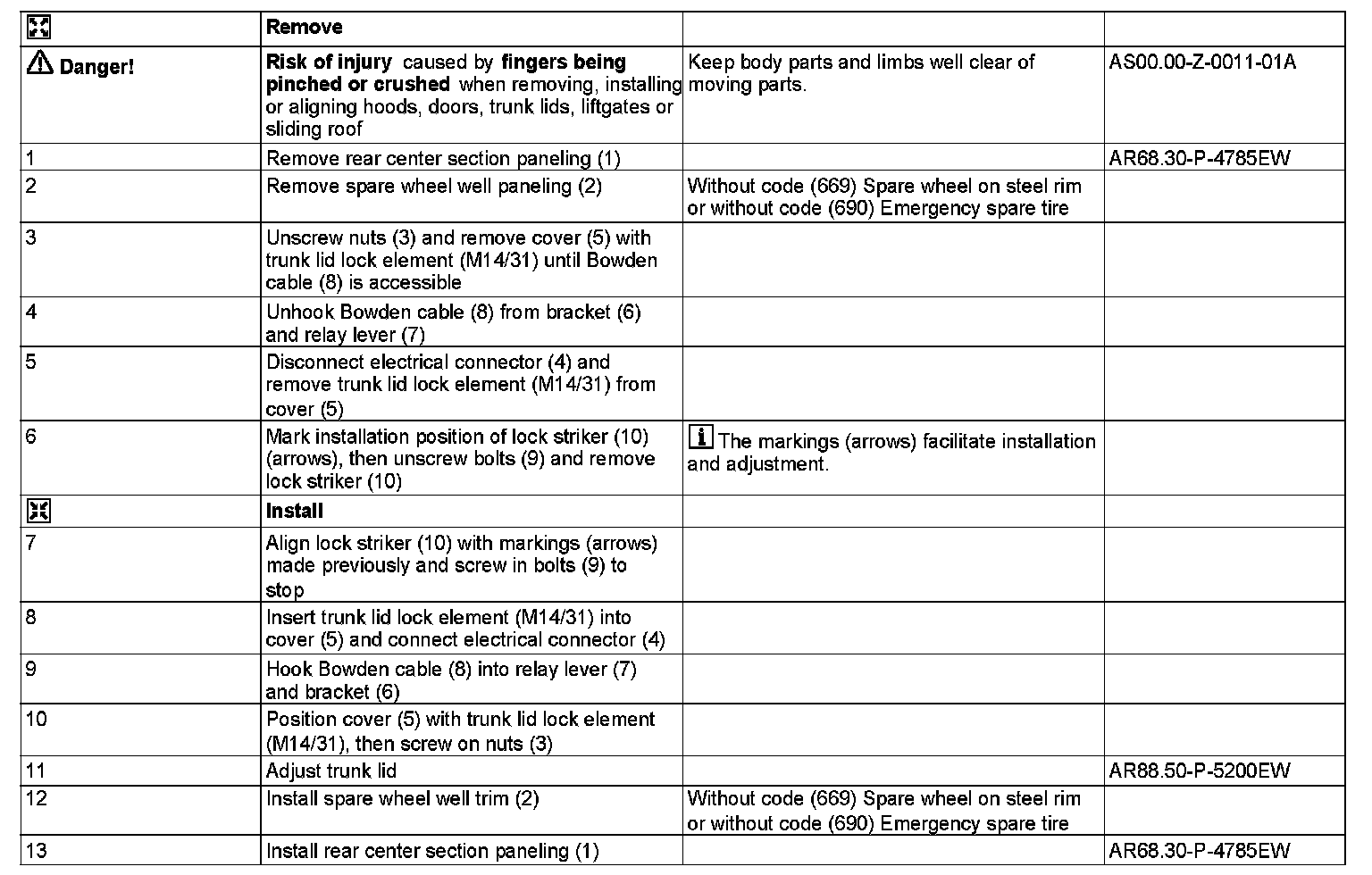

AR80.40-P-1000EL Remove/Install Trunk Lid Power Closing Unit
MODEL 218.3
- with CODE (881) Remote trunk closing (RTC [HDFS])

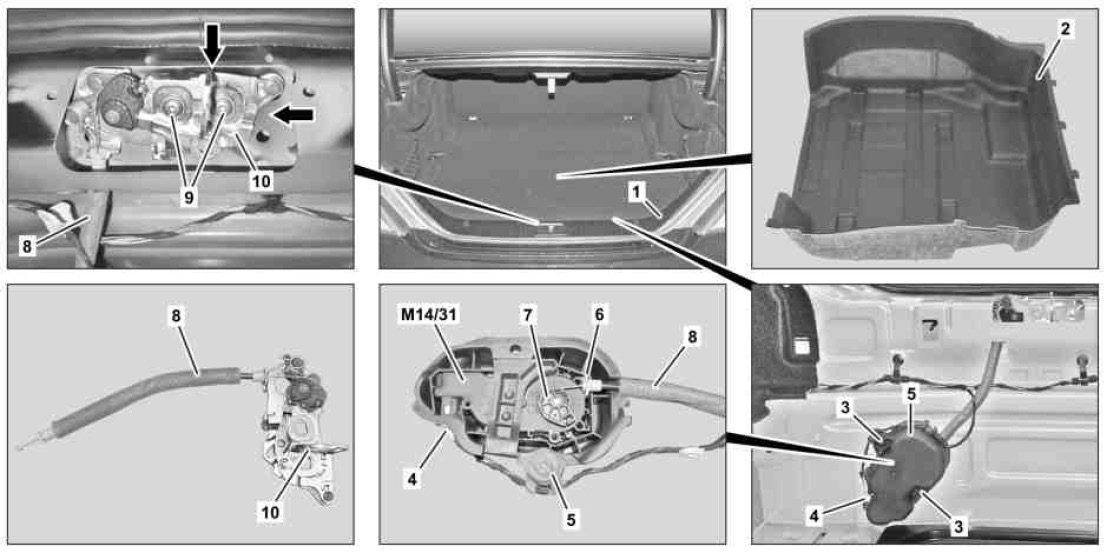

1 Rear center section paneling
2 Spare wheel well paneling (without code (669) Spare wheel on steel rim or without code (690) Emergency spare tire)
3 Nut
4 Electrical connector
5 Cover
6 Bracket
7 Relay lever
8 Bowden cable
9 Bolts
10 locking eye
M14/31 Trunk lid locking element
