AR35.10-P-0051EW Remove/Install Front Center Assembly Suspension on Rear Axle Carrier



AR35.10-P-0051EW Remove/install front center assembly suspension on rear axle carrier

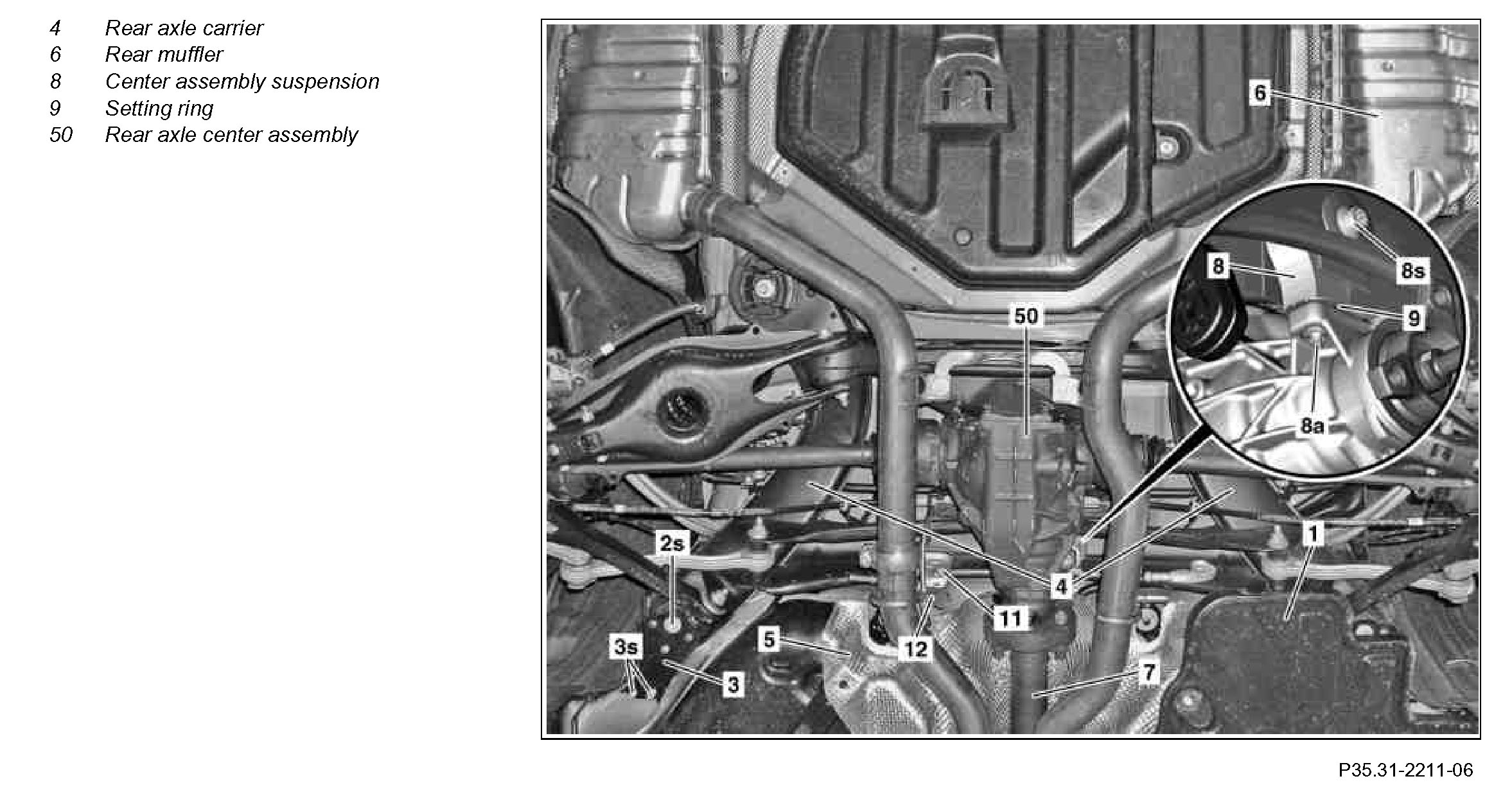

Component Identification:

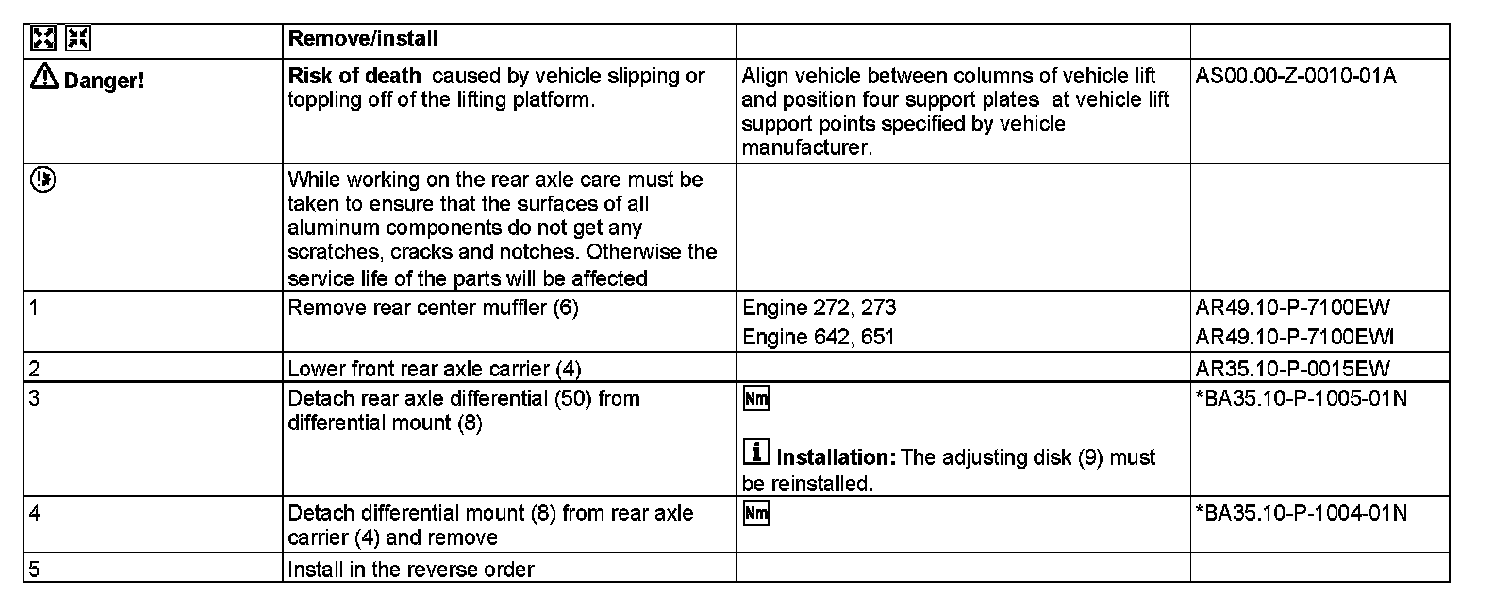

Steps 1-5:

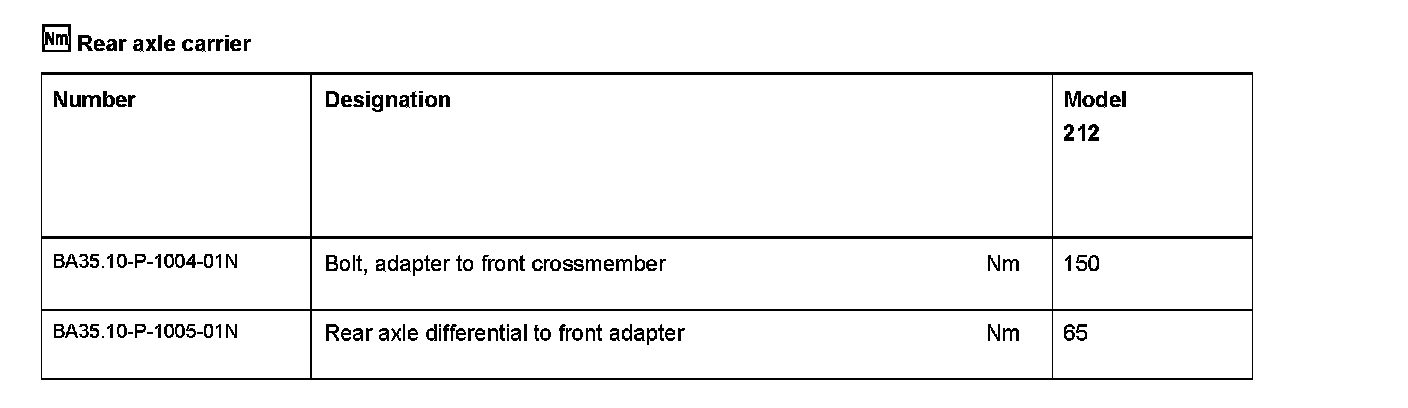

Rear axle carrier:
