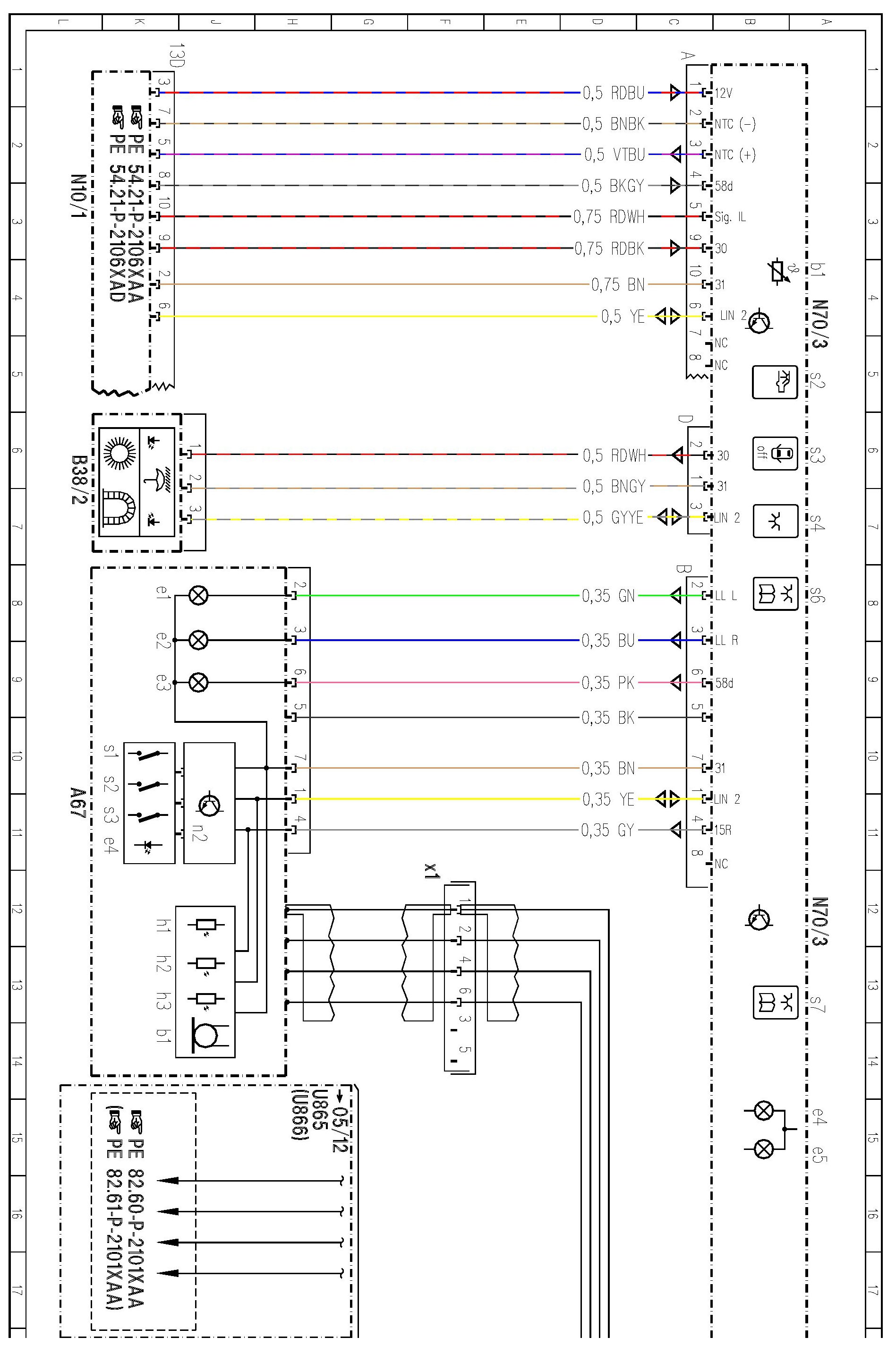

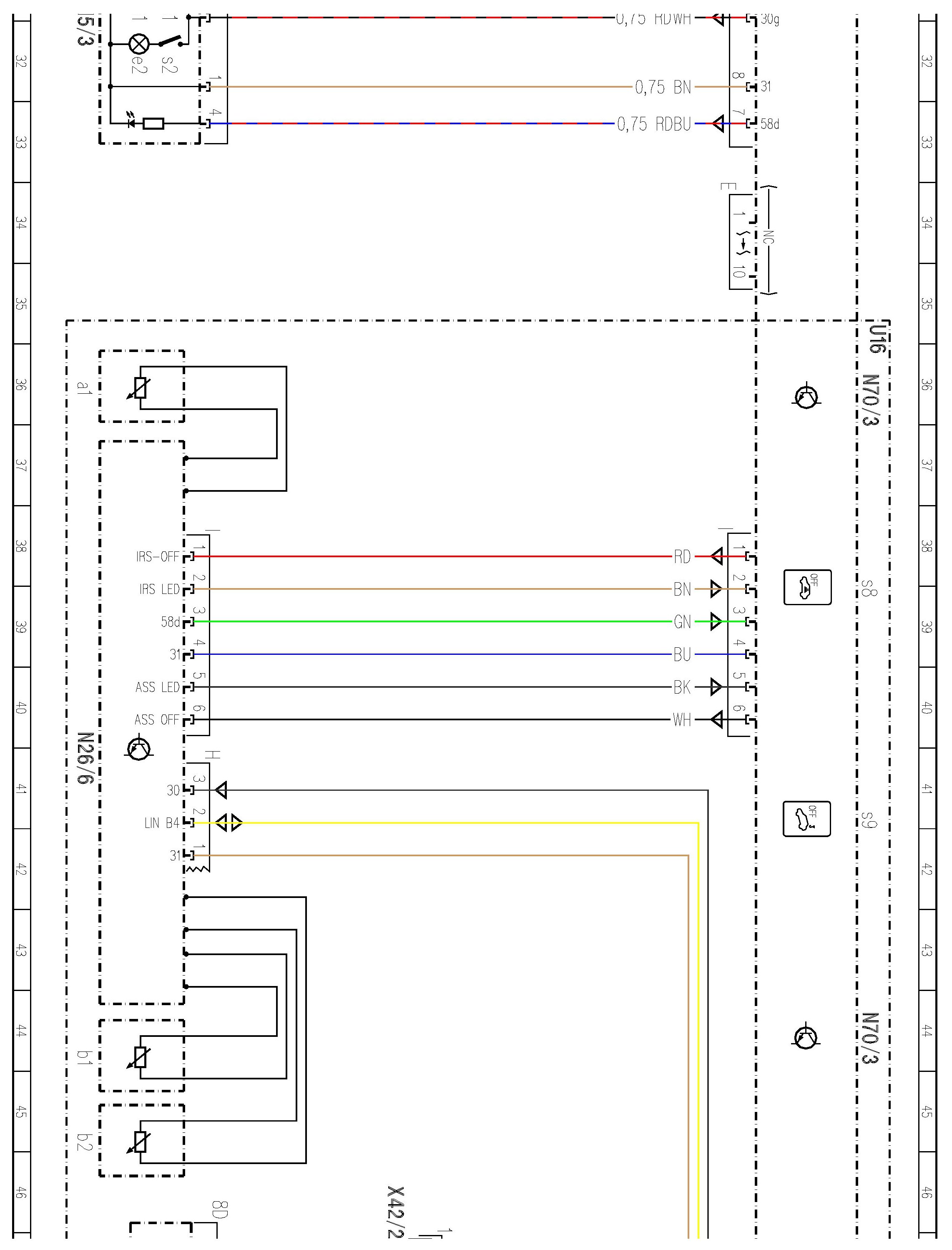

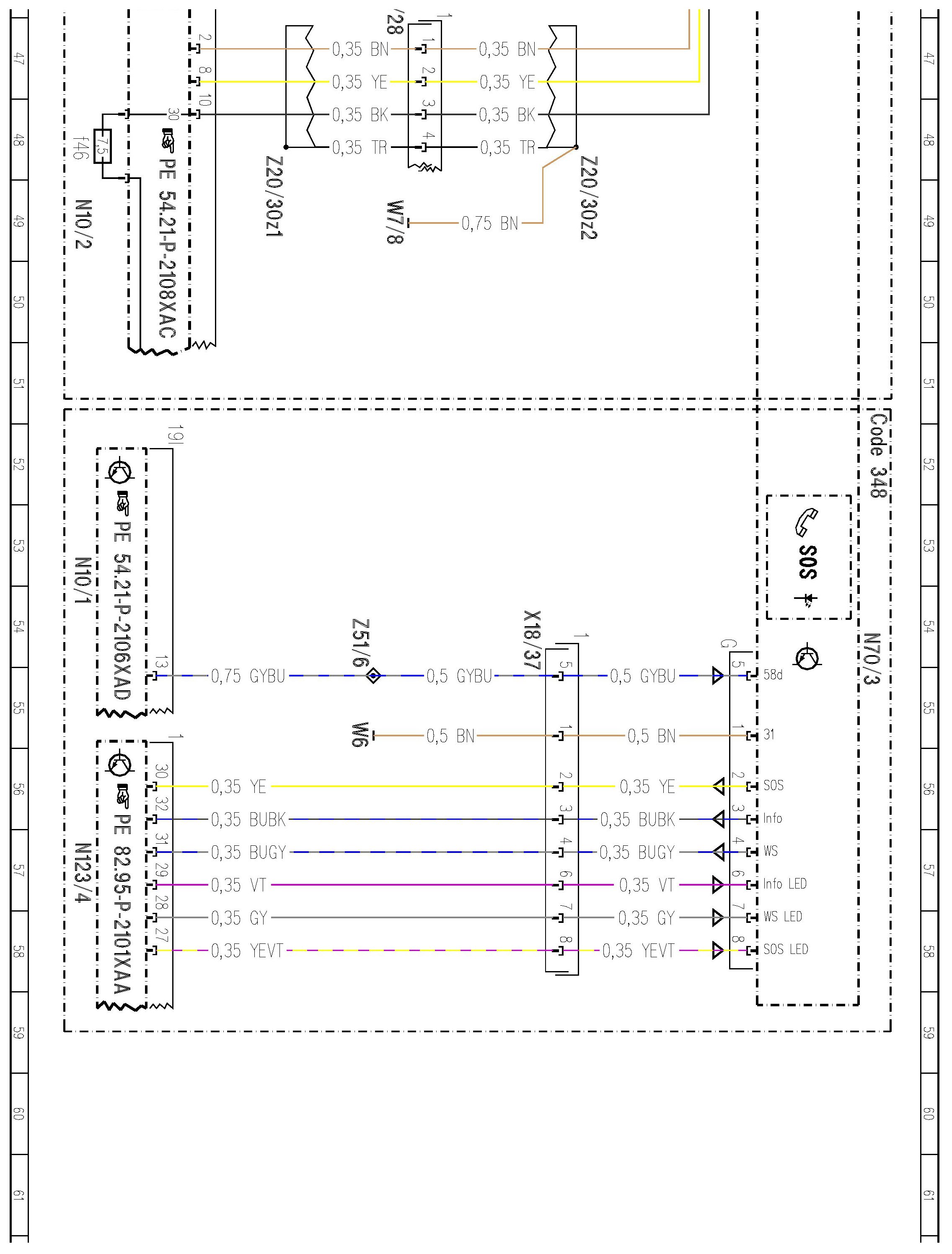

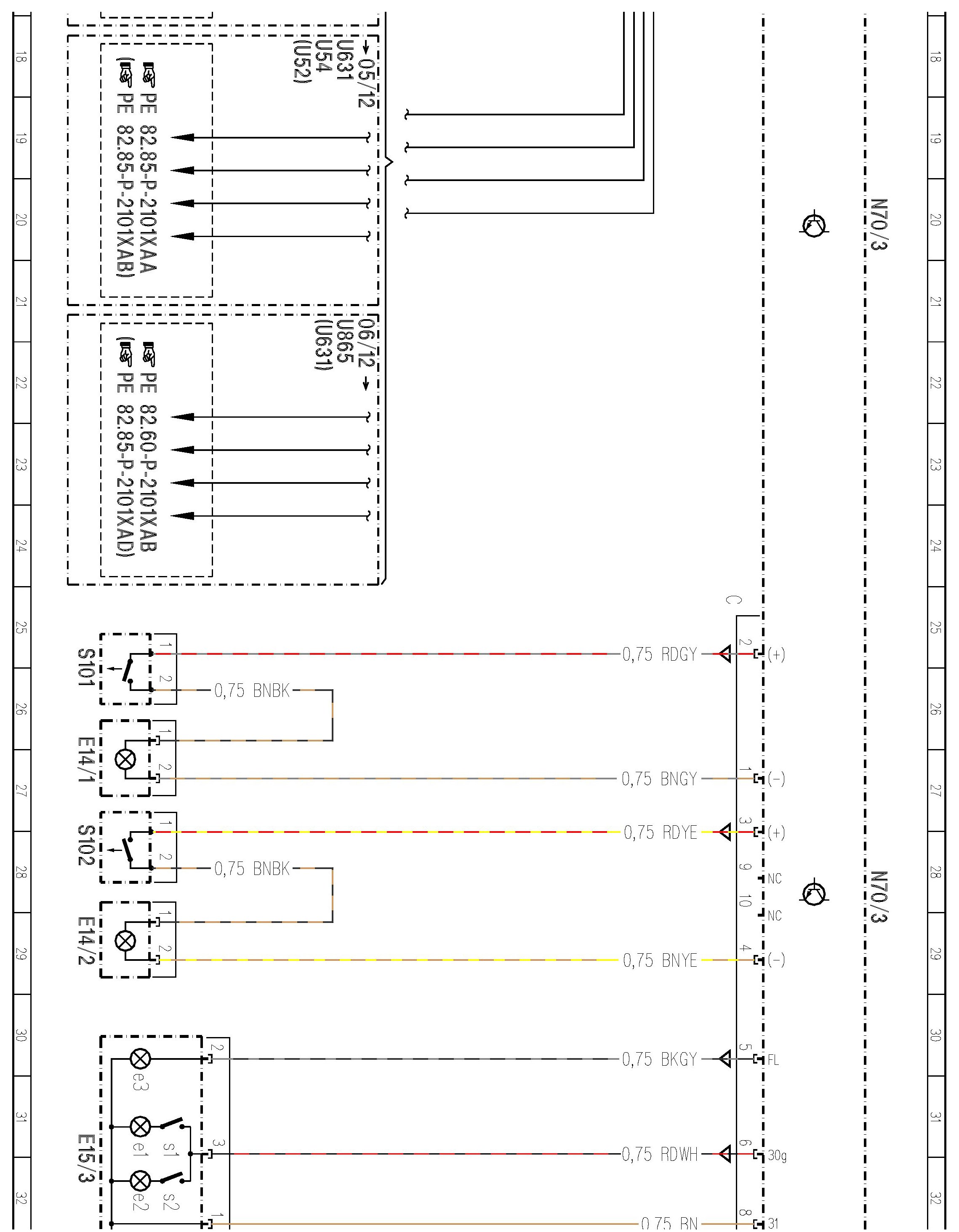

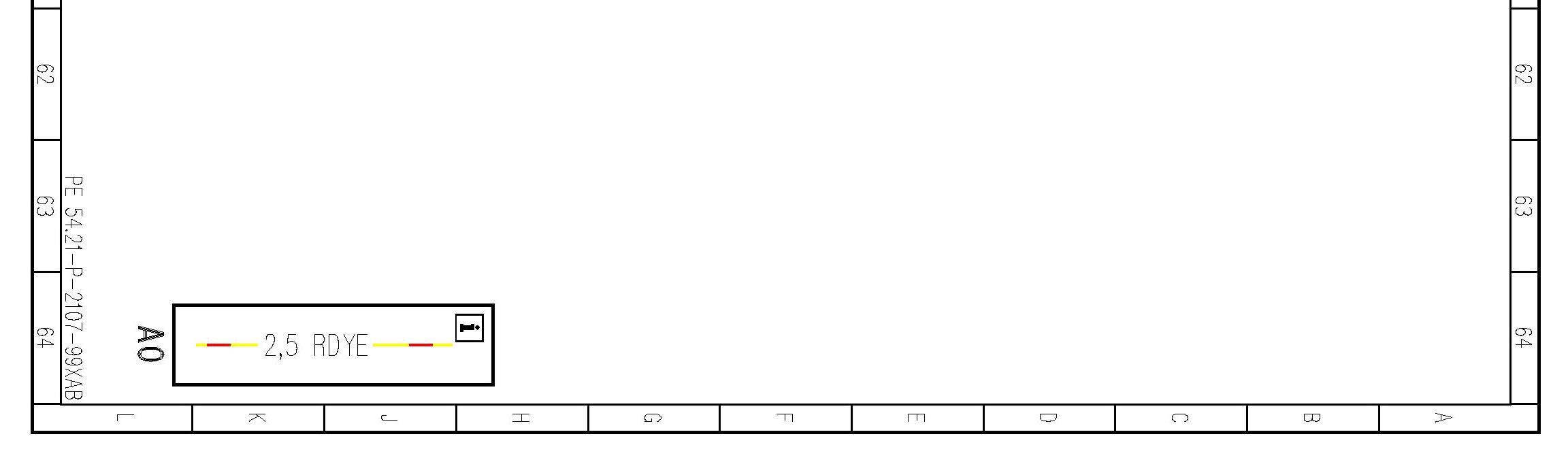

PE54.21-P-2107XAB Overhead Control Panel (OCP) Control Unit



PE54.21-P-2107XAB Overhead Control Panel (OCP) Control Unit
MODEL 218
- except CODE (414) Power Version Of Glass Tilting/Sliding Roof
- Control Unit N70/3 (Without CAN)


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
