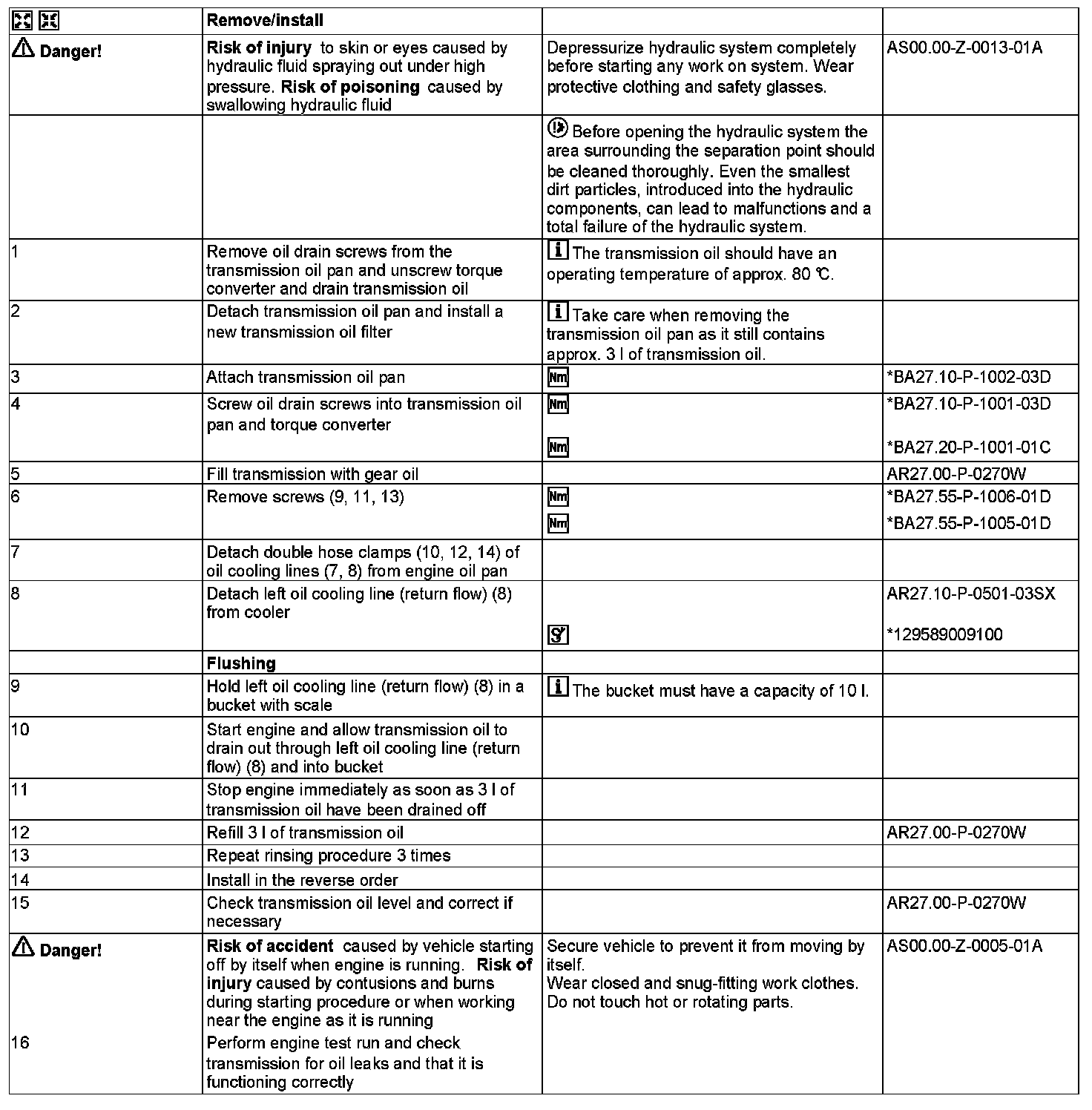

AR27.55-P-0100SX Flush Out Automatic Transmission and Torque Converter

AR27.55-P-0100SX Flush Out Automatic Transmission and Torque Converter
TRANSMISSION 722.9 in MODEL 221.00 /02 /05 /07 /10 /12 /15 /17, 216.37
Without transmission rinsing device

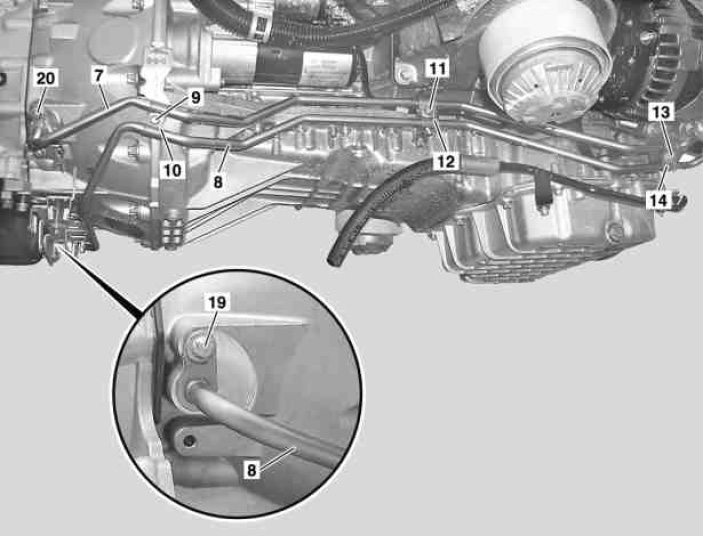

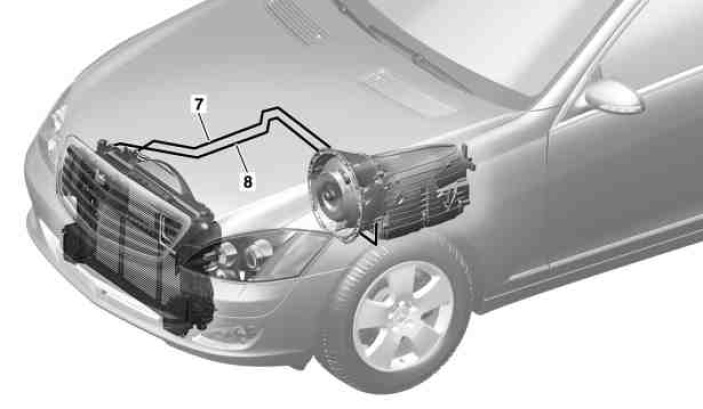

7 Right oil cooling line (feed)
8 Left oil cooling line (return)





7 Right oil cooling line (feed)
8 Left oil cooling line (return)
9 Screw
10 Double clamp
11 Screw
12 Double clamp
13 Screw
14 Double clamp
19 Screw
20 Screw




















129 589 00 91 00
Set of stop plugs
