Without Mixed Tires

AR40.20-P-0322-03SD Check caster and assign to tabular value
- Except for those with mixed tires

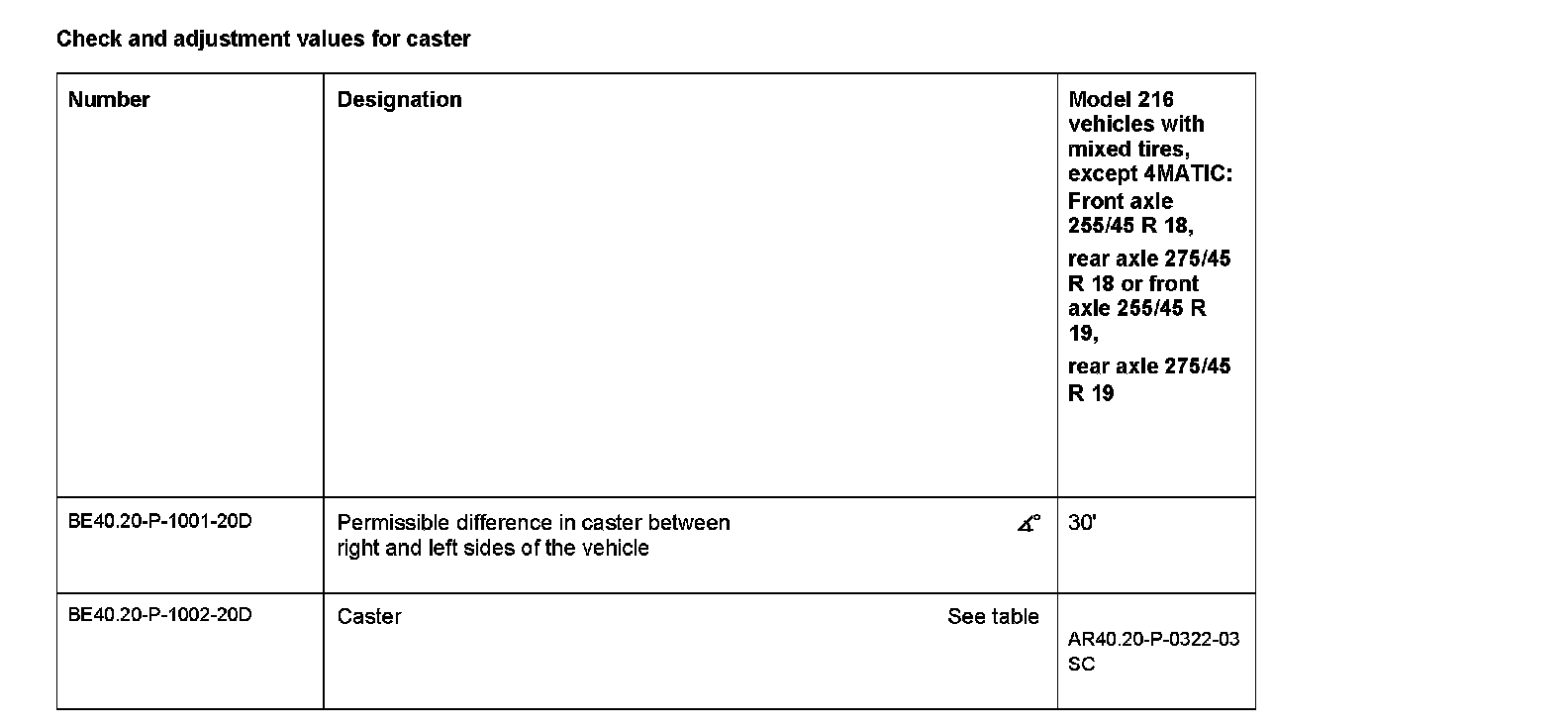

Check and adjustment values for caster:

Tolerance for caster ± 30'

The level values are displayed by the electronic inclinometer in decimal degrees [°].
1 Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously.

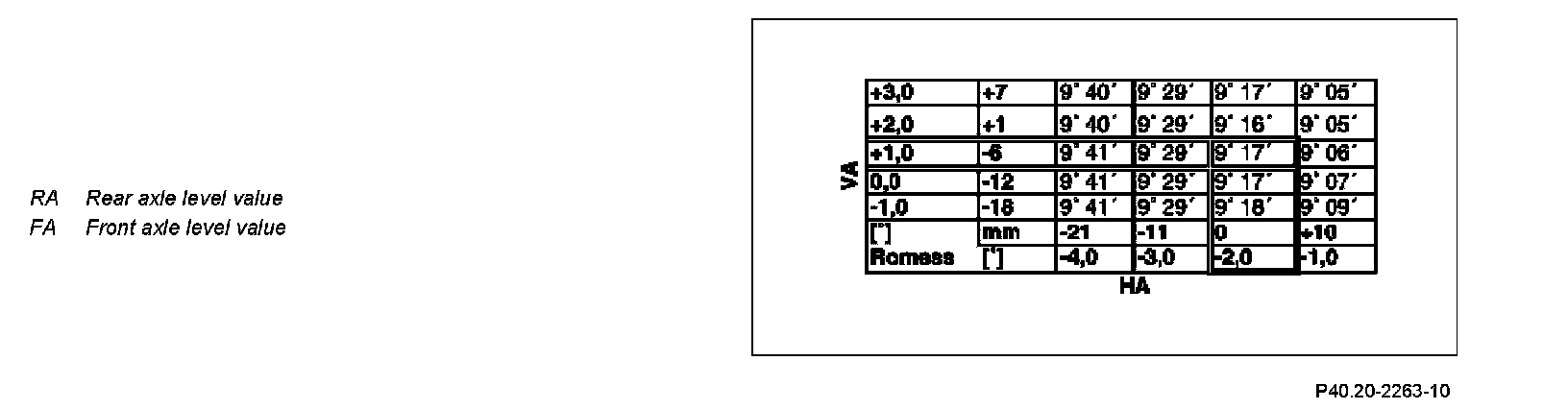

Example, see Table:

Front axle level value (FA): +1.0 degrees

Rear axle level value (RA): - 2,0 degrees

Caster value 9 degrees 17' ( ± 30')
