AP18.00-P-0101SZ Engine oil and filter change

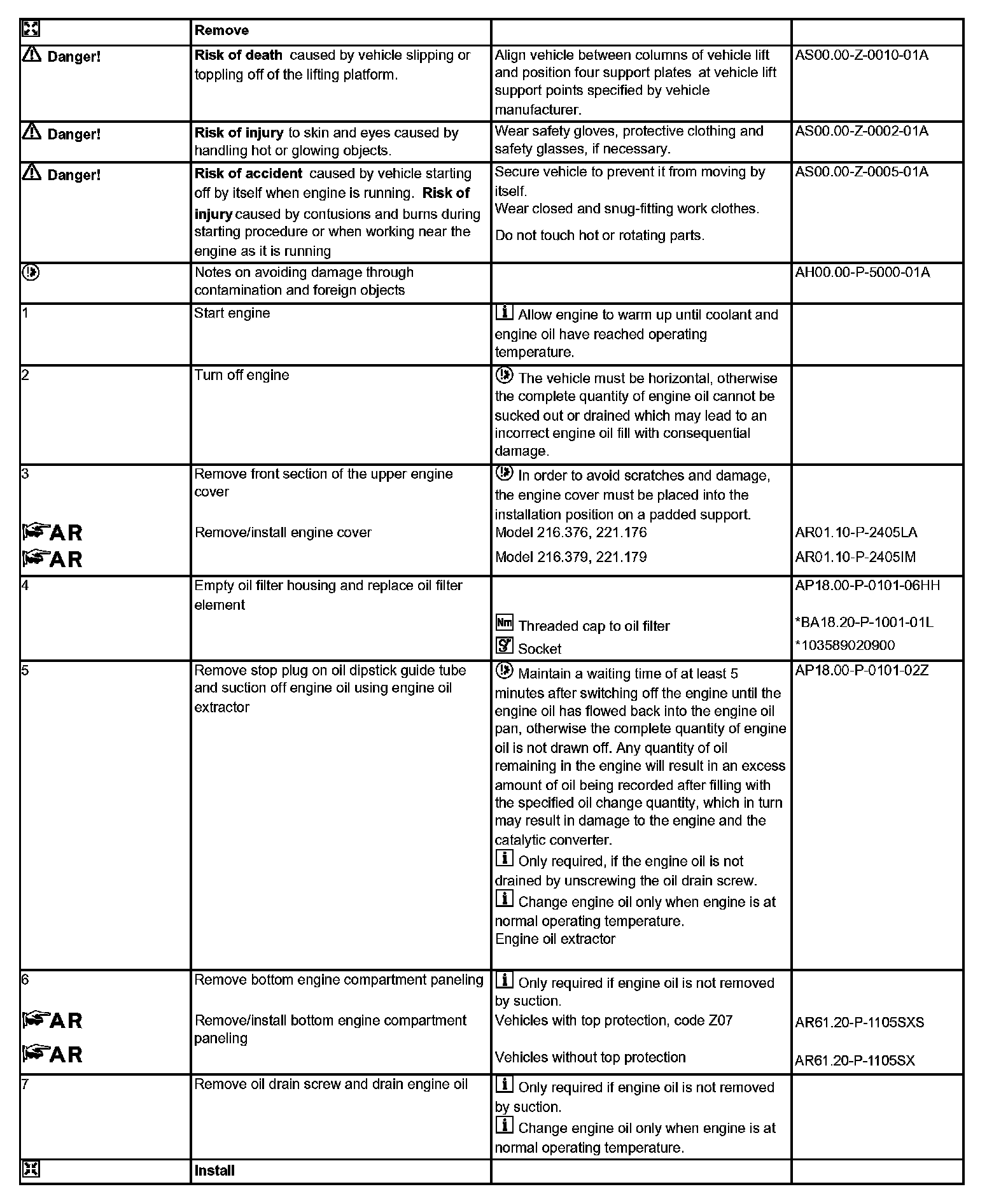

Steps 1-7:

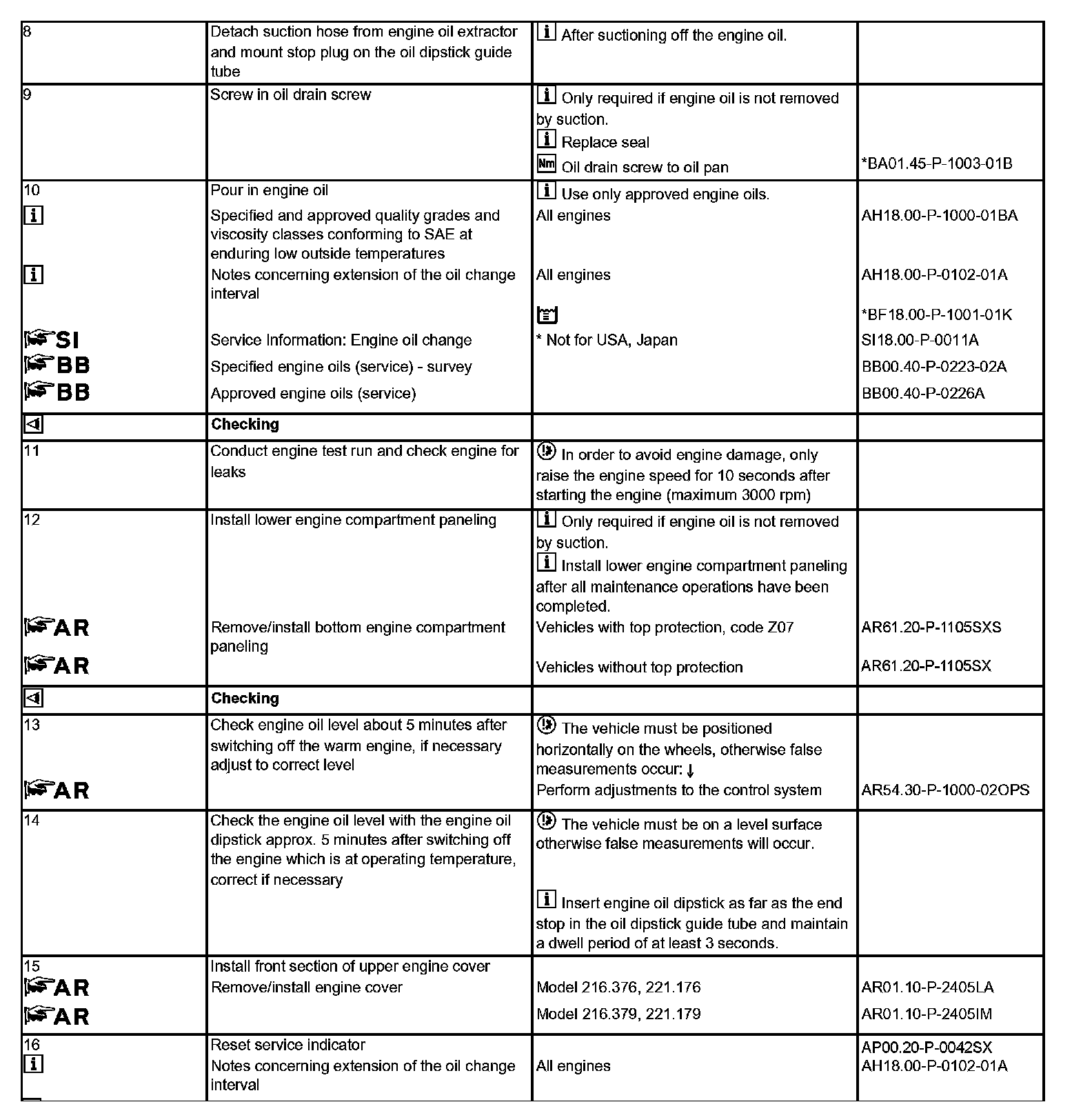

Steps 8-16:

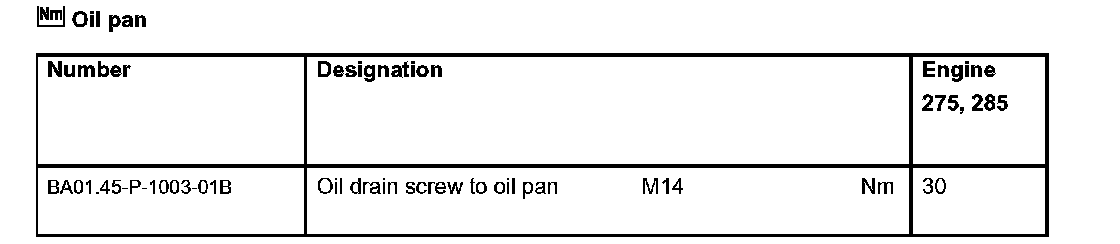

Oil pan:

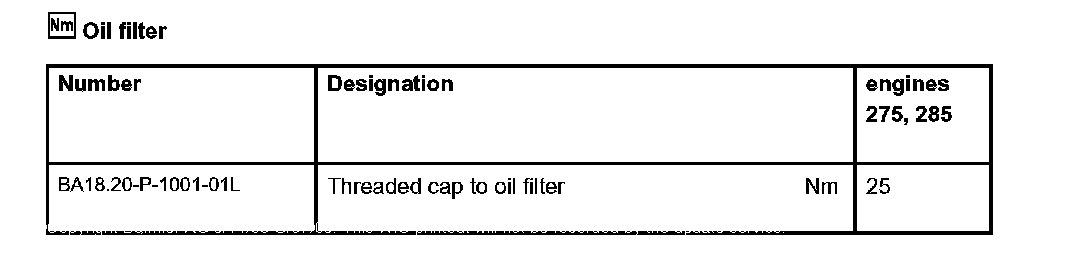

Oil filter:

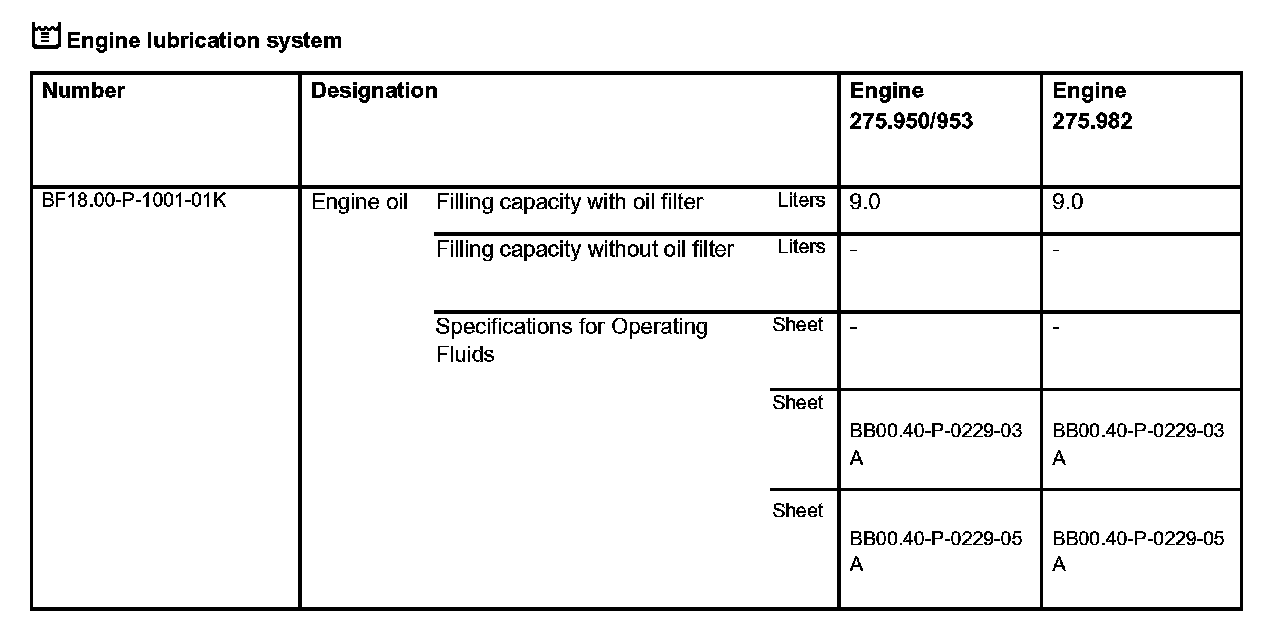

Engine lubrication system:

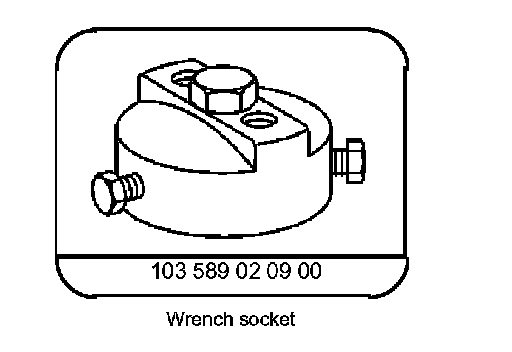

Special Tools:
