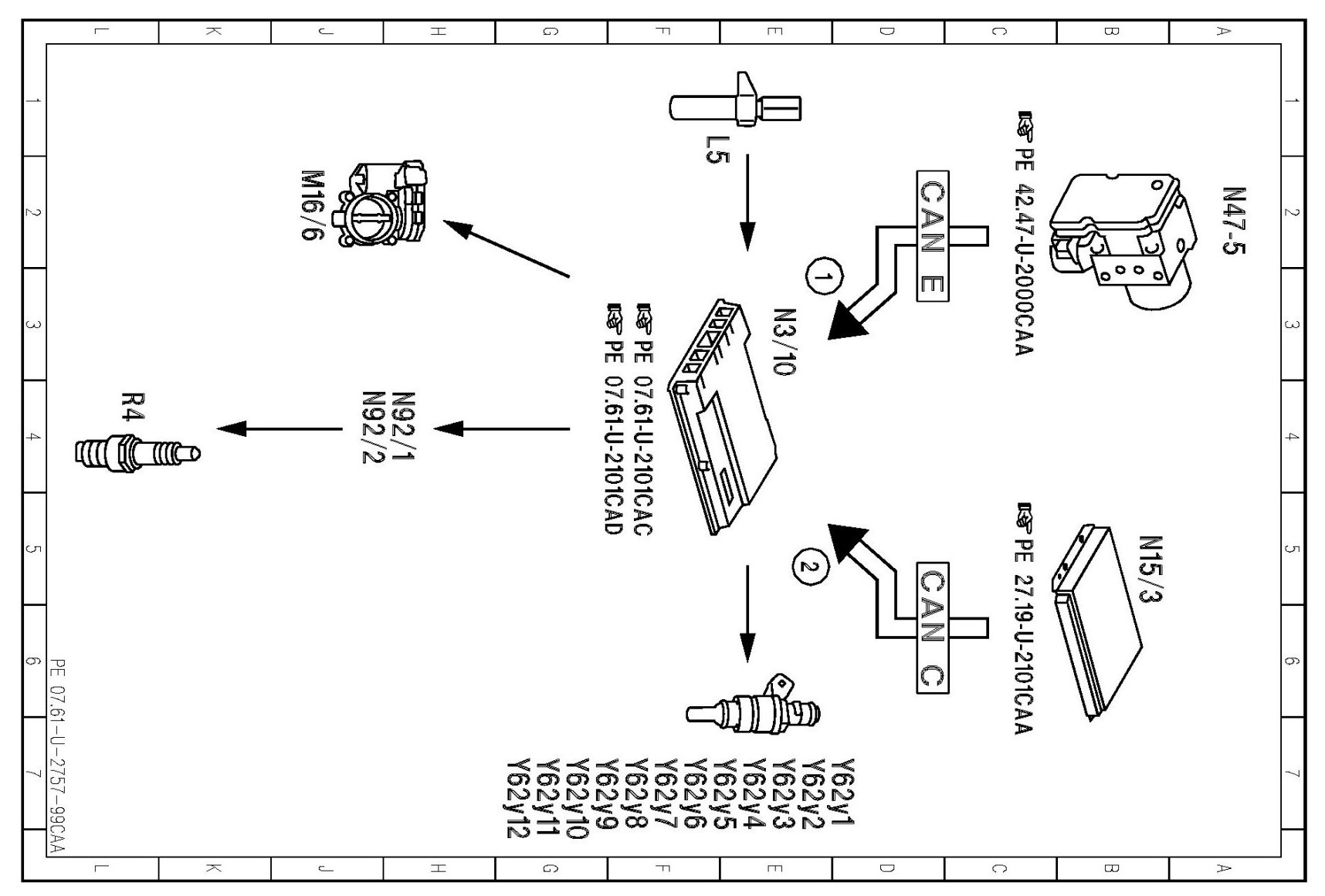

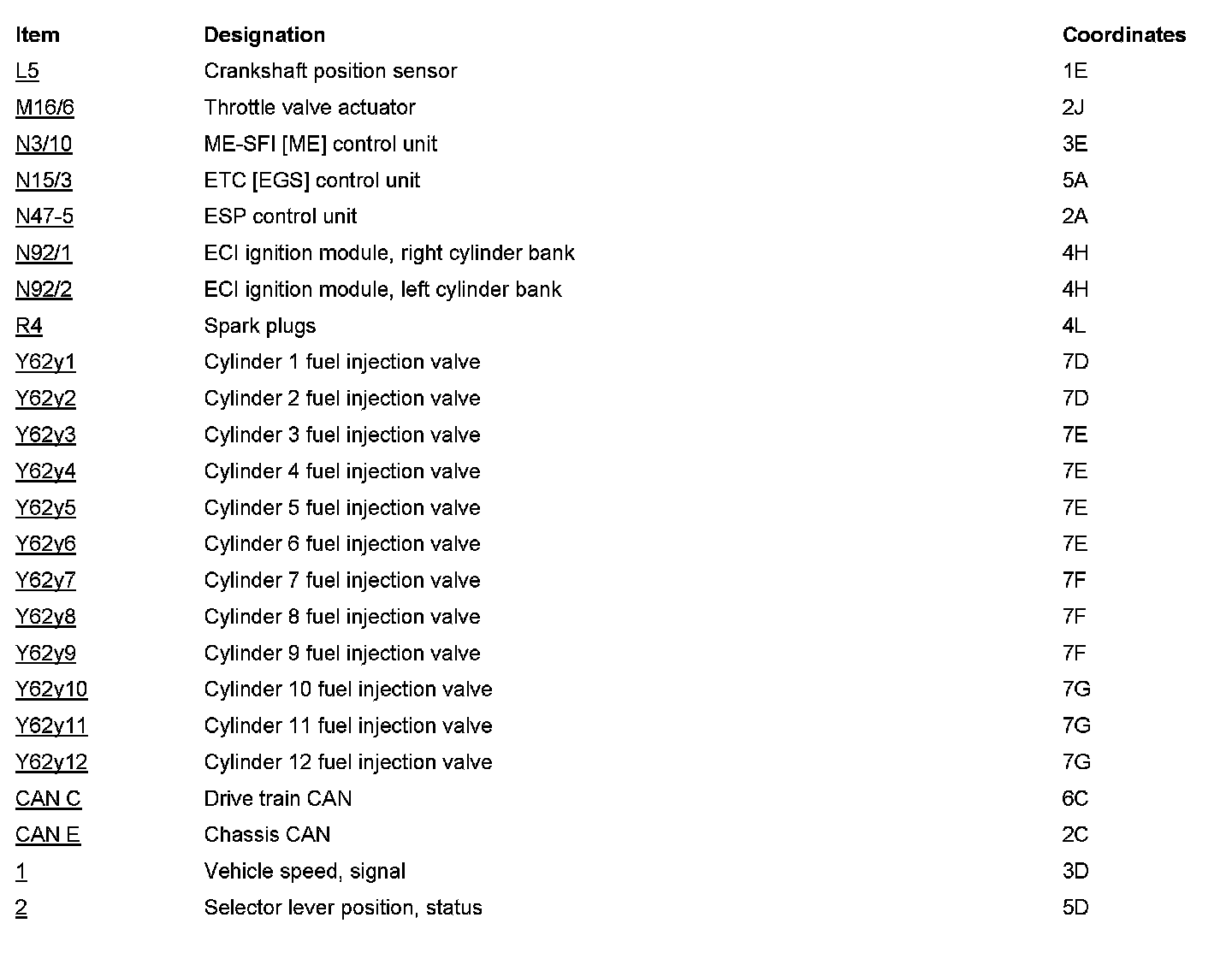

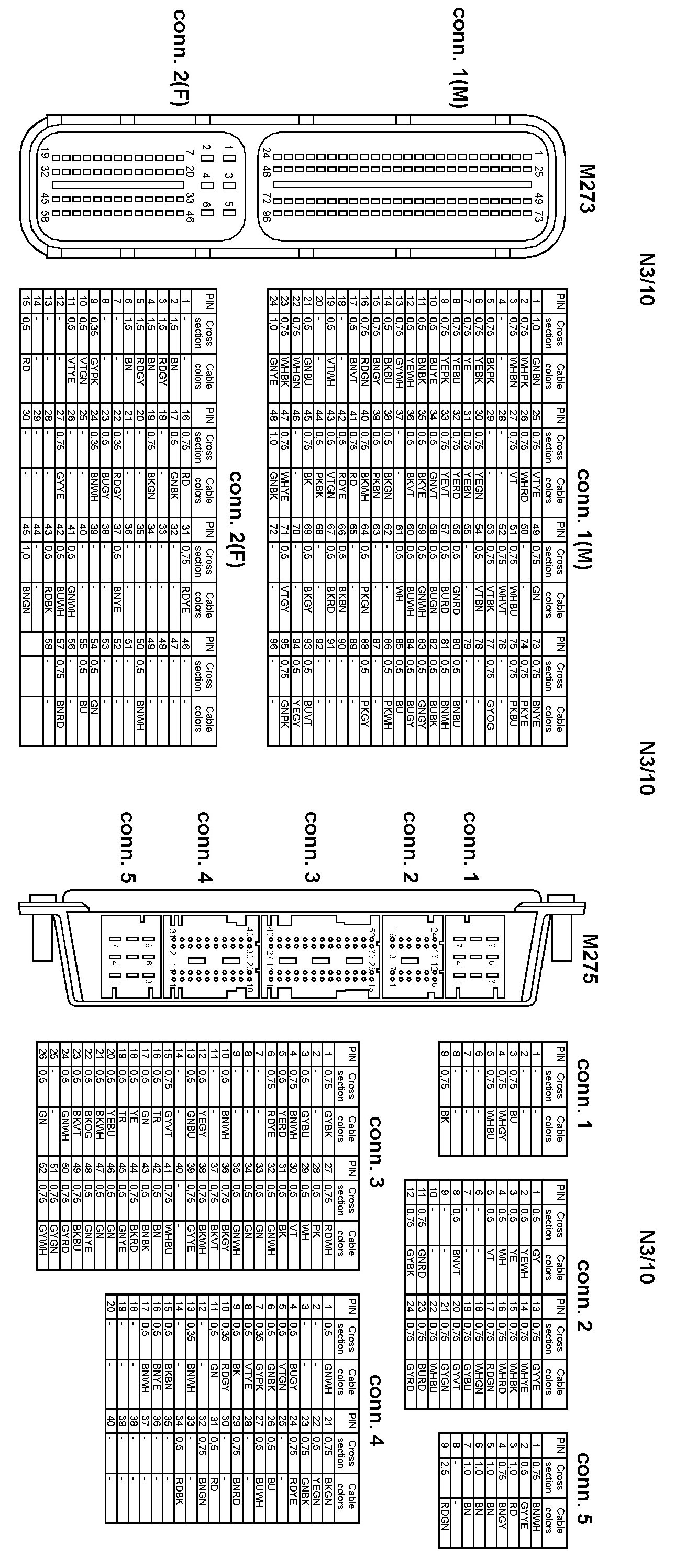

PE07.61-U-2757CAA Electrical Function Diagram For ME Maximum Engine Speed Limitation



PE07.61-U-2757CAA Electrical Function Diagram For ME Maximum Engine Speed Limitation

ENGINE 275 in MODEL 216
- as of Model Year 2009



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
