Home >> Mercedes Benz >> 2012 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Blade >> Testing and Inspection

Wiper Blade: Testing and Inspection



AP82.30-P-8253SX Inspect Wiper Blade

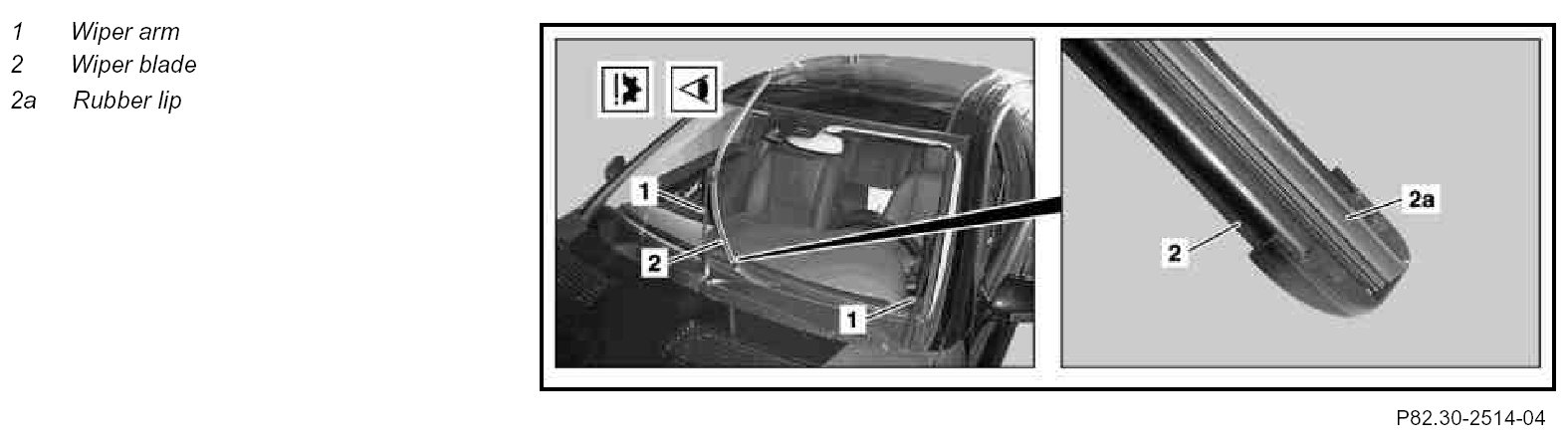

Component Identification:

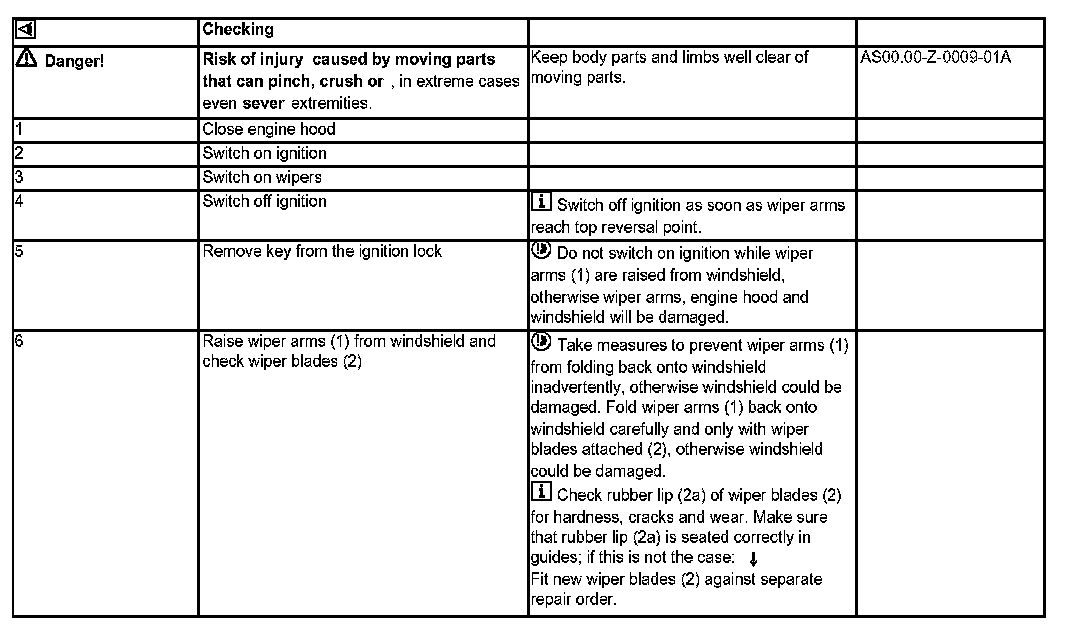

Steps 1 - 6:
