Front Door Window Regulator: Service and Repair
AR72.10-P-1800SC Remove/install Front Door Window Lifter

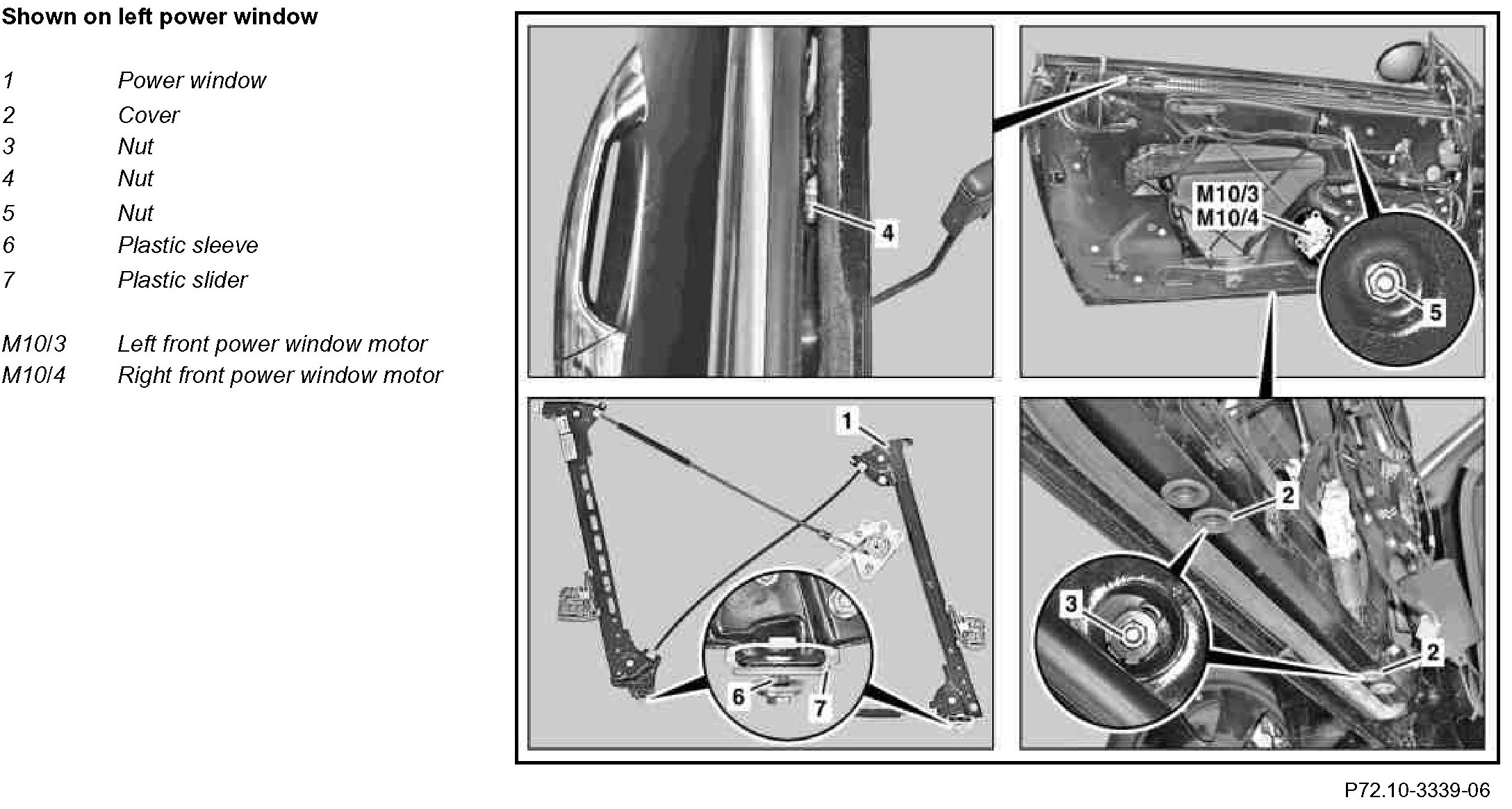

Component Identification:

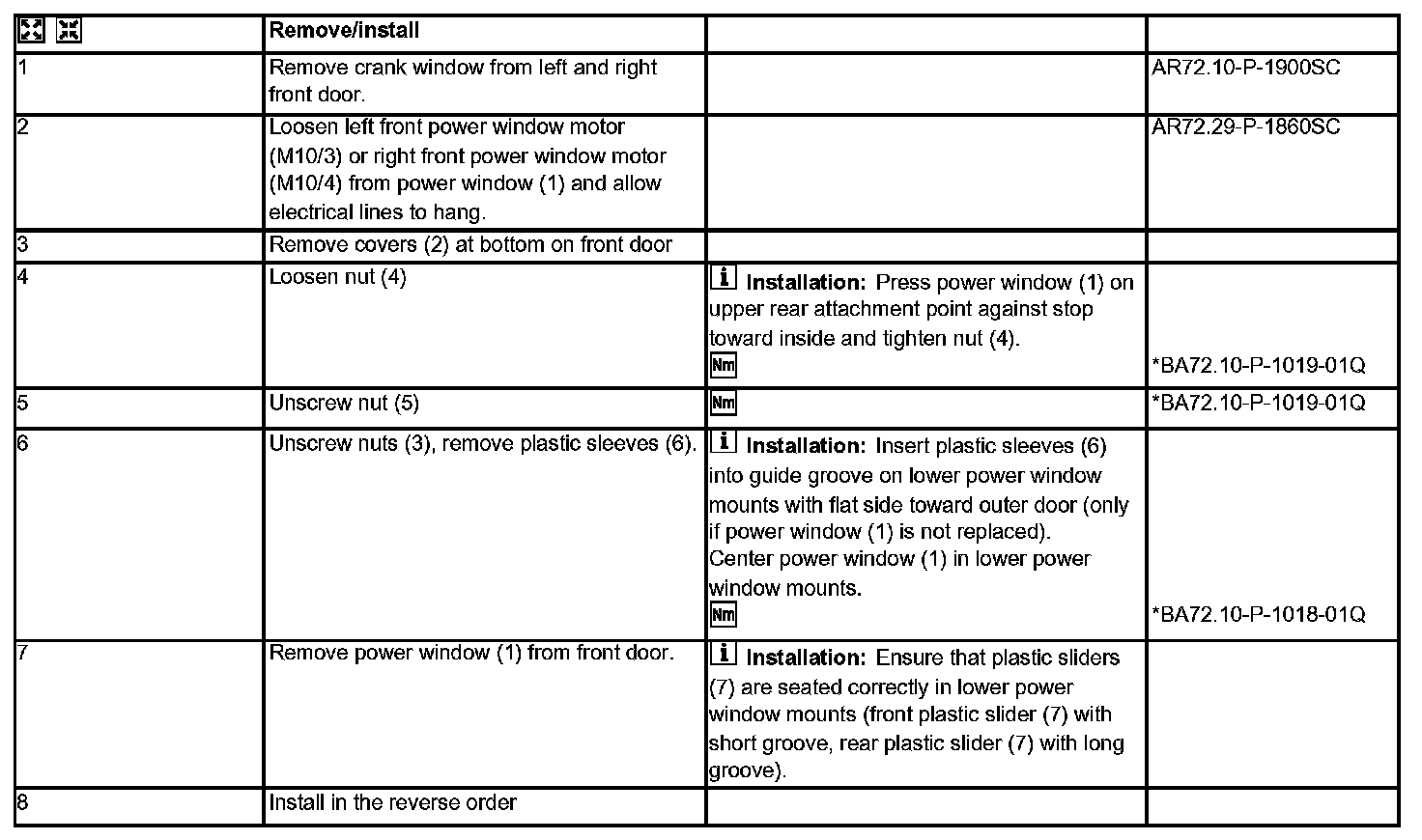

Steps 1-8:

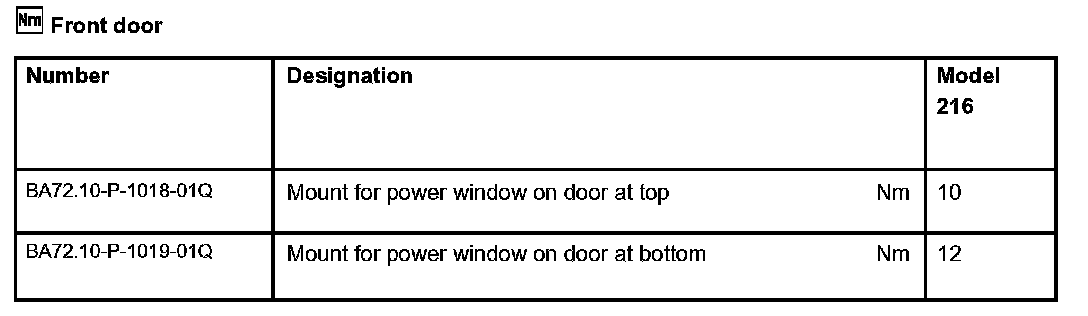

Front Door:
