AR67.30-P-4000SC Remove/Install Rear Side Window
AR67.30-P-4000SC Remove/Install Rear Side Window
AR67.30-P-4000SC Remove/install Rear Side Window

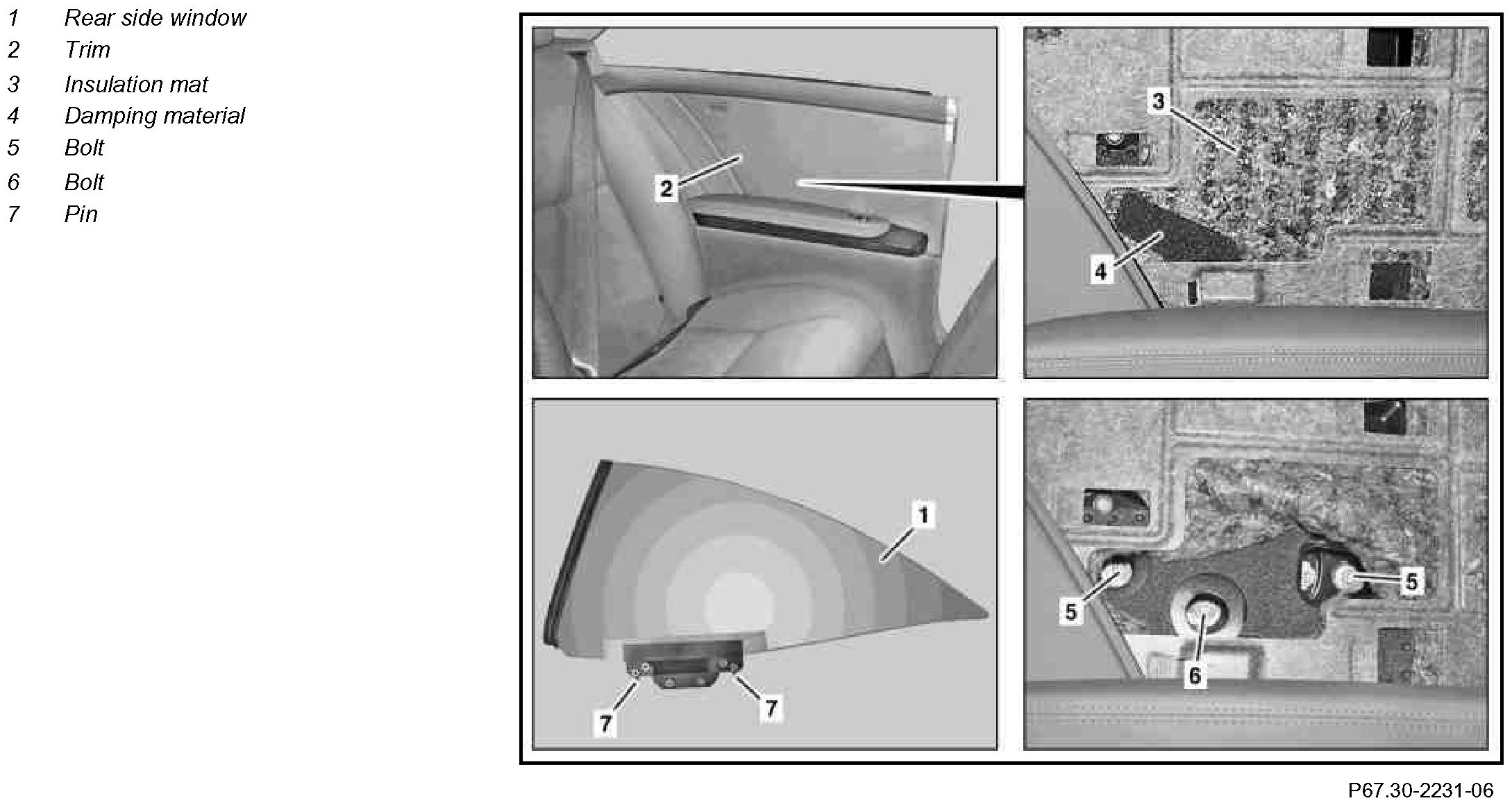

Component Identification:

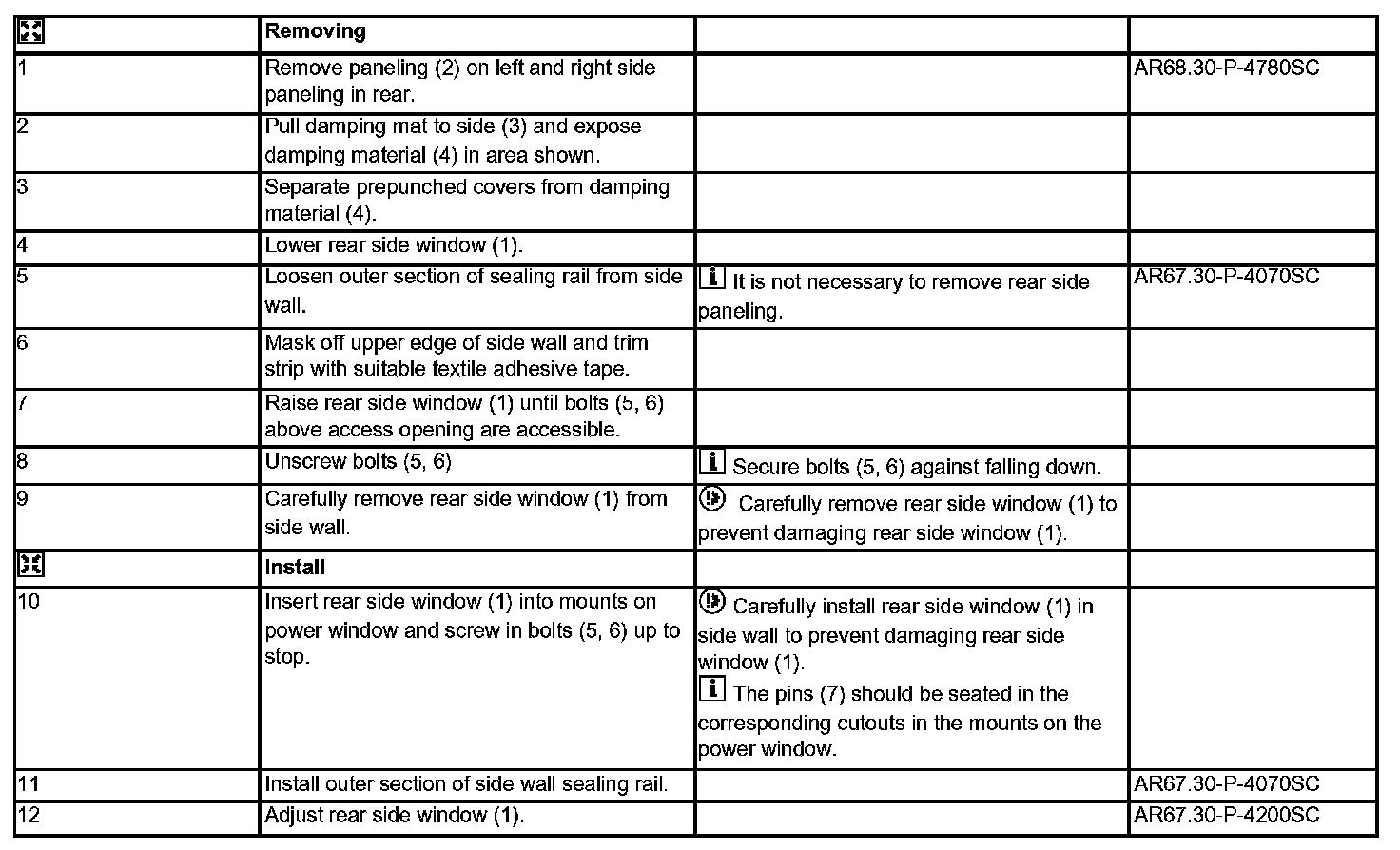

Steps 1-12:
