Quarter Window Glass: Adjustments
AR67.30-P-4200SC Adjusting Rear Side Windows
Component Identification:

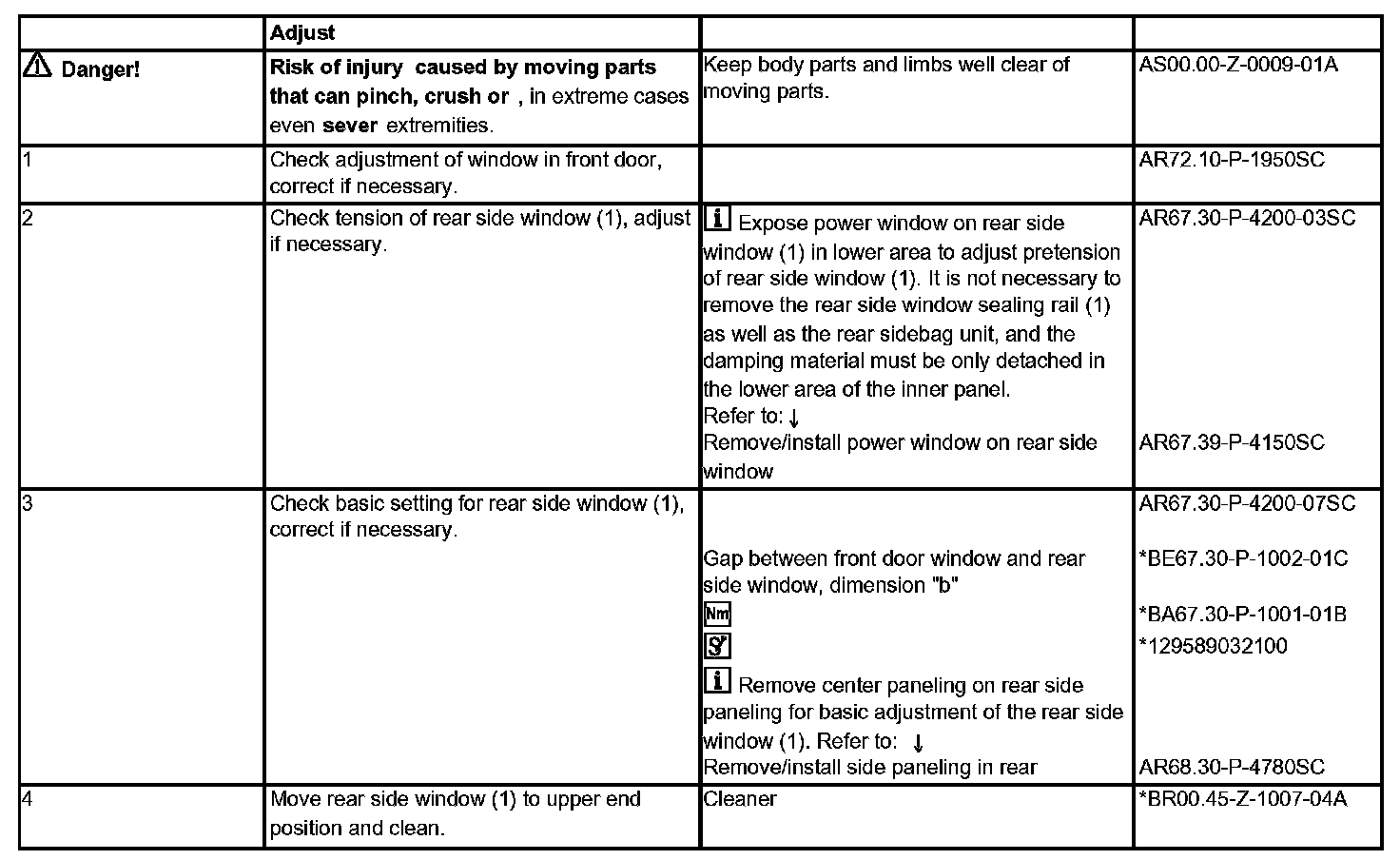

Steps 1-4:

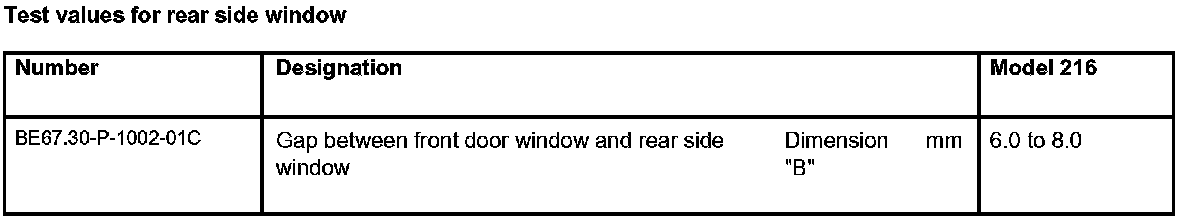

Test Values For Rear Side Window:

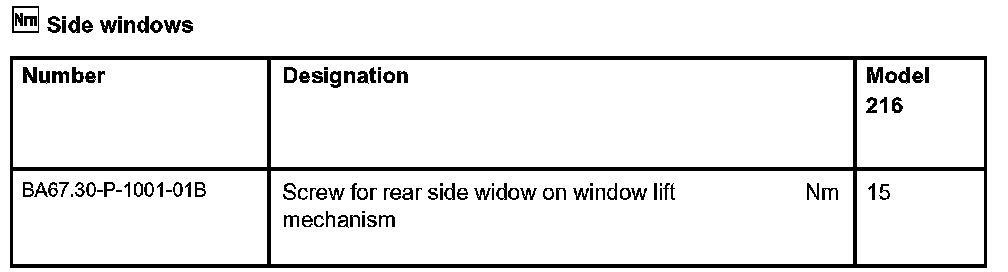

Side Windows:
Special Tool:

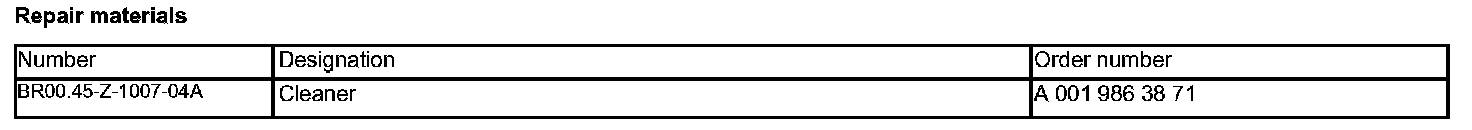

Repair Materials:
