CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Window Glass
>>
Front Door Window Glass
>>
Adjustments
>>
AR72.10-P-1950SC Adjust Front Door Crank Window
AR72.10-P-1950SC Adjust Front Door Crank Window
AR72.10-P-1950SC Adjust Front Door Crank Window

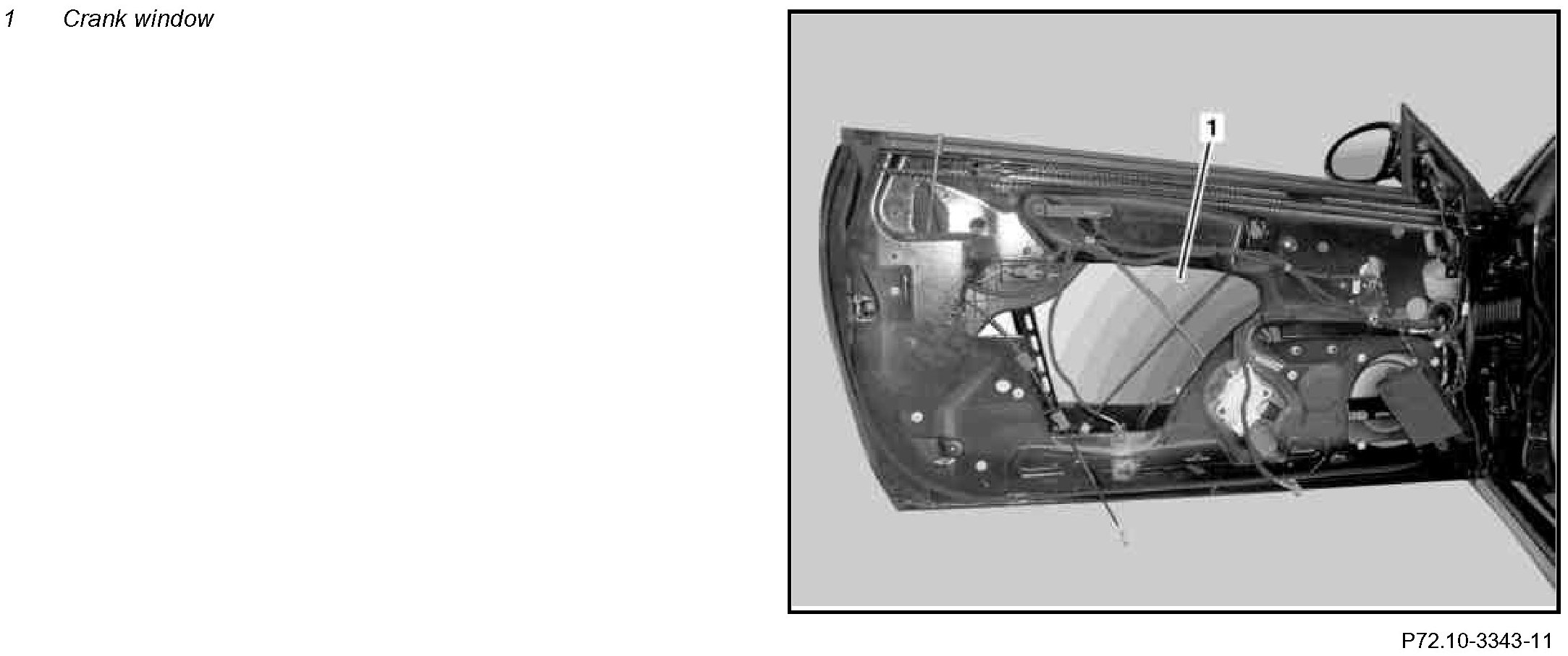

Component Identification:

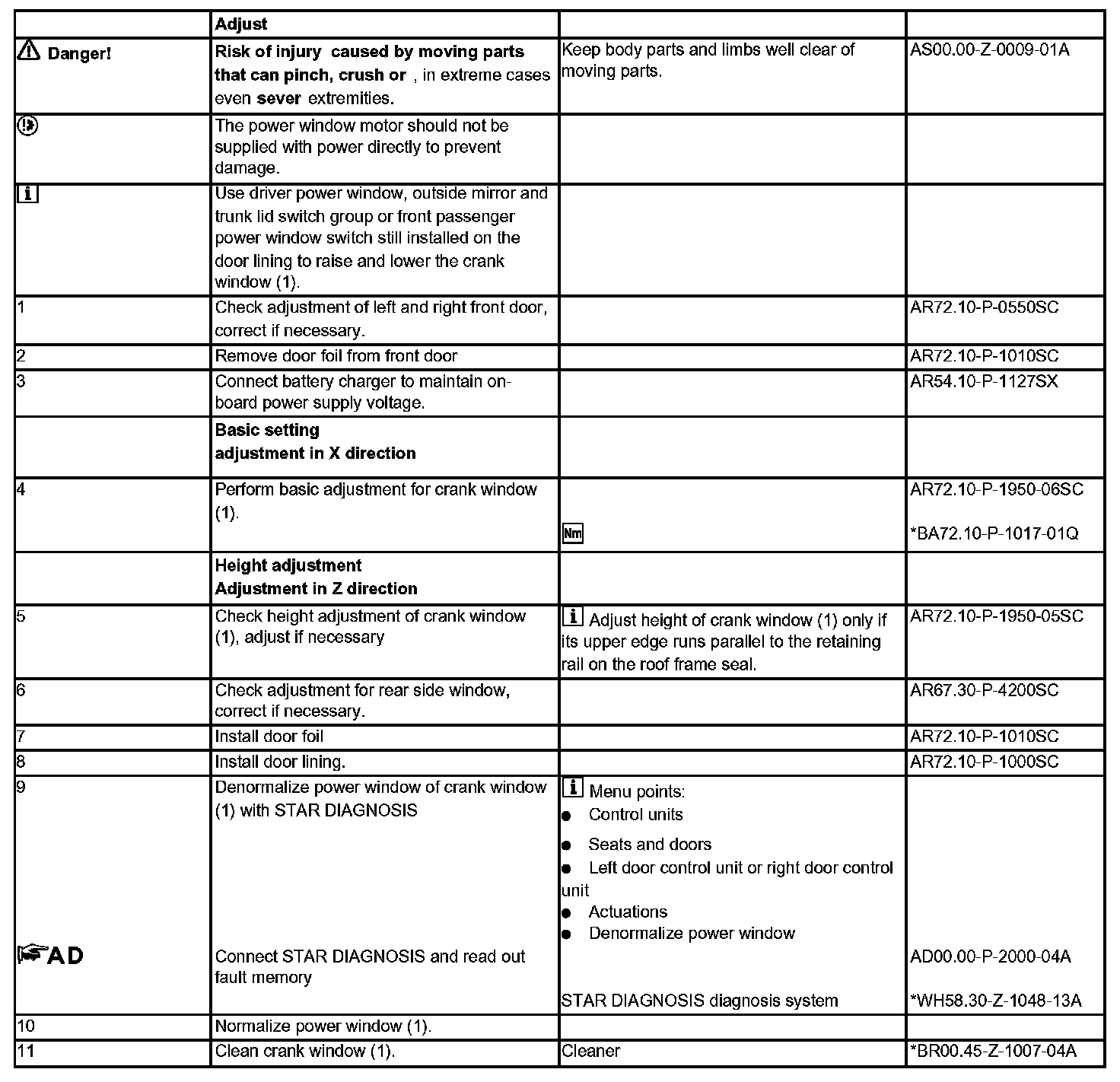

Steps 1-11:
Front Door:

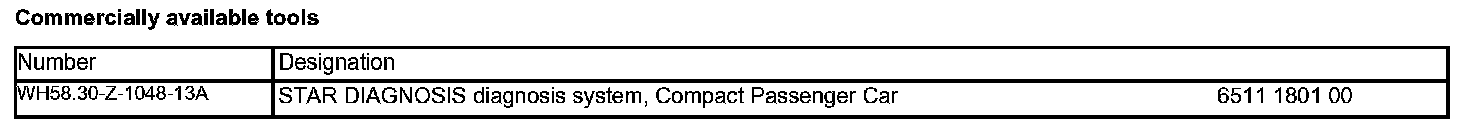

Commercially Available Tools:

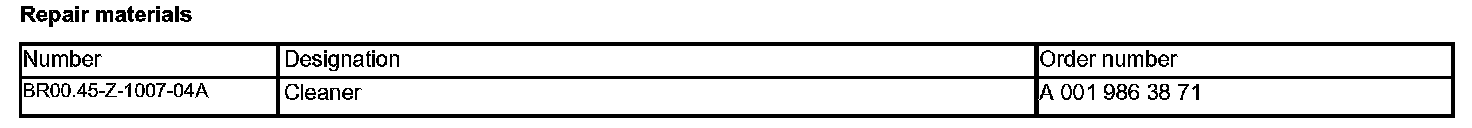

Repair Materials:
