Power Window Control Module: Service and Repair
AR67.39-P-4170SC Remove/install Rear Control Unit

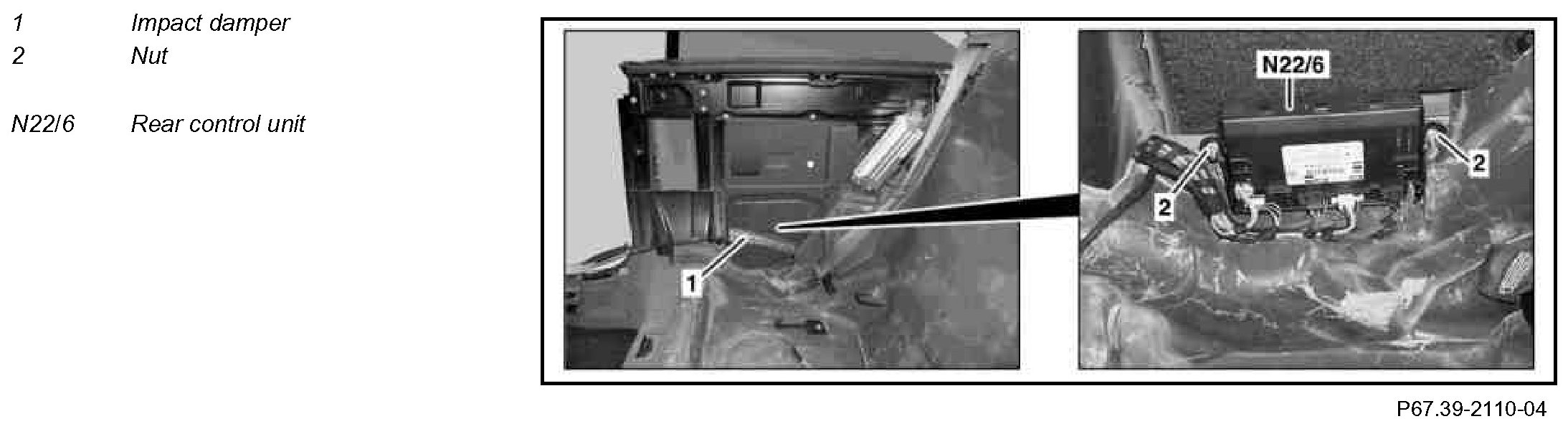

Component Identification:

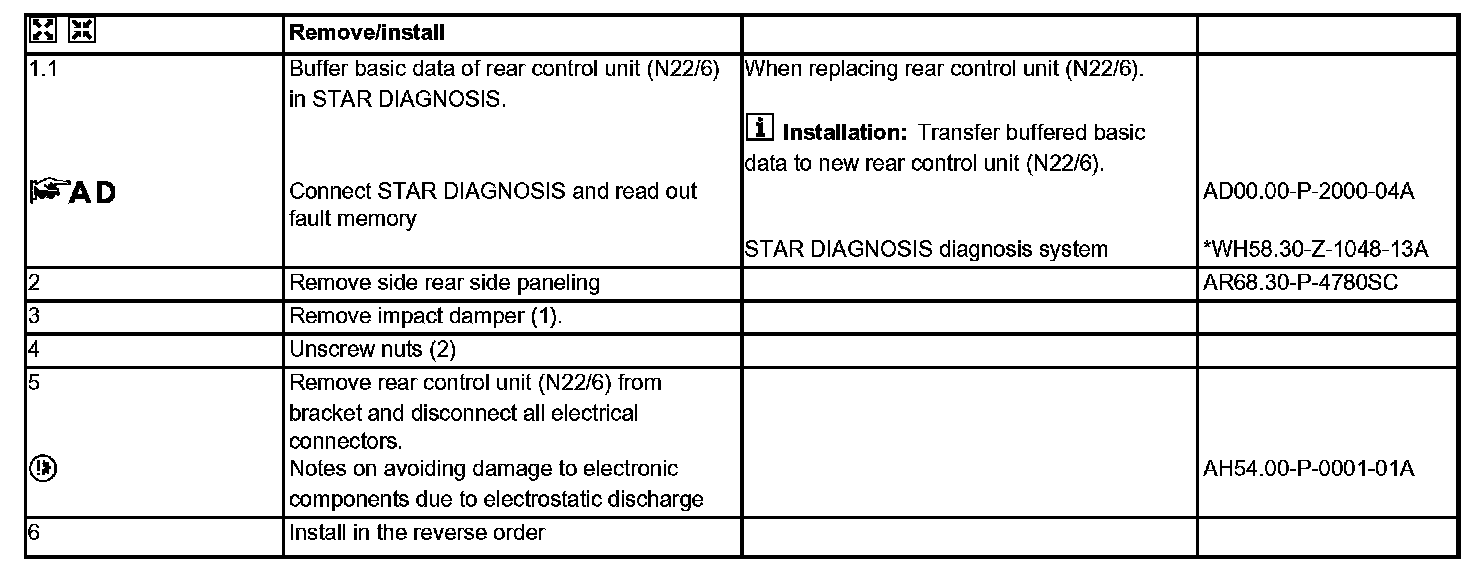

Steps 1.1-6:

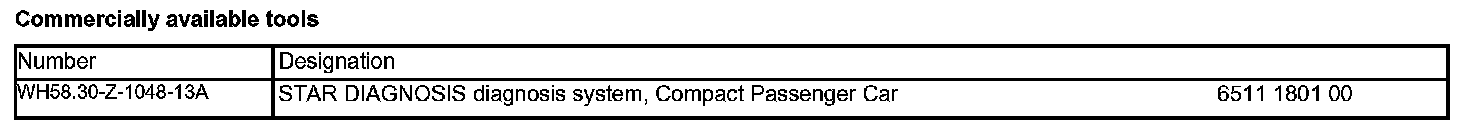

Commercially Available Tools:
