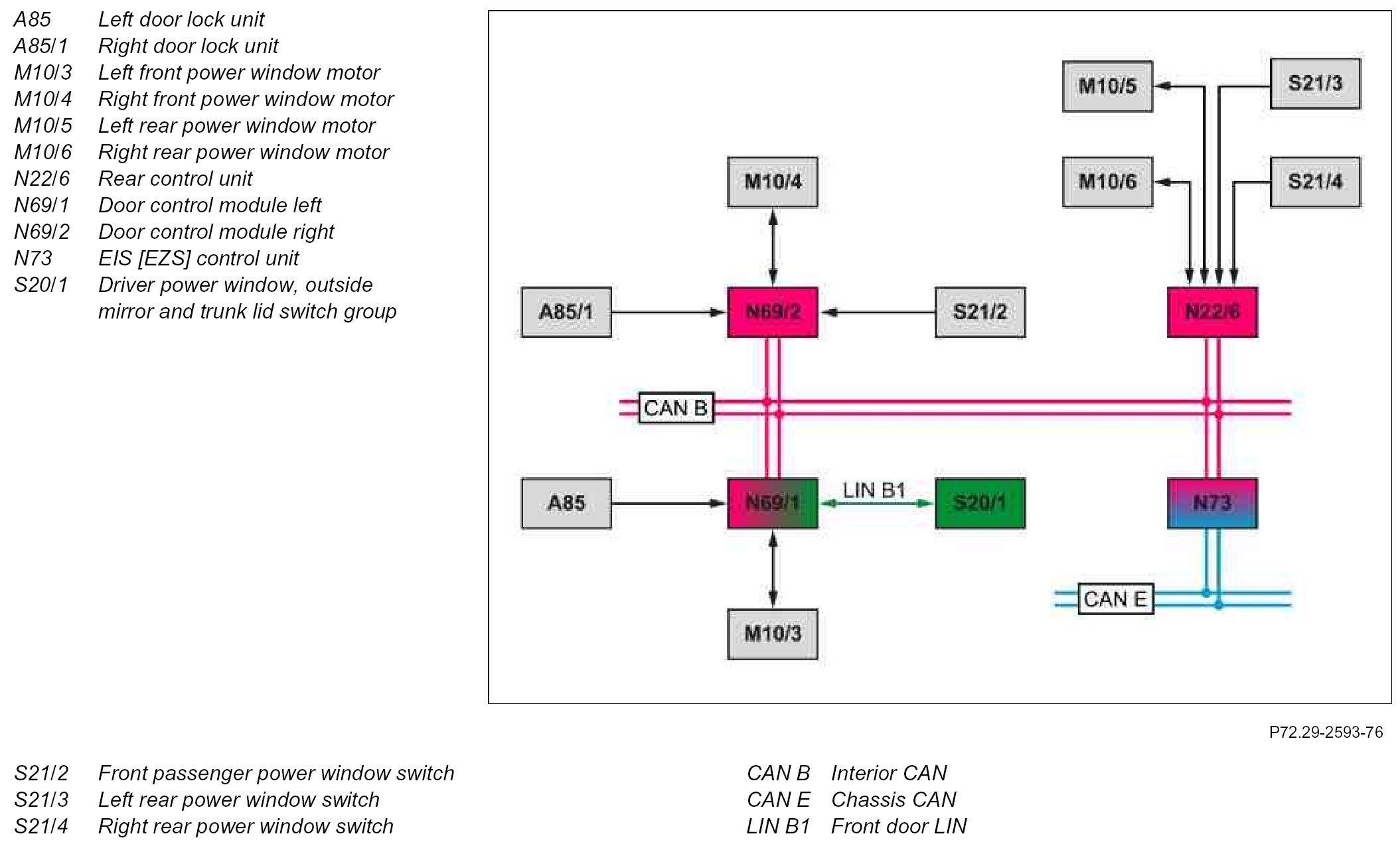

GF72.29-P-0003-03LA Power Window (PW), Block Diagram
GF72.29-P-0003-03LA Power Window (PW), Block Diagram
GF72.29-P-0003-03LA Power Window (PW), Block Diagram
- as of model year 09
Component Identification:
