AR22.10-P-1180SX Remove/Install Engine Mount or Engine Crossmember at the Rear



AR22.10-P-1180SX Remove/install engine mount or engine crossmember at the rear

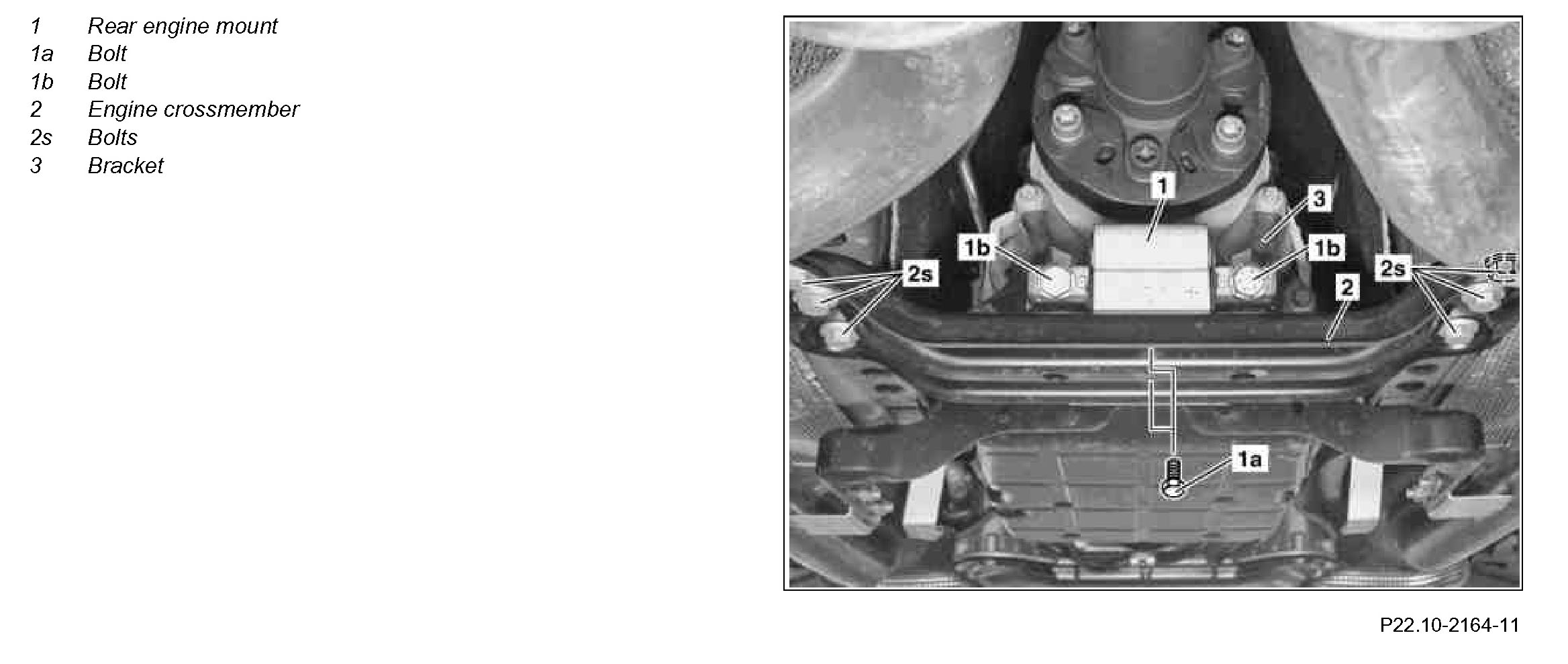

Component Identification:

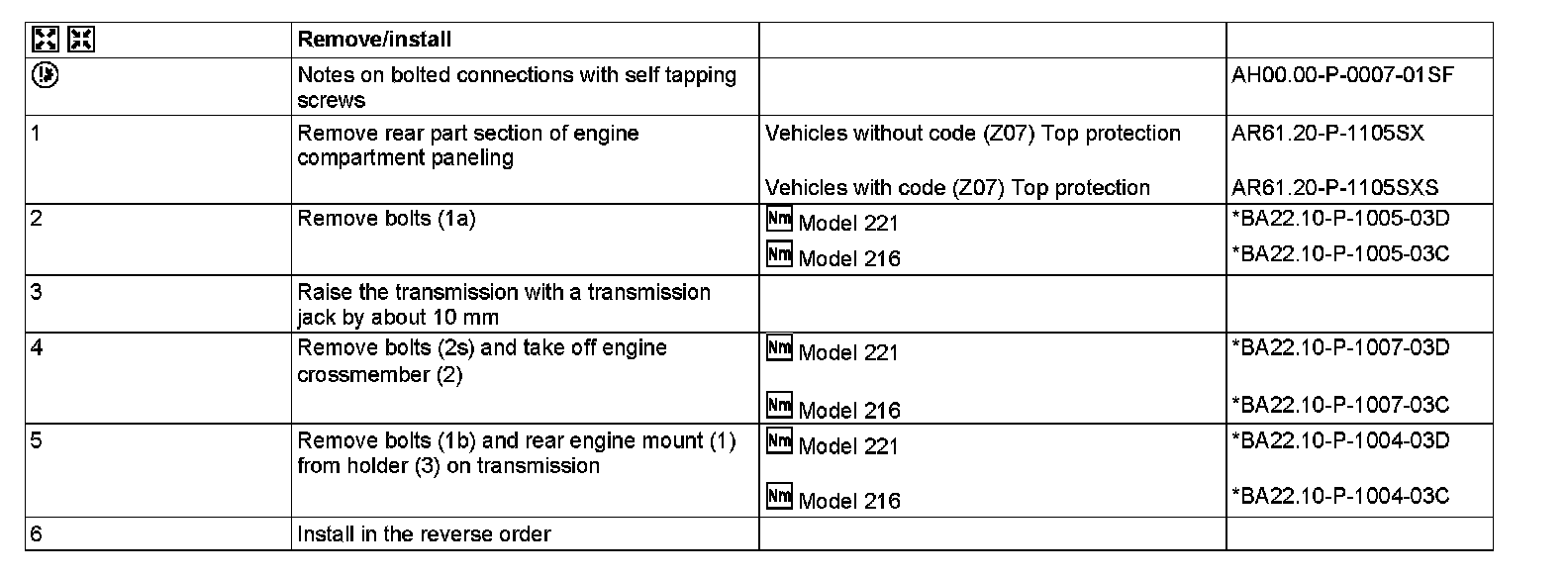

Steps 1-6:

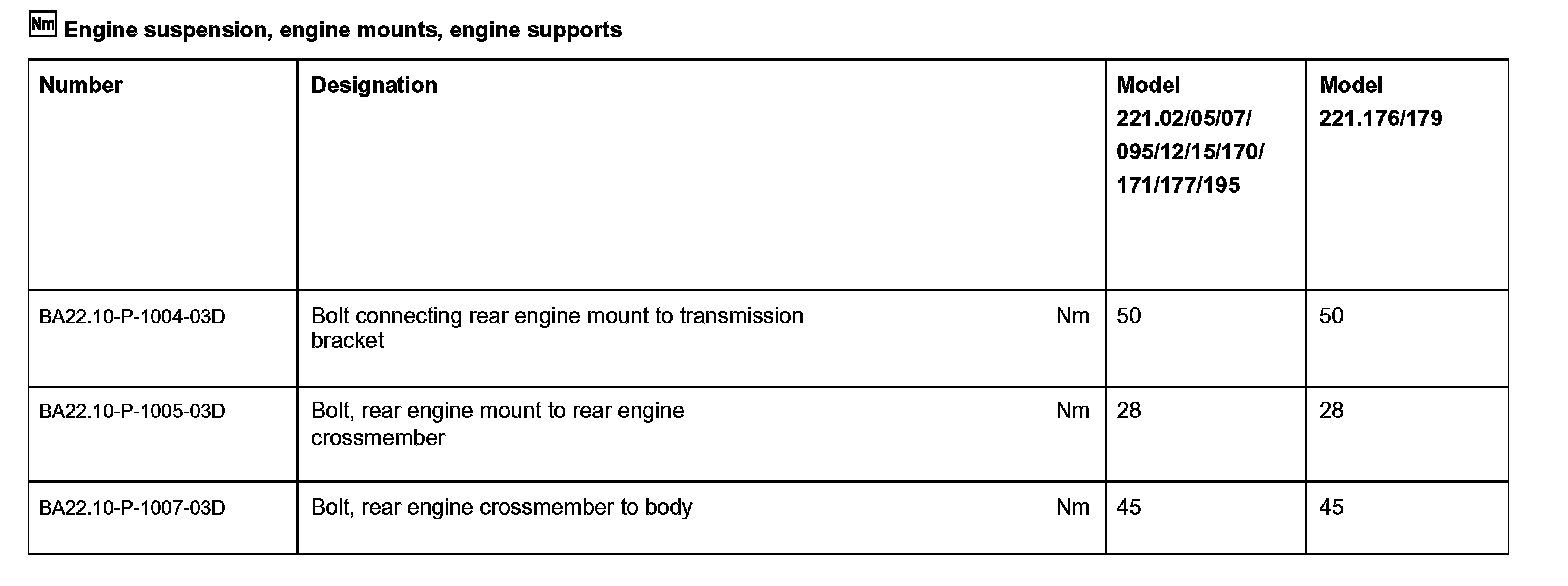

Engine suspension, engine mounts, engine supports:

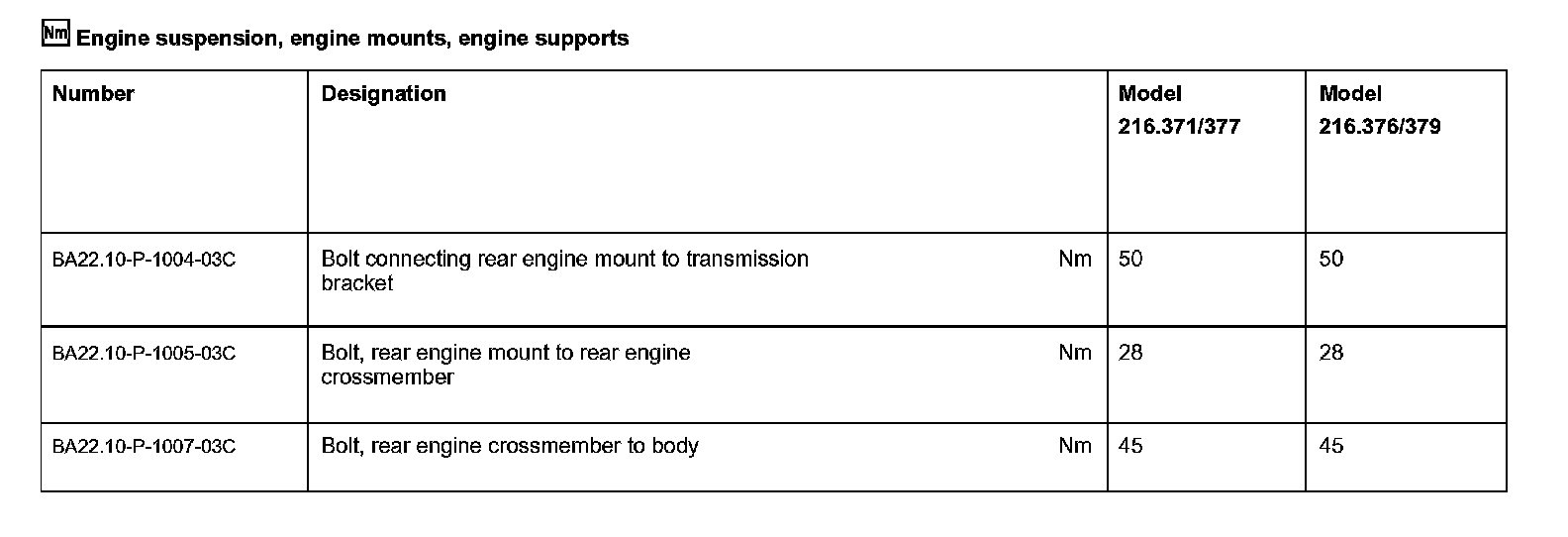

Engine suspension, engine mounts, engine supports:
