AR03.30-P-8001MM Remove/Install Flywheel / Drive Plate




AR03.30-P-8001MM Remove/Install Flywheel / Drive Plate







Shown on engine 278

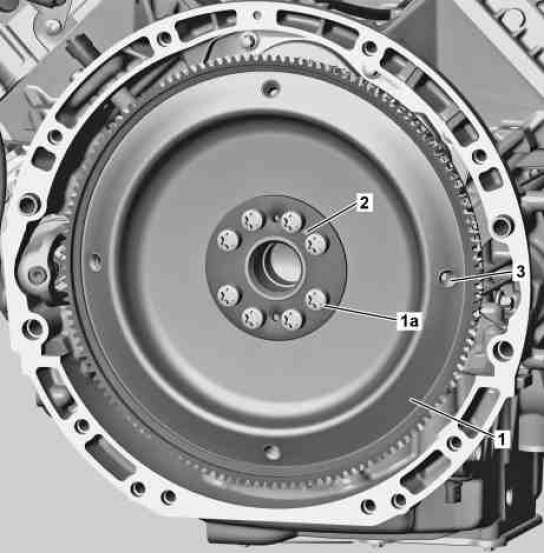

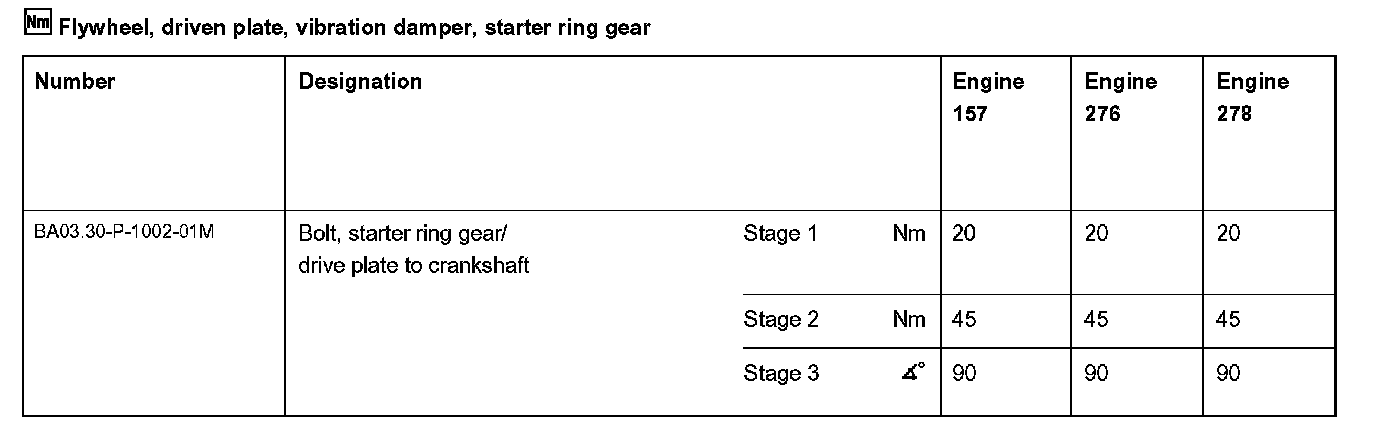

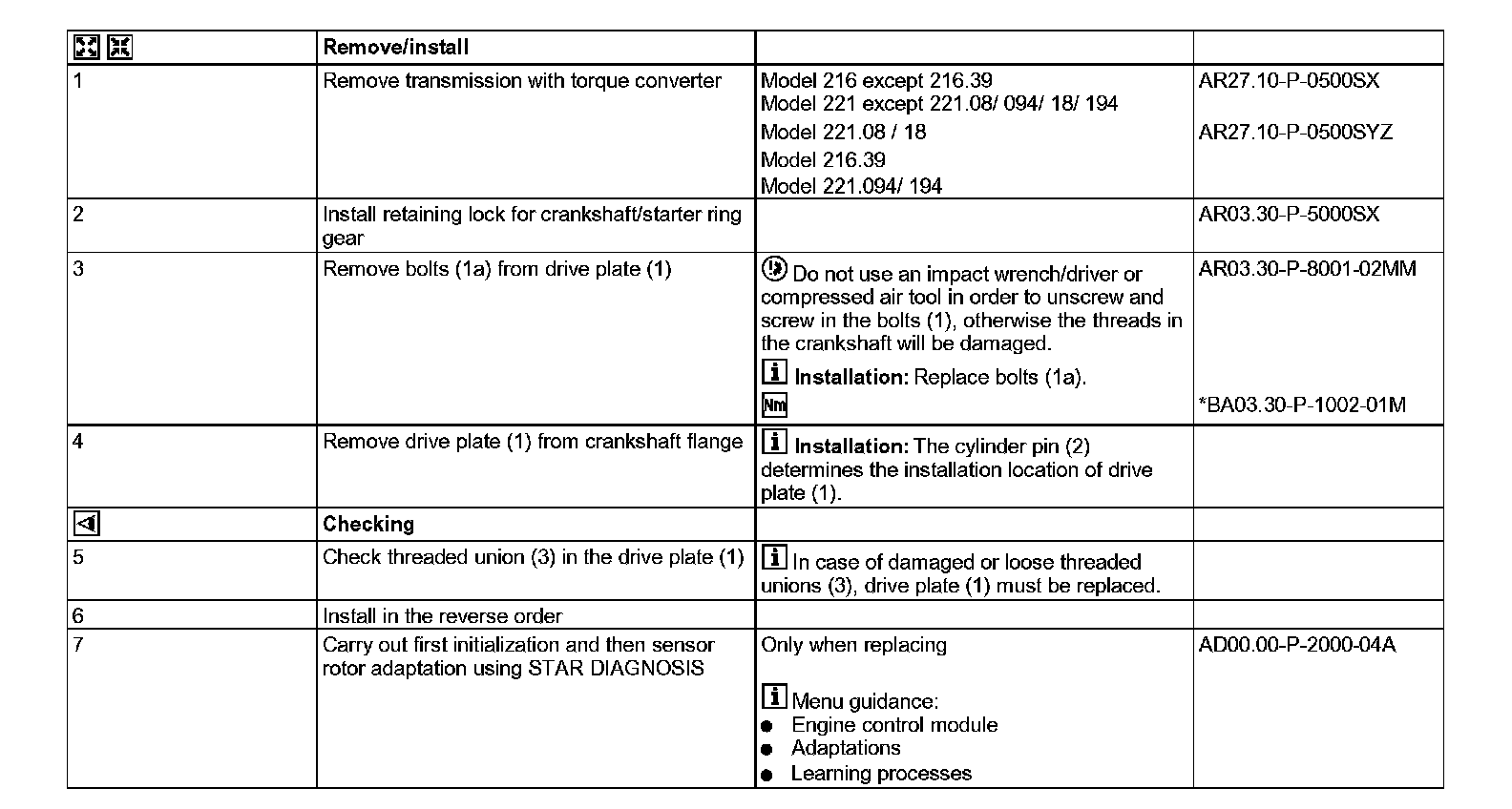

1 Clutch plate
1a Screw
2 Cylinder pin
3 Threaded tool
