AR41.10-P-0200SX Replace Centering Sleeve
AR41.10-P-0200SX Replace Centering Sleeve
AR41.10-P-0200SX Replace centering sleeve

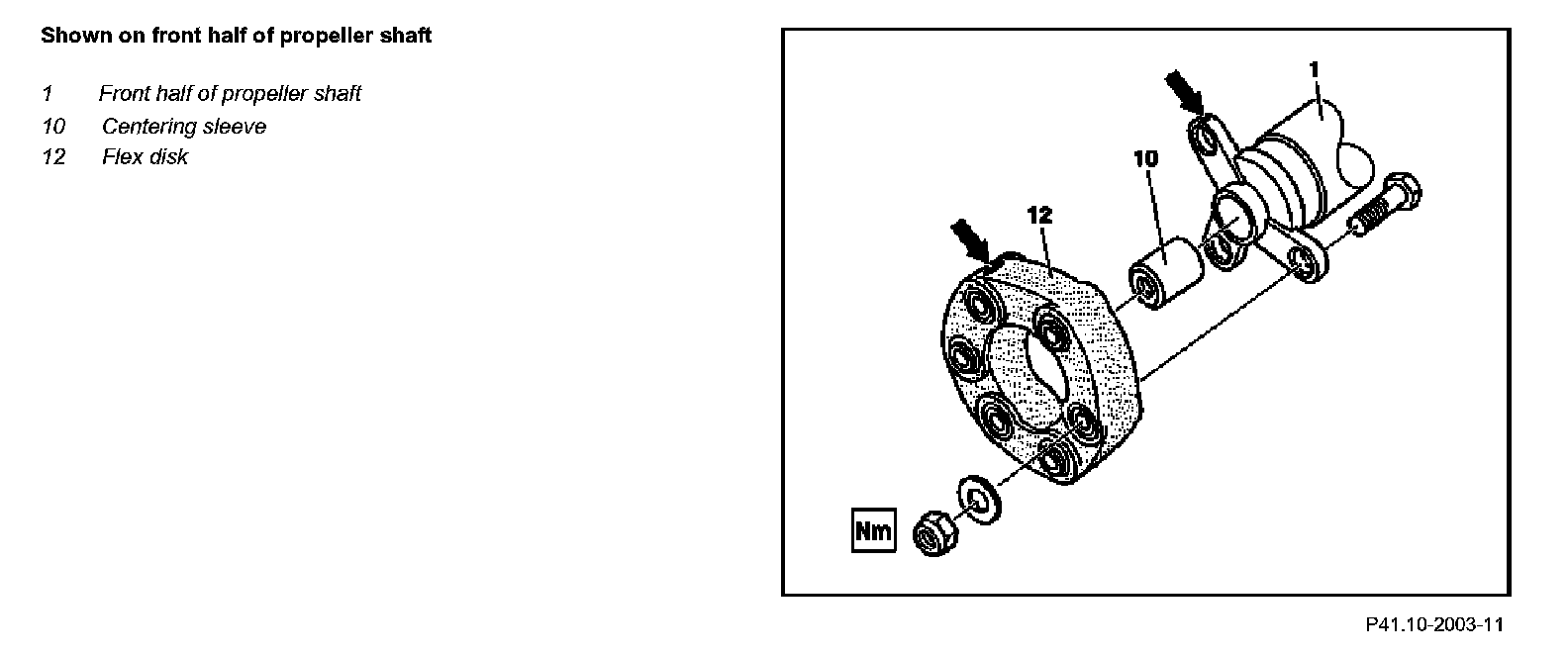

Component Identification:

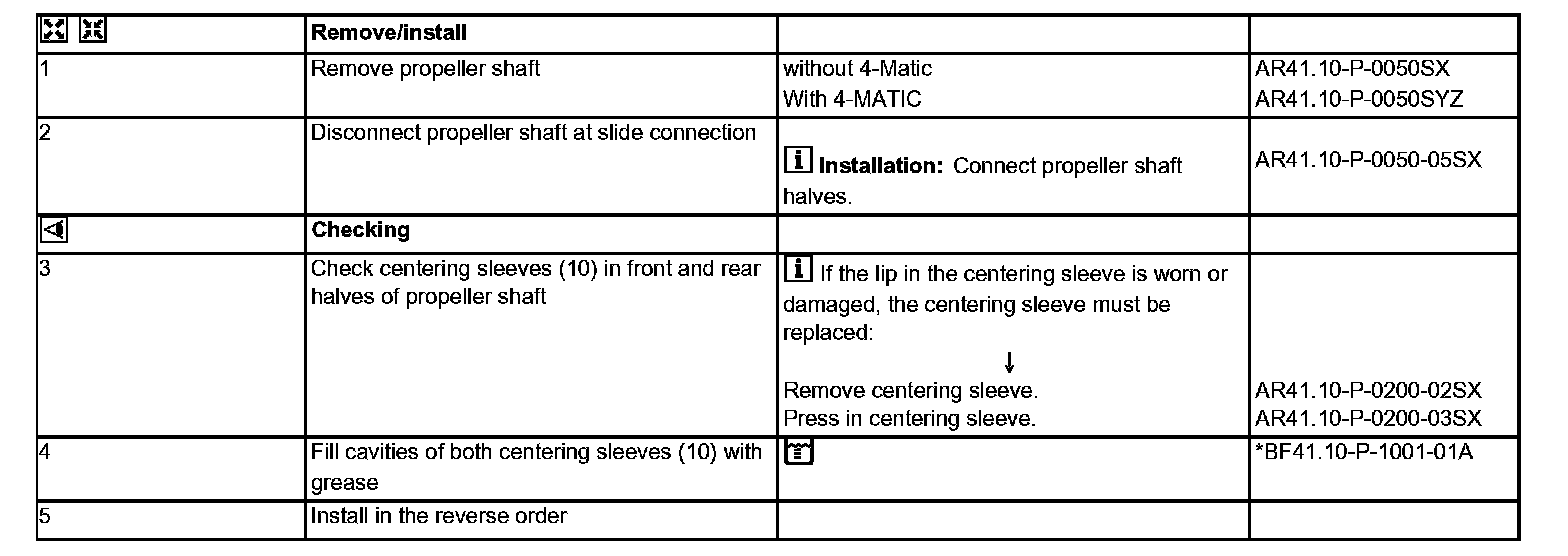

Remove/Install 1-5:

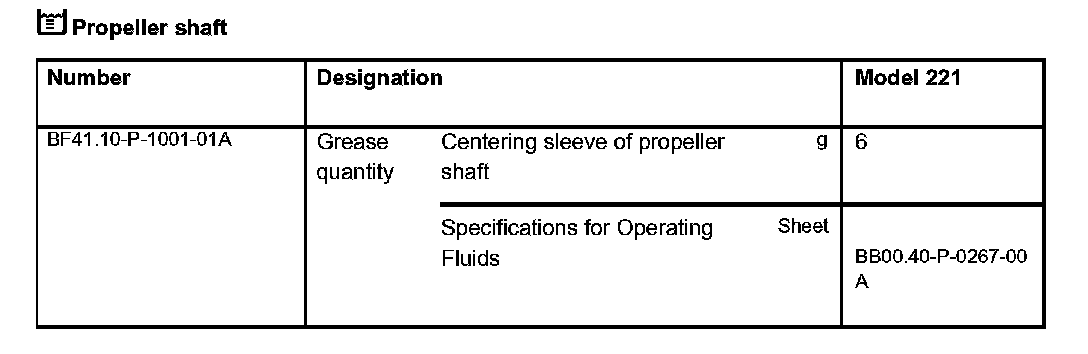

Propeller Shaft:
