AR41.10-P-0050-04SX Mount Rear Propeller Shaft to Rear Axle Center Assembly

AR41.10-P-0050-04SX Mount rear propeller shaft to rear axle center assembly

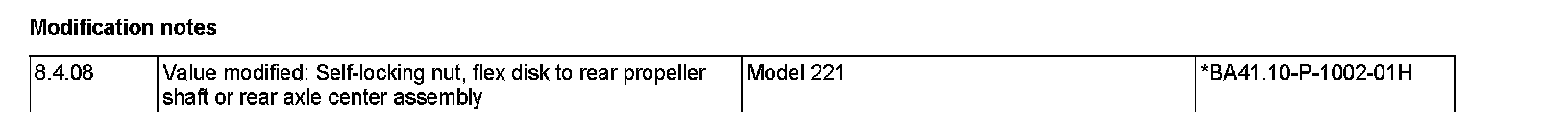

Modification notes:

Propeller shaft:

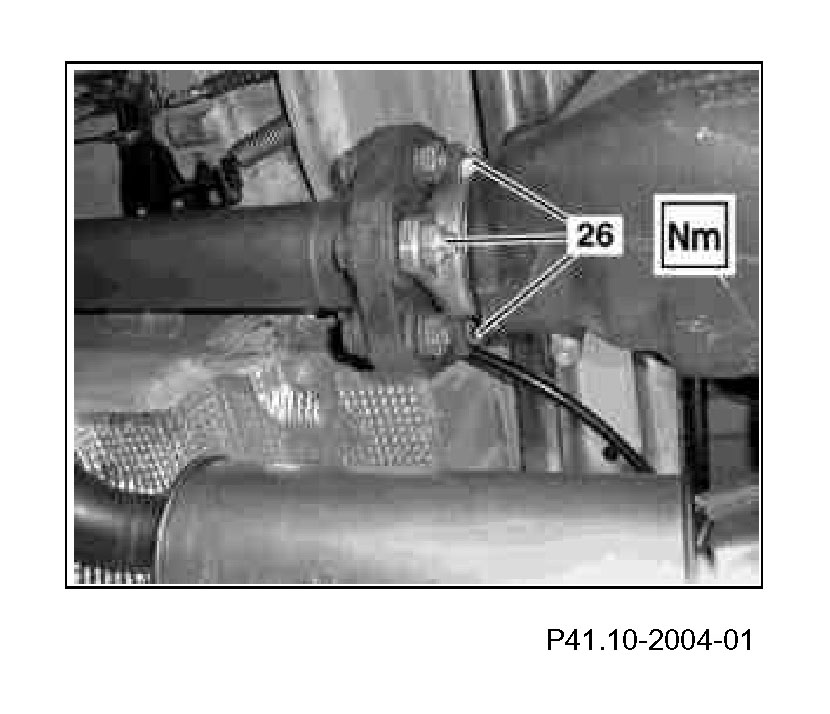

Replace self-locking nuts (26). Align color markings before mounting propeller shaft.

1 Mount propeller shaft on rear axle center assembly.
