Mechanical Specifications
AR35.31-P-0530SX Rear Axle
-
with TRANSMISSION 722.9/6

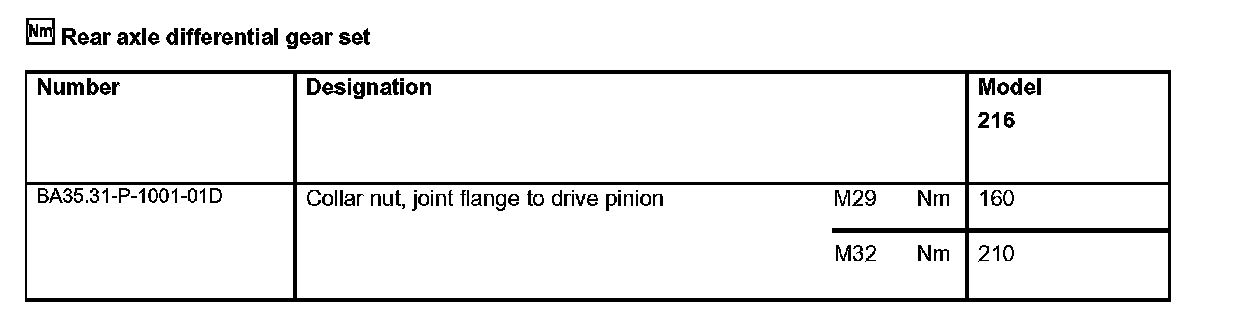

Rear axle differential gear set:

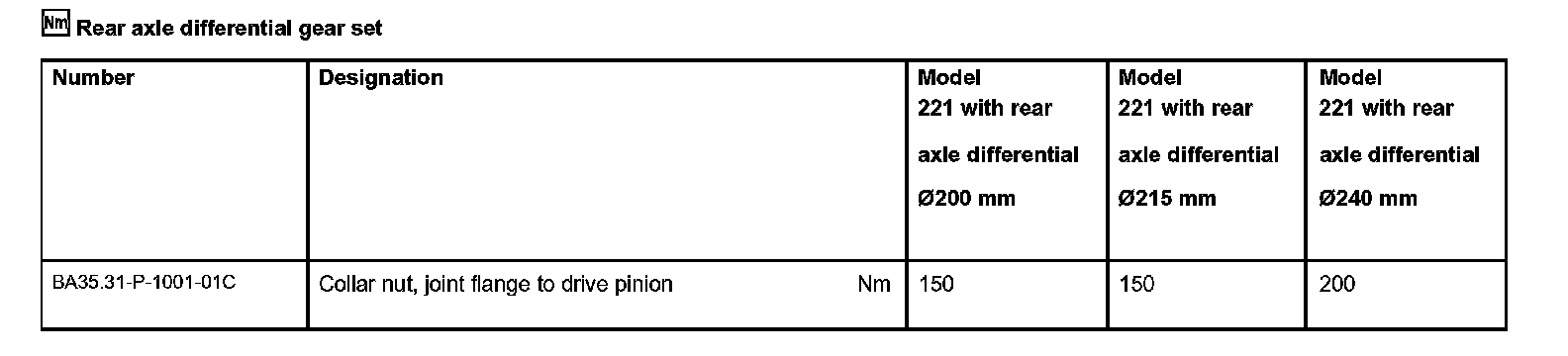

Rear axle differential gear set:
