AR35.10-P-0050SX Remove/Install Rear Rubber Mounts For Differential Mount In Rear Axle Carrier



AR35.10-P-0050SX Remove/install rear rubber mounts for differential mount in rear axle carrier

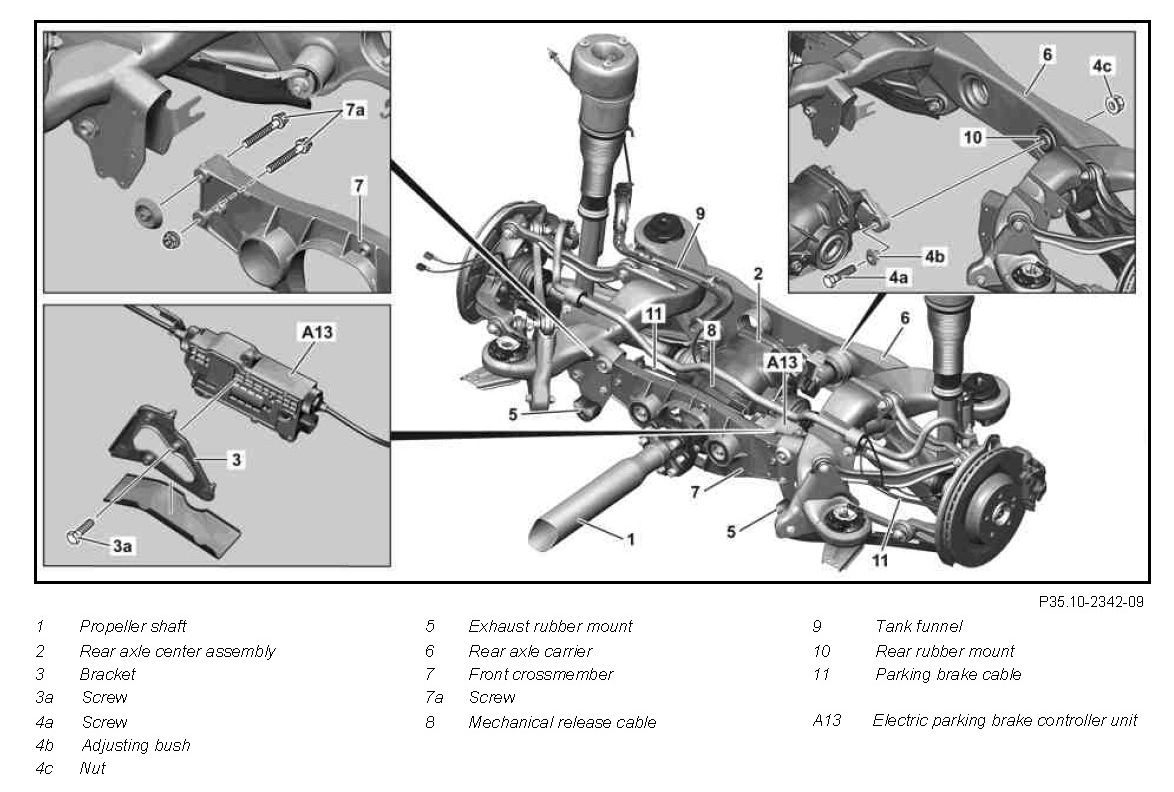

Component Identification:

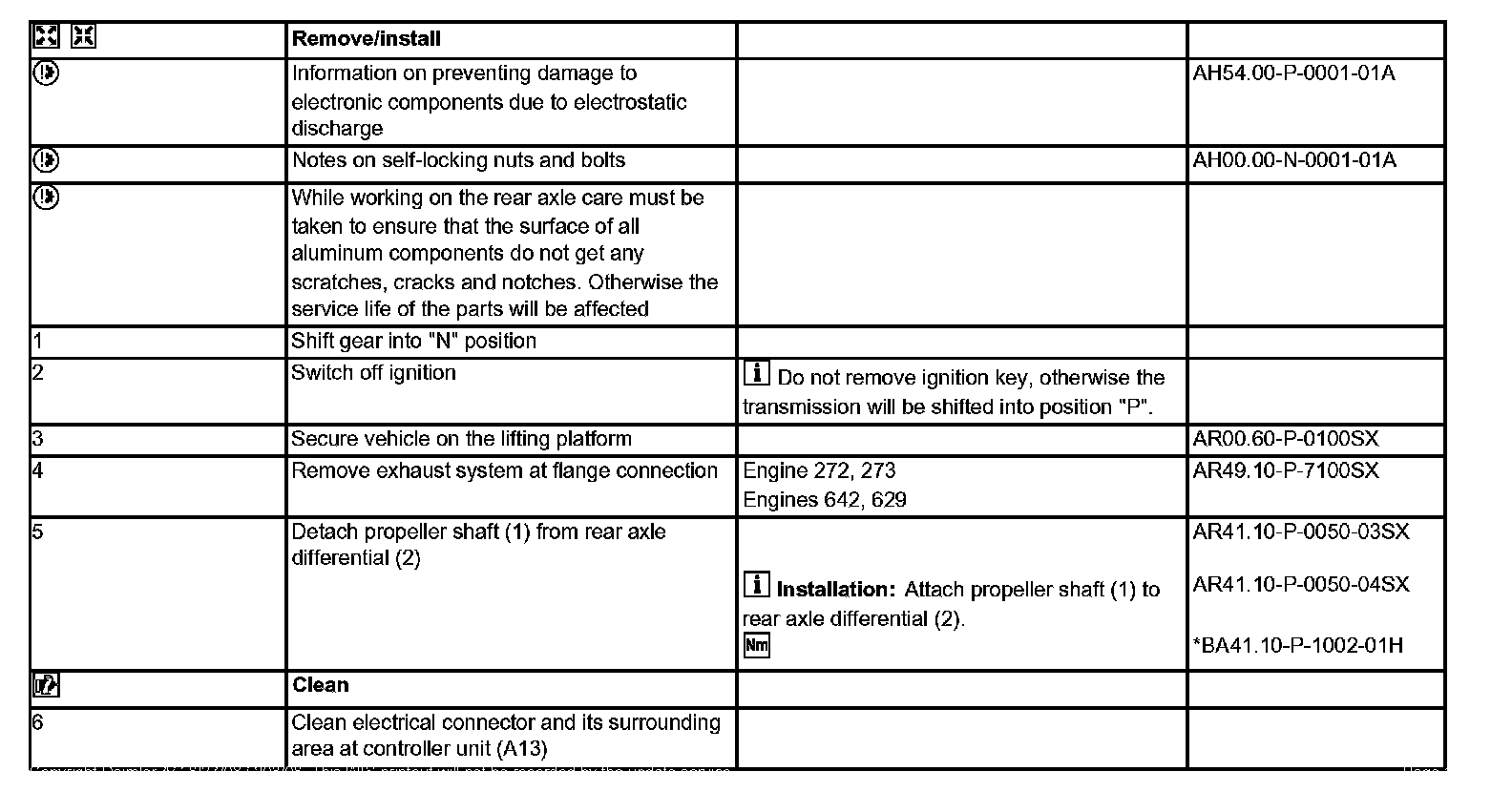

Remove/install Steps 1-6:

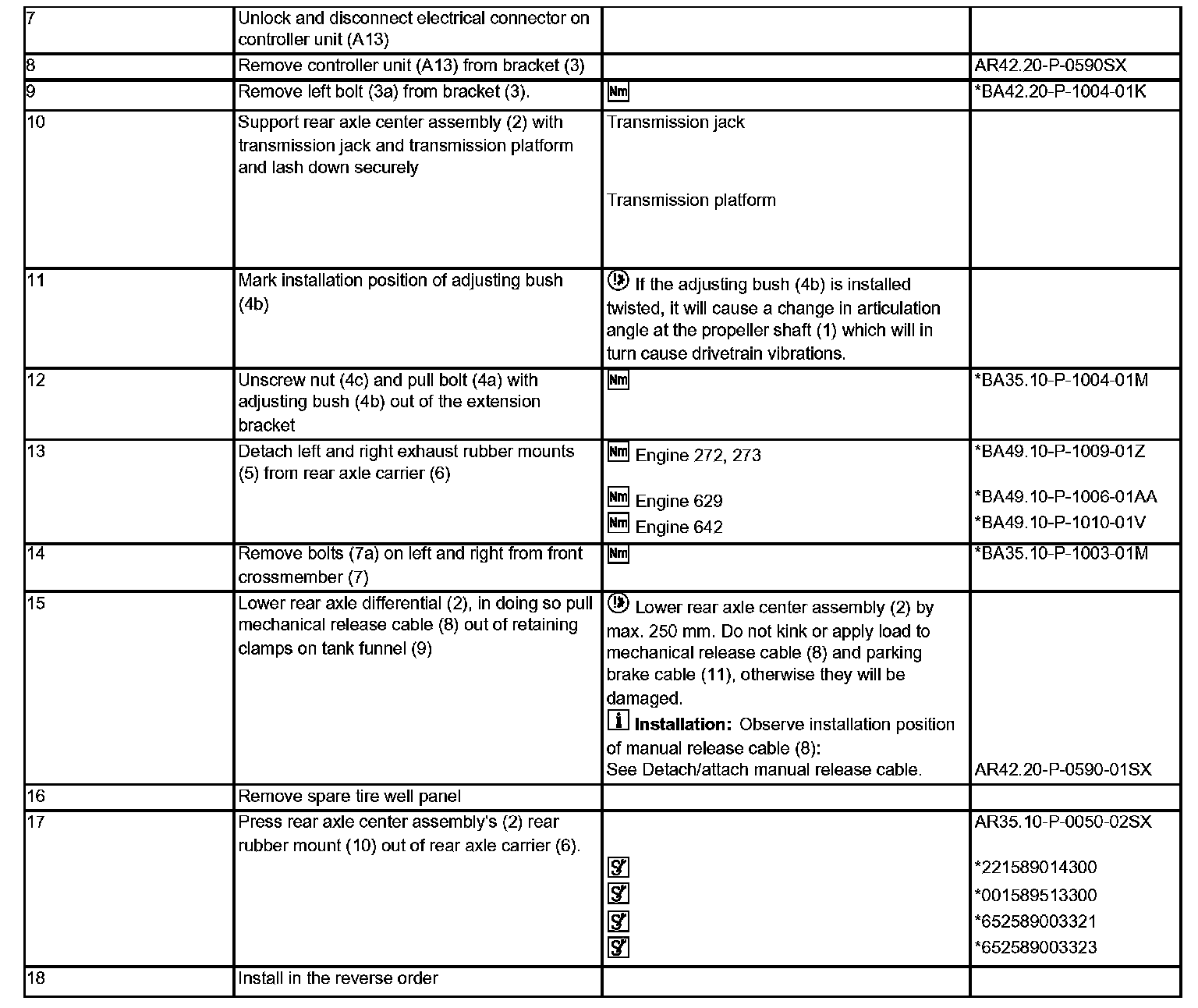

Remove/install Steps 7-18:




Parking brake:

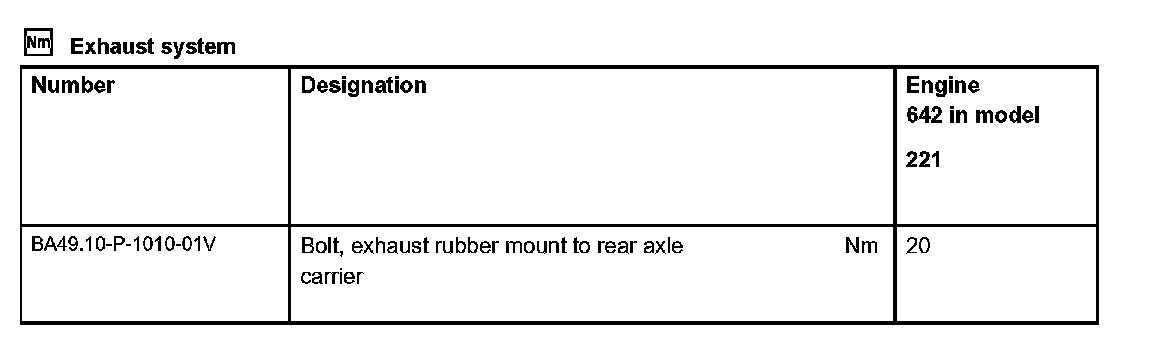

Exhaust system:

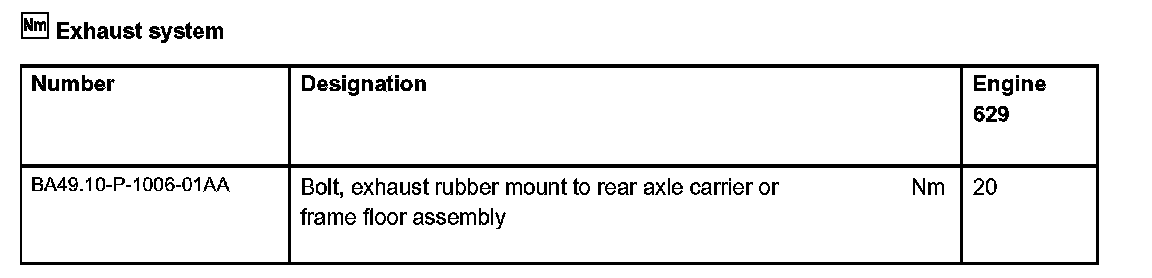

Exhaust system:

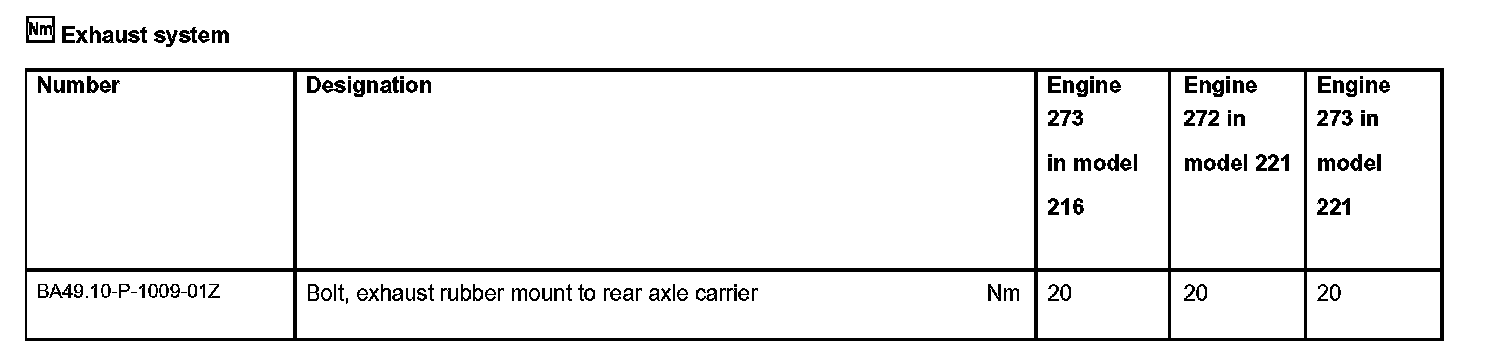

Exhaust system:

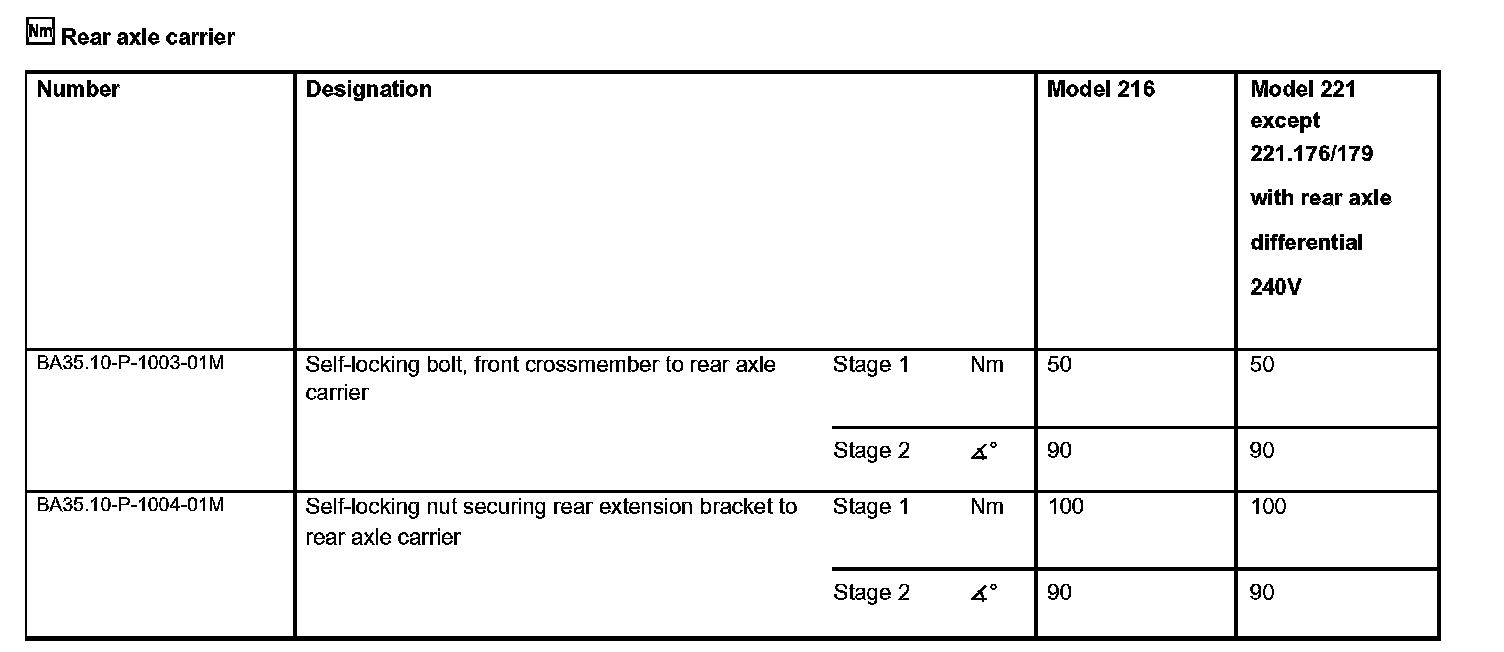

Rear axle carrier:

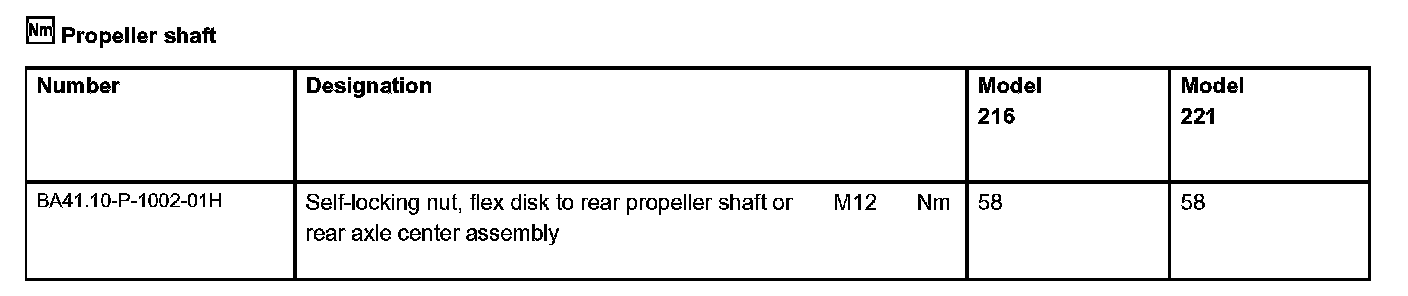

Propeller shaft:

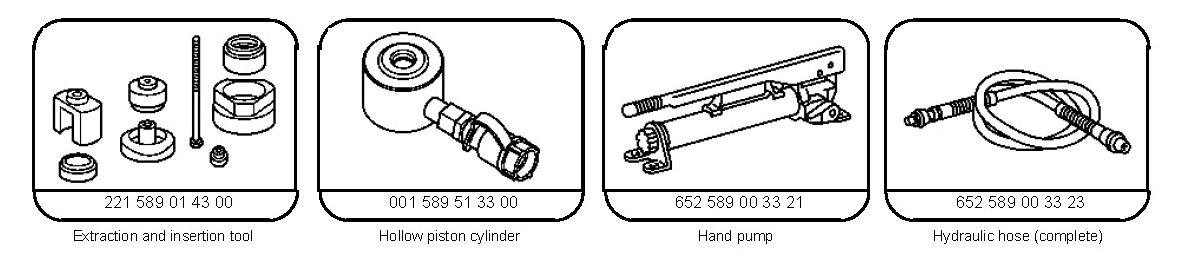

Special Tools:
