AR32.50-P-0030MMB Remove/Install Active Body Control Hydraulic Pump

AR32.50-P-0030MMB Remove/Install Active Body Control Hydraulic Pump
- MODEL 216, 221 with ENGINE 157, 278

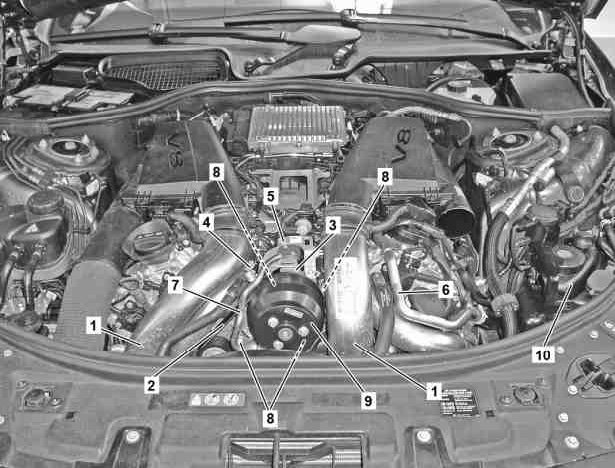

1 Charge air ducts
2 Poly-V-belt
3 Active Body Control (ABC) hydraulic pump
4 Charge air cooler vent line
5 Bracket
6 Active Body Control (ABC) feed line
7 Active Body Control (ABC) pressure line
8 Screw
9 Belt pulley
10 Active Body Control (ABC) expansion reservoir


















129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump
